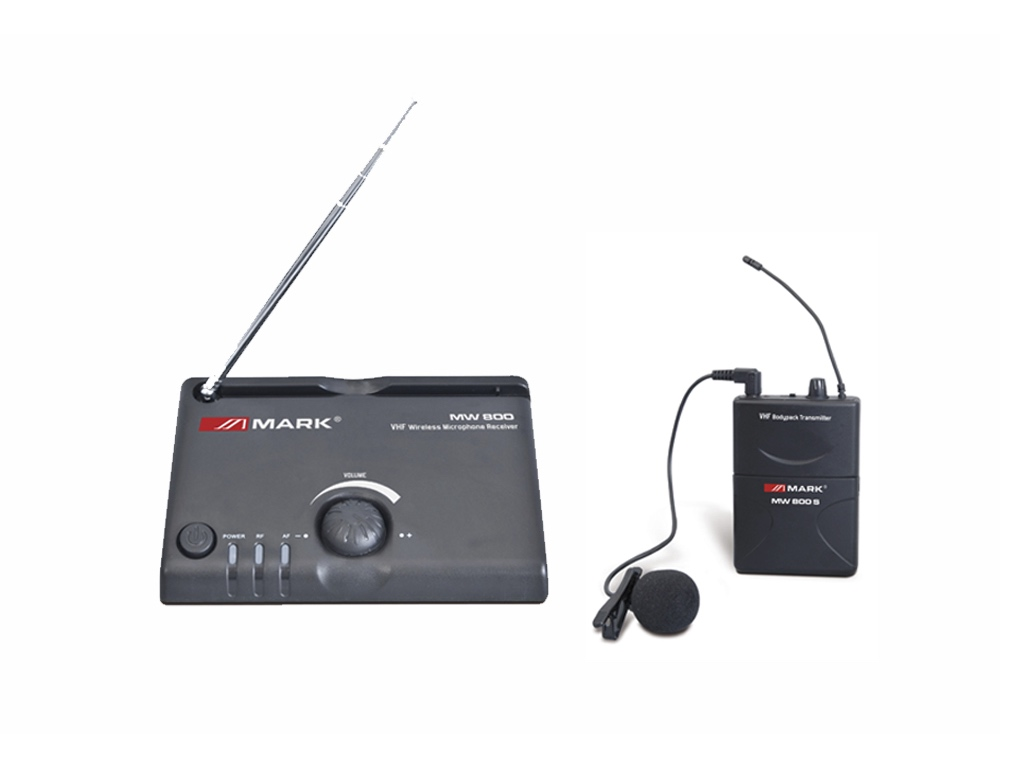

The MW 800 is a VHF wireless microphone system that incorporates improved features.For many reasons, wireless microphone systems, suffer interference because devices such as CD, VCD, etc. radian so many harmonics.To solve this problem, we designed this type of professional wireless microphone.We have adapted a number of steps to improve features like its advanced control frequency, narrowband filter and detection and multiple noise control. We have also incorporated special features (tone block to avoid external interferences).

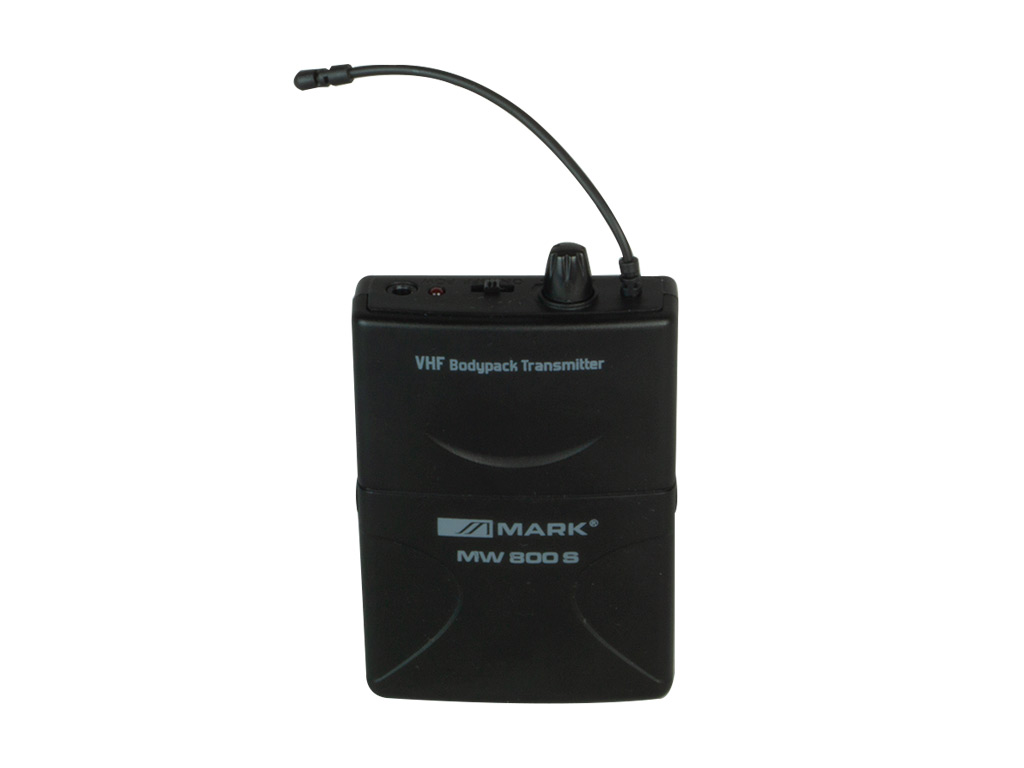

The receiving unit reduced in size, features LED lights that indicate connection with the emitter, on/off, etc.The bodypack transmitter unit of 800 MW S incorporates a selector to adjust sensitivity and a potentiometer for fine Squeclh adjustment. Both transmitters are designed to optimize the usage time with minimum battery consumption.
- VHF Band.
- Bodypack Transmissor.
- Lavalier microphone.
- Power supply included.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Frecuency Band | VHF |
| Frecuency stability | < +/-30 ppm |
| THD | < 0.8% |
| Dynamic Range | > 90dB |
| Frequency Response | 40 Hz - 15 KHz |
| Audio Output level | 400 mV |
| S/N Ratio | > 90 dB |
| De-Emphasis | 50 useg |
| Emtting power | 10 mW |
| Modulation | FM |
| Thresold rejected channel | > 80 dB |
| Spurious emisions | > 40 dB |
| Image rejection | > 80 dB |
| Continuous use | 6 horas/ 6 hours |
| Power supply | RECEIVER: 10-17V DC (power supply included), BODYPACK: 2 AA 1.5 V batteries |
| Receive sensitivity | 4 dBu (SINAD=20dB) |
| Compatible headset | XS 100, XS 900, XS 1300, XS 1350, XS 1400, XS 1450, XS 1800; MINIJACK 3.5mm |
| Compatible lavalier mics | XS 2010, XS 2020, XS 2030 |
| Dimensions | RECEIVER: 150 x 100 x 30 mm, BODYPACK: 80 x 60 x 20 mm |
| Weight | RECEIVER: 360 g, BODYPACK: 140 g |
