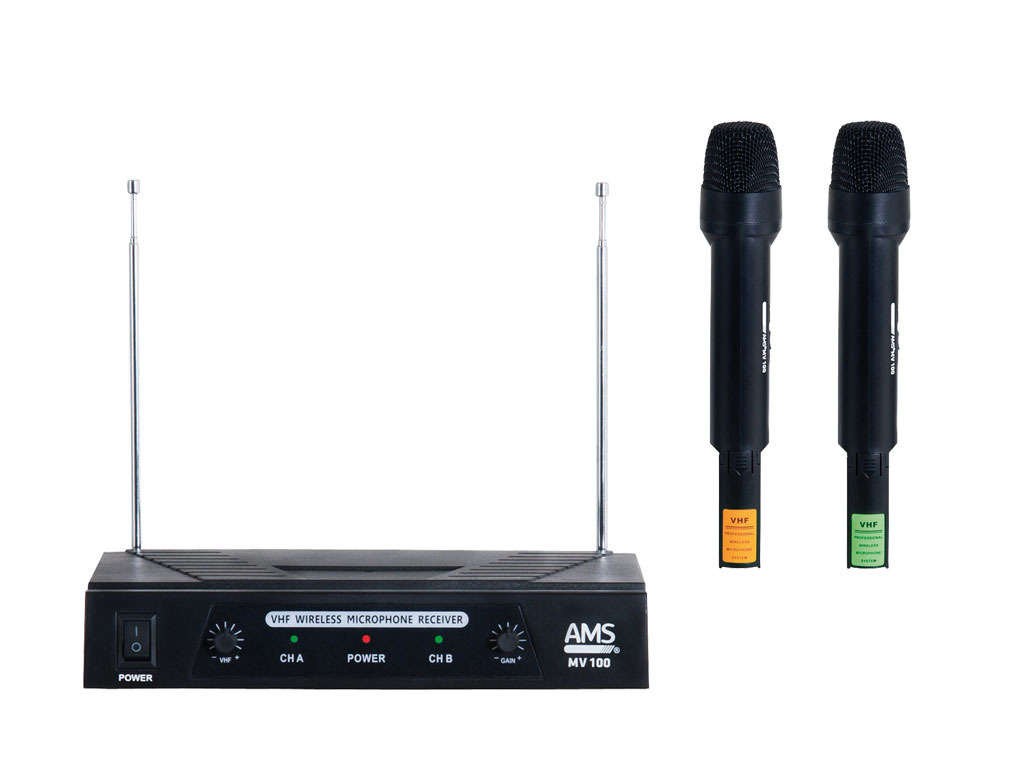

MV 100 M is a two-channel wireless system in the VHF range with two hand-held microphones. The receiver has gain controls for both frequency channels and LEDs to indicate the receiving and power status. It also has a mixed output of both channels via an unbalanced jack (¼" - ¼" jack cable included).

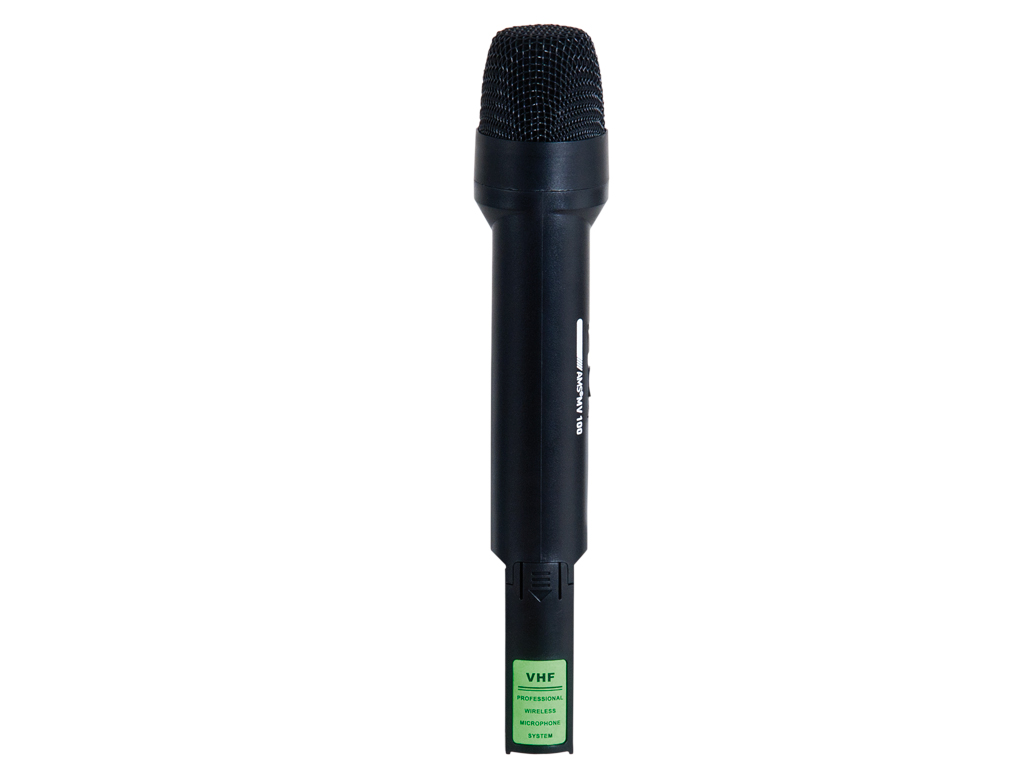

- 2 wireless handheld microphones

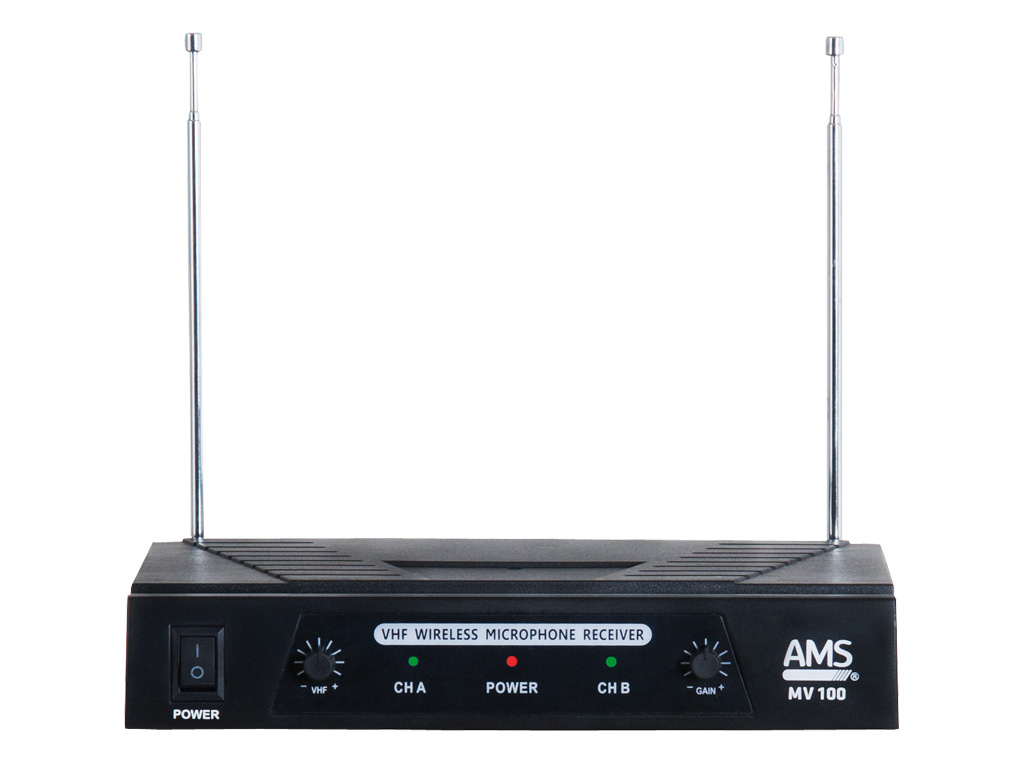

- 1 double receiver.
- 220-270 MHz.
- Mixed output of both channels.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Frecuency Band | VHF band. 220-270 MHz |
| Modulation | FM |
| S/N ratio | > 90 dB |
| Dynamic Range | > 100 dB |
| THD | 0.5% |
| Operating distance | 50 m |
| Operating temperature | -10ºC to 50ºC |
| Emtting power | 30 mW |
| Power supply | Transmitter: Battery 9V DC 6F22; Direct AC 220V power supply |
| Battery life | 8 horas/ 8 hours |
| Dimensions | Transmitter: 250 x 40 mm; Receiver: 212 x 150 x 40 mm |
| Weight | Transmitter: 120 g; Receiver: 420 g |
