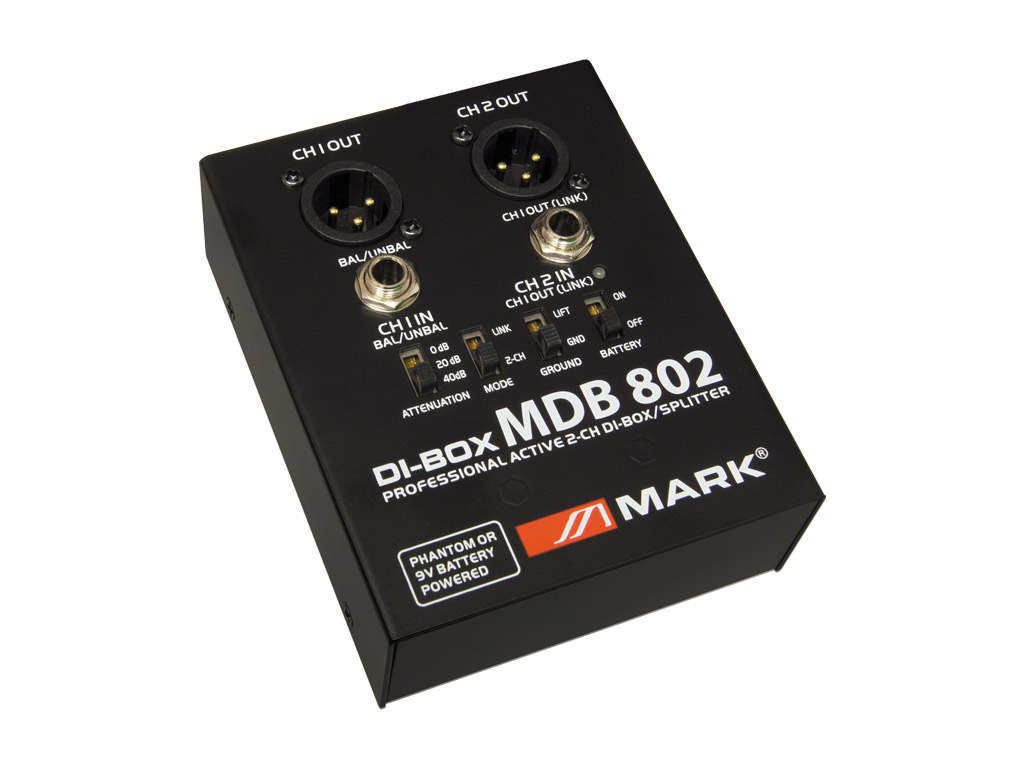

MDB 802 is an active two-channel injection box that can also be used as an audio splitter. Its main function is to convert unbalanced signals into balanced ones with which to connect, for example, an instrument to a mixer. When using 2 channels, another application of this device is the mixer, converting the signal from unbalanced to balanced and sending one of the channels to another device.
MDB 802 has servo-balanced inputs and outputs. The internal circuitry is designed with a hum suppressor; therefore, the integrity of the balanced signals is correct even at high levels.
The servo function automatically detects unbalanced connections and internally changes the nominal level by 6 dB, so that there is no difference in level between input and output.

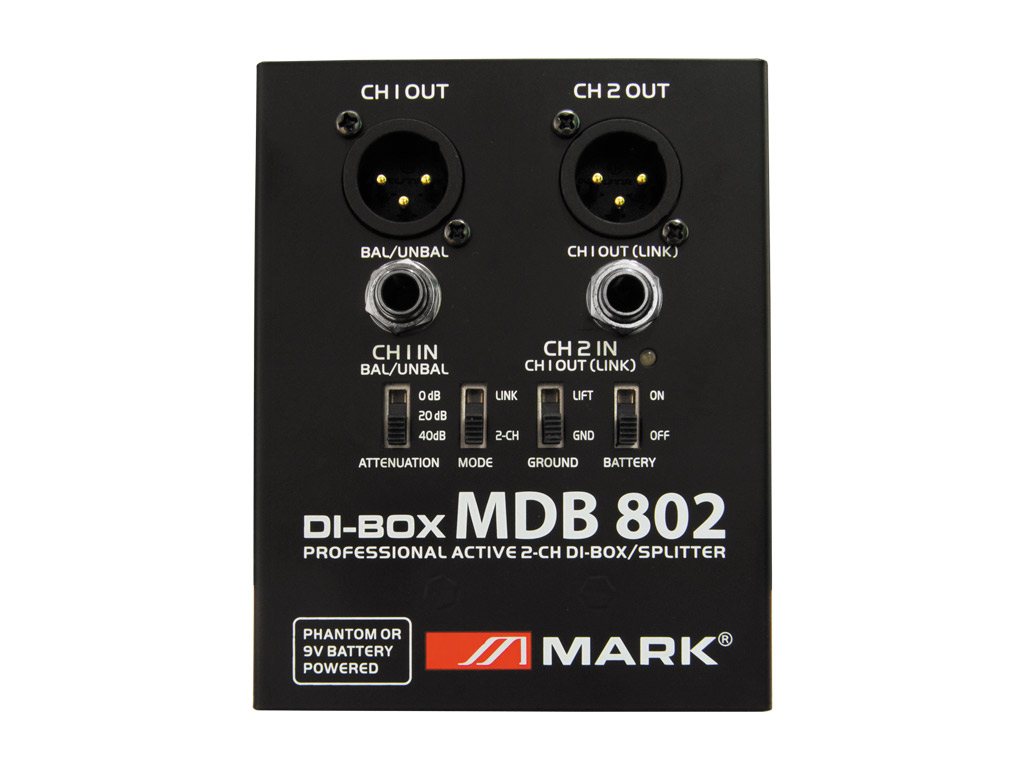

MDB 802 also has an attenuator with 3 positions: 0, 20 and 40 dB, mode selector (LINK or 2 channels), ground lift switch and activation of the internal power battery in case of connecting the device with phantom power.
- 2 operating modes: LINK and 2-channel.
- Lift ground switch.

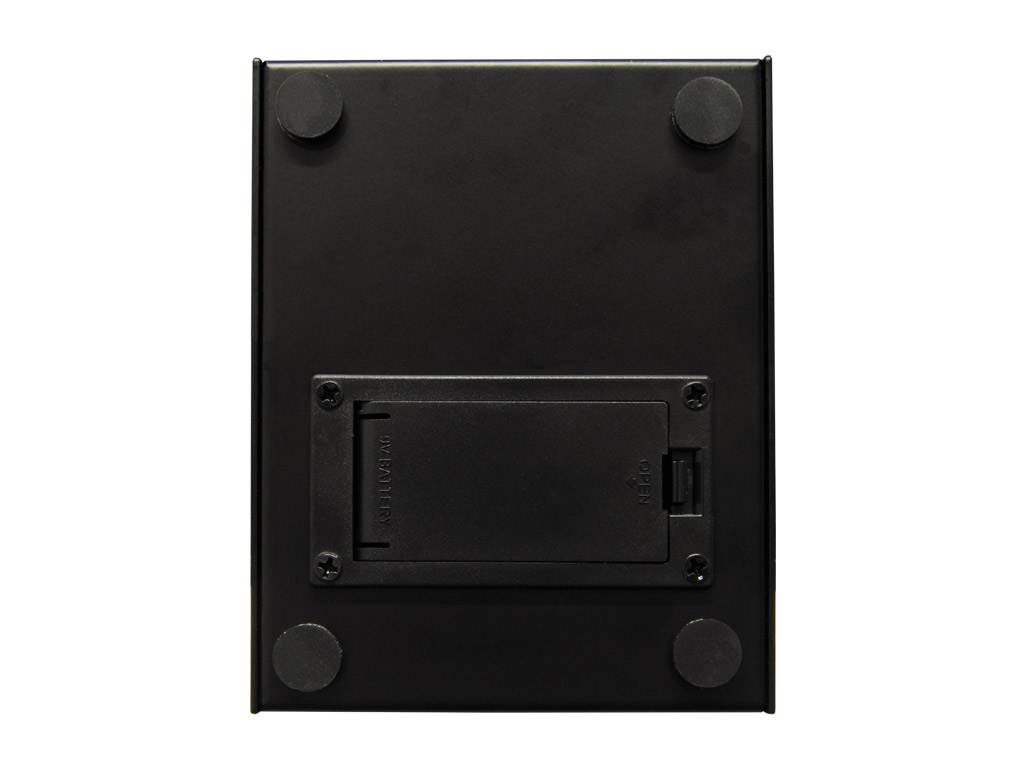

- Power supply with 9V 6LR61 battery or phantom 18 to 48 V.
- Robust design and construction for reliable performance.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Channels | 2 entradas / 2 salidas/ 2 inputs / 2 outputs |
| Frequency Response | 10 Hz - 70 KHz (-3 dB) |
| S/N ratio | 100 dBu |
| THD | < 0.014 % |
| Input Impedance | > 600 Ohm |
| Attenuator | 0 dB / 20 dB / 40 dB |
| Maximum input level | +12 / +32 / +52 dBu |
| Phantom Power | 18 V DC a 48 V DC. Batería 9 V (6LR61)/ 18 V DC to 48 V DC. 9 V battery (6LR61) |
| Connections | Input: 1/4" jack, output: XLR3 male |
| Dimensions | 150 x 130 x 60 mm |
| Weight | 240 g |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.15 | 0.13 | 0.06 | 0.24 |
| Box | 0.16 | 0.23 | 0.08 | 0.60 |
| Master Carton | 0.34 | 0.49 | 0.42 | 0.00 |
