Lighting
COB 200 4 IP
28MAR059
RGBW
IP65
DMX
90º <

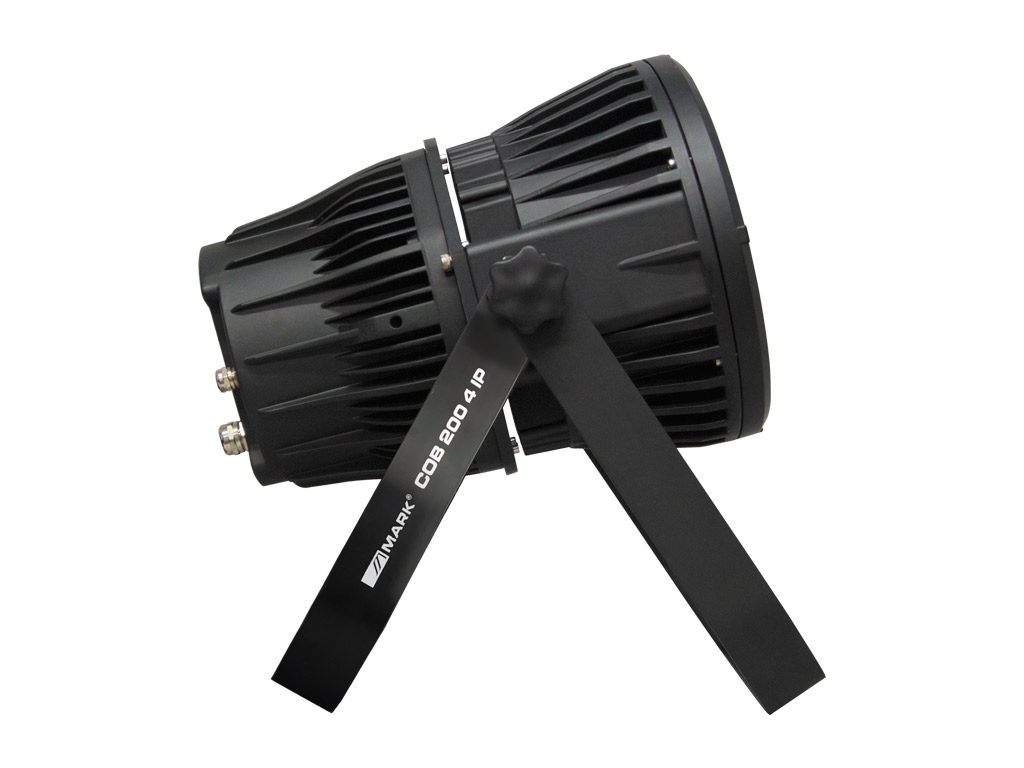

Lighting Projector. Waterproof.
COB 200 4 IP is a powerful projector which includes 1x COB RGBW LED (4 in 1) of 150W. This device allows to obtain rich colour variations mixing these 4 tones.
The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as manual dimmer, fixed colours and two strobe modes with speed control.
Its high IP range (IP65) allows to be used in outdoor applications, thanks to its connectors with protections and the sealed enclosure.
The device includes DMX mode (8 channels) with individual dimming level, strobe function and automatic program with speed control.
Features
- 1 x 150W LED COB RGBW
- 8 DMX channels.
- 90º angle beam
- IP 65
| Light engine | 1 x 150W LED COB RGBW |
| Power | 150 W |
| Beam angle | 15º |
| DMX channels | 8 DMX channels |
| Operating modes | DMX 512 /Manual/Audio/Auto/Master-Slave |
| Controls | Configuration menu navigation buttons |
| Indicators | 4-digit display |
| Connections | Power supply: Built-in cable; DMX: Built-in cable with XLR3 input/output connector |
| Colour | Black |
| Rigging | Double U-Bracket handle |
| IP Protection | IP 65 |
| Power supply | 110-240 V 50/60 Hz |
| Dimensions | 240 x 240 x 320 mm |
| Weight | 7 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.32 | 0.24 | 0.24 | 7.00 |
| Box | 0.29 | 0.30 | 0.48 | 9.06 |
| Master Carton | 0.31 | 0.61 | 0.50 | 20.00 |
- Lighting projector that includes 1x COB RGBW LED (4 in 1) of 150W.
- IP 65 for outdoor applications.
- Display and interface for setting functions.
- 10 fixed colour variation and manual dimming level of each colour.
- Strobe function.
- Automatic and audio programs with speed control and sensitivity.
- Double fixation handle.
Manual | COB 200 4 IP - USER MANUAL v1.0 |  | Download |
