PARLED 432 6 IP
28MAR057
IP65
RGBWA UV
DMX
45º <
Lighting Projector. Waterproof.

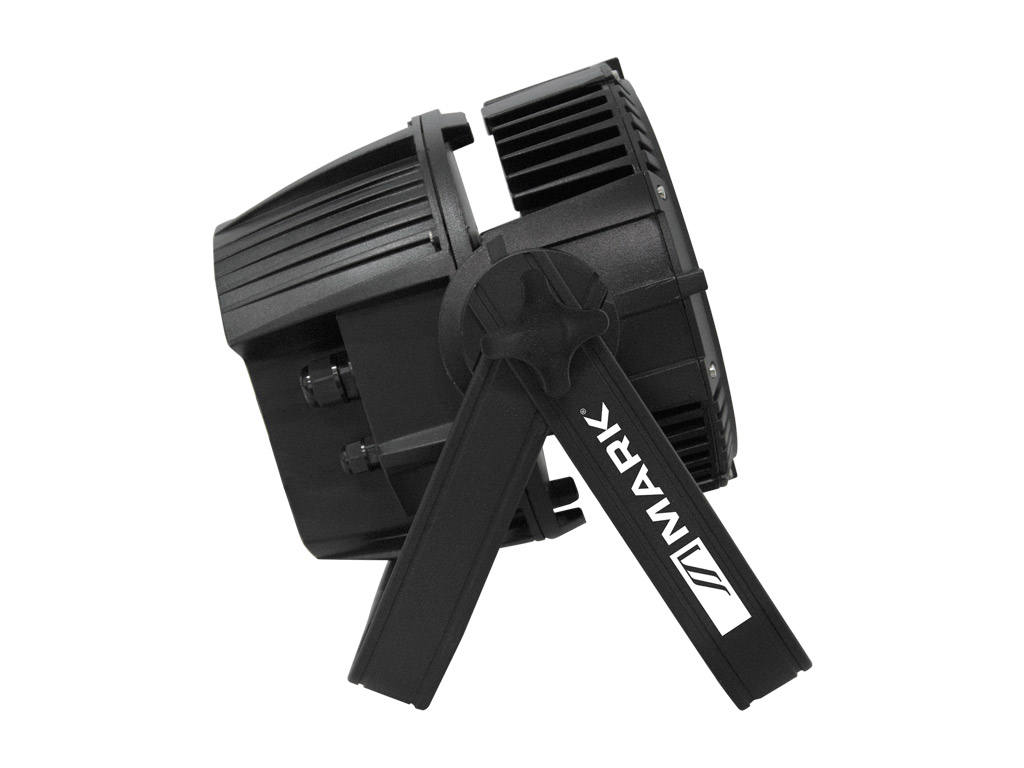

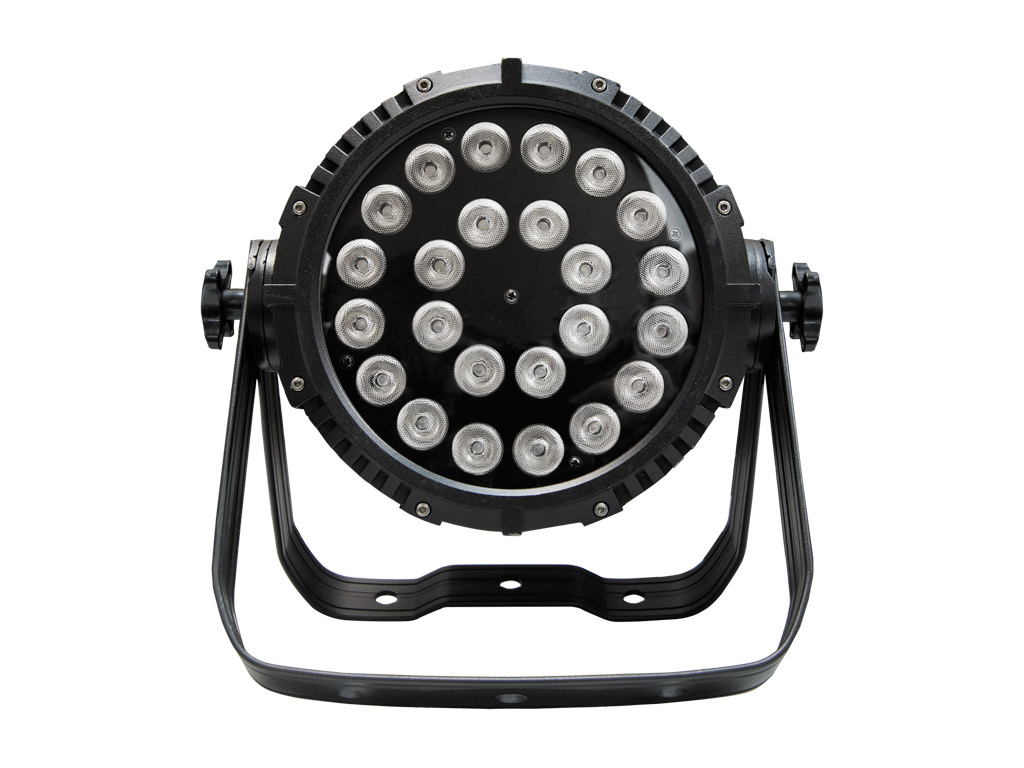

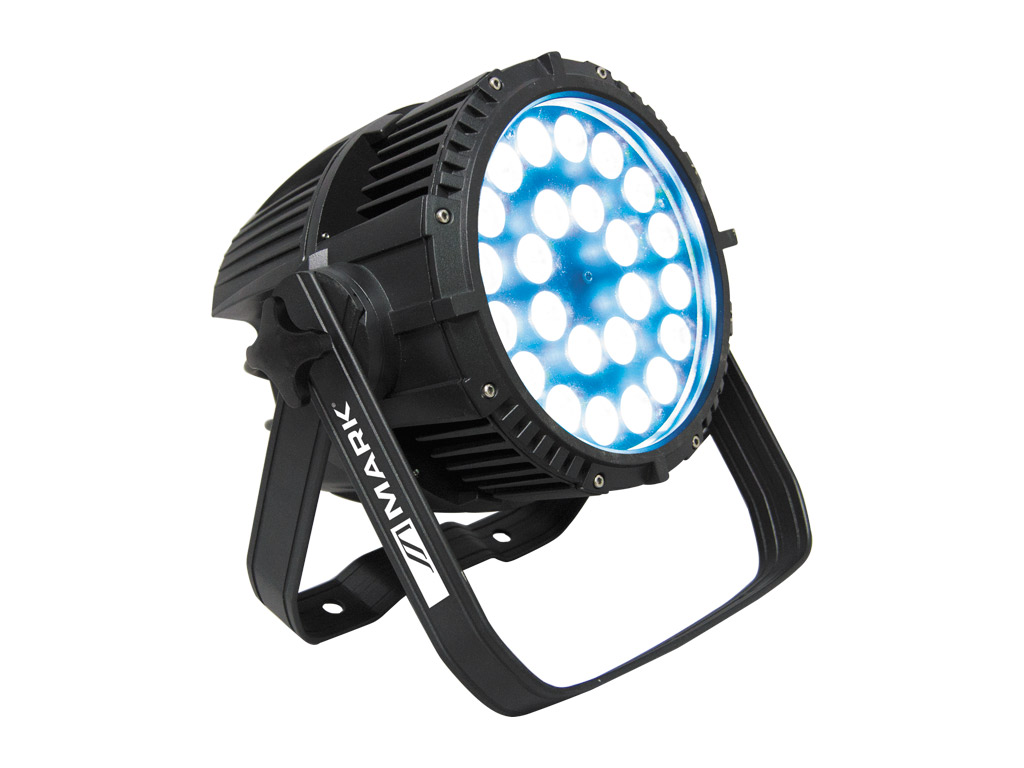

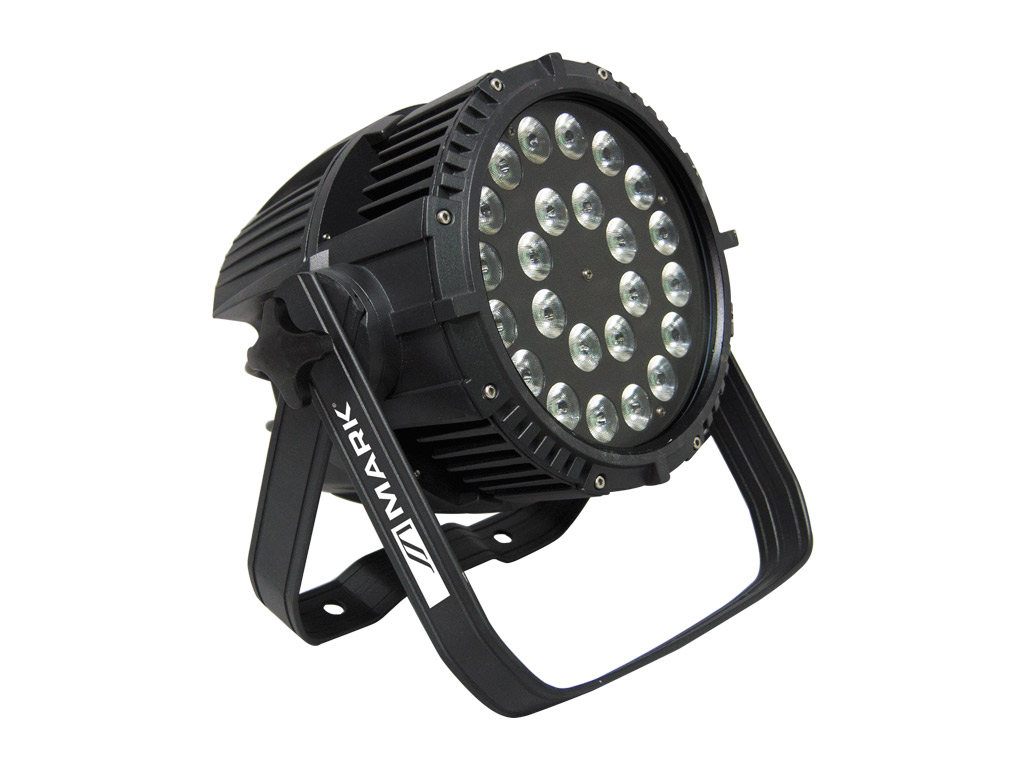

PARLED 432 6 IP is a powerful projector which includes 24x LEDs RGBWAUV (6 in 1) of 18W each one. This device allows to obtain rich colour variations mixing these 6 tones.

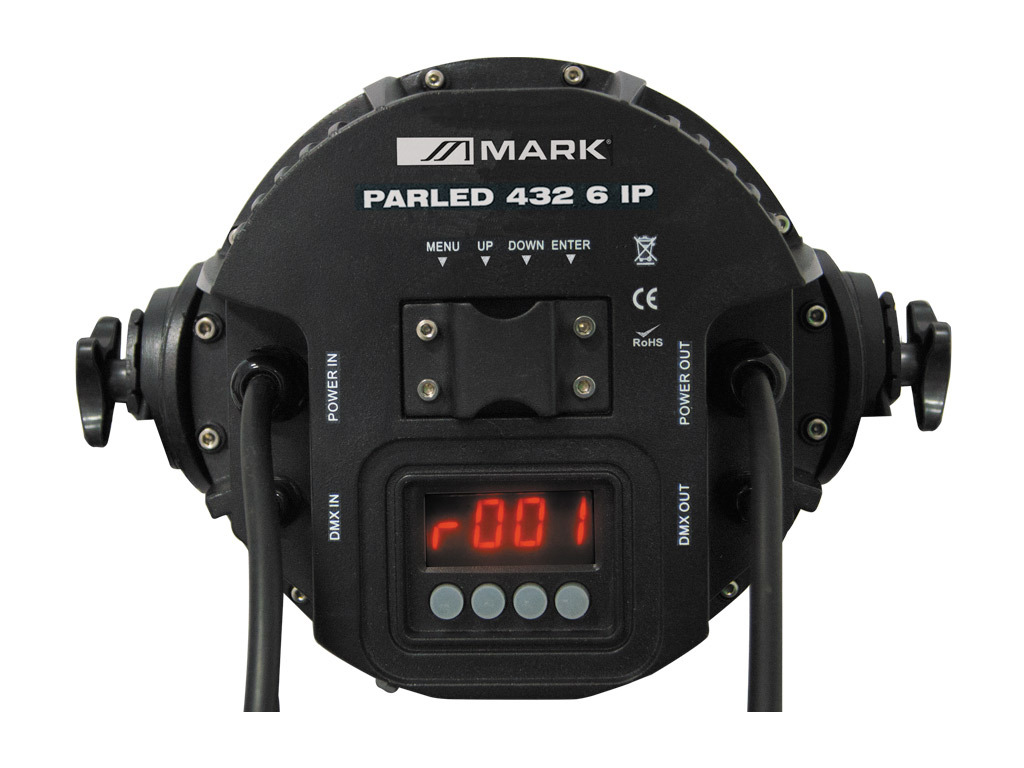

The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as manual dimmer, fixed colours and two strobe modes with speed control.
Its high IP range (IP65) allows to be used in outdoor applications thanks to its connectors with protections and the sealed enclosure.
The device includes DMX mode (10 channels) with individual dimming level, strobe function and automatic program with speed control.
Features
- 24 x 18 W RGBWA+UV LEDs
- 10 DMX channels
- 45º Beam angle
- IP 65
| Light engine | 24 x LED RGBWA+UV 18 W/ 24 x 18 W RGBWA+UV LEDs |
| Power | 432 W |
| Beam angle | 45º |
| DMX channels | 10 canales DMX/ 10 DMX channels |
| Operating modes | DMX, Mater/Slave, Audio, Auto |
| Controls | Configuration menu navigation buttons |
| Indicators | 4-digit display |
| Connections | Power supply: Built-in cable with CEE-7 Type F connector; DMX: Built-in cable with XLR3 in/out connector |
| Colour | Black |
| Rigging | Double U-bracket handle |
| IP Protection | IP 65 |
| Power supply | AC 110-240 V, 50/60 Hz |
| Dimensions | 230 x 230 x 225 mm |
| Weight | 3 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.23 | 0.23 | 0.23 | 3.00 |
| Box | 0.30 | 0.30 | 0.36 | 6.80 |
| Master Carton | 0.63 | 0.62 | 0.37 | 30.00 |
- Lighting projector that includes 24x 18W LEDs RGBWAUV (6 in 1).
- IP65 for outdoor applications.
- Display and interface for setting functions.
- 10 fixed colour variation and manual dimming level of each colour.
- Strobe function.
- Automatic and audio programs with speed control and sensitivity.
- Double fixation handle.
Manual | PARLED 432 6 IP - USER MANUAL v1.0 |  | Download |
Application Tip | EQUIPSON_CHAMSYS_FIXTURES_12_2023 | | Download |
