To be discontinued

ZENITH 600

51ZEN060

2 x 300 W @ 4 Ohm audio amplifier.

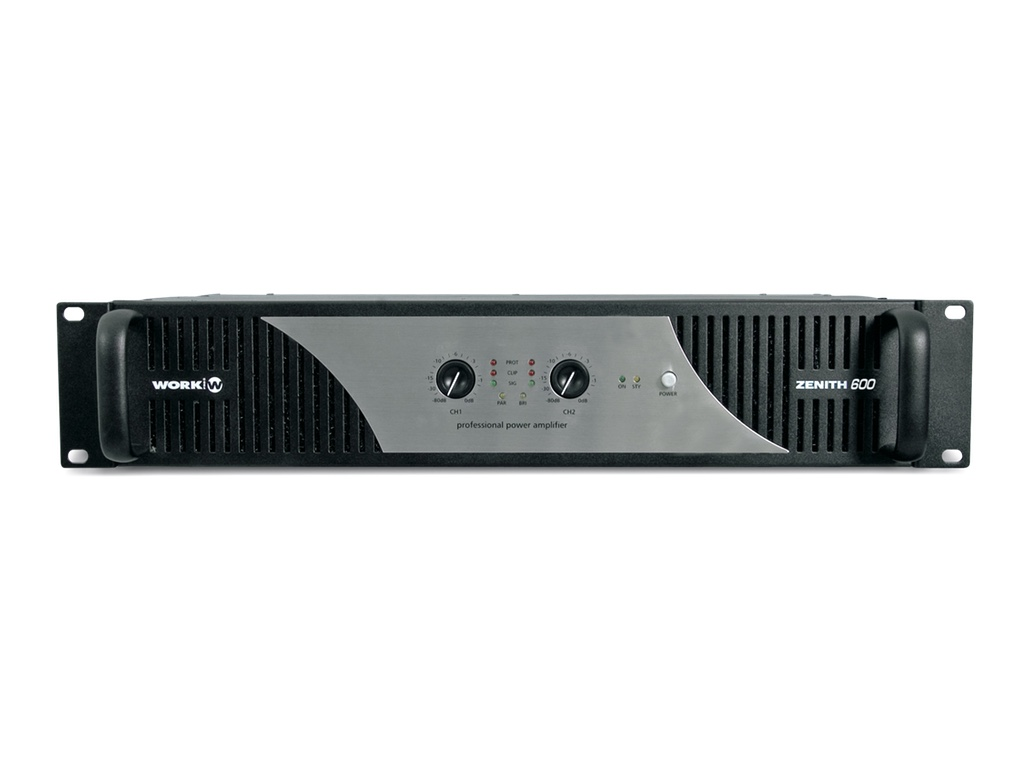

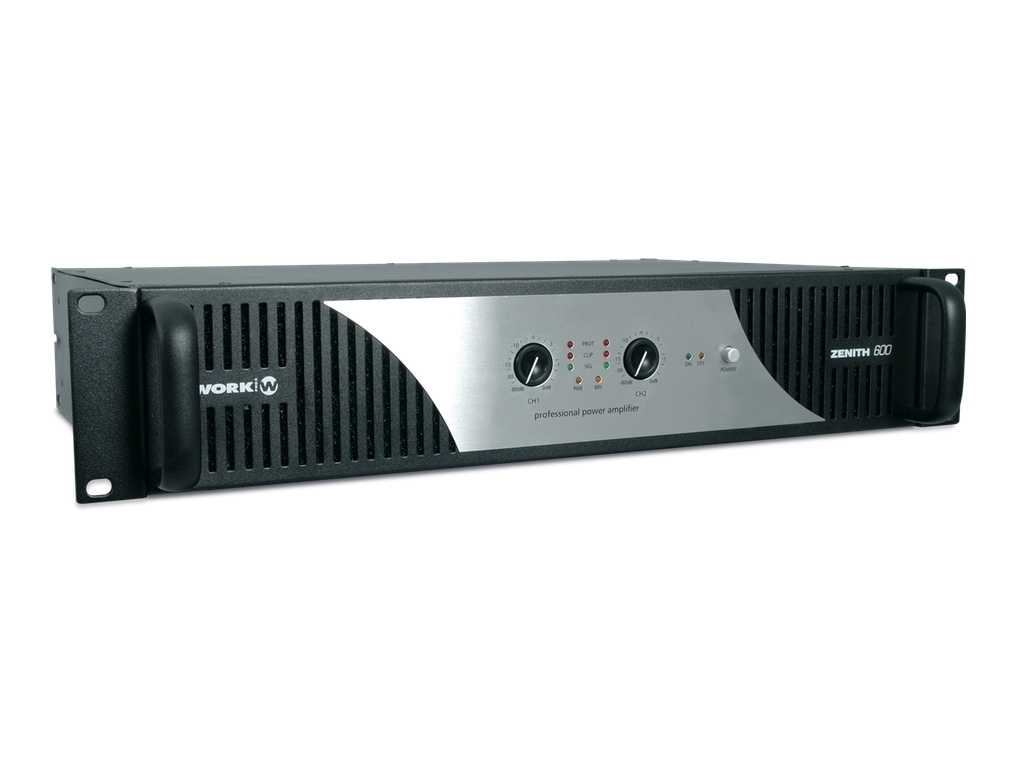

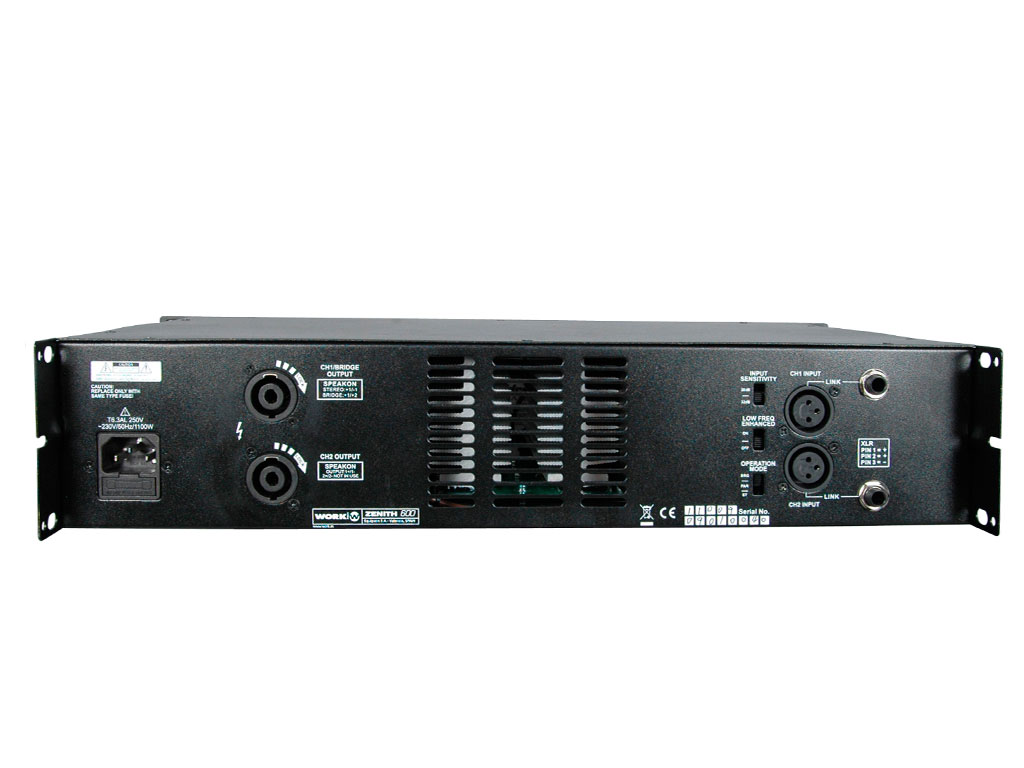

Zenith 600 is a 2-channel 300W @ 4 Ohm professional audio amplifier, with switching power supply, built in a 2-rack unit metal enclosure. It has balanced inputs in XLR3 format and 1/4" TRS jack and outputs with XLN4 connectors. It has selectors for input sensitivity, operating mode and bass boost. It also has protection systems against short-circuit, temperature, DC, VHF and constant high frequency signal The front panel has a power switch, independent volume controls for each channel and indicators for power, signal, clip, protection and operating mode.

Features

  • Switching power supply.
  • Minimun output impedance 2 Ohm.
  • Stereo, paralel and bridge mode.
  • Front power and volume control.
TypeAB Class
W/Ch @ 8/4/2 Ohm200 W / 300 W / 450 W
W/Ch @ 8/4 Ohm Bridge600 W / 850 W
Frequency Range20 Hz - 20 Hz
THD+N<0.05%
S/N Rate>100 dB
Damping Factor>150
Dynamic Range>80 dB
Gain26/32 dB
Input Impedance20 KOhm balanced, 10 KOhm unbalanced.
Input Sensitvity9.06 dBu / 2.64 dBu
ConnectionsPower: 1 x IEC, Audio Input: 2 x XLR3, 2 x Jack 1/4" TRS, Amp Out: 2 x XLN4 hembra.
ProtectionsOverheat, VHF, short circuit, AC low, DC protection, CLIP / Limit.
Length(m)Width(m)Height(m)Weight(kg)
Product0.310.480.096.50
Box0.450.580.167.26
  Manual
Download
  Datasheet
Download
  Datasheet
Download
