ZENITH 1800
51ZEN180
ClaseD
2 CH
2 x 750 W @ 4 Ohm audio amplifier.

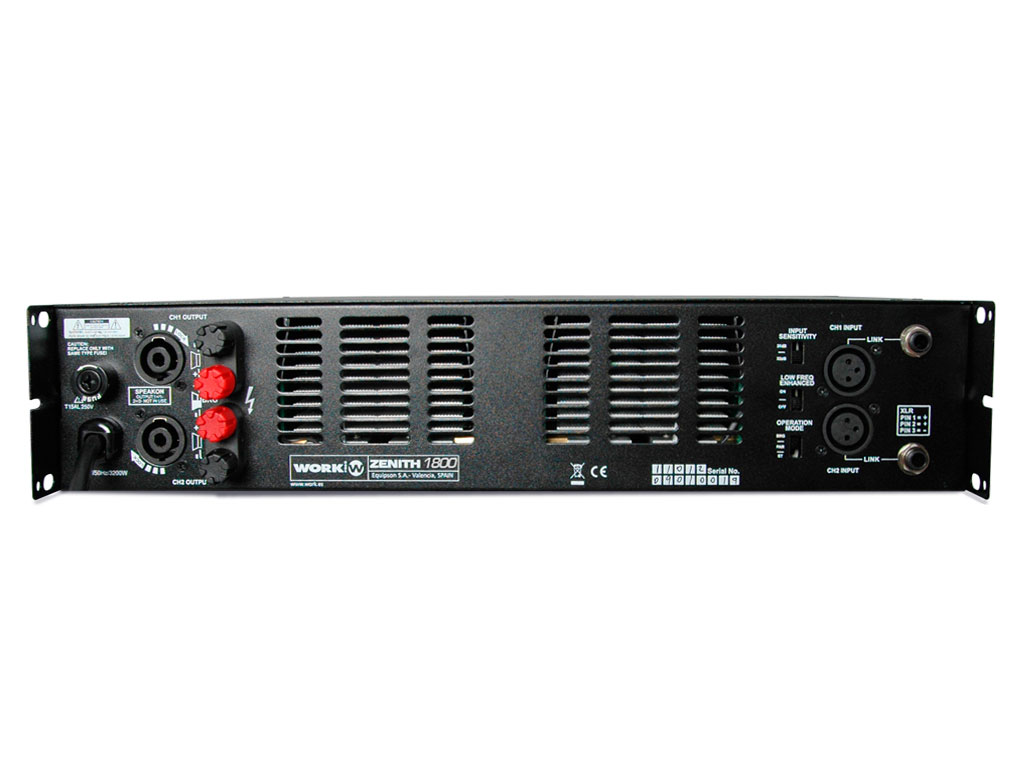

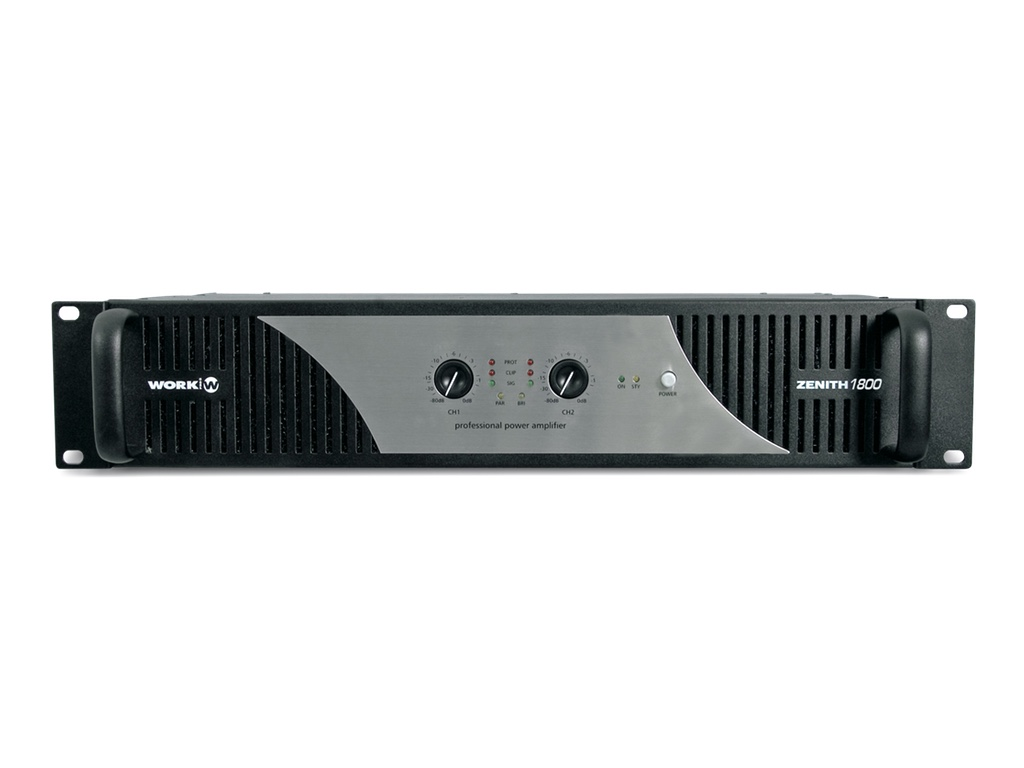

Zenith 1800 is a 2-channel 750W @ 4 Ohm professional audio amplifier, with switching power supply, built in a 2-rack unit metal enclosure. It has balanced inputs in XLR3 format and 1/4" TRS jack and outputs with XLN4 and Binding Spot connectors. It has selectors for input sensitivity, operating mode and bass boost. It also has protection systems against short circuit, temperature, DC, VHF and constant high frequency signal The front panel has a power switch, independent volume controls for each channel and indicators for power, signal, clip, protection and operating mode.
Features
- Switching power supply.
- Minimun output impedance 2 Ohm.
- Stereo, paralel and bridge mode.
- Front power and volume control.
| Type | Class 2H |
| W/Ch @ 8/4/2 Ohm | 450 W / 750 W / 1000 W |
| W/Ch @ 8/4 Ohm Bridge | 1500 W / 2000 W |
| Frequency Range | 20 Hz - 20 Hz |
| THD+N | <0.05% |
| S/N Rate | >100 dB |
| Damping Factor | >250 |
| Dynamic Range | >80 dB |
| Gain | 26/32 dB |
| Input Impedance | 20 KOhm balanced, 10 KOhm unbalanced |
| Input Sensitivity | 12.04 dBu / 6.02 dBu |
| Connections | Power supply: 1 x male schucko included, Audio input: 2 x XLR3, 2 x 1/4 "TRS Jack, Amp Output: 2 x XLN4, 4 x Binding Post |
| Protections | Overheat, VHF, short circuit, AC lower, DC protection, CLIP / Limit |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.36 | 0.48 | 0.09 | 9.80 |
| Box | 0.50 | 0.58 | 0.16 | 10.92 |
Manual | ZENITH SERIES - USER MANUAL |  | Download |
Datasheet | ZENITH SERIES - FICHA TÉCNICA | Download | |
Datasheet | ZENITH SERIES - DATASHEET | Download |
