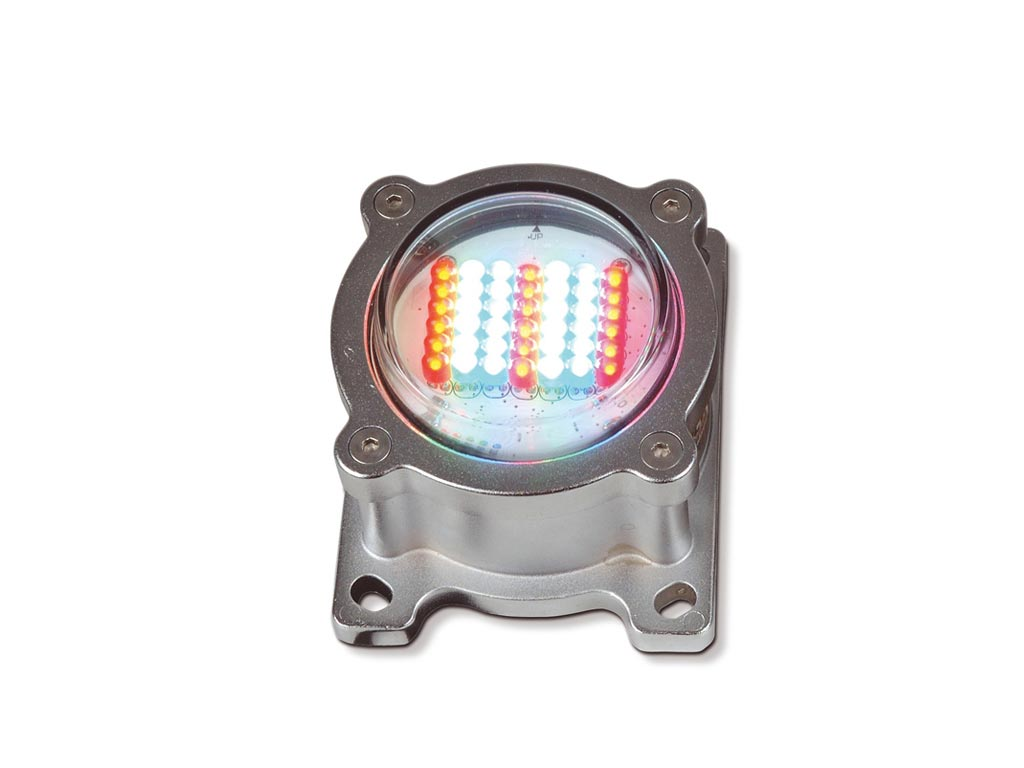

X BALL 42

28BAL003
RGB
DMX
IP67

RGB LED

X BALL is a lighting system with RGB LED (16.000.000 colours) defined by its versatility, with DMX control and built-in chase. Its high IP range (IP 67) allows to use it in outdoor and indoor installations. Its hermetic nature thanks to the aliminium melting gives a high resistance to hard working conditions. It is suitable for fixes installation with a useful life of 50.000 hours.

X BALL system works in the following modes:

RGB mode: 3 DMX channels
Colour + Brightness mode: 2 DMX channels
Colour mode: 1 DMX channel
Independent mode: 10 chase programs eligible with adjustable speed and fade with the XB-R1 (not included).

MaterialRecinto: Carcasa de aluminio y cristal difusor

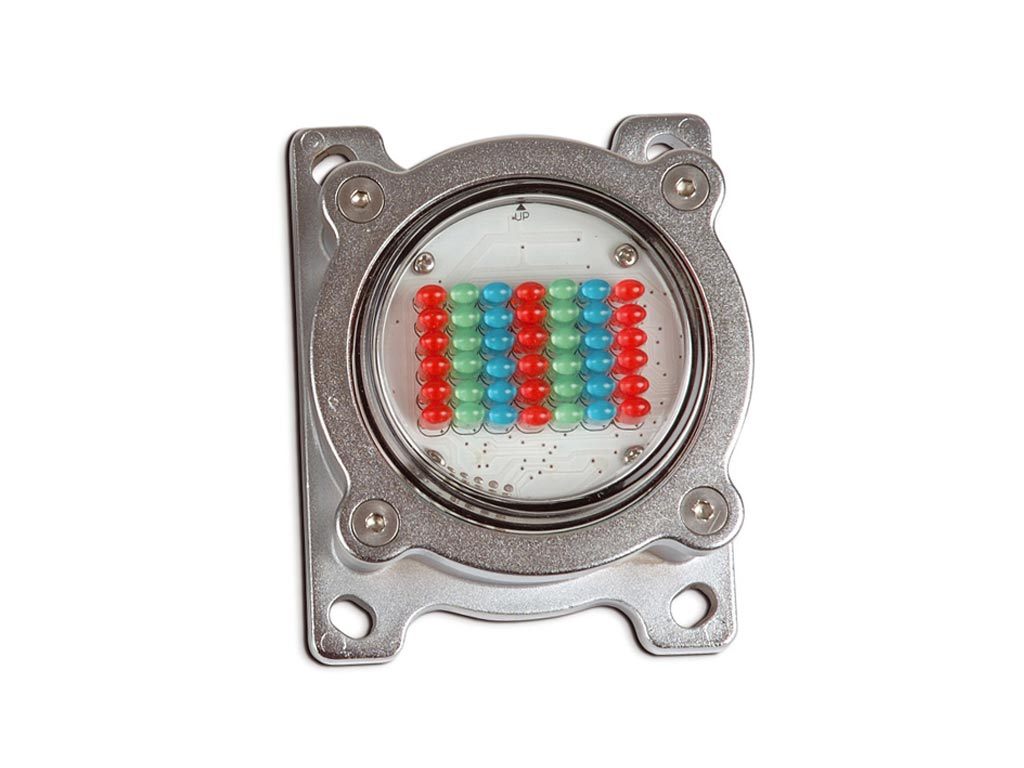

LED quantity42 Leds (18R, 12B, 12G)
DMX, Autónomo.
1,2,3 canales DMX, 10 programas

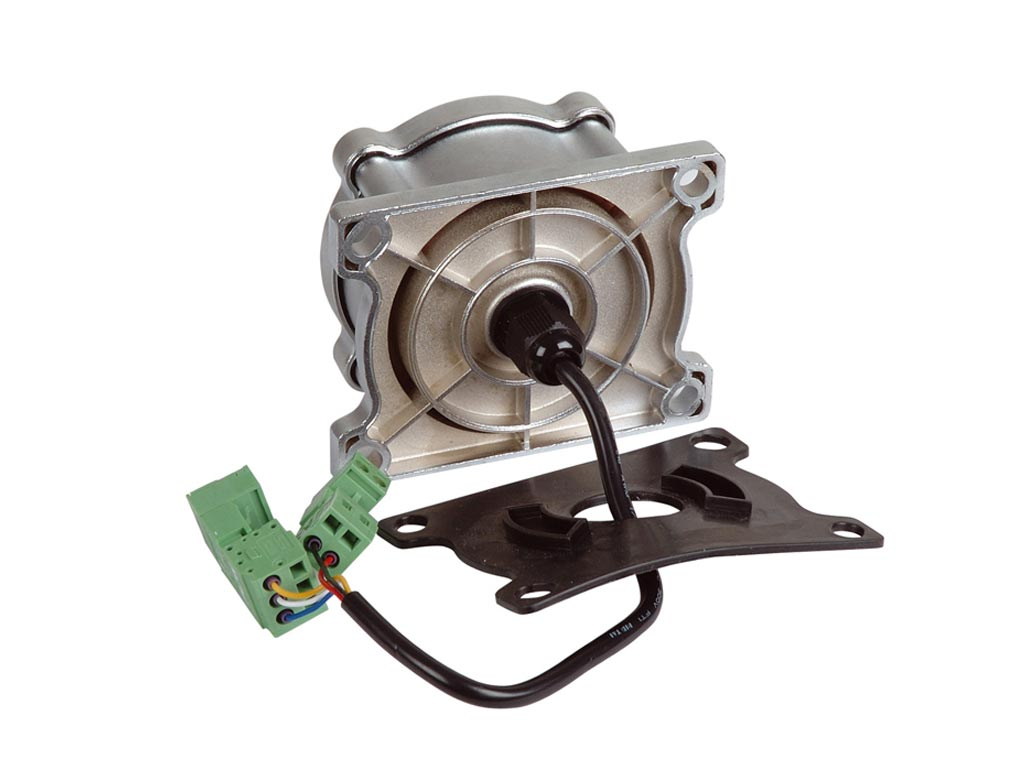

ConnectionsTerminales
IP ProtectionIP 67
Power supply24V DC
Length(m)Width(m)Height(m)Weight(kg)
Product0.050.070.090.35
Box0.080.100.100.35
RED
10 cm: 297
15 cm: 145
30 cm: 39
60 cm: 12
1 m: 3.0
2 m: 0.7
3 m: 0.4
BLUE:
10 cm: 824
15 cm: 445
30 cm: 120
60 cm: 32
1 m: 21.6
2 m: 4.5
3 m: 1.8
GREEN:
10 cm: 1565
15 cm: 716
30 cm: 213
60 cm: 56
1 m: 16.8
2 m: 4.1
3 m: 1.8
WHITE:
10 cm: 2140
15 cm: 1128
30 cm: 301
60 cm: 104
1 m: 35
2 m: 8.6
3 m: 4.0
