Professional Audio

WR 4200 /2

59MWR423
UHF
Diversity

WR 4200 /2 is a professional Diversity 4-channel wireless system in UHF band.  Its PLL system allows a great signal stability, making it very adequate for live appliances, touring or even conference rooms.

The receiver offers up to 4x200 different channels (according to the bandwidth). The synchronism is easy, it is only necessary to press the scan button in the receiver and both elements (receiver and microphones), will pair through IR.

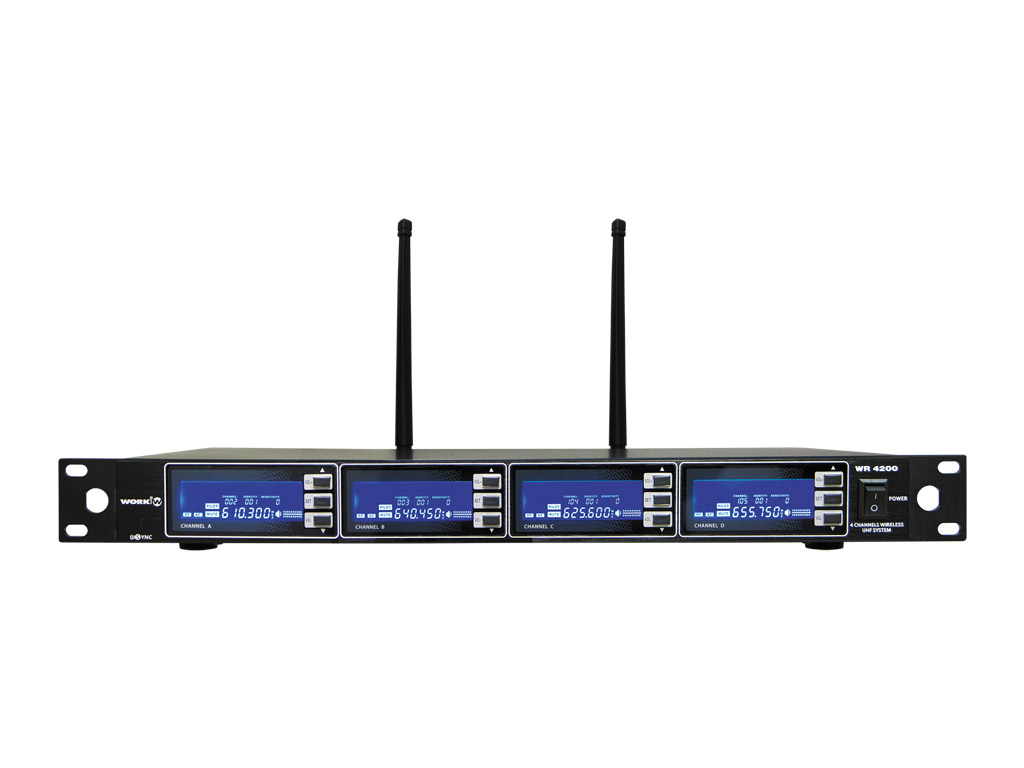

The LCD on the receiver displays all the information needed: frequency, AF, RF and output gain level. With the buttons on the front side, it is possible to manually adjust the frequency, the tone squelch and to scan free frequencies.

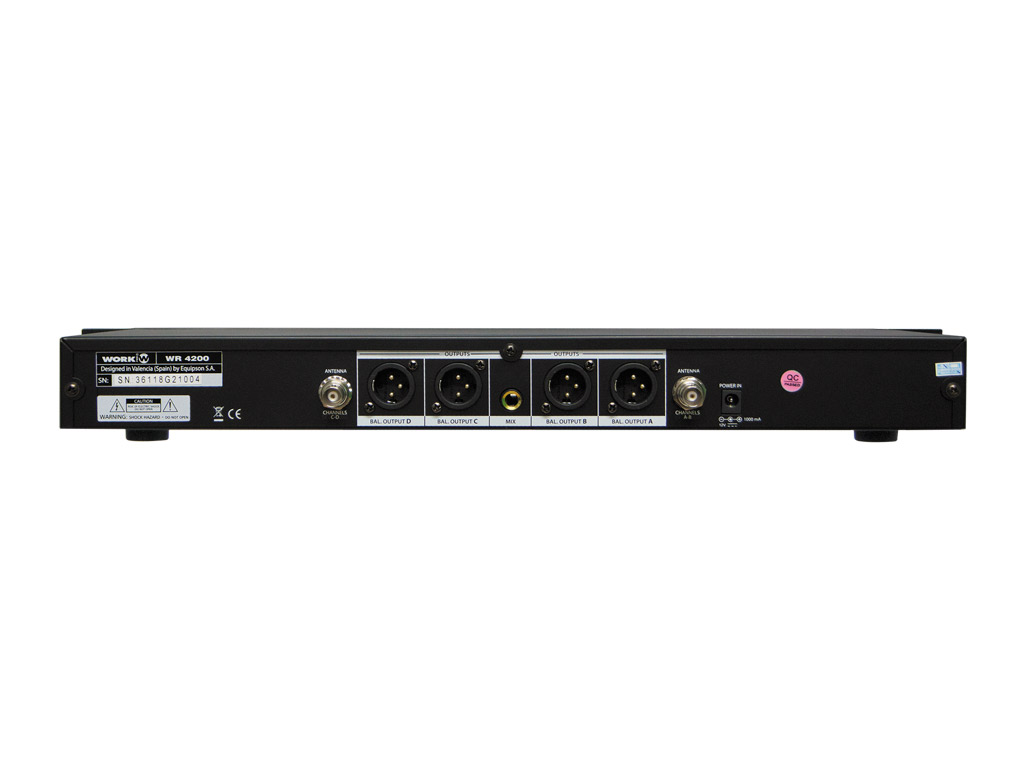

The receiver features balanced output on each channel and unbalanced mix for all of them.

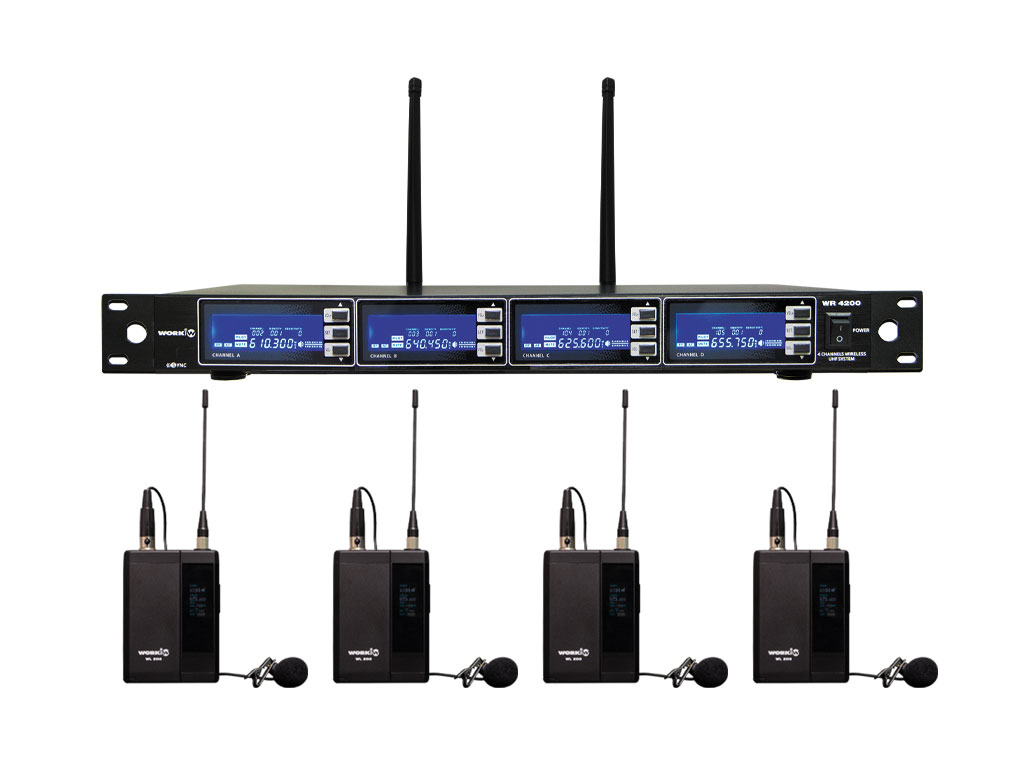

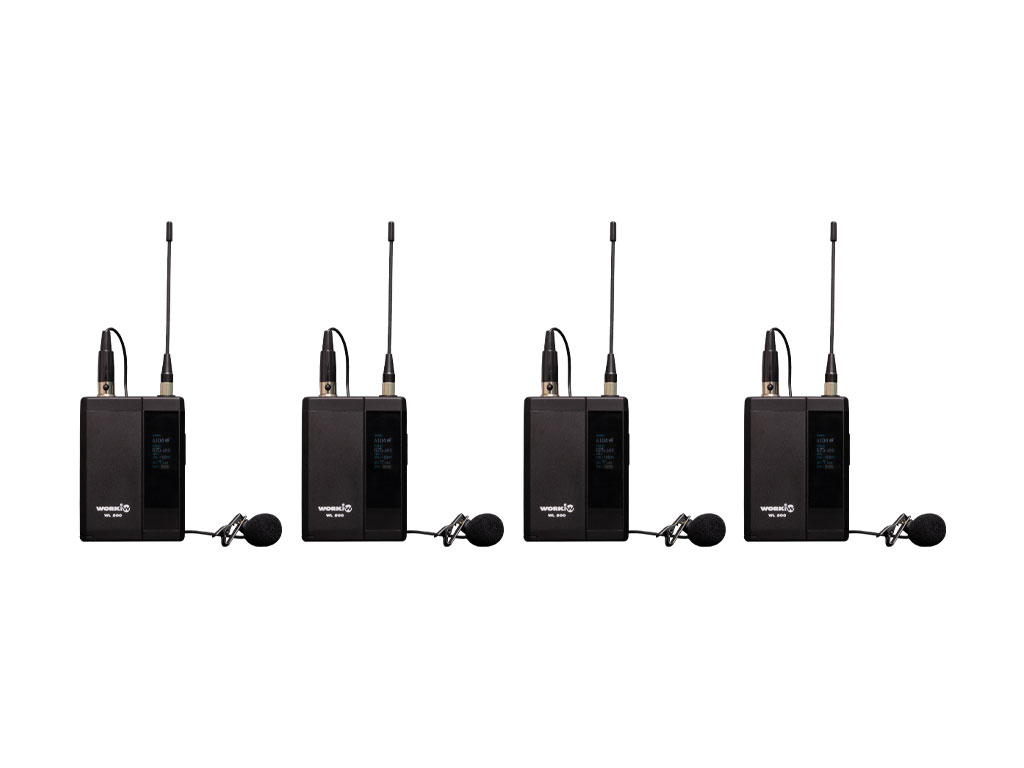

WR 4200 /2 consists of: Receiver (WR 4200) + 4 bodypack transmitters + 4 lavalier microphones (WL 200).

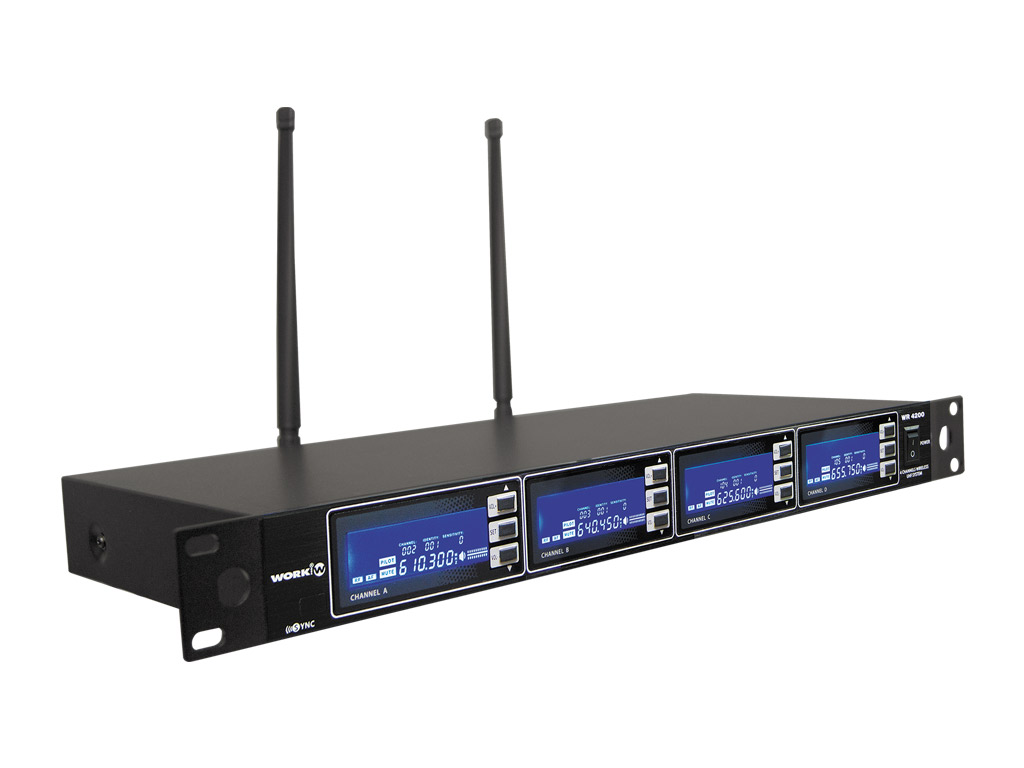

RECEIVER (WR 4200)
Frequency band
UHF true Diversity
Bandwidth
25 kHz
Frequency response
20 Hz ? 20kHz
Stability
±0.0005%
Sensitivity
12dBuV (80dB S/N)
S/N Ratio
>105dB (A)
THD
<0.5%
Dynamic range
>100dB
Max. Audio output
-10dBV
Antenna
BNC connector, 50 ohm
Main Supply
12-18V DC / 1000 mA, external power supply (included)
Dimensions (WxHxD)
483x44x195 mm
Weight
2.1 Kg

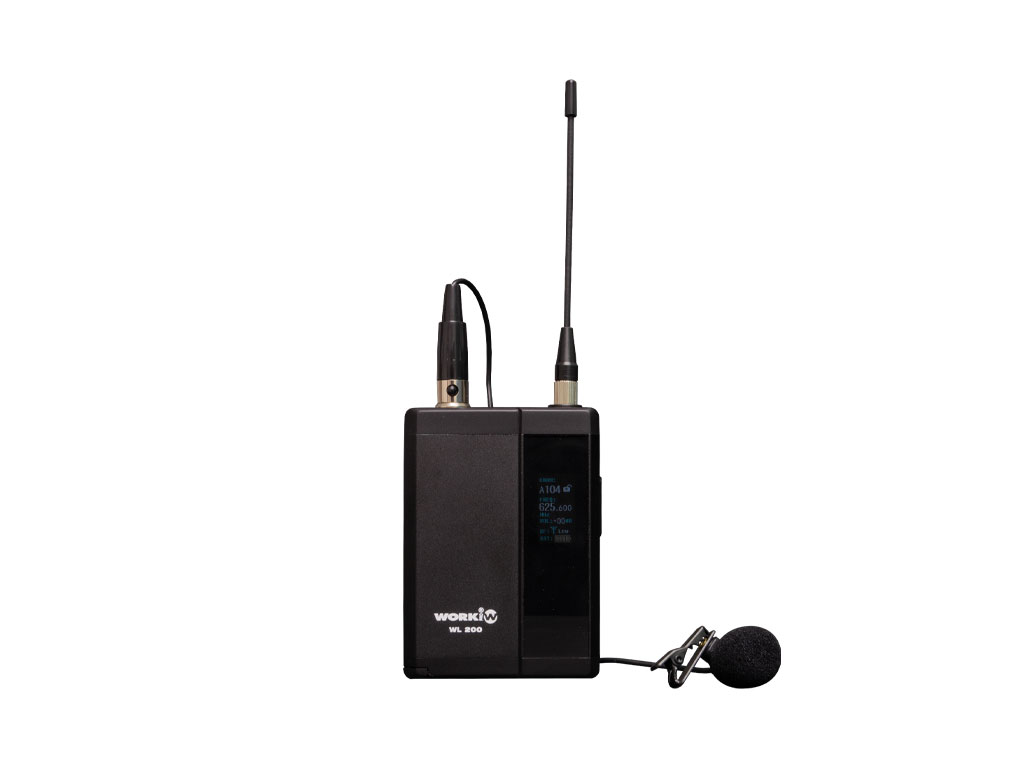

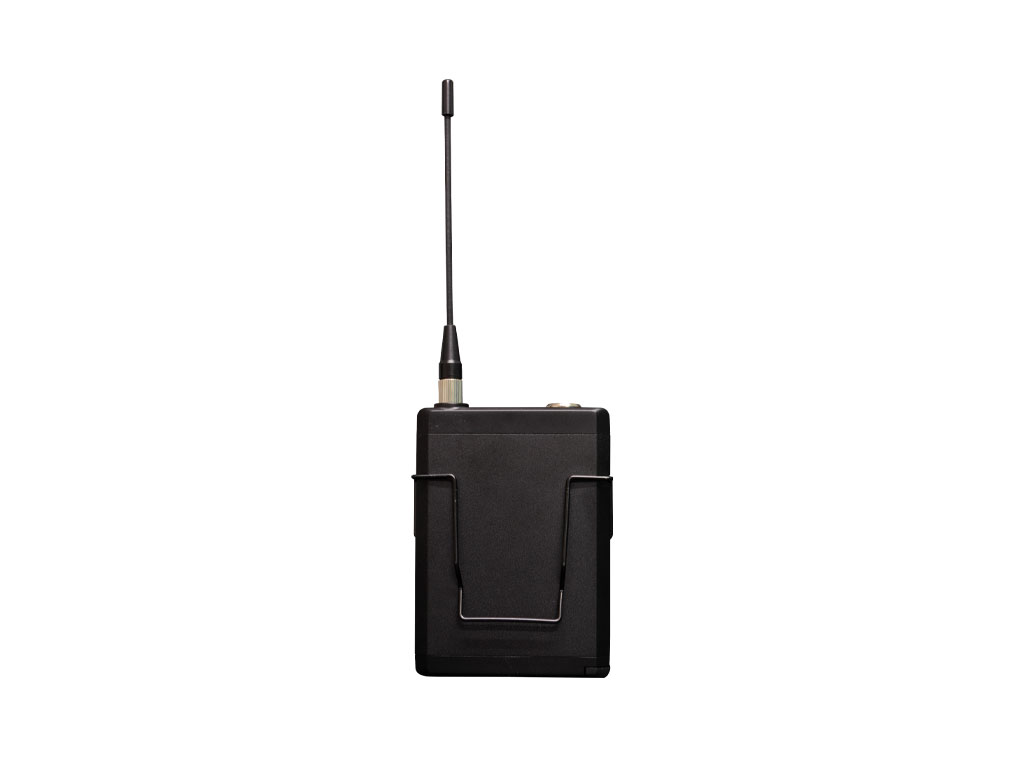

BODYPACK TRANSMITTER (WL 200)
Type
Condenser
Polar Pattern
Cardioid
RF output power
30 mW
Spurious emission
-60dB
Maximum deviation
±48kHz
S/N Ratio
>105dB (A)
THD
<0.5%
Input voltage
1V max
Battery type
2x 1.5V (AA)
Continuous using
8 hours
Dimensions (WxHxD)
64 x 82 x 24 mm
Weight
160g
  • Professional Diversity 4-channels wireless system.
  • UHF band.
  • Frequency range: 610 - 640 MHz
  • IR synchronism between receiver and microphones.
  • Big dimensions LCD with AF, RF. Gain and frequency information.
  • Manual adjustment,  free frequencies scan and squelch level functions.
  • Balanced and mix unbalanced outputs.
  • WR 4200 /2 consists of: Receiver (WR 4200) + 4 bodypack transmitters + 4 lavalier microphones (WL 200).
