To be discontinued

WR 404 / 1

59WOR404

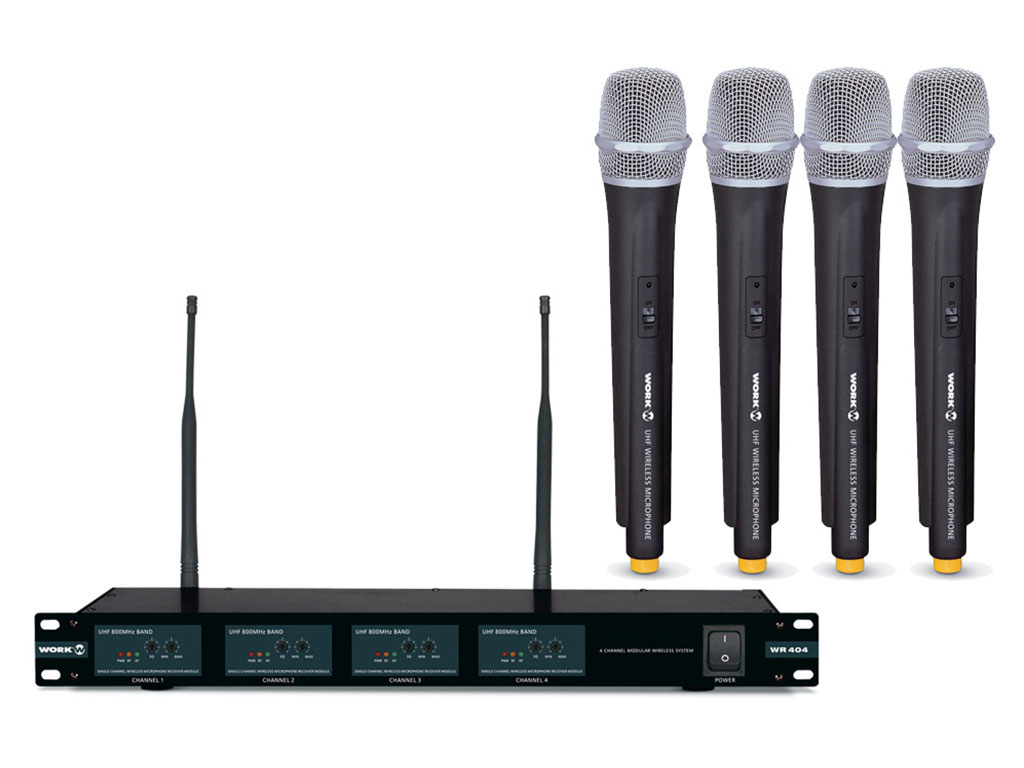

UHF wireless system

Wireless System with 4 modular channels for UHF band. Channel modules easily interchangeable. All channels have witnessed LEDs RF/AF and PEAK. SQ adjustment and individual volume. Each channel has a balanced output with another unbalanced output which is the mix of all channels.


WR 404
Frequency band: UHF.
Sensitivity: -1.8 ? V for 12dB SINAD .
Image Rejection:> 75 dB.
S / N:> 90 dB.
T.H.D. 80 dB.
Power supply: 13-18 V DC/500mA. Fte included.
Dimensions (WxHxD): 483 x 45 x 170 mm.
Weight: 3.6 kg.

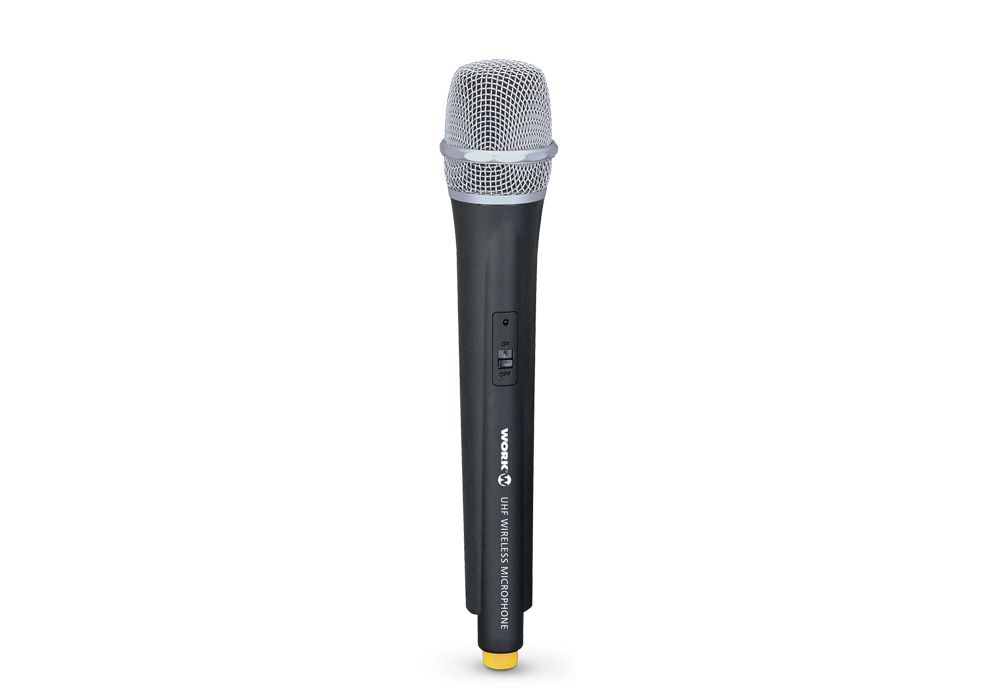

HM 100
RF output power: 30 mW.
Capsule: Dynamic.
Polar Pattern: Cardioid.
Stability Freq. 22 PPM.
Power: 2 x 1.5V.
Dimensions (WxHxD): 240 x Ø 35 mm.

  Manual
Download
