Professional Audio
WPL 1A
50WPL010
ABS
AMP
35mm
Mic/Line
12'' self powered loudspeaker. 800 W.

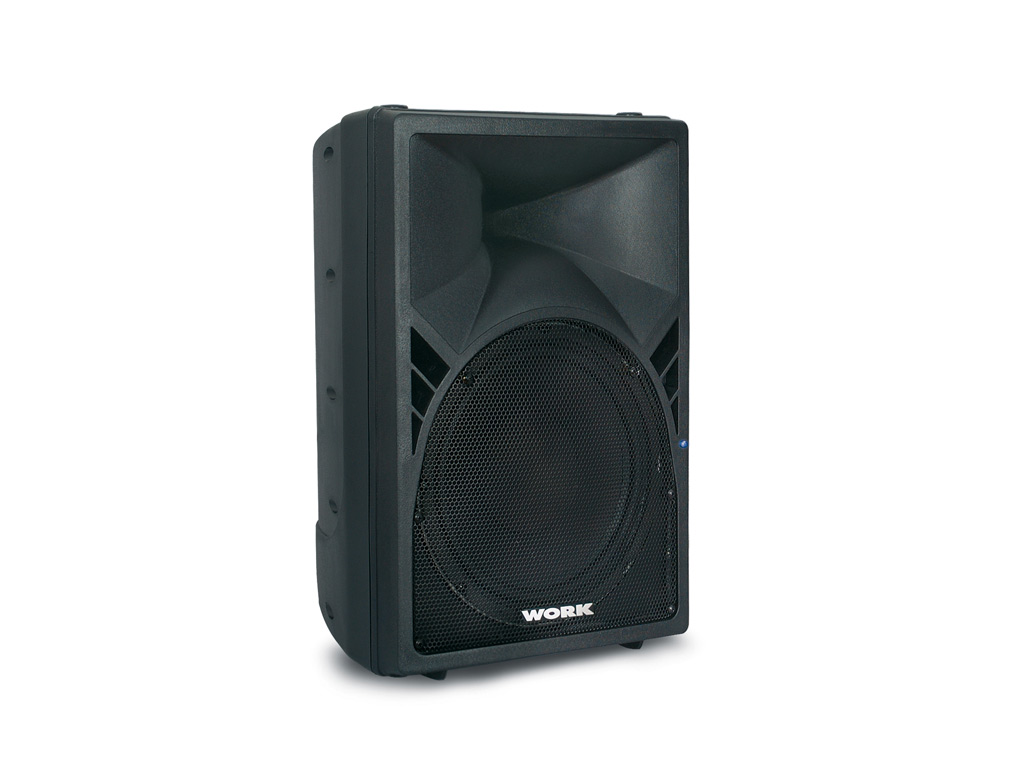

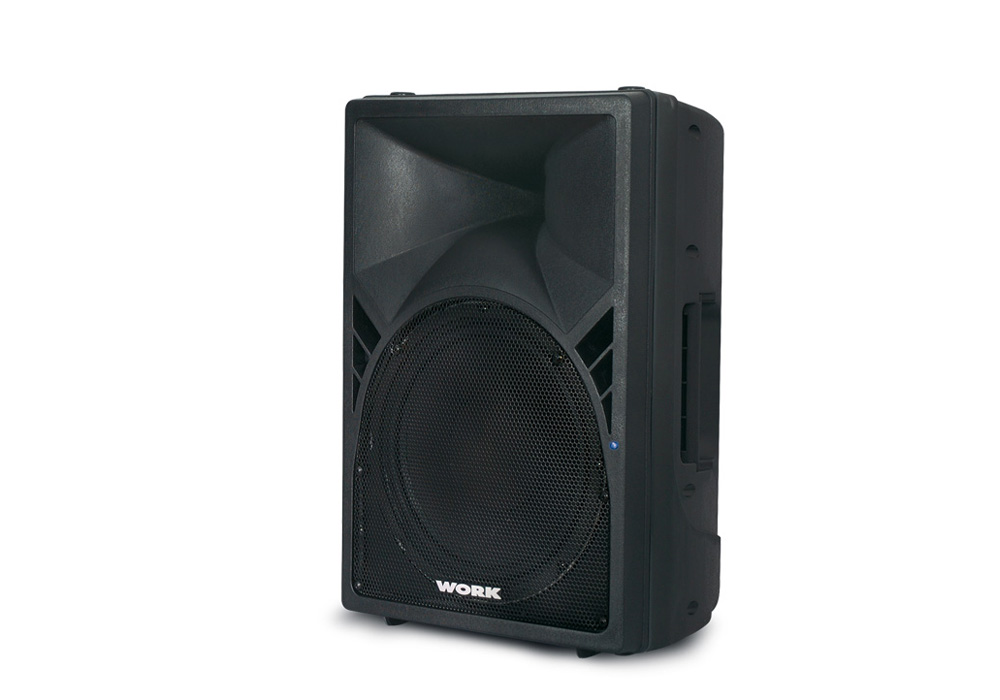

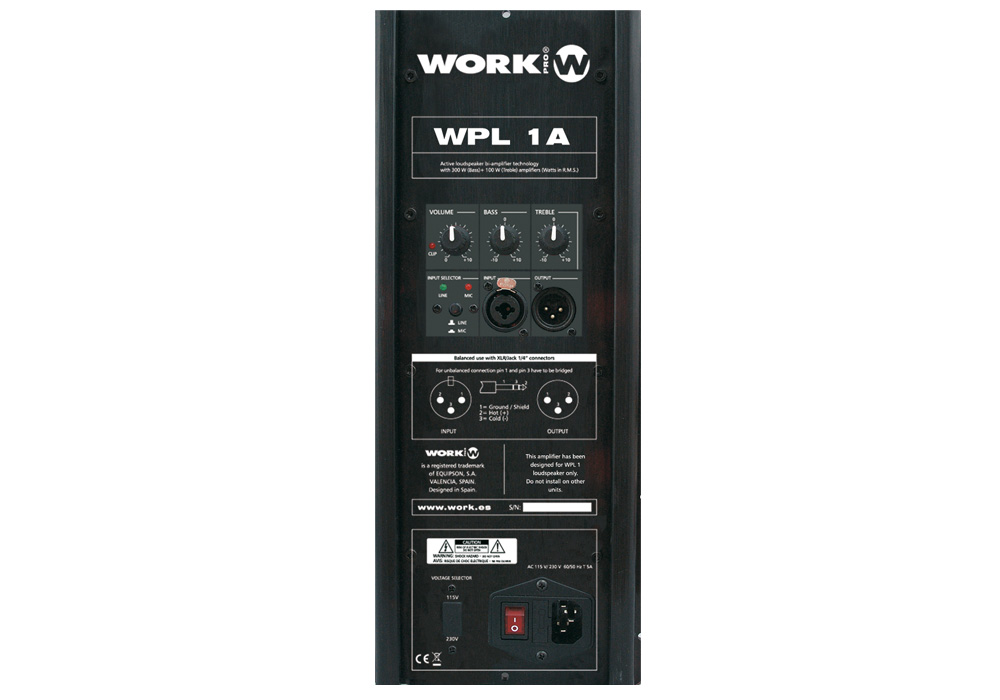

WPL 1A is an 800 W program self powered loudspeaker made of ABS plastic. It is composed of a 12" loudspeaker and a 1.3" compression driver. It incorporates an insert for a 35 mm support, a side carrying handle and two accessories to be able to use it as a floor monitor. In addition, it incorporates audio input with Combo XLR3 - 1/4" Jack connector with input selector for microphone or line, volume control and tone control (bass and treble).
Features
- Special supports for use as a floor monitor included.
- 35mm bottom insert for support.
- Side and top handle for transport.
- 3 upper and lower rigging points.
| Type | 2 ways. Self powered |
| Power | 400 W RMS |
| LF Transducer | 12" Woofer |
| HF Transducer | 1.3" Compression driver |
| Input Sensitivity | 1,15 V (3,4 dBu) |
| Frequency Range | 50 Hz - 20 KHz |
| SPL Max | 124 dB |
| Coverage Angle (H x V) | 90º x 60º |
| Protections | Fuse |
| Enclosure material | ABS plastic |
| Connections | Power: 1 x IEC, Audio In: 1 x Combi XLR3H/Jack 1/4", Audio Out: 1 x XLR3M |
| Controls | Volume, Tone control (high, low), Mic/Line selector |
| Inserts / Rigging | Lower 35 mm insertion for stand, 3 rigging points on the upper side, special monitor stands, side handle. |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.36 | 0.42 | 0.62 | 25.00 |
| Box | 0.47 | 0.44 | 0.68 | 25.76 |
Manual | WPL 1 A - Manual | Download |
