Lifters and Truss

WCAD 100

70EST230

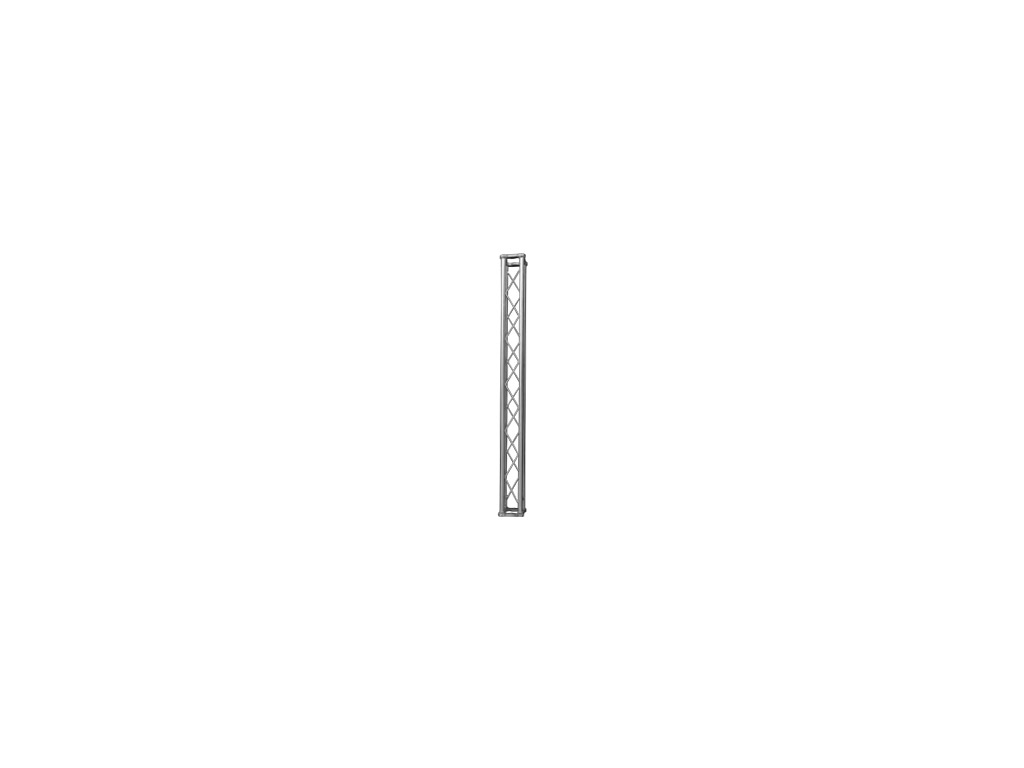

Quadrangular mini-truss 112 x 112 x 1000 mm.

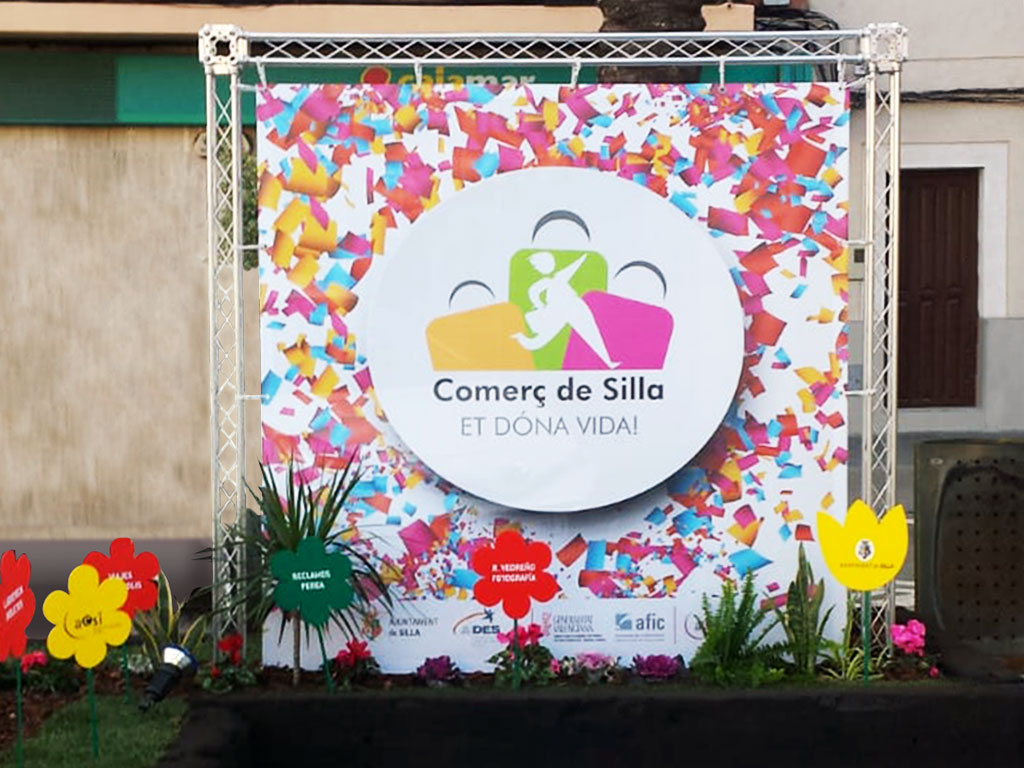

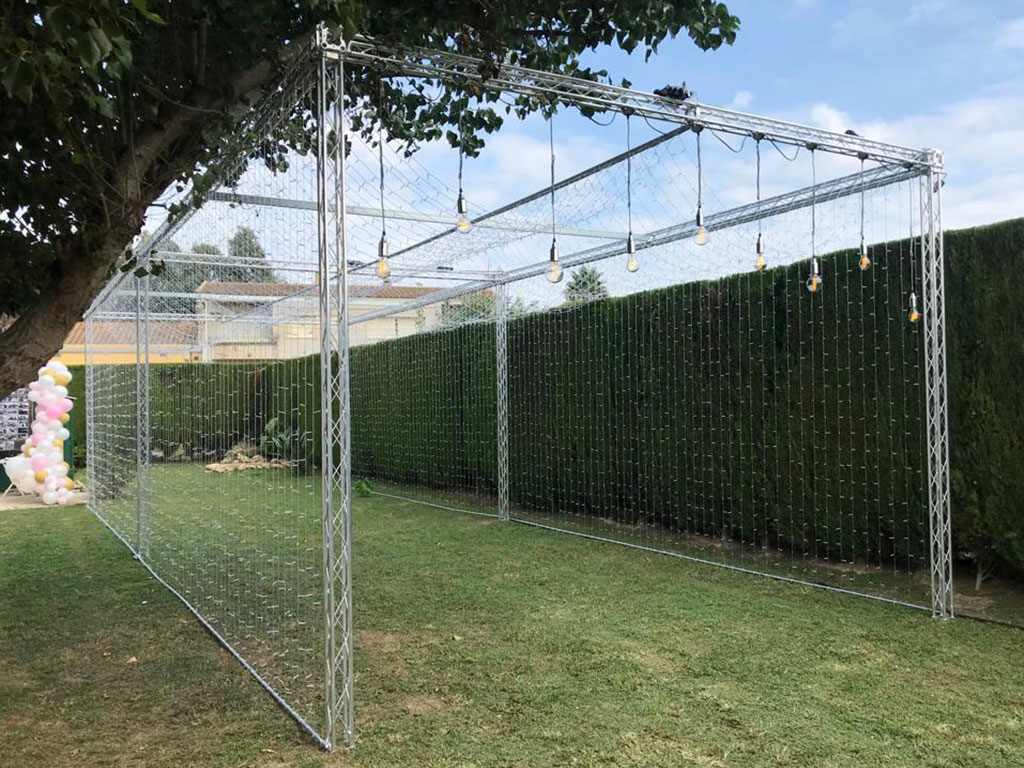

Structure designed for stands or exhibitors where it is not necessary to adapt large loads. Its dimensions of 112 x 112 mm allow to achieve a compact and very firm assembly. Made of aluminum, this structure has a length of 0.5 meters. (Also available in 1 meter, 2 meter and 3 meter).

To complete the structure, the series incorporates a square cube for the corners and a hinge adapter, as well as the fixing base for the vertical columns and the connecting connectors between sections.

MaterialAluminum
Dimensions112 x 112 x 1000 mm
Main tube diameter21 mm
Auxiliary tube diameter6 mm
Aluminum thickness2 mm
Distributed load186 Kg (6 m section)
Deflection (distributed)32 mm (6 m section)
Point load173 Kg (6 m section)
Deflection (spot)46 mm (6 m section)
ColourSilver
Length(m)Width(m)Height(m)Weight(kg)
Product1.000.110.111.92
Box0.100.100.100.10
  Datasheet
Download
