Installation Loudspeakers
Audio Installation

UDA 4

50UDA00450UDA014
8Ohm
IP65

Passive loudspeaker 100 W @ 8 Ohm.

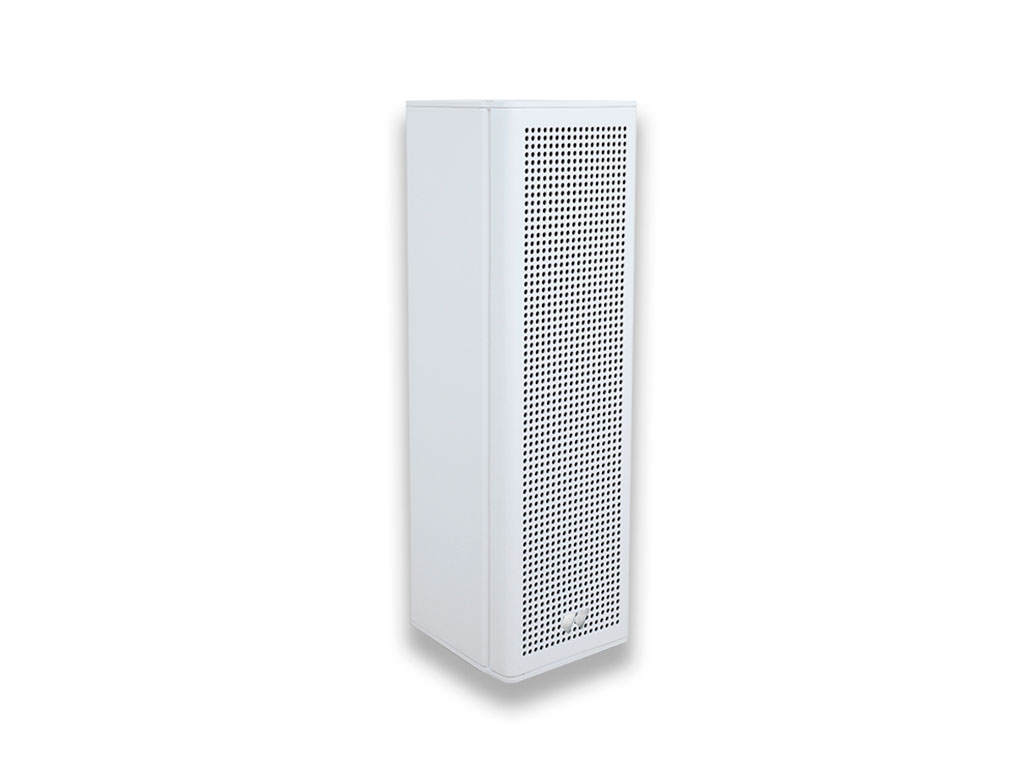

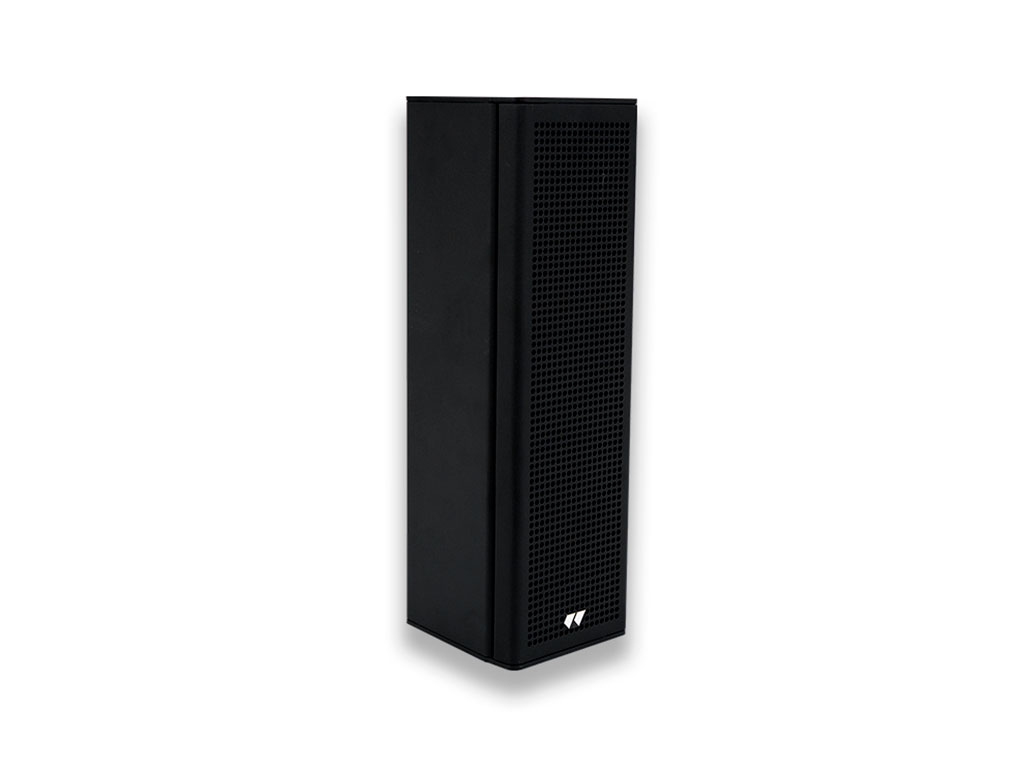

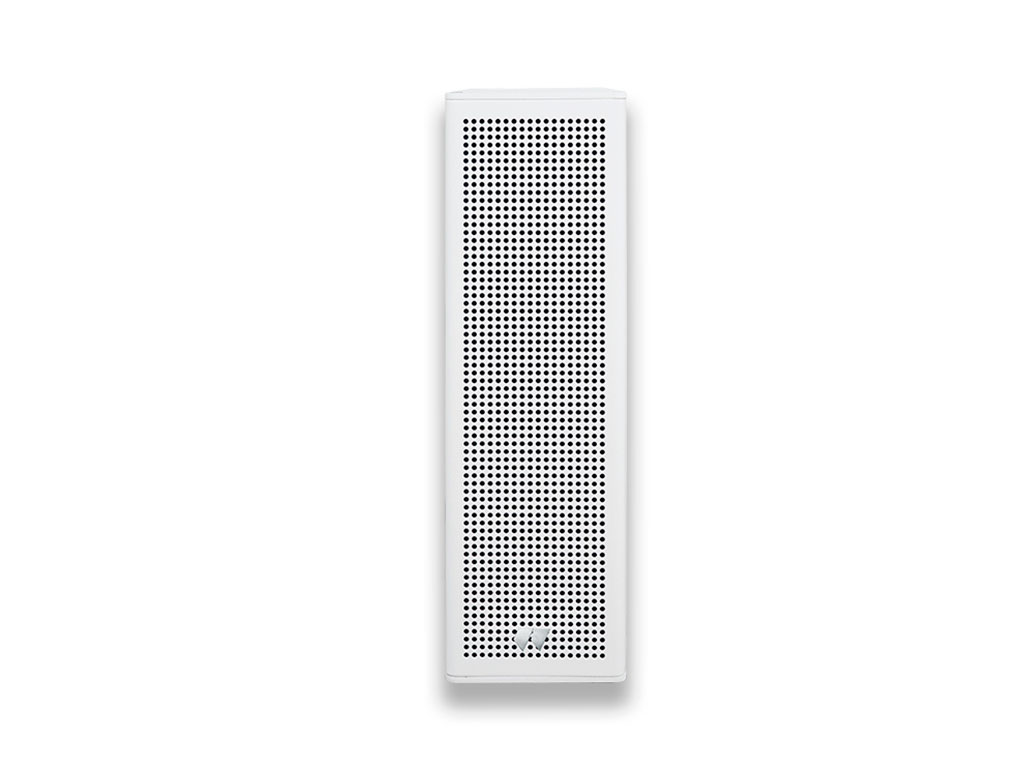

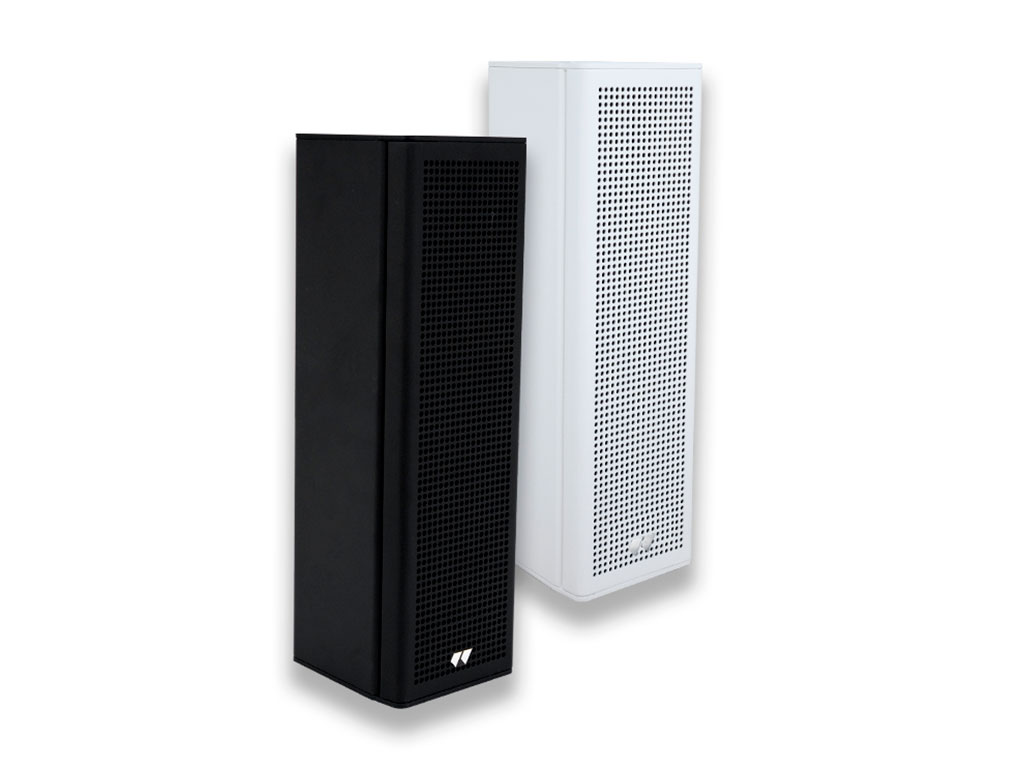

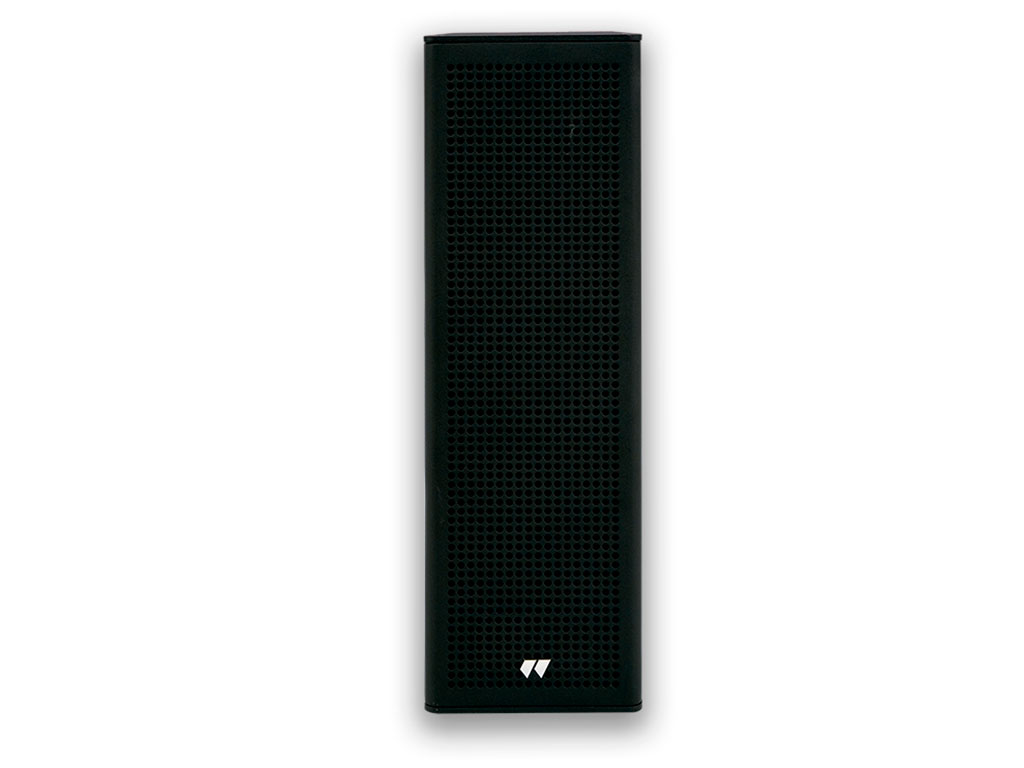

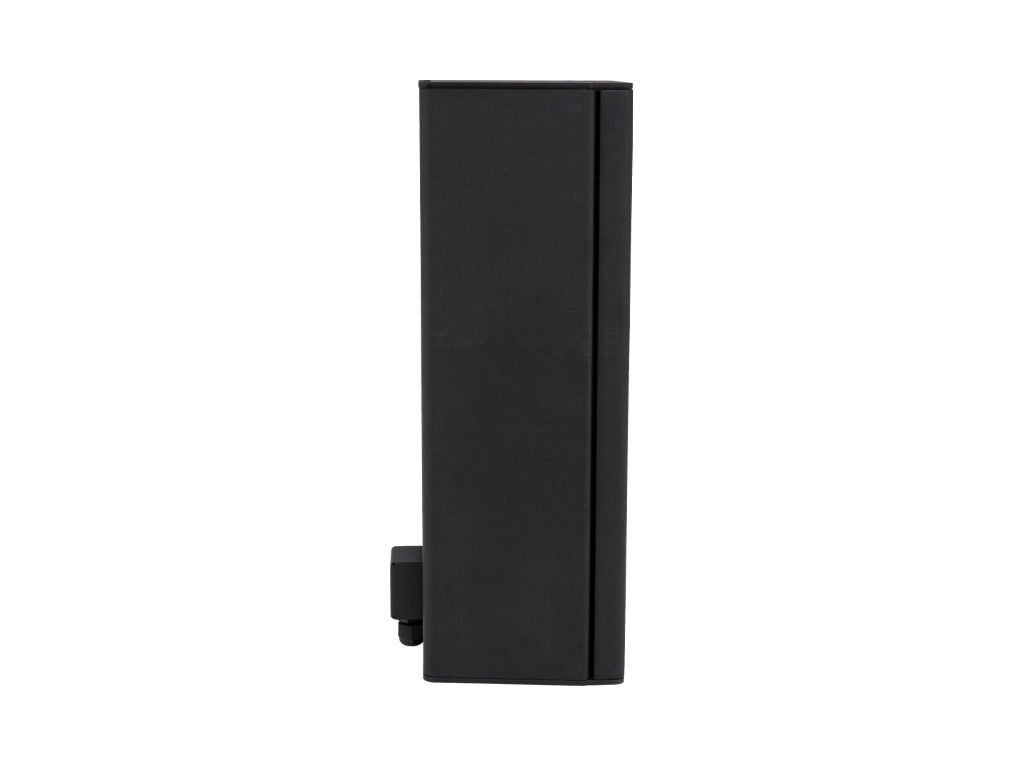

UDA 4 is a passive loudspeaker enclosure consisting of four 2.75" diameter, 0.75" voice coil drivers. The narrow extruded aluminium enclosure has been designed for perfect visual integration in all locations and is available in black or white finish. The grille is also made of aluminium and internally covered with a water-repellent protective fabric that prevents splashes and dust from damaging the transducers, with an IP 65 rating. Two wall mounting accessories are included. The Wall 4V allows the enclosure to be aimed up to +/- 50° horizontally and up to +/- 30° vertically. The 4H allows the enclosure to be aimed up to +/- 50º laterally only.



Features

  • IP 65.
  • Aluminium enclosure.
  • Black and white colour.
  • Bracket included.
TypePassive
Transducers4 x 2.75"
Nominal Impedance8 Ohm
Minimum impedance8 Ohm @ 6683 Hz
Power50 Wrms
Sensitivity89 dB SPL
Max SPL112 dB SPL
Frequency Response150Hz @ 23kHz (-10dB), 170Hz @ 20kHz (-6dB)
HPF filter recommendedButterworth 24dB/Oct, 100Hz
Coverage140° x 90º
IP ProtectionIP 65
MaterialEnclosure: Aluminium; Grille: Aluminium, coated with water-resistant fabric

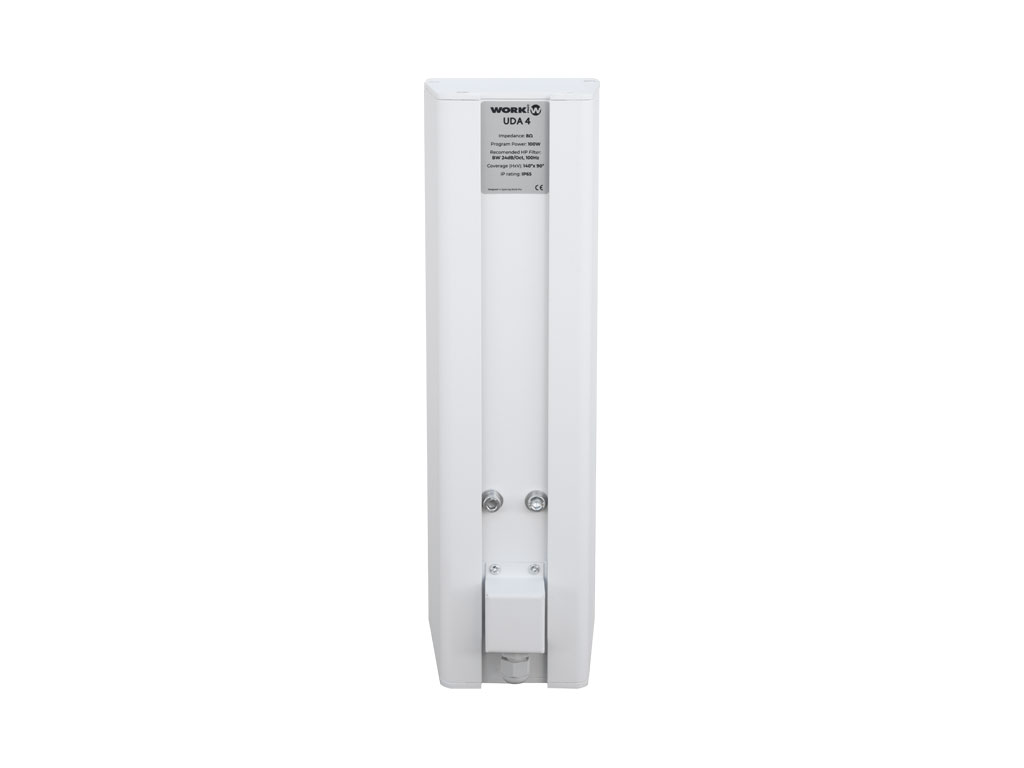

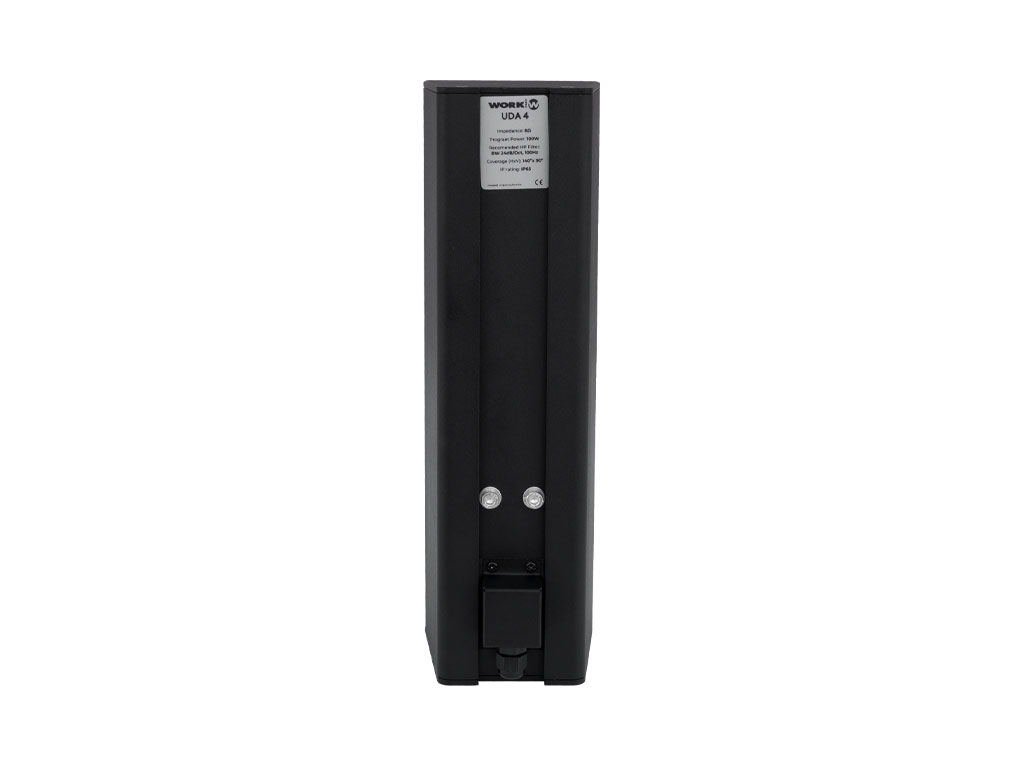

ConnectionsTerminals
ColourBlack (RAL9011) or white (RAL9003)
RiggingWall 4V +/-50° horizontal and +/-30° vertical wall mounting accessory. Wall 4H (indoor only) +/-50° horizontal. No vertical rotation
Dimensions337 x 104 x 116 mm
Weight2.9 Kg
Includded accessoriesWall mounting accessory Wall 4 V
Optional accessoriesUDA 16 TL
Length(m)Width(m)Height(m)Weight(kg)
Product0.120.100.342.90
Box0.150.160.473.60
  • Passive column speaker.
  • Suited for reverberant environments.
  • 90° Vertical, 140° Horizontal Coverage.
  • 100W Program.
  • Stylish and visually discreet design.
  • Extruded aluminium enclosure.
  • Low and High impedance available.
  • Available in black or white finish.
