THEATRE ZOOM LED 15-55
27MAR007
Spotlights

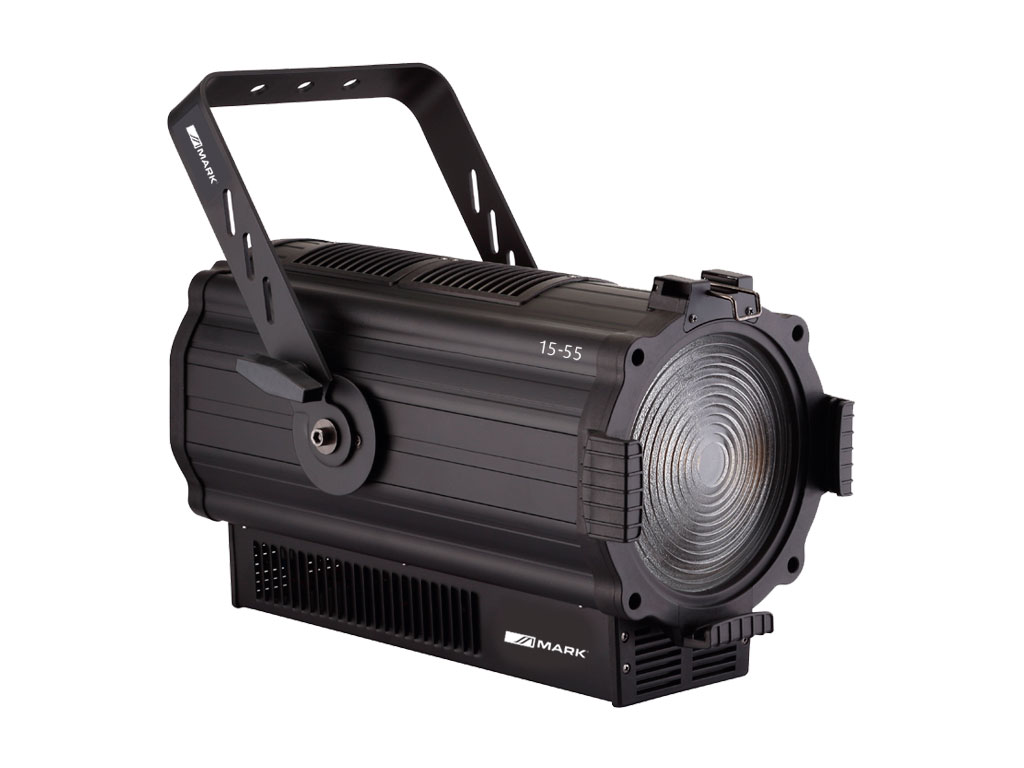

THEATRE ZOOM LED 15-55 is a theatre zoom led spotlight with electronically cariable zoom which perfectly fits in any previous installation. It adds a 200W LED lamp. This lamp has a COB LED which provides a homogeneous bright white light with a high colour temperature. This spotlight also takes advantage of the LED features, such as the reduction of the heat and the a longer lifetime of the lamp.
This multiprofile zoom led can be controlled via DMX through three DMX channels: dimmer, zoom and strobe. Thanks to its electronic zoom, it is possible to adjust the beam angle from the control console which maximise its utility.
It has a interface and a LCD screen to select functions such as reset, control mode (Master mode or DMX), 2 presets and manual adjustment. Additionally, it adds a button to adjust the zoom.
Burn doors included.
Colour temperature: 3200°K / 5600°K
Beam angle: 15° a 55°
DMX channels: 2and 3 channels
Main supply: AC 100-240V, 50/60 Hz
Consumption: 250W
Dimensions: 486 x 276 x 250 mm
Weight: 10,8 kg
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.49 | 0.28 | 0.25 | 10.80 |
| Box | 0.52 | 0.32 | 0.32 | 11.34 |
Variable zoom between 15° and 55°
Control modes: DMX (2 and 3 channels), Master, Manual
200W white COB LED lamp
0-100% dimmer
1 to 20 fps strobe
2 presets
LCD screen to functions control
XLR 3 and XLR 5 connections
Datasheet | theatre_zoom_led_info |  | Download |
