WPD 323

Power Control

Lighting

60WDP323

32A

Power distributor.

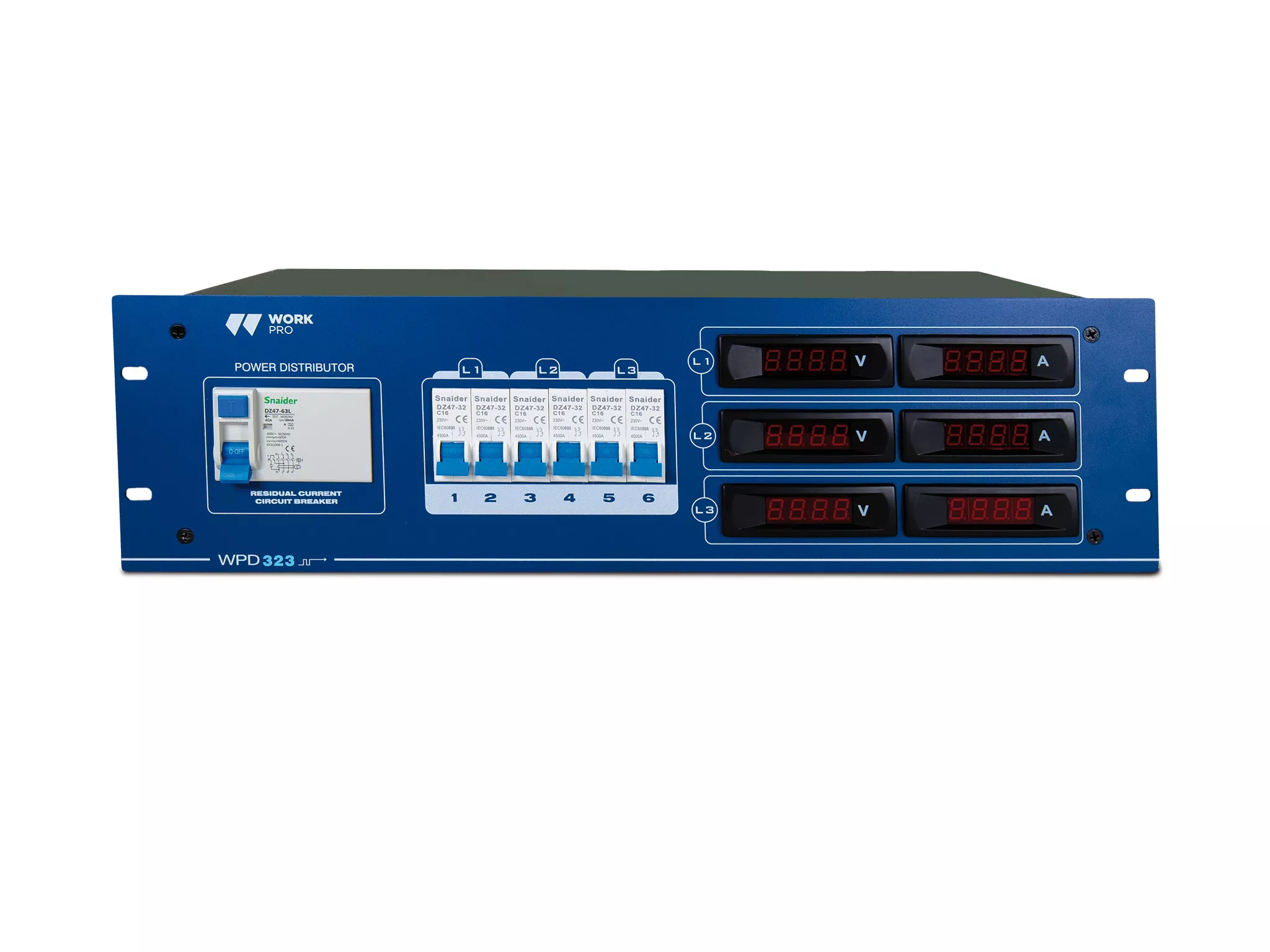

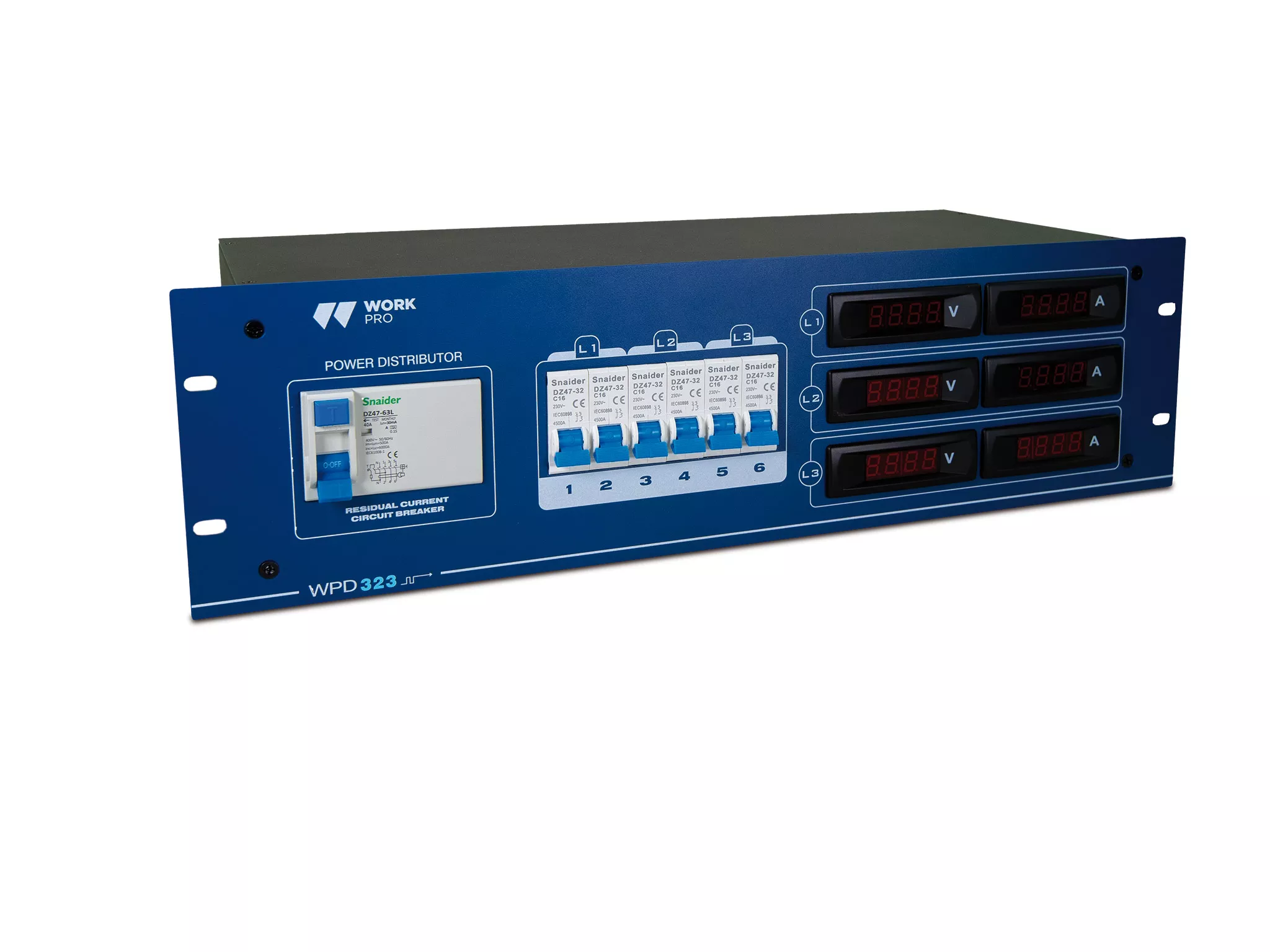

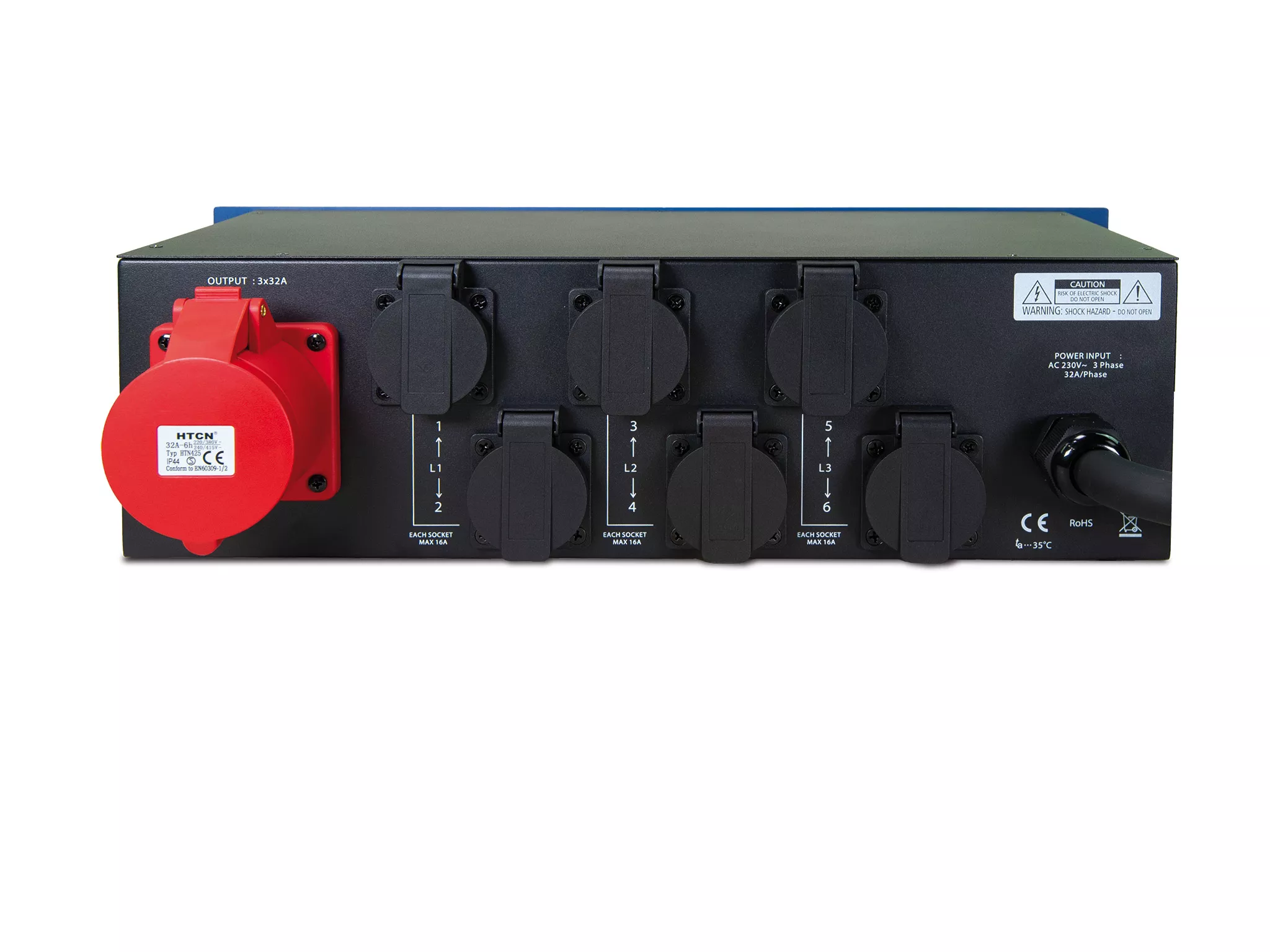

Current distributor equipped with three-phase input connection of 32 A and 6 Type F (schuko) output connectors of 16 A each. On the front panel, a digital voltmeter and ammeter allow the display of the levels of each phase. On the rear panel, apart from the Type F connectors, it incorporates another 32 A output socket for auxiliary power supply. In addition, a protection circuit breaker for each output and a general differential protect the unit against residual currents.

Features

3 19-inch rack units.
Protection circuit breaker on each phase.
Voltage and current monitoring of each phase with digital voltmeter and ammeter.
Three-phase input and single-phase outputs.

Protections	32A four-pole differential + Mini C45N 16A MCB Mini C45N 16A
Indicators	Voltmeter and ammeter per output

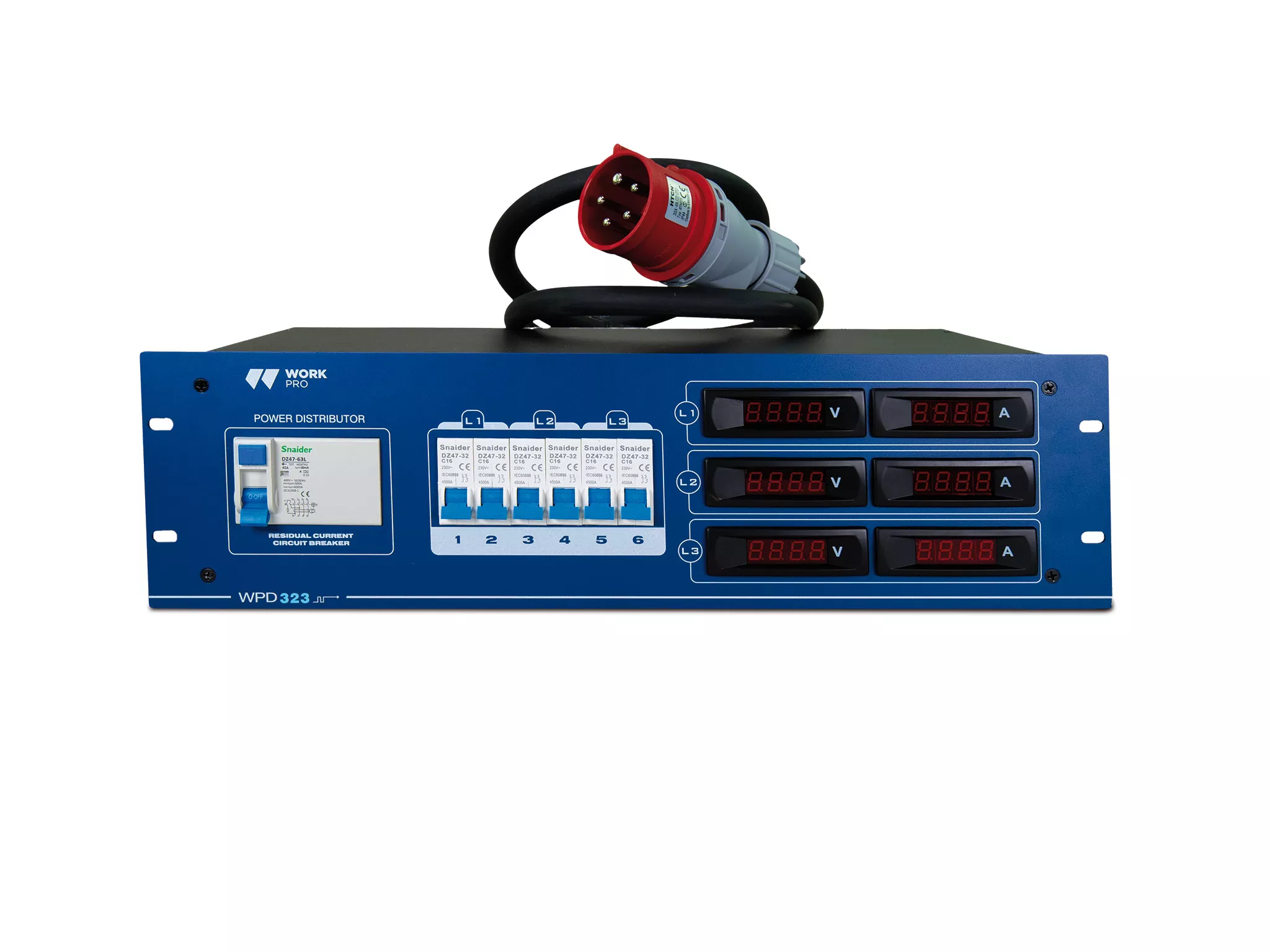

Connections	Input: Cetac 32A (3P+N+E) Cable 2mts. H07RN-F 5G6 Clav. 32A 5p 400V; Output: 6 connectors Type F (schuko) 16A 250V + 1 connector CEE 125 32A 5p 6h 400V

Dimensions	132 x 483 x 265 mm
Weight	7 Kg

	Length(m)	Width(m)	Height(m)	Weight(kg)
Product	0.27	0.48	0.13	7.00
Box	0.56	0.50	0.22	9.40
Master Carton	0.59	0.52	0.47	20.34

Power distributor.
Input: Tri-phase 3 x 32 A + N + E.
Output: 6 schuko connectors (2 per phase) + 1 CEE 32 A 5p 6h 400V.
Digital voltmeter and amp-meter for each phase.
Protection circuit breaker for each output connector.
Additional circuit breaker for residual current.
Dimensions (WxHxD): 483 x 132 x 265 mm.
Weight: 7 kg.
