WPD 163

60WPD163
16A

Power distributor.

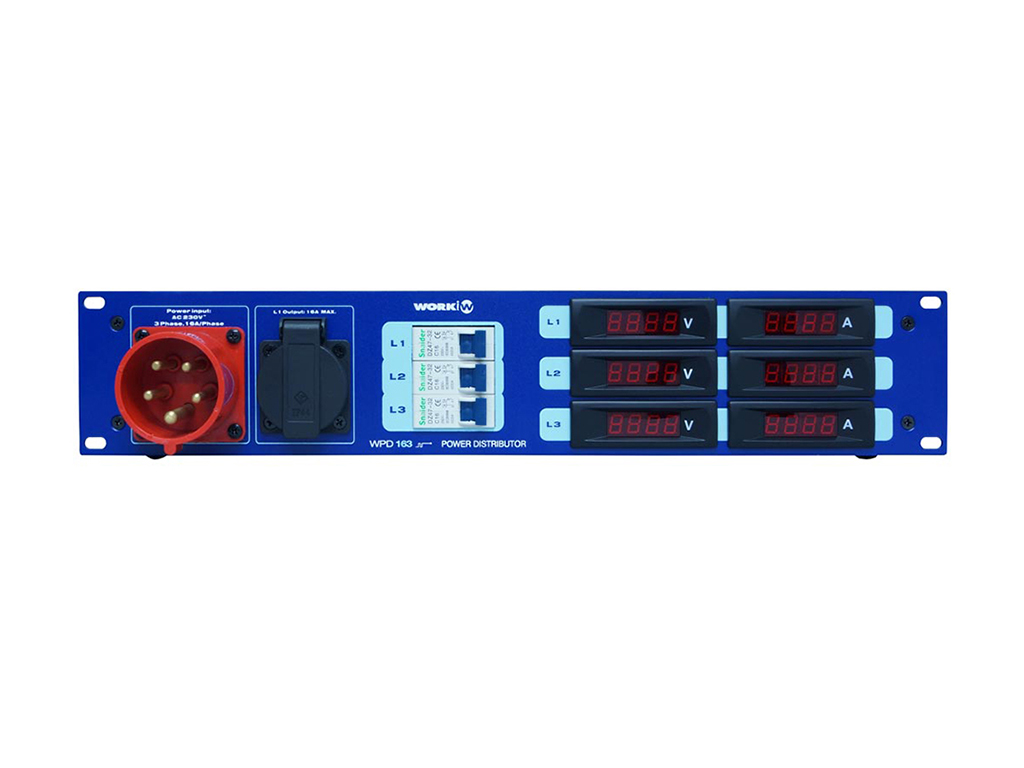

Current distributor equipped with three-phase connection of 16 A Cetac type input and 6 schucko type output connectors of 16 A each. To display the levels of each phase, it has a digital voltmeter and ammeter on the front panel. It also incorporates a phase protection circuit breaker and an additional Type F (schuko) socket for auxiliary power supply.

Features

  • 2 x 19 inch rack units.
  • Protection circuit breaker on each phase.
  • Voltage and current monitoring of each phase with digital voltmeter and ammeter.
  • Three-phase input and single-phase outputs.
ConnectionsInput: CETAC 16A (3P+N+E) three-phase; Output: 6 connectors Type F (schuko) 16A 250V + 1 front connector Type F (schuko) 16A 250V on phase 1
IndicatorsVoltmeter and ammeter for each phase
ProtectionsMini circuit breaker C45N 16A per phase
Dimensions88 x 483 x 210 mm
Weight3.8 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.210.480.093.80
Box0.610.330.185.80
Master Carton0.680.630.3824.94
Power distributor.
Input: Tri-phase 3 x 16 A+N+E.
Output: 6 x 16 A schuko connectors (2 per phase) + 1 front schuko.
Digital voltmeter and amp-meter for each phase.
Protection circuit-breaker on each phase.
Dimensions (WxHxD): 483 x 88 x 210 mm.
Weight: 3.8 kg.
  Manual
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question




Related

  • WPD 323
    Power distributor. 32A three-phase Cetac type input. 6 outlets schuko type 16A.
  • WPD 633
    Power distributor. 63A three-phase cetac type input. 4 outlets type cetac three-phase 32A.

Spareparts

  • MAGNETO 16A BIPOLAR WPD (WPD 163 / 323)
  • PCB DISPLAY AMPERIMETRO (WPD 163 /323 / 633)
  • PCB DISPLAY VOLTIMETRO (WPD 163 /323 / 633)
