Lighting
WDP 4 ANALOG
56WCP004
4-channel chaser.

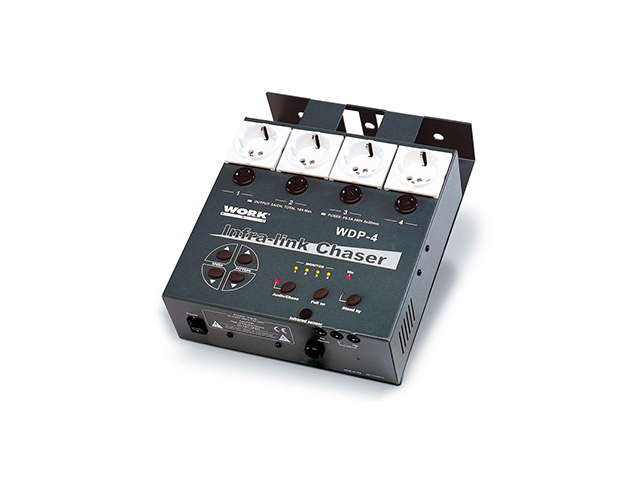

WDP 4 ANALOG is a 4-channel chaser with remote control capability. The unit has 16 built-in chase programs plus a sequence of 16 programs, each of which can be driven by the music or speed setting. In addition, the Full and Stand functions allow you to turn the outputs on or off completely. For convenience, this unit can be controlled entirely by infrared control. Additionally, this unit has been built with a memory to save and retain your data in case of power loss.
Features
- Stand By and Full On functions.
- Built-in internal microphone.

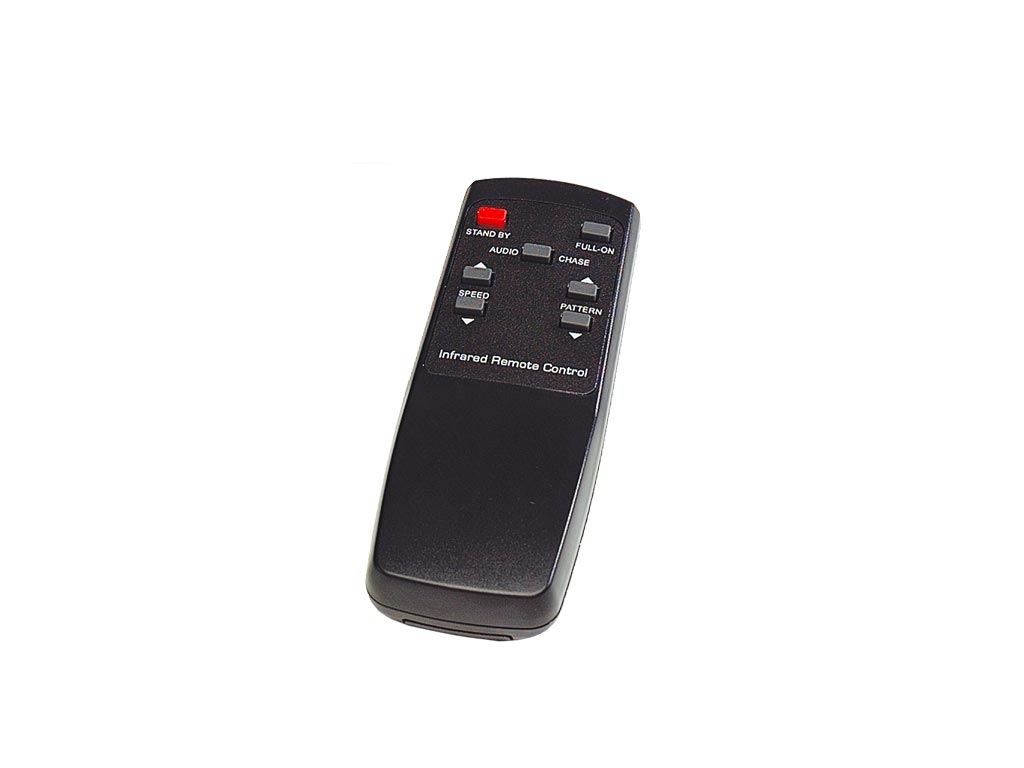

- Built-in remote control of functions.
- Possibility of connection to other units.
| Output power | 4 x 5 A (16 A total) |
| Input power | AC 230V~50Hz, 16A |
| Presets | 17 |
| Functions | Stand By and Full On functions |
| Controls | Configuration buttons; Remote control |
| Operating modes | Chaser with adjustable speed; audio synchronisation |
| Weight | 2.2 Kg / 2.2 Kg |
| Dimensions | 260 x 210 x 75mm |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.26 | 0.21 | 0.08 | 2.20 |
| Box | 0.34 | 0.28 | 0.13 | 3.10 |
| Master Carton | 0.58 | 0.36 | 0.41 | 19.38 |
4 channel chaser with 5 A per channel.
16 A max. total load.
Operating modes: Adjustable speed chaser and audio synchronization.
Internal microphone.
Stand by and Full on functions.
Remote control for all functions.
Possibility to connect other units.
Memory against power supply failure.
Main supply: AC 230 V 50 Hz.
Dimensions (WxHxD): 210 x 260 x 75 mm.
Weight: 2.2 kg.
16 A max. total load.
Operating modes: Adjustable speed chaser and audio synchronization.
Internal microphone.
Stand by and Full on functions.
Remote control for all functions.
Possibility to connect other units.
Memory against power supply failure.
Main supply: AC 230 V 50 Hz.
Dimensions (WxHxD): 210 x 260 x 75 mm.
Weight: 2.2 kg.
Manual | WDP 4 ANALOG - Manual | Download |
