SPLITTER 1202
60WDI015
DMX
Splitter DMX.

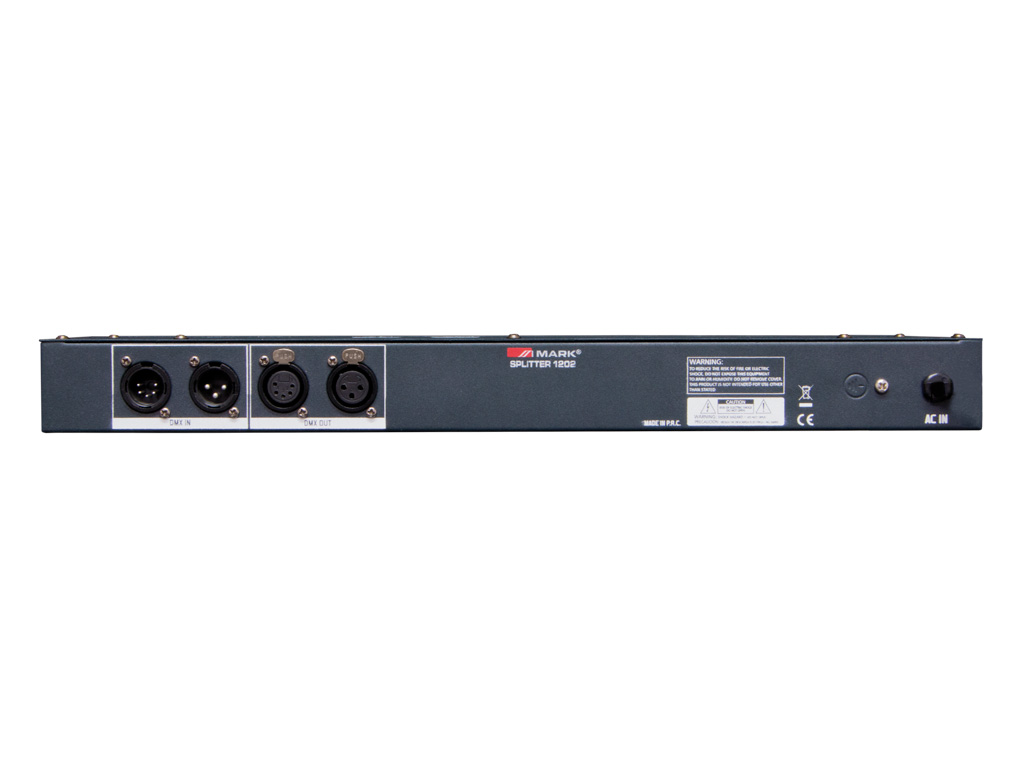

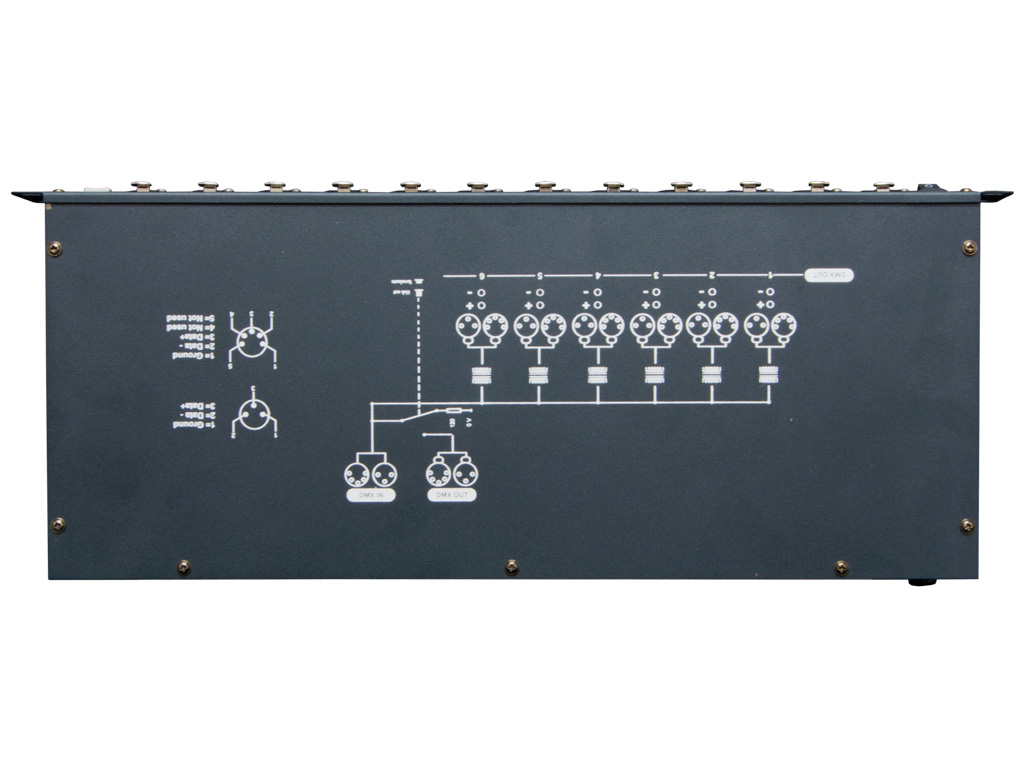

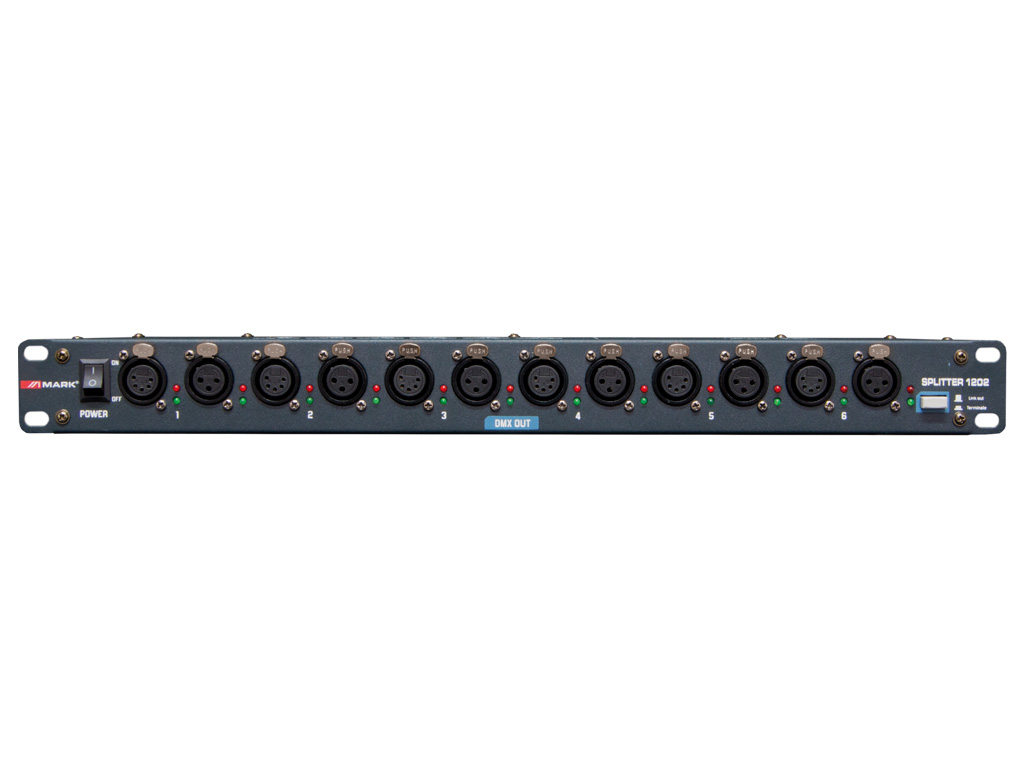

SPLITTER 1202 is a 6-way DMX signal distributor, completely electrically isolated between input and outputs as well as between outputs. Both DMX inputs and DMX outputs are equipped with 3-pin and 5-pin XLR connectors. Each DMX output has an independent driver and DATA + DATA- indicators.
Features
- 6-ways.
- XLR3 and XLR5 connectors.
- Terminal/Link Out selector switch.
- 1 HU 19 inch rack.
| Connections | DMX IN: 1 x XLR3 / 1 x XLR5, DMX OUT: 7 x XLR3 / 7 x XLR5 |
| Power supply | AC 230V - 50 Hz |
| Dimensions | 44 x 483 x 186 mm |
| Weight | 3.2 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.19 | 0.48 | 0.04 | 3.20 |
| Box | 0.50 | 0.26 | 0.11 | 3.86 |
| Master Carton | 0.54 | 0.53 | 0.25 | 16.48 |
Both DMX input and DMX output are provided with 3-pin or 5-pin XLR connectors, each DMX output has an independent driver and DATA+ & DATA- indicators. In addition, a Link out/Terminate selector is used to prevent DMX output from the errors or malfunction caused by DMX input.
Manual | Manual - Splitter 1202 |  | Download |
Datasheet | Datasheet - Splitter 1202 | Download | |
Datasheet | Datasheet - Splitter 1202 | Download |
