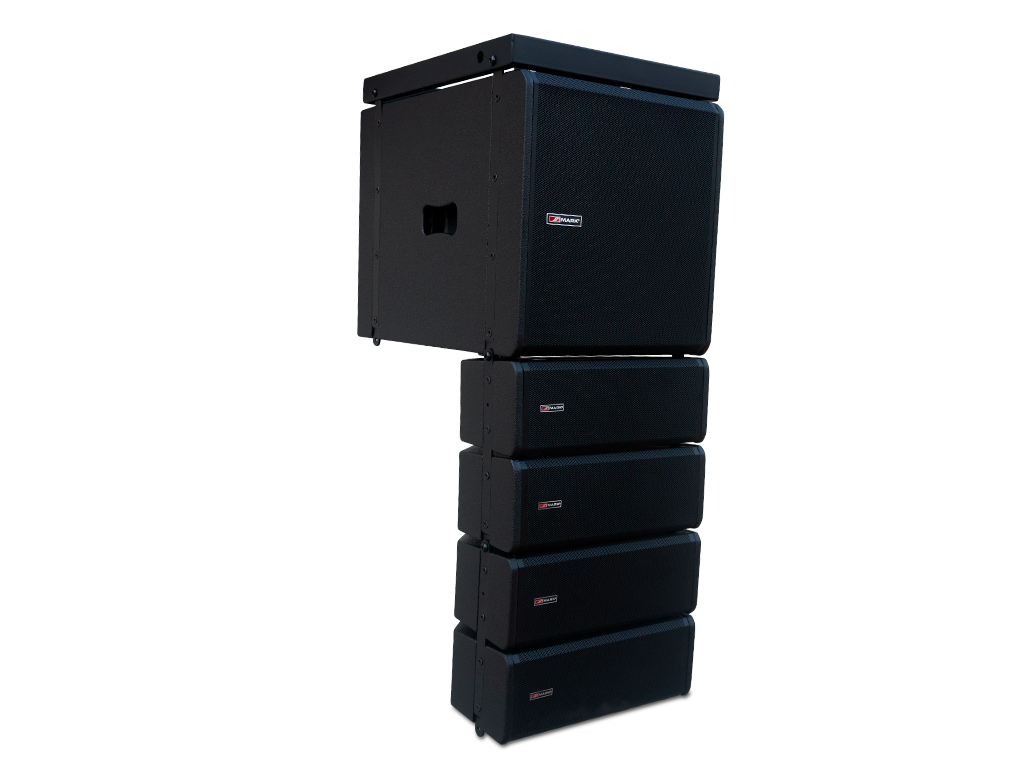

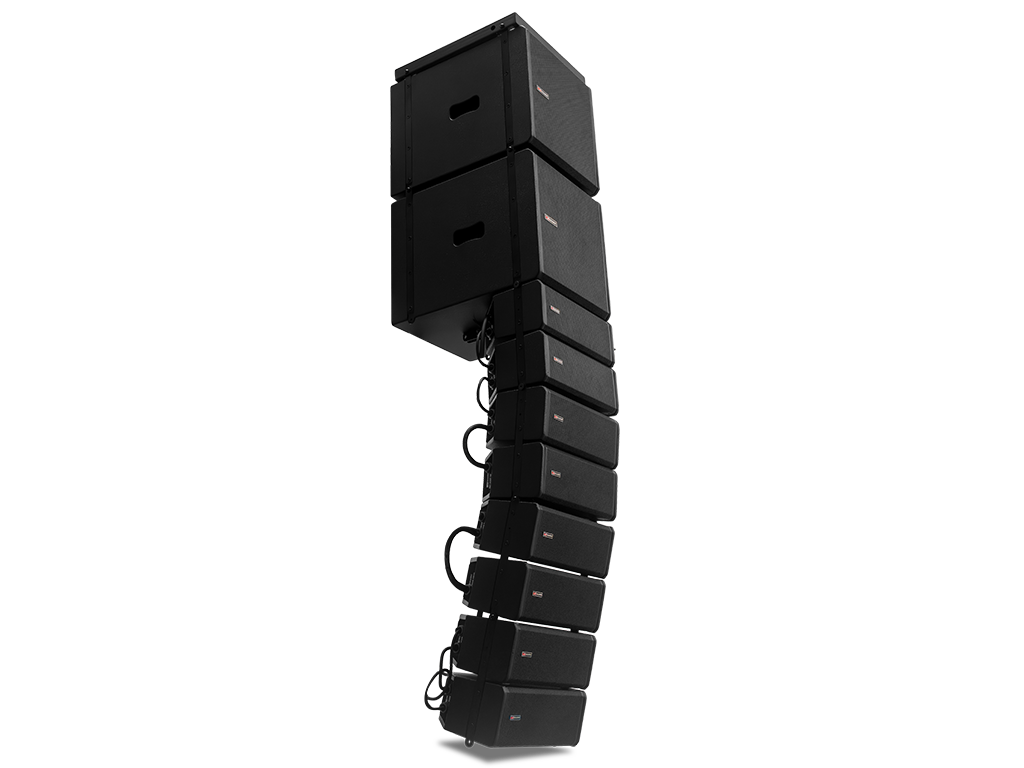

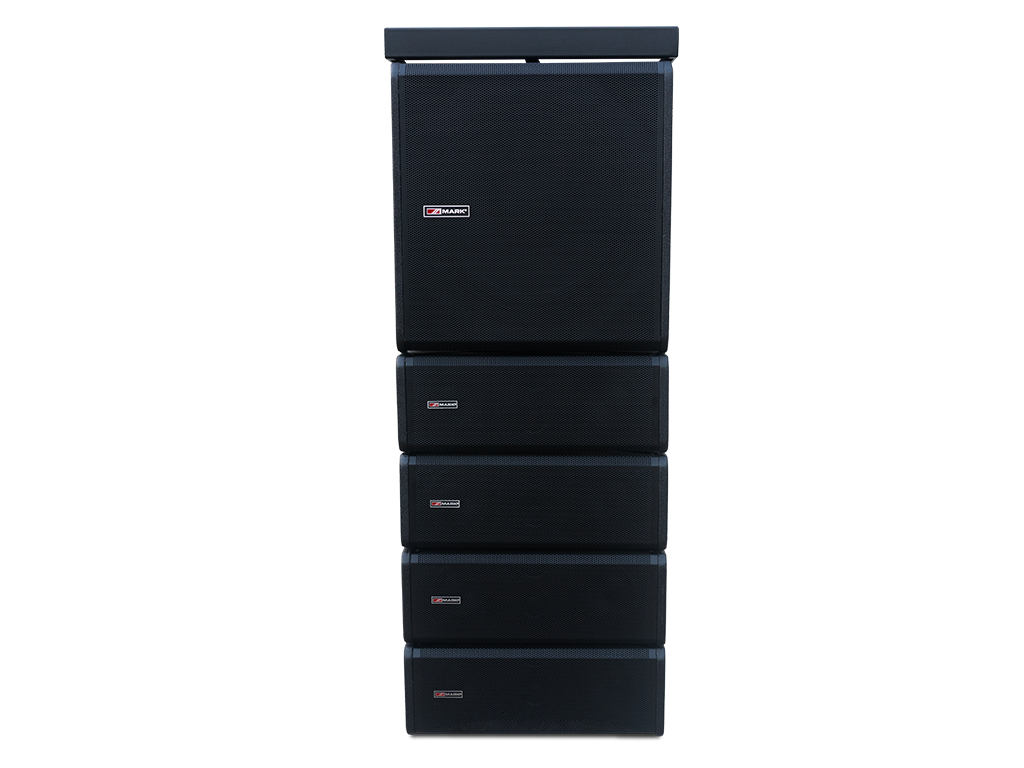

SET MAP 1200 is an active line array system consisting of 4 satellites and a bi-amplified subwoofer. With a total power of 1200 W and taking advantage of its compact size, this line array system integrates perfectly in all types of small and medium-sized installations such as conference rooms, classrooms, party rooms, etc. The subwoofer integrates the power amplifier and a 12" woofer for the bass frequencies, and it can be flown as a line array or on the floor. Each satellite has 2 x 4" speakers and 1 x 1" compression drivers. Both elements, subwoofer and satellites, are made of plywood with a splash-resistant paint coating.
Type | SUB: activ. subwoofer SAT: 2-way passive speaker |
Power | 600W + 600W/ 600W + 600 W |
Transducers | SUB: 1 x 12" 3"VC 60oz; SAT: 8 x 4" woofer + 4 x 1" VC |
Sensitivity (1W @ 1m) | 96 dB |
Frequency Range | 50 Hz - 18.5 KHz |
SPL Max | 121 dB/ 127 dB |
Coverage Angle (H x V) | 100º - 10º |
Connections | Power supply: Powercon, Amp Out: XLN4, Audio Signal: XLR3 |
Inserts / Rigging | Rigging system, 35 mm insert, angled cams |
Enclosure material | Splash resistant plywood |
Finished | Paint |
Colour | Black |
Amp Power | 2 canales Clase D 350 W + 350 W rms/ Class D - 600W + 600W |
Weight | 40 Kg |
Manual | SET_MAP_1200_MANUAL_1_1 | ![]() | Download |
