Audio Installation
RCS 003
82MEG098
8Ohm
L100V
Ceiling speaker

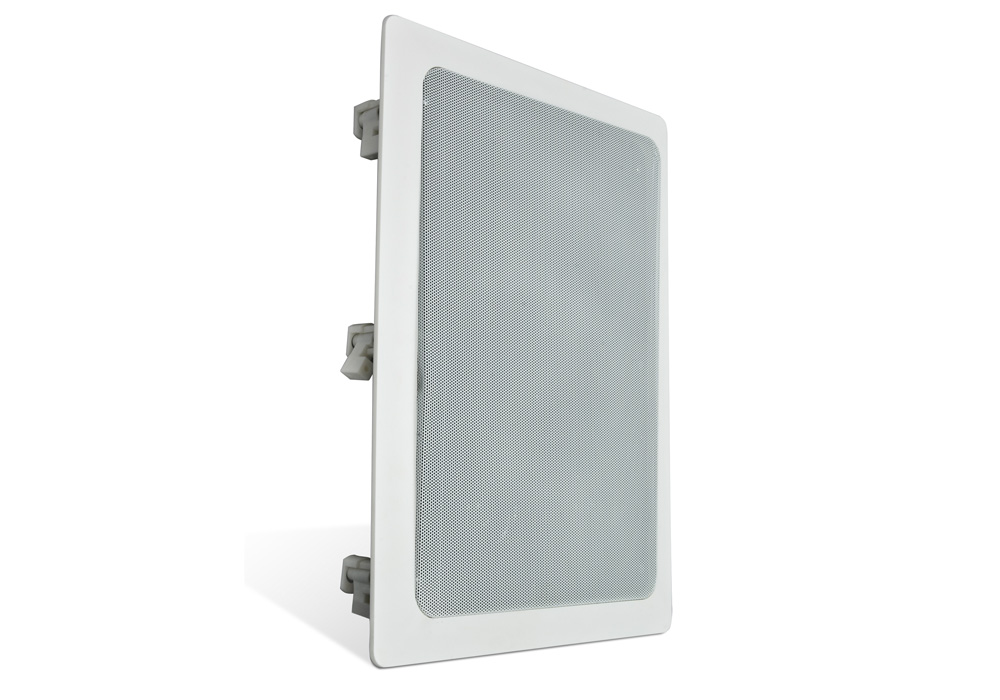

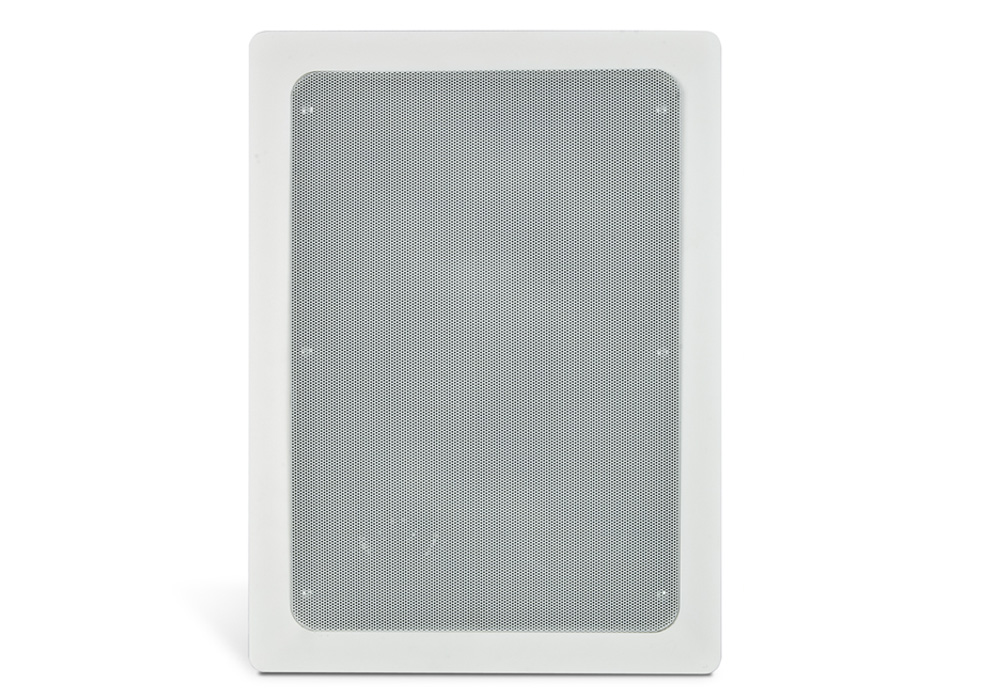

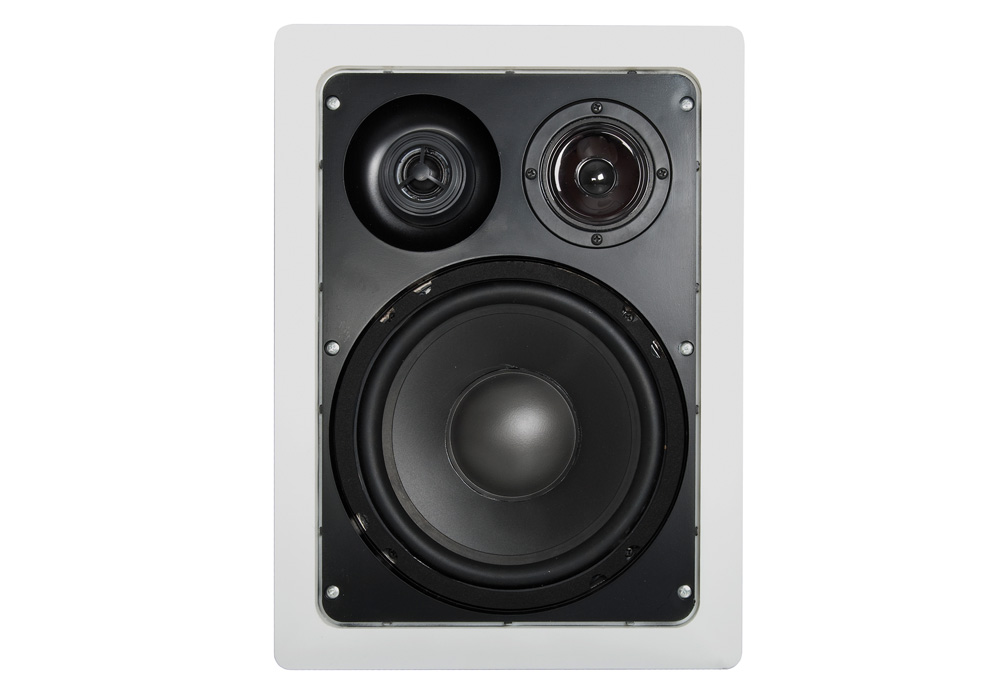

RCS 003 is a 3-way ceiling loudspeaker composed of an 8" woofer, a 2.5" woofer and a 1 "tweeter, which can work in low impedance installations supporting a power of 50 W @ 8 Ohm, and in installations of 70/100 volt line, having a select number of powers (30/20/10 W). Unlike other ceiling loudspeakers, RCS 003 has a square shape, offering an alternative to installers and designers. All range roof is made of ABS plastic and has a metal grill.
Features
- Low impedance and 70/100 V line.
- Square format.
- Rotatable tweeter.
| Type | 3 vías. Pasivo/ 3 way. Passive |
| Low Impedance Power | 50 W @ 8 Ohm |
| L100V Power | 30 W (333 ohm) / 20 W (500 ohm) /10 W (1 kohm) |
| L70V Power | 15 W (326 ohm) / 10 W (490 ohm) /5 W (980 ohm) |
| LF Transducer | Woofer 8" |
| HF Transducer | Tweeter 1" |
| Frequency Range | 30 Hz - 20 KHz |
| Sensitivity | 92 dB |
| Max SPL | 106 dB |
| Material | Enclosure: ABS plastic; Grille: Metal |
| Colour | White (RAL 9003) |
| Mounting dimensions | 330 x 230 mm |
| Dimensions | 370 x 270 x 95 mm |
| Weight | 2.5 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.37 | 0.27 | 0.10 | 2.50 |
| Box | 300.00 | 0.40 | 0.30 | 2.50 |
| Master Carton | 0.51 | 0.63 | 0.43 | 24.00 |
