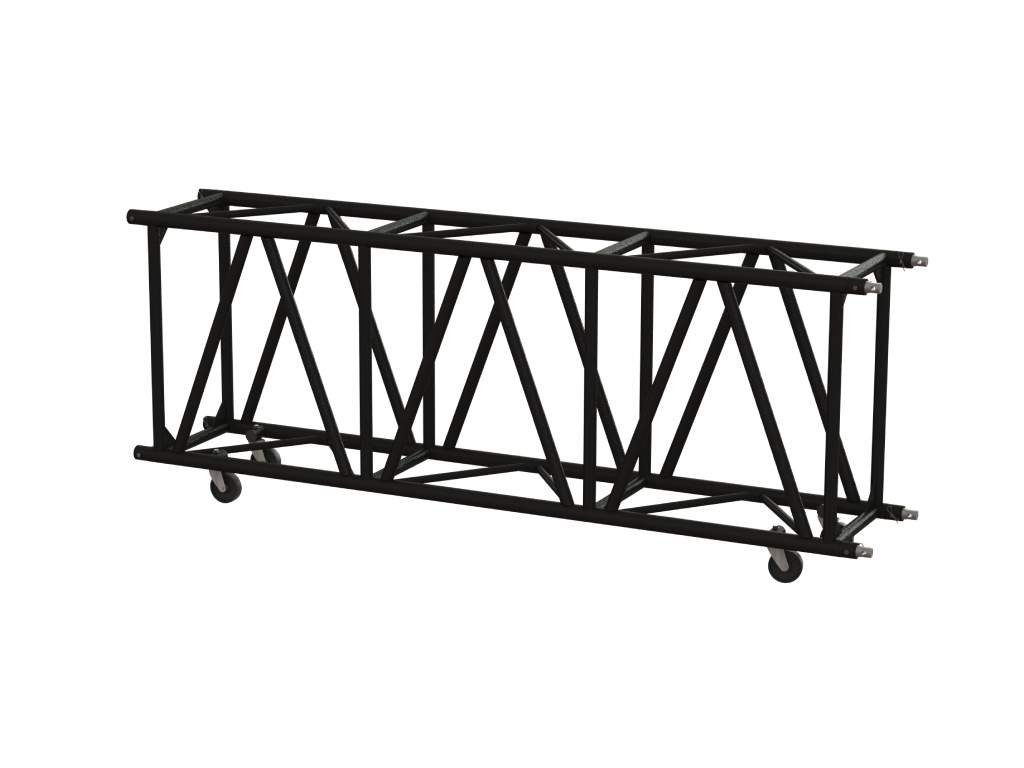

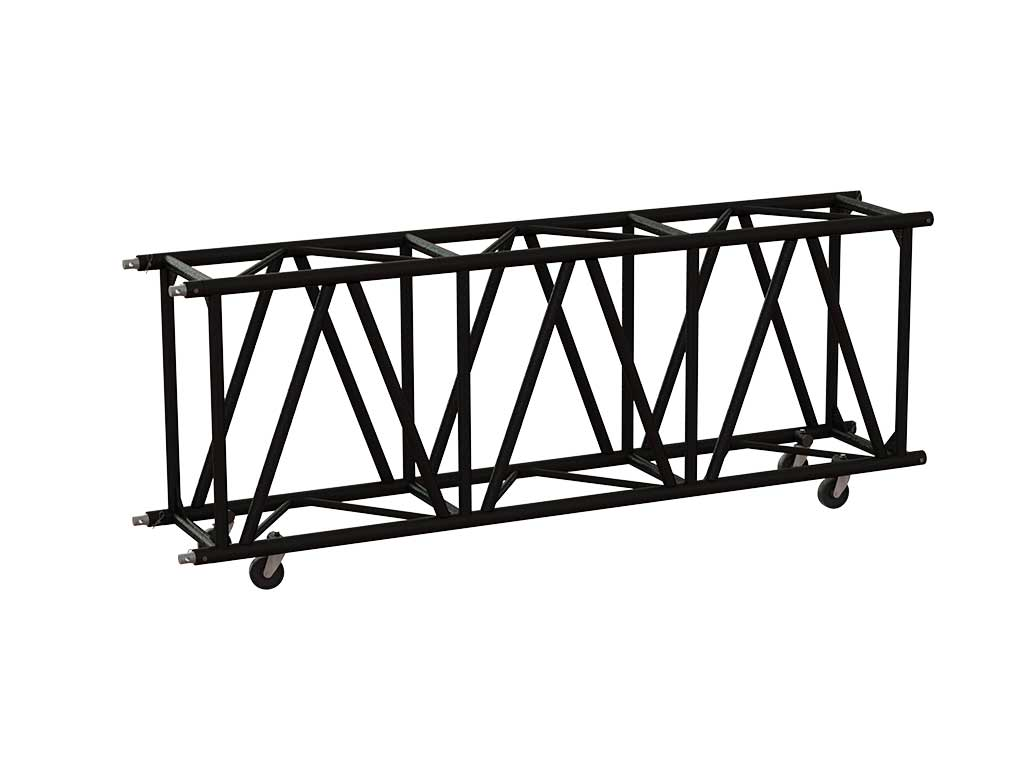

Rectangular aluminium truss structure section 101 cm high and 58 cm wide, made with a main tube of 60 mm diameter and 6 mm thick, and auxiliary tube of 48 mm diameter and 3 mm thick. It is available in 1 m, 2 m, and 3 m lengths, and in silver or black. Includes 4 double cones, 8 pins and 4 safety clips R. FK SERIES compatible.
- Standard measures: 1 / 2 / 3 m.
- Other sizes available on request.
- Available in silver or black.
- Other colours available on request.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Material | Aluminium |
| Main Tube Section | 60 x 6 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 48 x 3 mm |
| Main tube diameter | 60 x 6 mm/ 60x 6 mm |
| Braces Alloy | EN AW 6082T6 |
| Auxiliary tube diameter | 48 x 3 mm/ |
| Coupling System | CBC60F |
| Height | 1010 mm |
| Width | 580 mm |
| Colour | Silver or Black (RAL9005) |
| Weight | 33.11 (1m)/ 53.46 (2m)/ 73.66 (3m)Kg |
