Professional Audio

PROX 12 E

82MAR034
USB
Bluetooth
REC
+48V

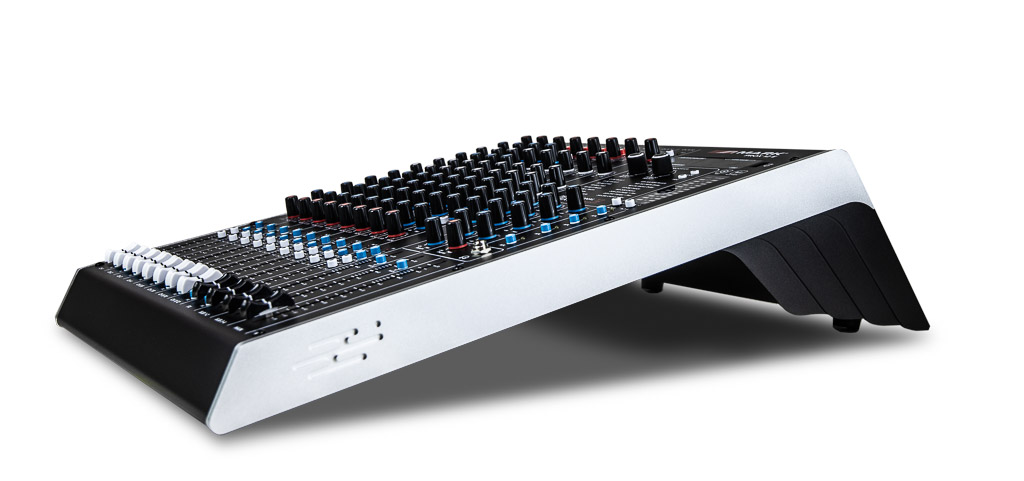

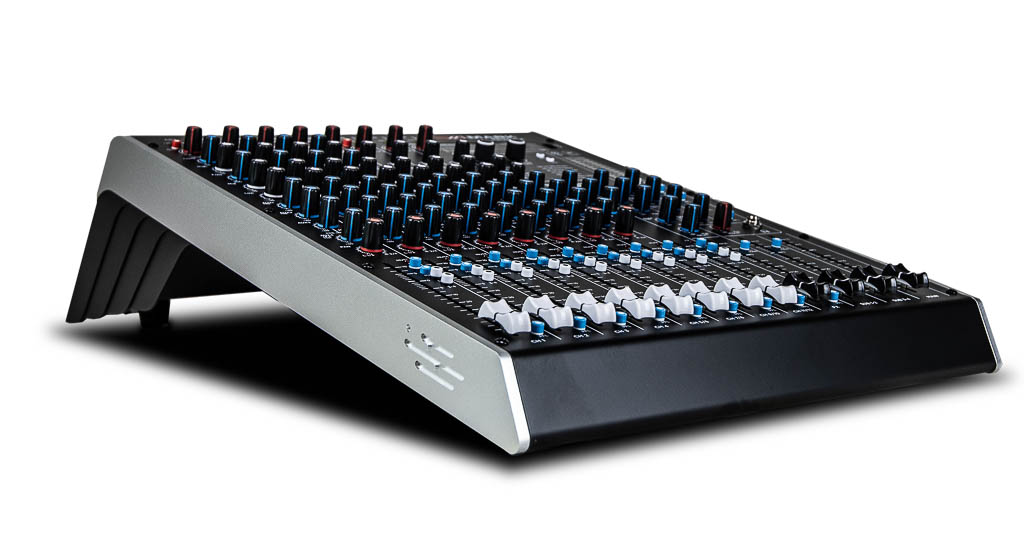

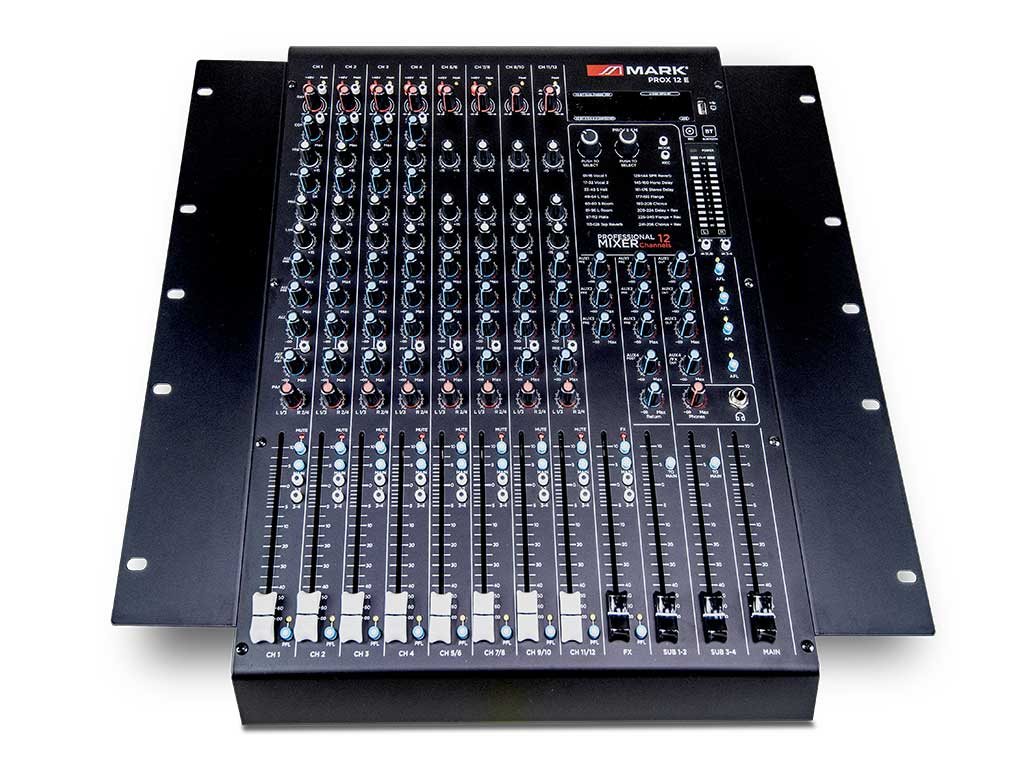

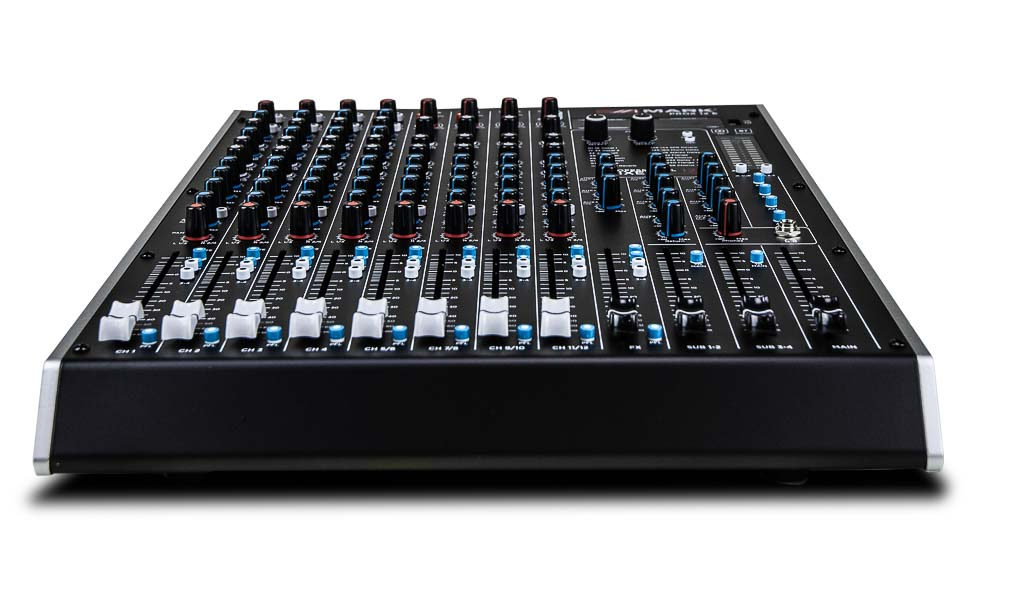

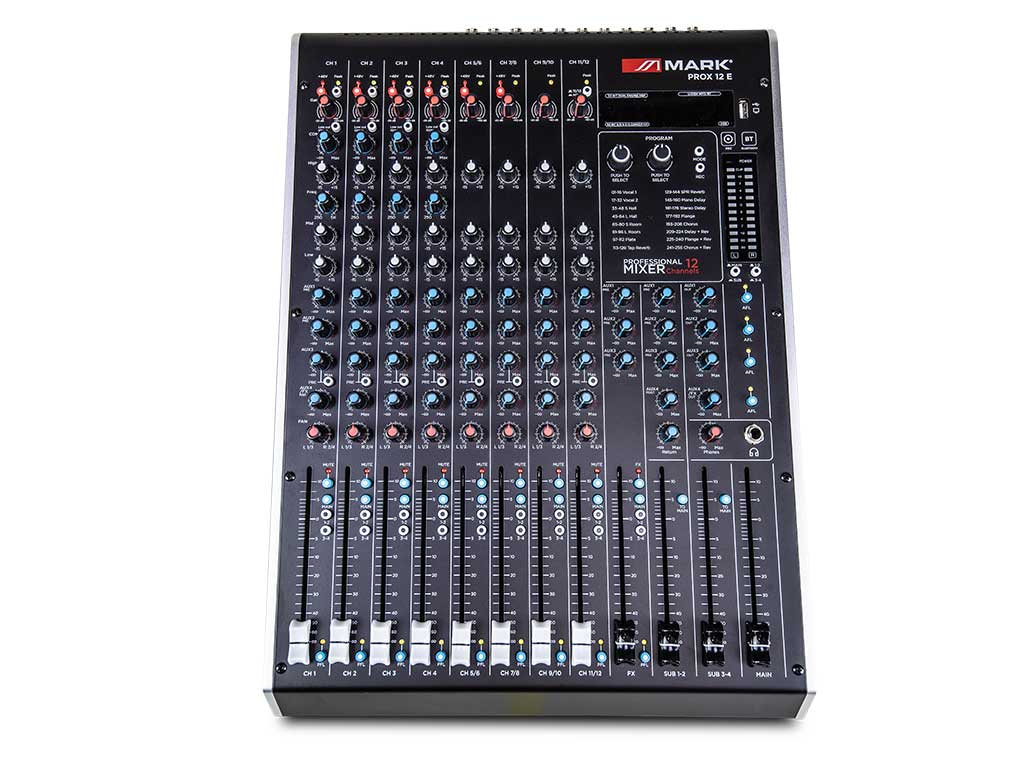

12 channels analoge audio Mixer USB/BT

The PROX 12E professional mixer features 4 mono MIC/LINE channels and 4 stereo channels.

PROX 12E integrates a 256 effects DSP, as well as USB/BT with USB port for PC connection (sound card operation). Its 4 auxiliary sends, 4 groups and footswitch connection allow you to connect to various external devices.

In addition, the USB port allows the mixer to be used as an MP3 player/recorder.

Features

  • 12 Channels (4 Mono & 4 Stereo), 2 Main outputs
  • 4 Groups, 4 Aux, Phantom +48V
  • Built-in Effects 256 DSP programs
  • USB MP3, WMA player/recorder & Bluetooth
Input Channels4 x Mono (Mic/Line); 2 x Mono/Stereo (Mic/Line); 2 x Stereo (Line)
Pad-15 dB

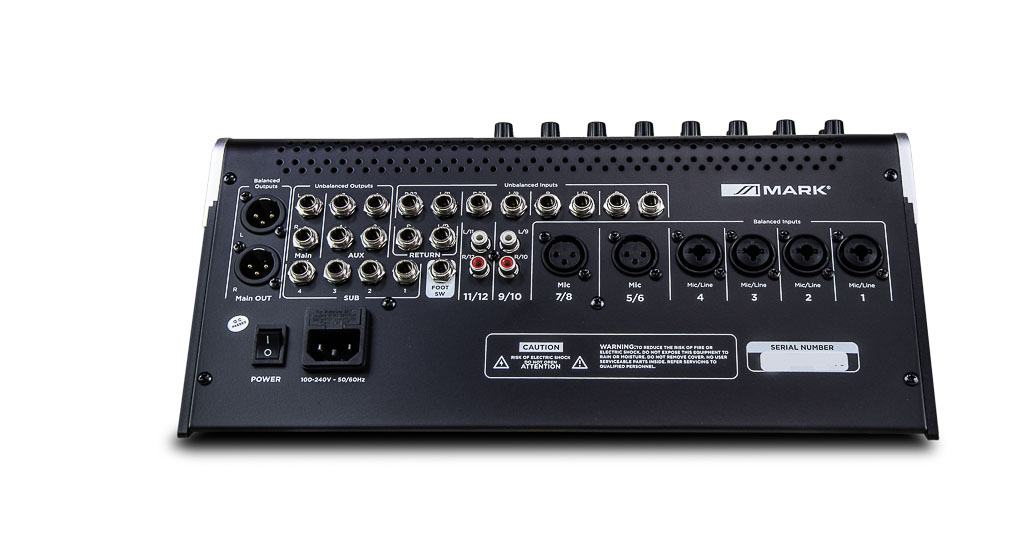

Output2 x Main Out;4 x Sub; 4 x Aux;1 Rec Out; 1 x Phones
EqualizationHIGH: Gain ±15dB Freq 15kHz; MID: Gain: ± 15dB Freq: 2.5kHz peak; MID: Gain: ±15dB Freq: Mono 250Hz- 5kHz peaking Stereo 2.5kHz peaking; LOW: Gain ±15dB Freq 80Hz
Phantom Power+48V
Effects256 DSP; Foot Switch
Audio interfaceUSB PC/Player-Recorder; Bluetooth
Dimensions445 X 550 X 143 mm
Power supplyAC 100/240V, 50/60 Hz
  Manual
Download
  Technical Data Image
Download
