PA 120/2 is an installation amplifier with an integrated mixer. It integrates 6 input signals with its own gain control, master volume and high / low tone controllers. PA 120/2 is differentiated by its two types of output: Music / Speech and Priority only. For maximum safety, they include a chime on / off switch, Tel / Emer connection for emergency communications, and 24 V dc terminals for emergency power.
- 2 19-inch rack units.

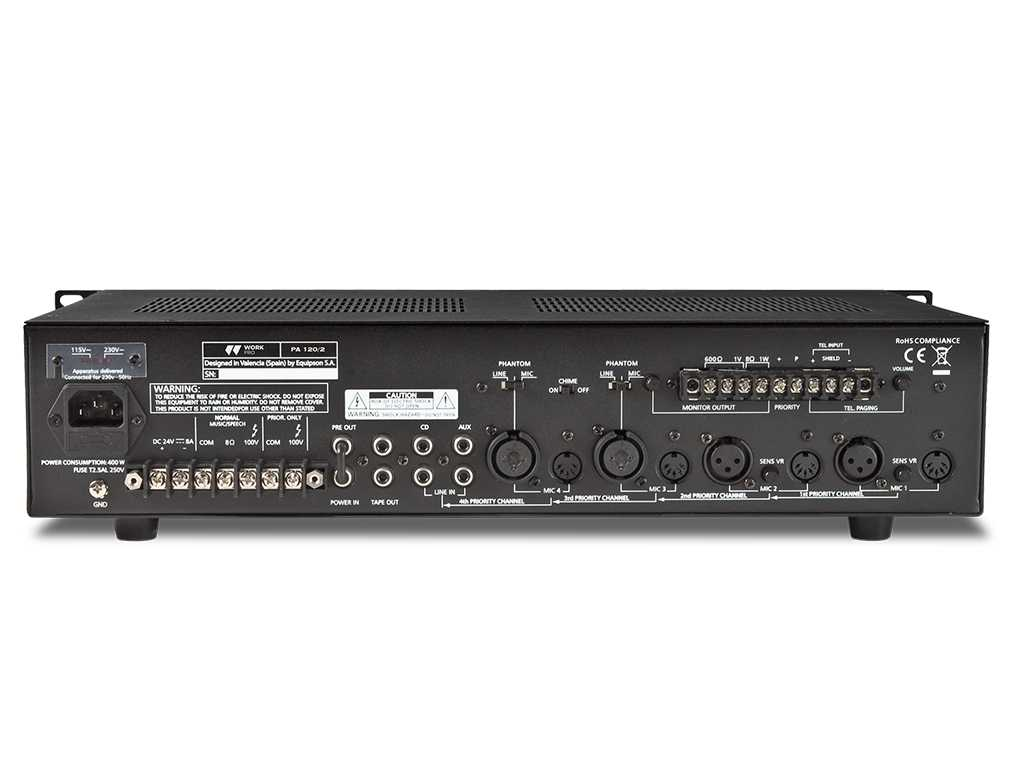

- Terminals for emergency power.
- Telephone / emergency connection for paging and communications functions.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Low impedance (8 Ohm), Line 25/70/100 V |
| Power | 120 W @ 8 Ohm, L100V |
| Input Sensitivity | Mic: 1 mV , Line: 200 mV, CD: 500 mV, Aux: 1 V |
| Input Impedance | Mic: 250 Ohm , Line: 47 KOhm CD: 47 KOhm, Aux: 47 KOhm |
| Connectors | Mic: XLR 3 / Jack 1/4 "/ DIN 5, Aux: RCA, Telephone: terminals, Pre out: RCA, Amplifier output: terminals |

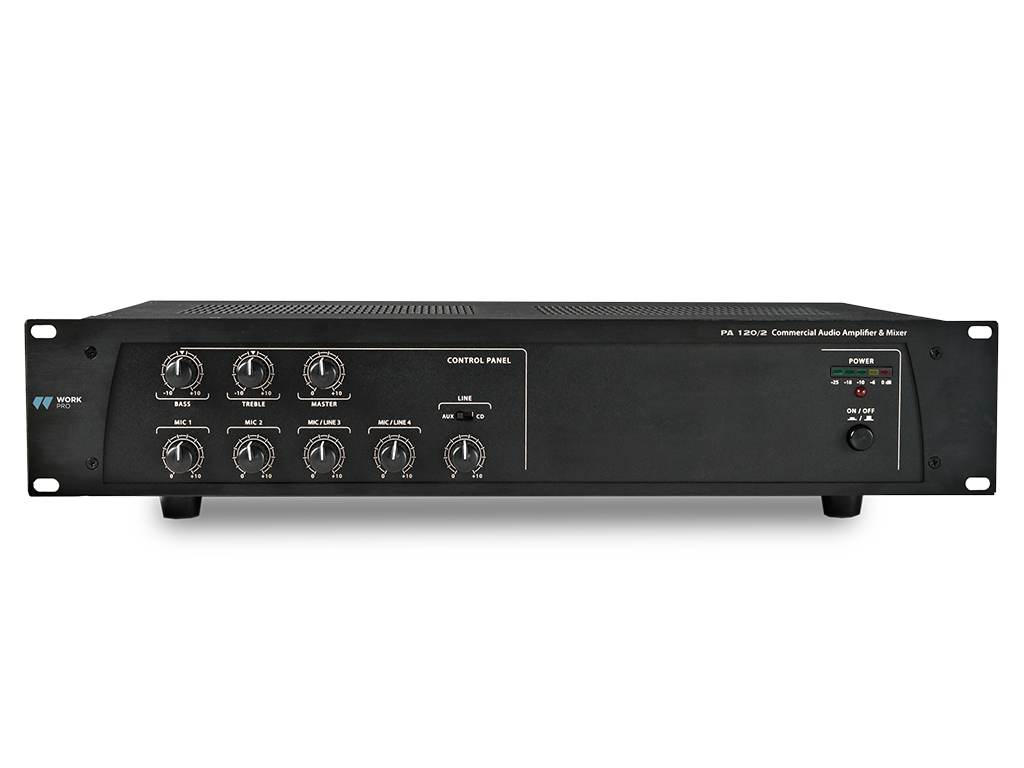

| Controls | Mic / Line Volume, Aux Volume, Master Volume, Tone Control (Treble, Bass) |
| Frequency Response | 50 Hz - 20 kHz +/- 3 dB |
| THD+N | < 1% @ 1 KHz |
| S/N ratio | >80 dB (Line), >60 dB (MIC) |
| Phantom Power | +48 V |
| Other functions | 2 tonos ("Ding-dong" tono para aviso previo a la comunicación), Canal prioridad Tel/Emergencia/ 2 tones (´Ding-dong´ tone for warning prior to communication), Tel / Emergency priority channel |
| Power supply | AC: 115 / 230 V - 50 / 60 Hz, DC: 24 V - 12 A |
| Consumption | 360 W |
| Dimensions | 483 x 88 x 300 mm. |
| Weight | 10 Kg |
