Audio Installation
NEO SET 100 BT
50EBS13850EBS139
Bluetooth
AMP
2 x NEO 3 + Amplified NEO S8A. LINE/Mic inputs. Bluetooth. 40W + (20+20W)

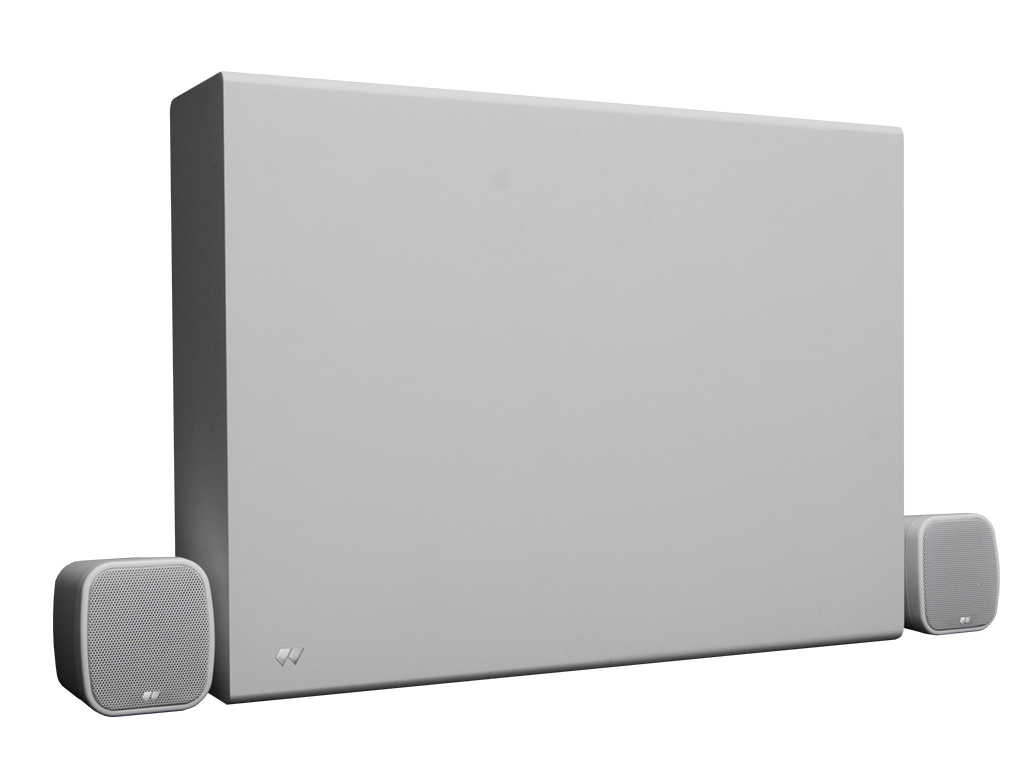

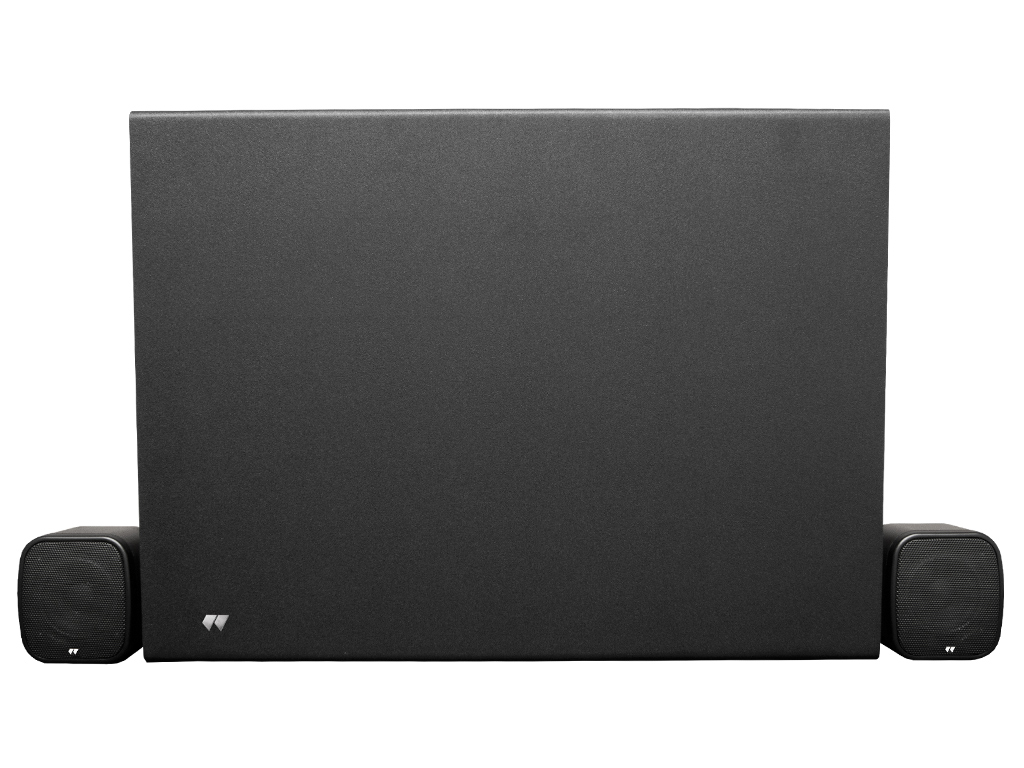

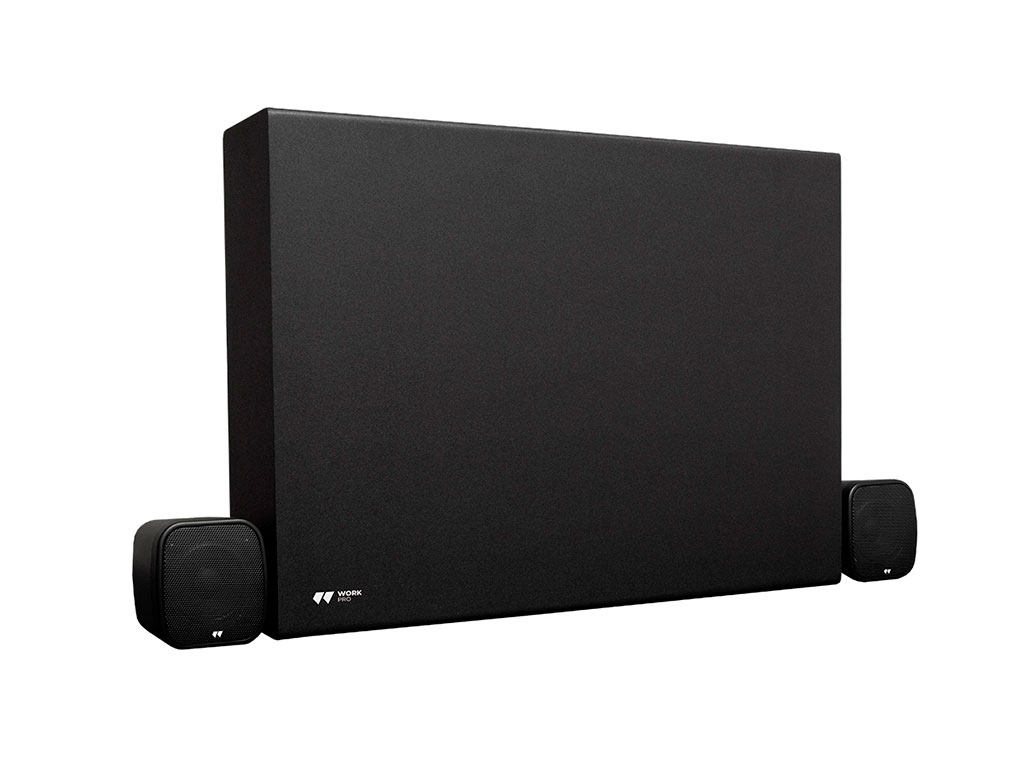

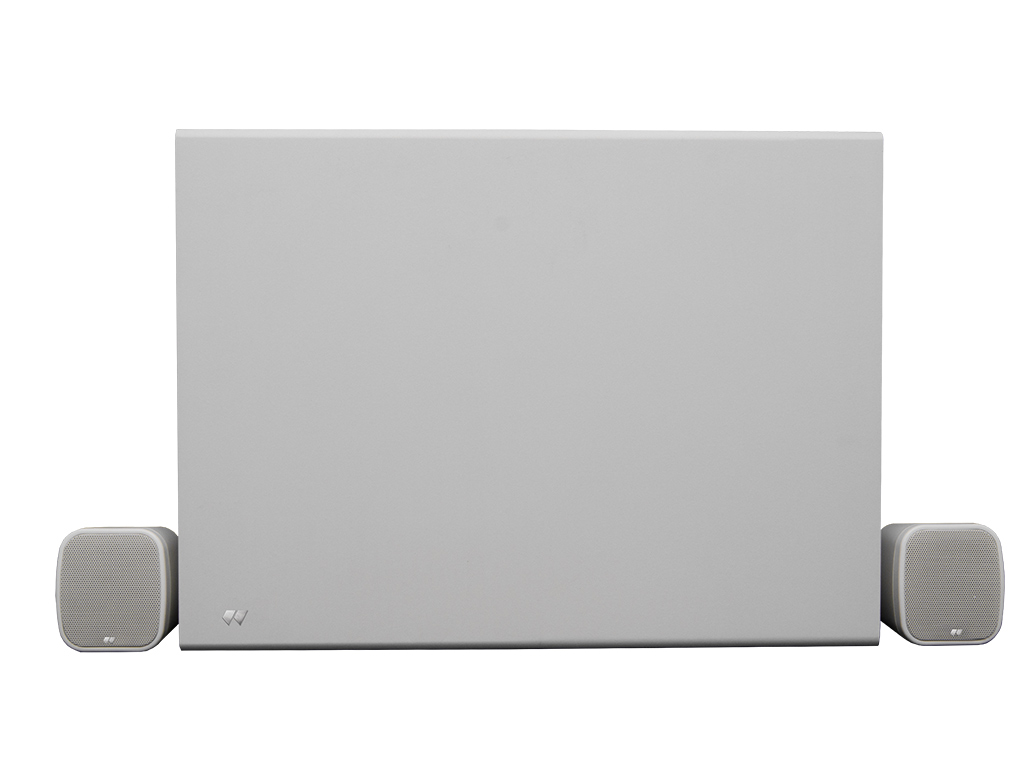

Now, contractors have an ally for their installations and residential projects. The new NEO SET 100 BT is a stylish and elegant audio system that will create the perfect background atmospheres. This set is composed of two full range NEO 3 S installation loudspeakers and one NEO S A 2.1 acting as amplified subwoofer.
The NEO SET 100 BT concept and design make possible to integrate this system in every project. It includes independent volume controls and the possibility to set the crossover frequency, which gives the contractors a greater control of the whole installation, adapting the system to the specific type of audio source.
This set is available in black and white finish and is sold within an attractive packaging for end-users.
Features
- Bluetooth.
- Brackets included.
- ABS satellites NEO 3.
- MDF Subwoofer.
| Components | 1 x NEO S8 A 8" subwoofer, 2 x NEO 3 S 2.5" satellites |
| Power | 50 W RMS @ 8Ohm |
| Frequency Response | Subwoofer: 35 - 200 Hz; Satellites: 150 Hz - 20 KHz |
| SPL Max | 100 dB |
| Sensitivity | 87 dB |

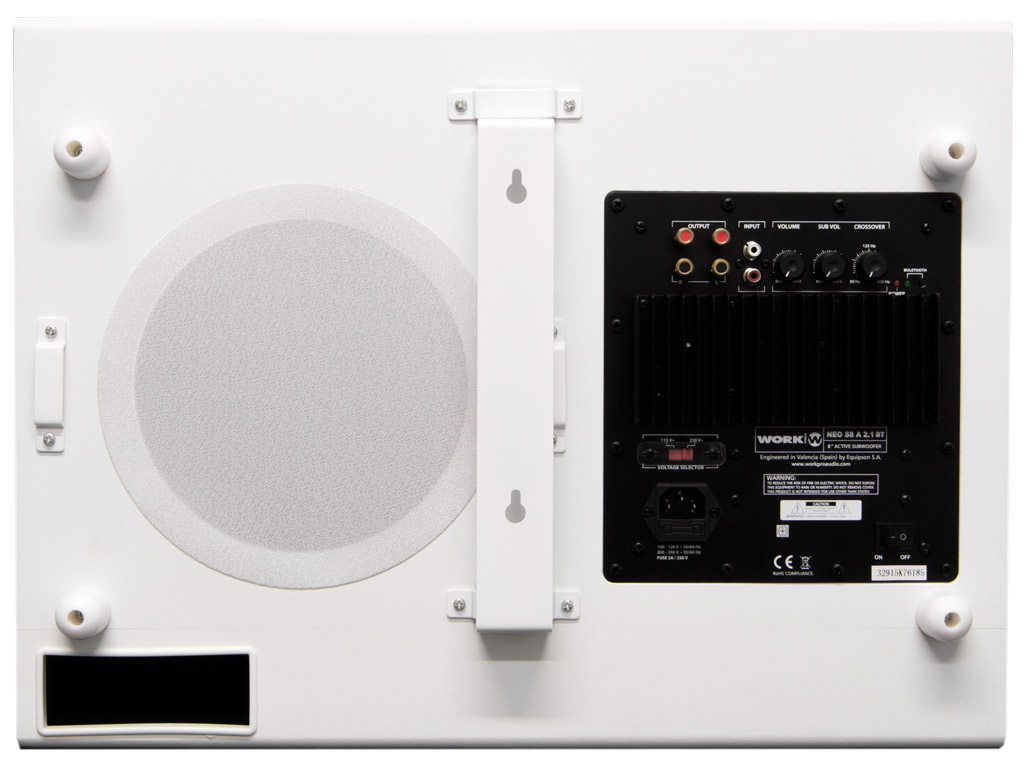

| Controls | Power switch. Voltage selector. Volume. Sub volume. Crossover. |
| Connectors | Power supply: 1 x IEC. Audio In: RCA. Power: terminals. |
| Material | Subwoofer: MDF; Satellites: ABS plastic; Grille: Aluminium |
| Colour | White and black |
| Power supply | AC 115V / 230V |

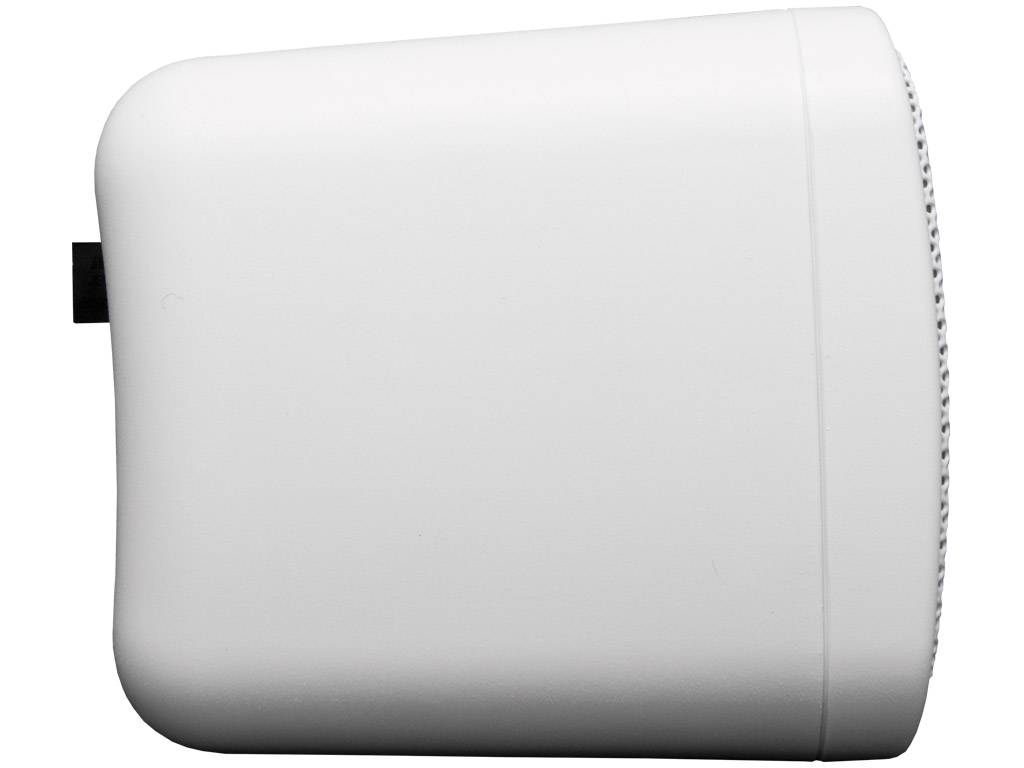

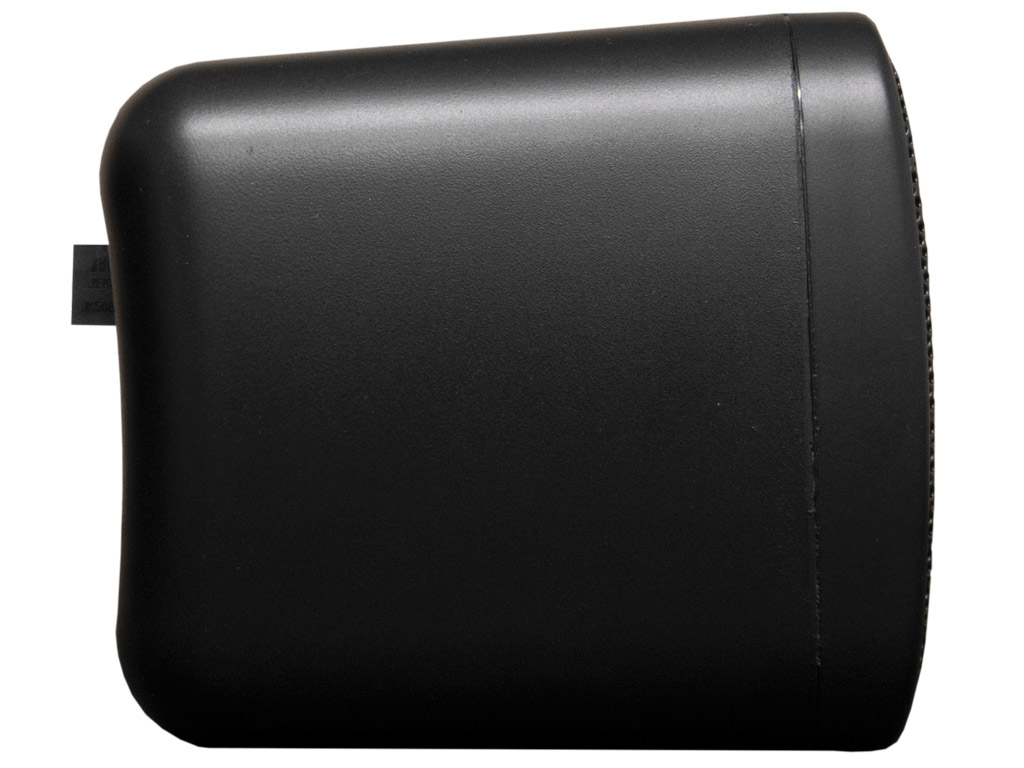

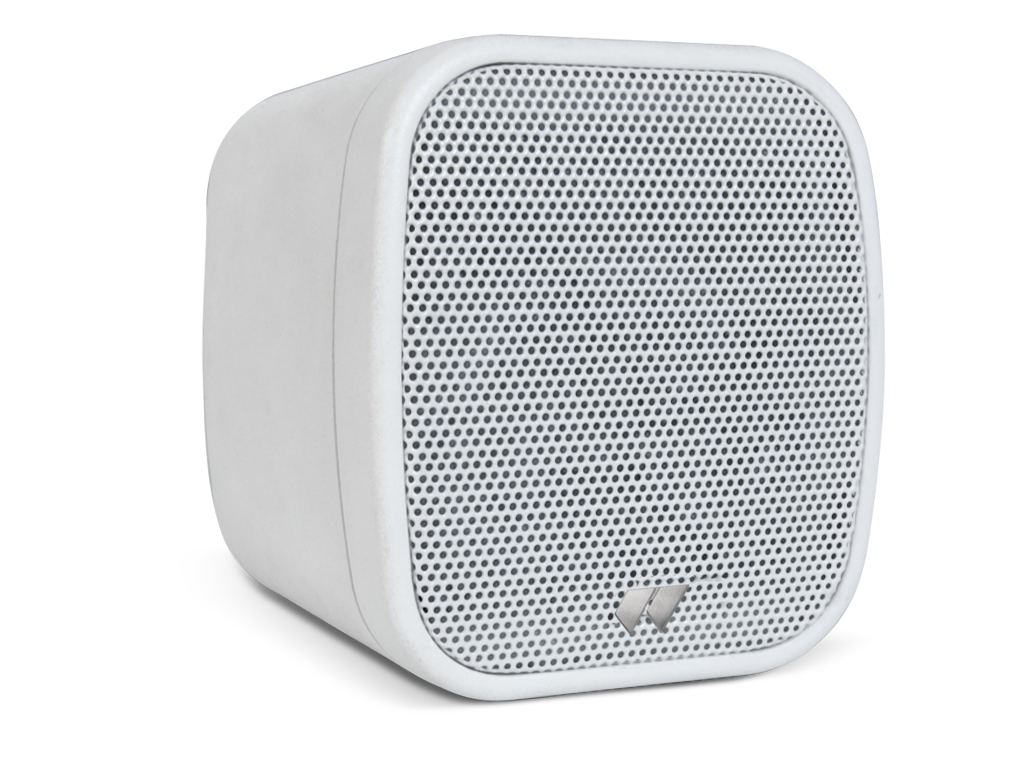

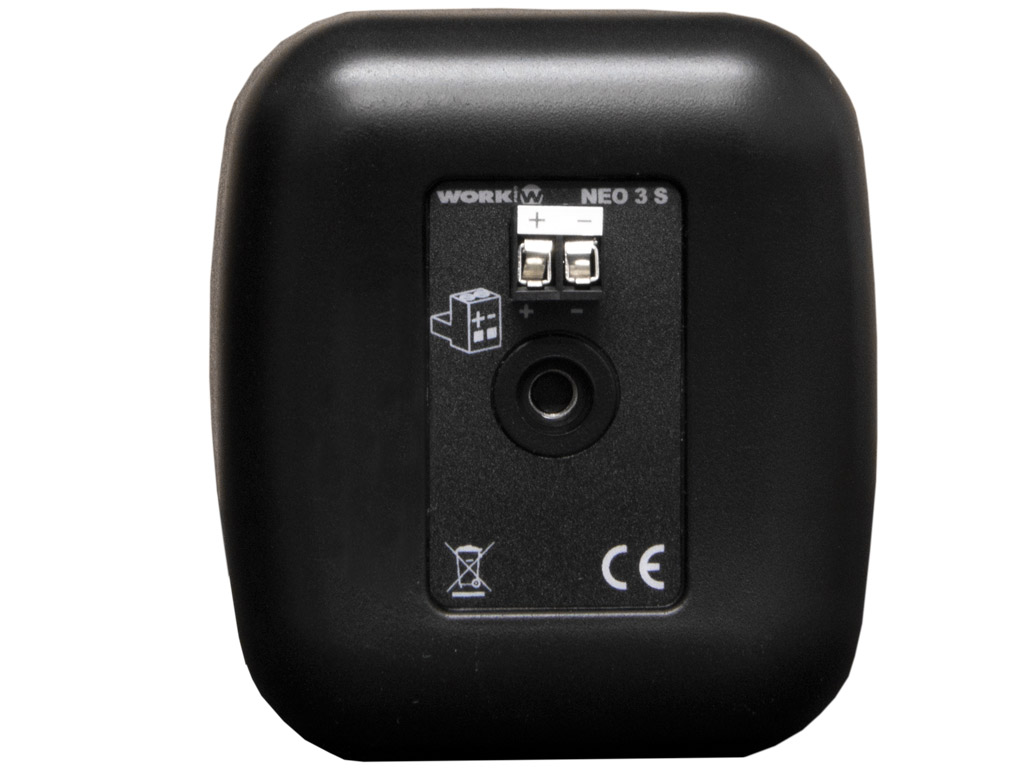

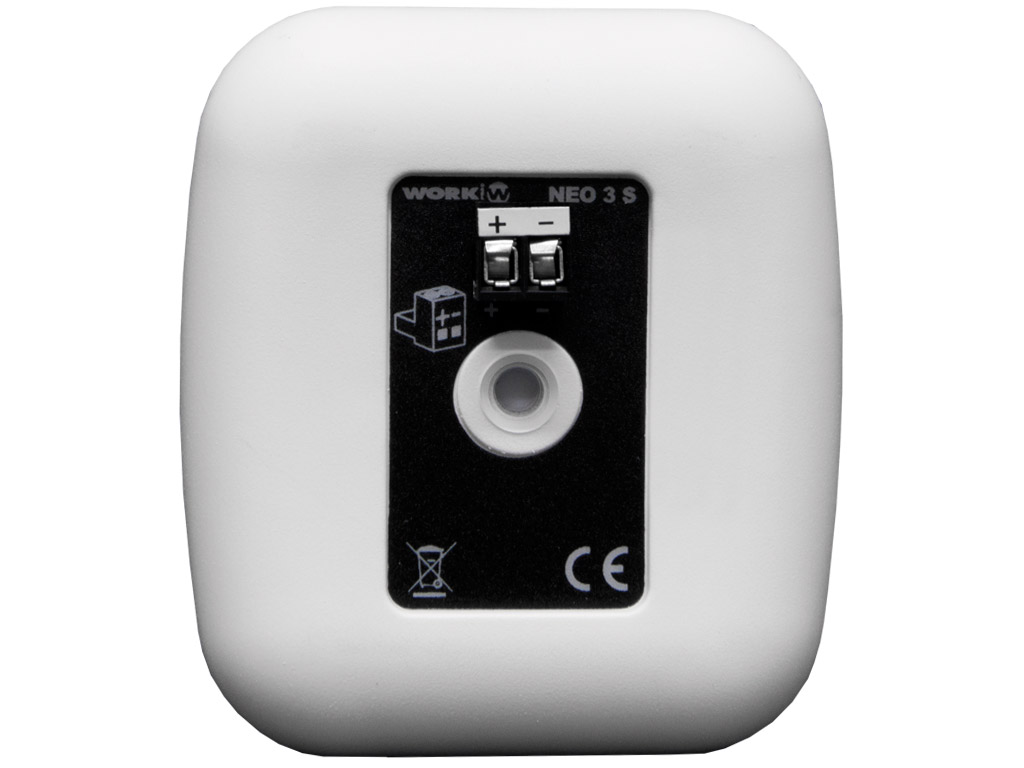

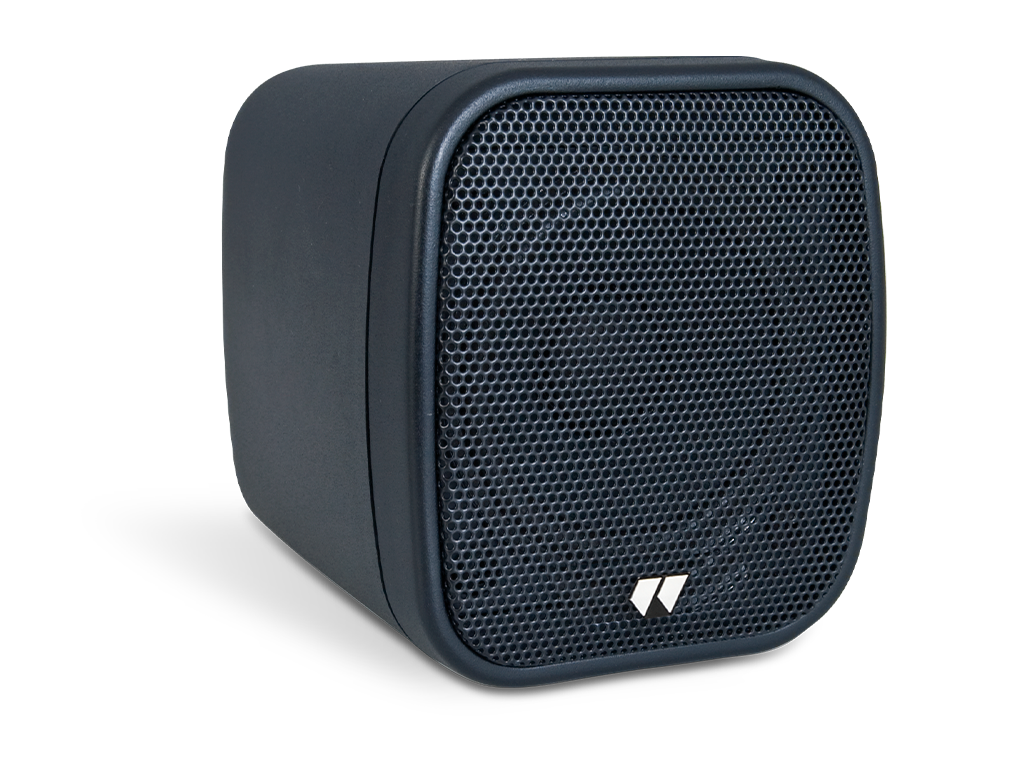

NEO 3 S
Full range loudspeaker designed for fixed installations.
50W R.M.S. @ 8ohm.
Built-in overloading protection.
Aluminium grille for a long lifetime.
Plastic wall-mount bracket with fast mounting system (included).
Mounting bracket enables pan and tilt.
Euroblock screw terminal for easier installation.

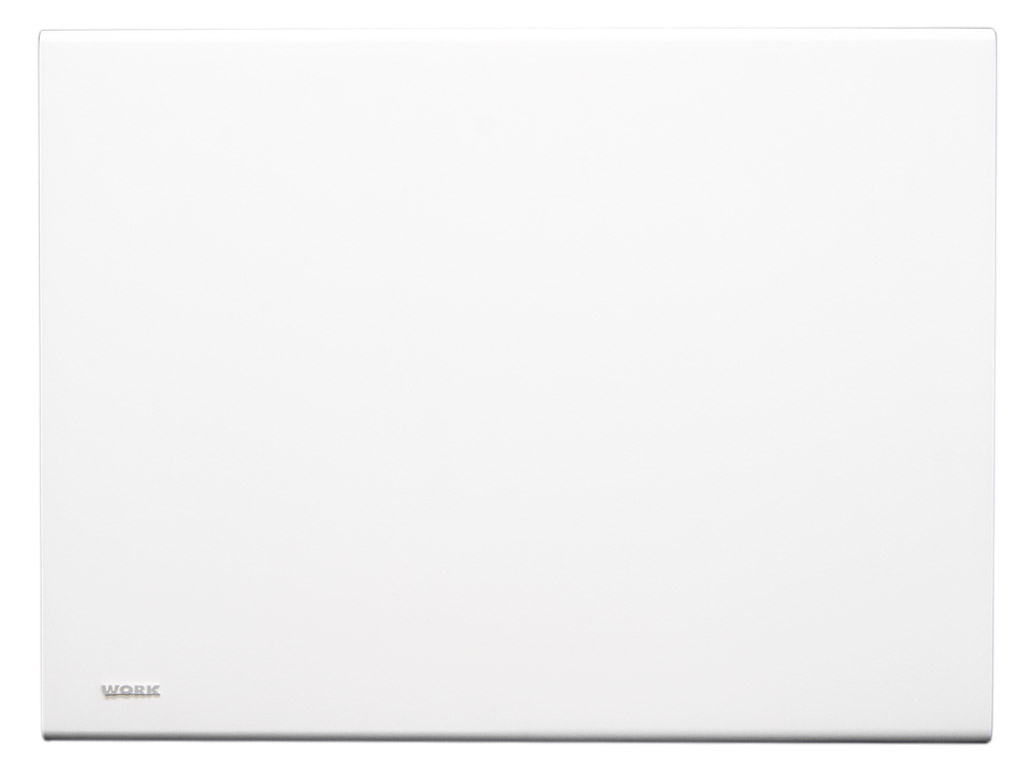

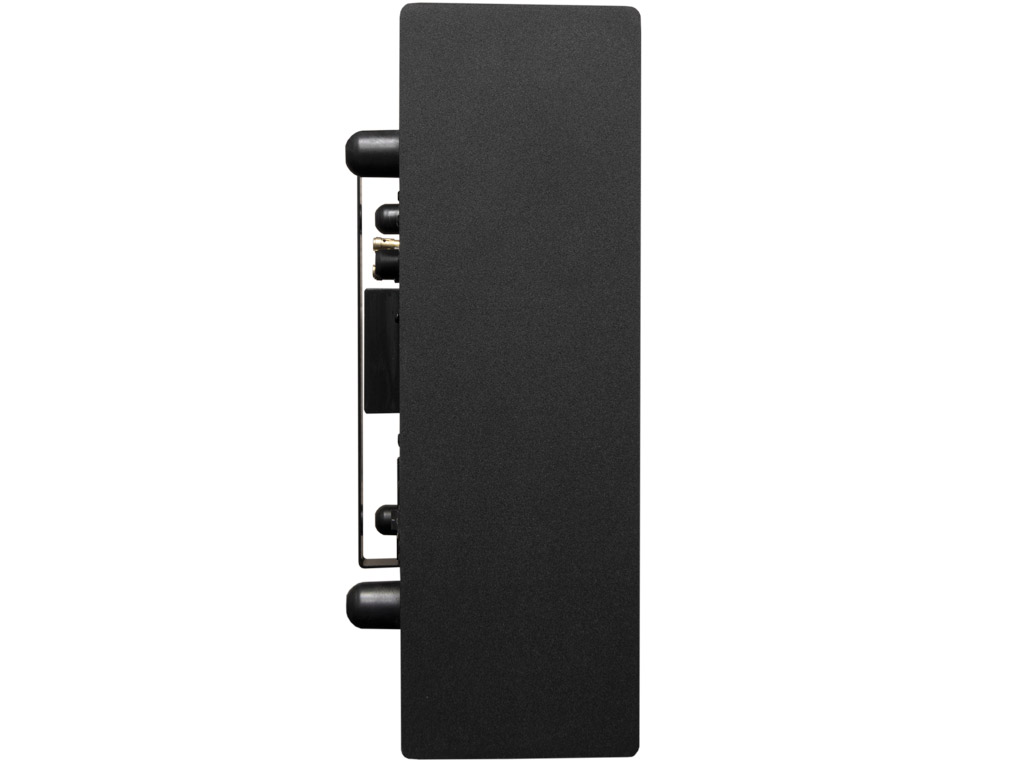

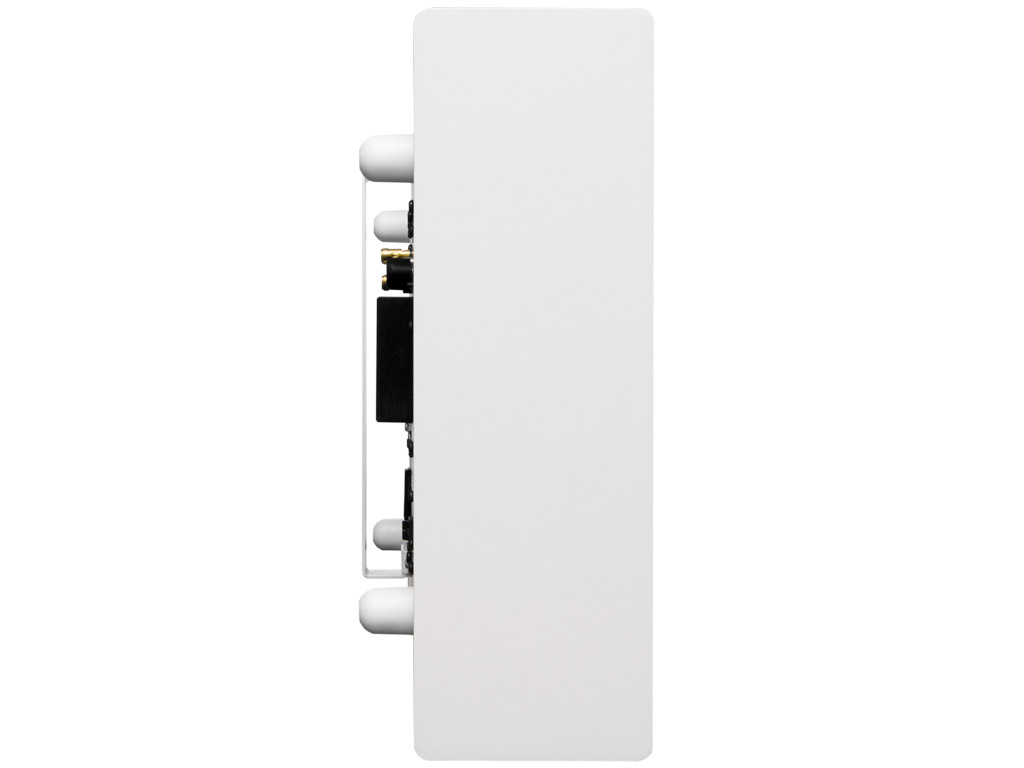

NEO S8 A 2.1
Bluetooth Connection
Self-powered Subwoofer.
Balanced LINE level input.
8" woofer with double coil.
Amplifier power: 40W (Subwoofer) + (20W+20W satellites).
Master and subwoofer separated volume controls.
Croosover frequency adjustment (50 Hz-150 Hz).
Selectabe main supply AC 115V/230V.
Made of MDF wood.
Fixation handle(vertical/horizontal).
Full range loudspeaker designed for fixed installations.
50W R.M.S. @ 8ohm.
Built-in overloading protection.
Aluminium grille for a long lifetime.
Plastic wall-mount bracket with fast mounting system (included).
Mounting bracket enables pan and tilt.
Euroblock screw terminal for easier installation.
NEO S8 A 2.1
Bluetooth Connection
Self-powered Subwoofer.
Balanced LINE level input.
8" woofer with double coil.
Amplifier power: 40W (Subwoofer) + (20W+20W satellites).
Master and subwoofer separated volume controls.
Croosover frequency adjustment (50 Hz-150 Hz).
Selectabe main supply AC 115V/230V.
Made of MDF wood.
Fixation handle(vertical/horizontal).
