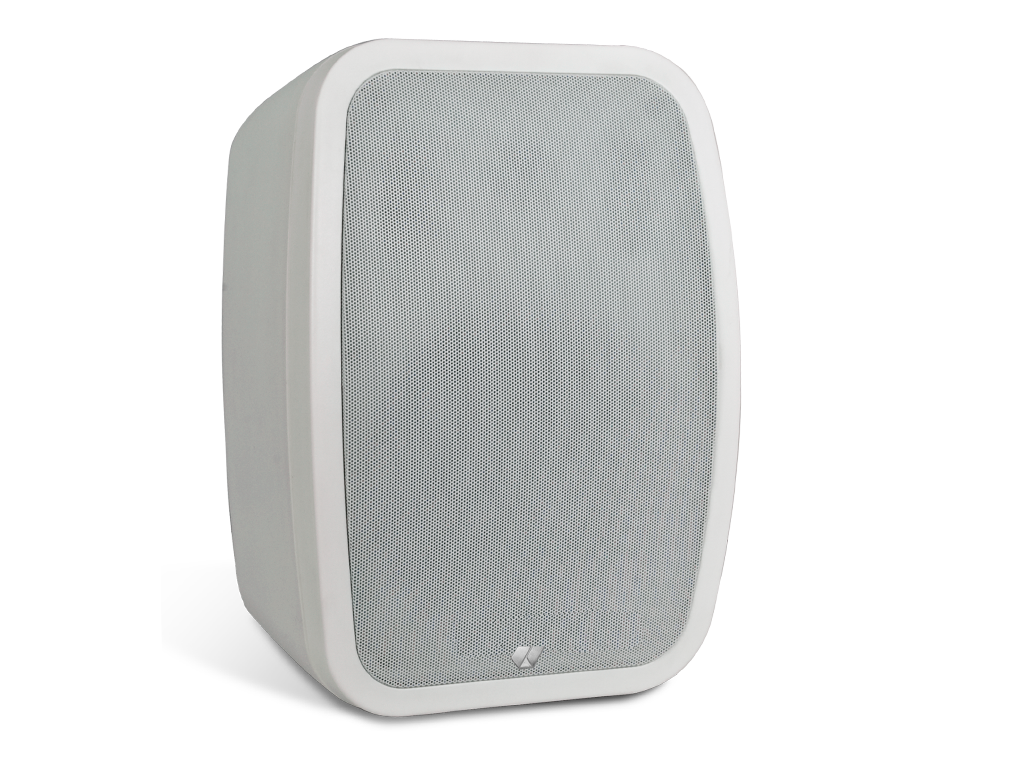

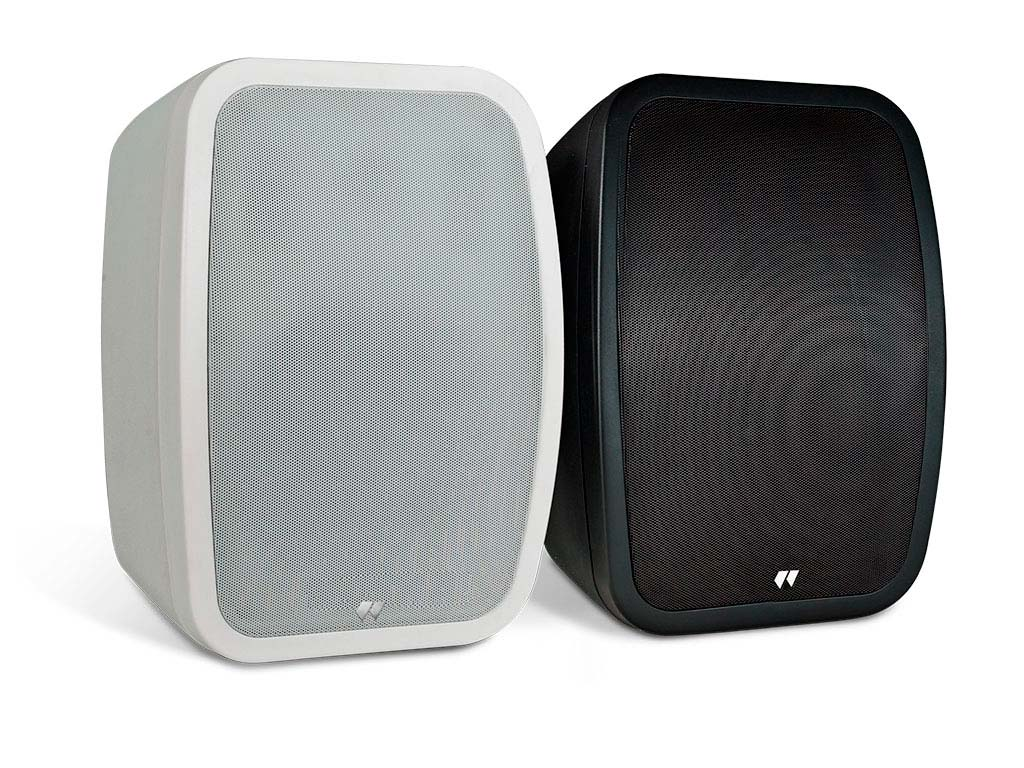

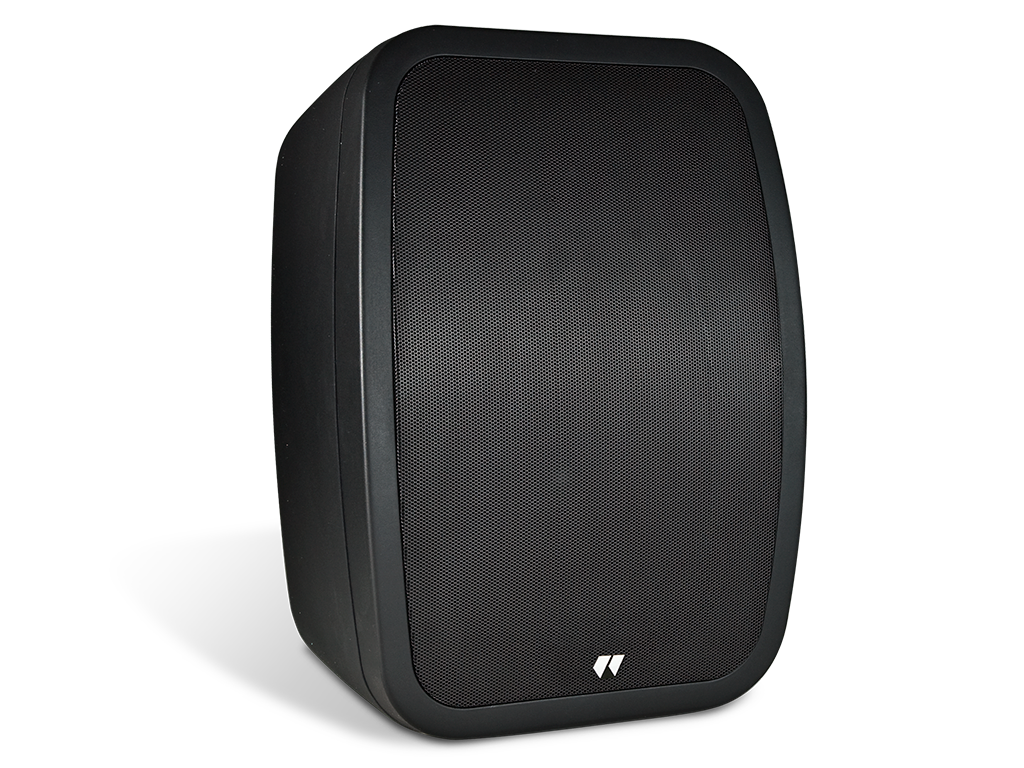

NEO 8 IP is a 2-way acoustic box made of ABS plastic and white or black aluminum grille, specially designed for outdoor installation with a degree of protection IP 65. It is composed of an 8 "loudspeaker and a tweeter of 1". It can be used both in 70/100 V installations and in low impedance installations. When a speaker is connected at low impedance the audio does not pass through the transformer in order to maintain a high level of quality. NEO 8 IP is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box in both axes. Sold in pairs (two passive boxes).
- Suitable for 70 / 100V and low impedance line installations.
- IP 65.
- Brackets included.
- Price per couple.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | 2 vías. Pasivo / 2 way. Passive |
| Low Impedance Power | 70 W @ 8 Ohm |
| L100V Power | 4 / 8 / 16 / 32 W |
| L70V Power | 2 / 4 / 8 / 16 W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | Woofer 8" |
| HF Transducer | Tweeter 1" |
| Sensitivity (1W @ 1m) | 93 dB / 93 dB |
| SPL Max | 111 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 75 Hz - 20 KHz |
| Connections | Insulated terminals |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Brackets included. |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP 65 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.24 | 0.26 | 0.37 | 4.95 |
| Box | 0.46 | 0.28 | 0.61 | 11.50 |
| Master Carton | 0.56 | 0.61 | 0.46 | 25.00 |
