Audio Installation
NEO 8 A
50EBS13350EBS132
AMP

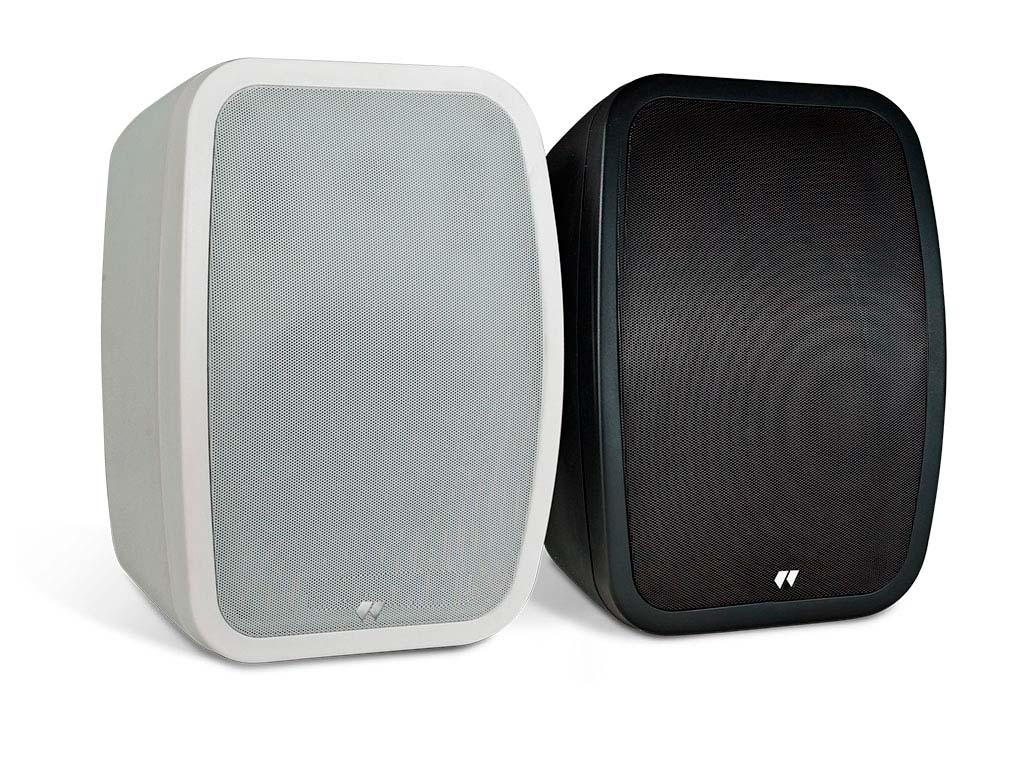

Self-powered loudspeaker. 40 W RMS.
Loudspeakers from the NEO series associate sound quality and elegant design for a perfect integration in all your projects. Five models are available with different power and dimensions.NEO loudspeakers are suitable for low impedance (8 ohm) and high voltage installations (100 V). The wall-mount bracket, specially designed for the NEO series, allows a quick and easy installation. Speakers are easily oriented to the optimum angle for the desired coverage.
The aluminium grille is designed to withstand humid environments.Contractors take advantage of the modern line, black or white finish and elegant design of NEO loudspeakers, which make them suitable for many projects.
Features
- IP 54 range.

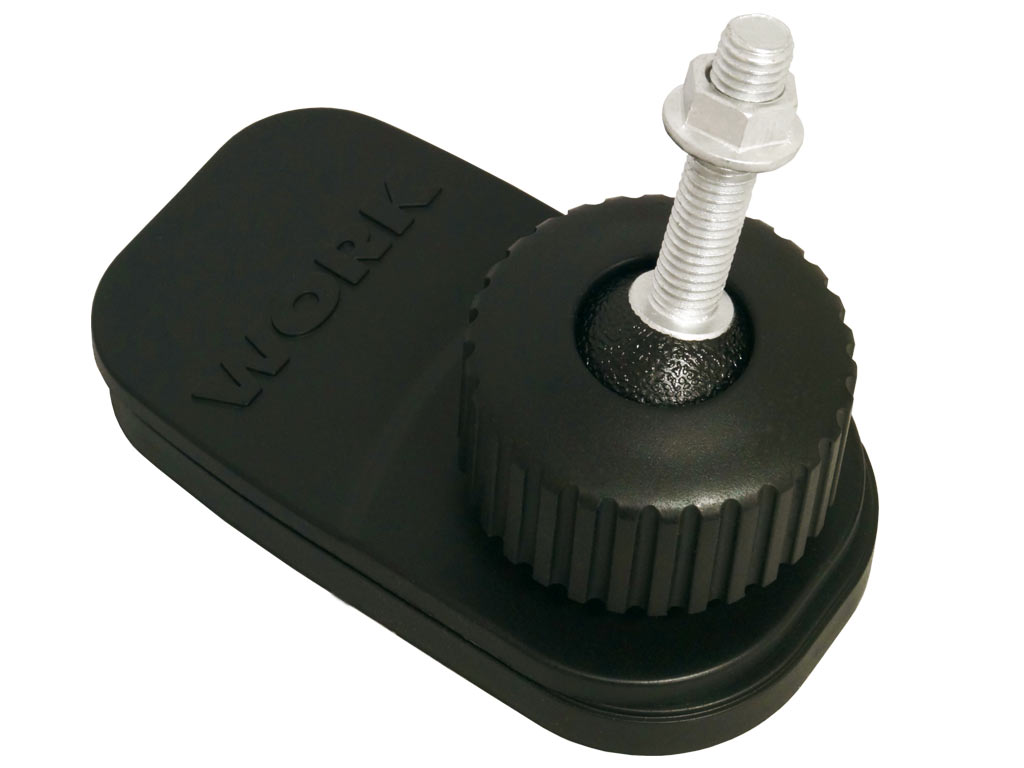

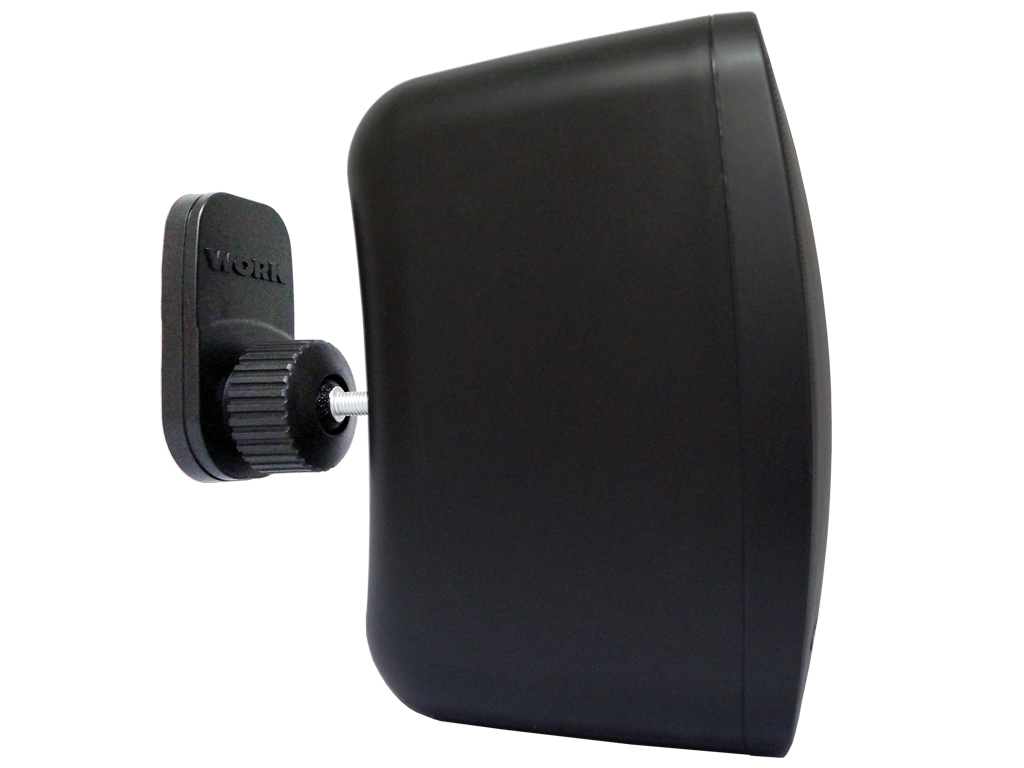

- Wall brackets included.
- Supplied in pairs.
- Price per pair.
| Type | 2 vías. Activa/ 2 ways. Active |
| Power | 40 W RMS |
| LF Transducer | 8" Woofer |
| HF Transducer | 1" Tweeter |
| Input Sensitivity | 1V / 2.21 dBu |
| Sensitivity (1W @ 1m) | 93 dB |
| SPL Max | 111 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 50 Hz - 20 KHz |
| Connections | Audio In: 1 x RCA, 1 x Euroblock 3 pin |

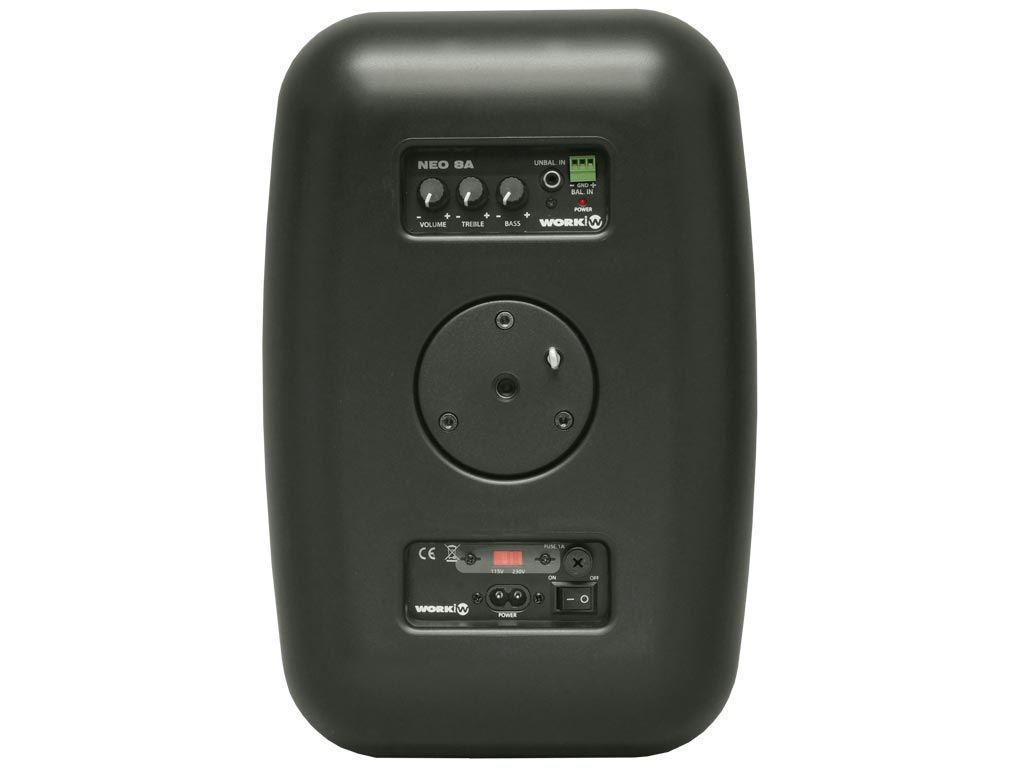

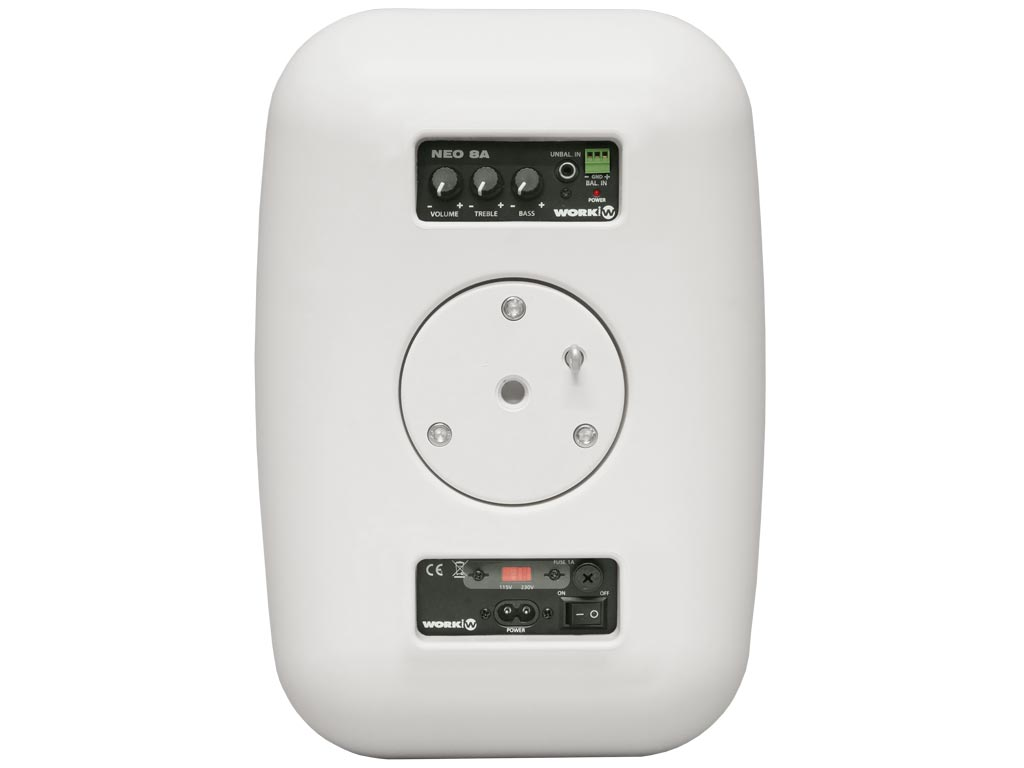

| Controls | Power switch, Volume, Tone control (high, low), Voltage selector |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |

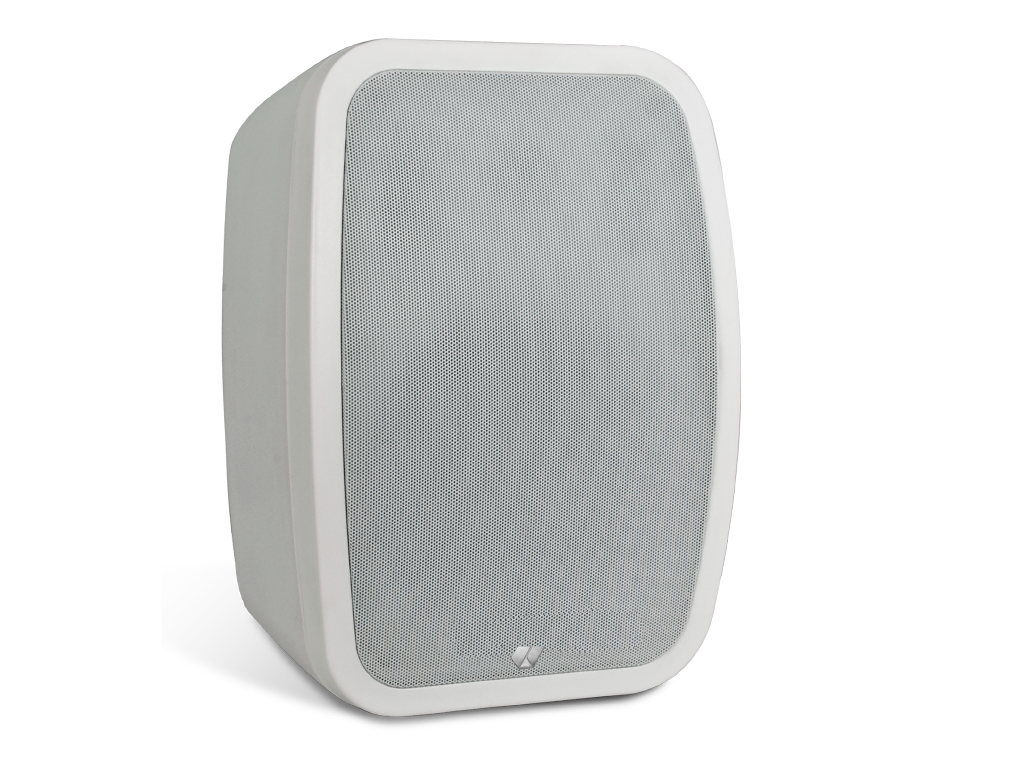

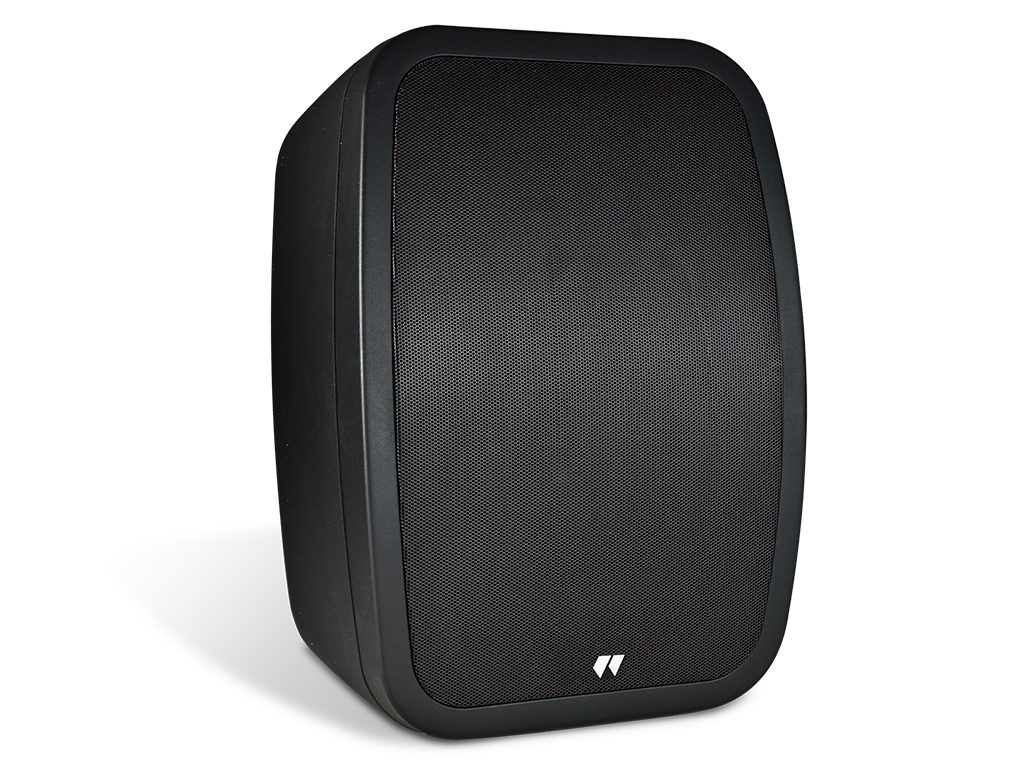

| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP 54 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.24 | 0.26 | 0.37 | 5.10 |
| Box | 0.46 | 0.28 | 0.61 | 14.00 |
| Master Carton | 0.55 | 0.61 | 0.46 | 28.00 |
