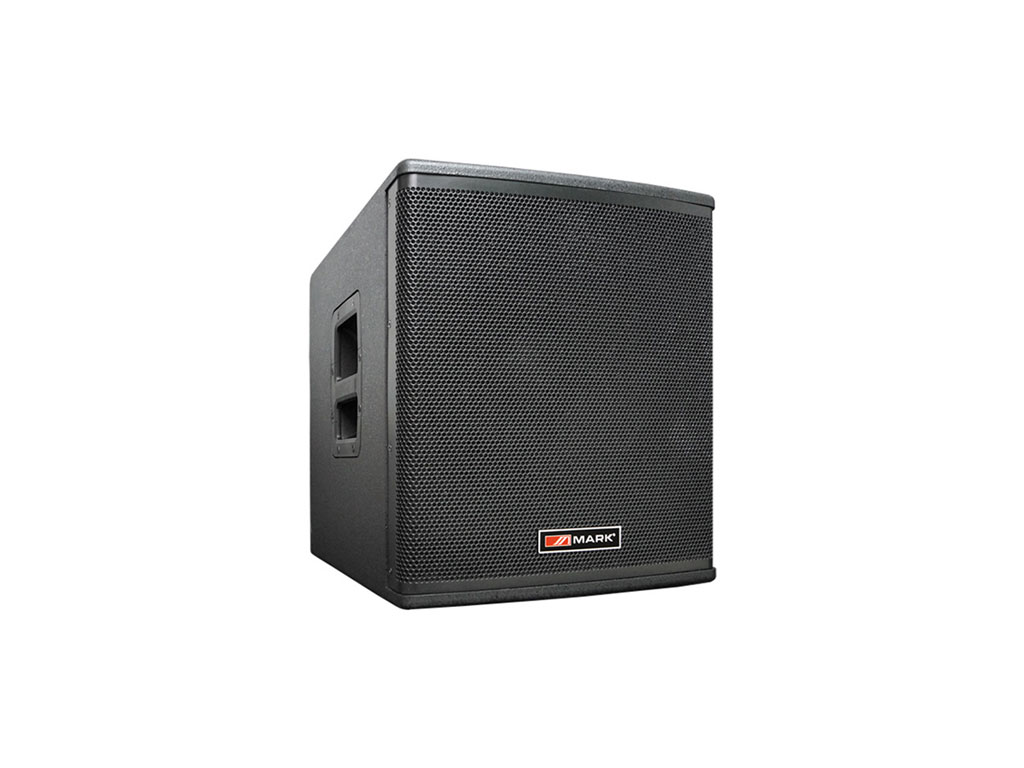

MW 10 with 10'' woofer respectively. Incorporates 2-line inputs, 2 LINK outputs and connectivity for two-way active loudspeakers.
Its functions include phase inversion switch and high-pass crossover with two different cut frequencies (80 Hz / 125 Hz). The power output can be controlled by a master potentiometer with signal limit LED.
Its robust design, elegant finish (made of high-density wood) and shape are very suitable in reinforcement appliances like conference rooms, schools or home cinema installations.
MW 10 device incorporates a 35 mm insertion in the upper side.
Type | Self powered subwoofer |
Power | 250 W RMS |
Transducers | 10" Woofer, 2" Voicecoil |
Nominal Impedance | 4 Ohm |
Frequency Range | 35 Hz - 145 Hz |
Crossover Range | 80 Hz ó 125 Hz/ 80 Hz or 125 Hz |

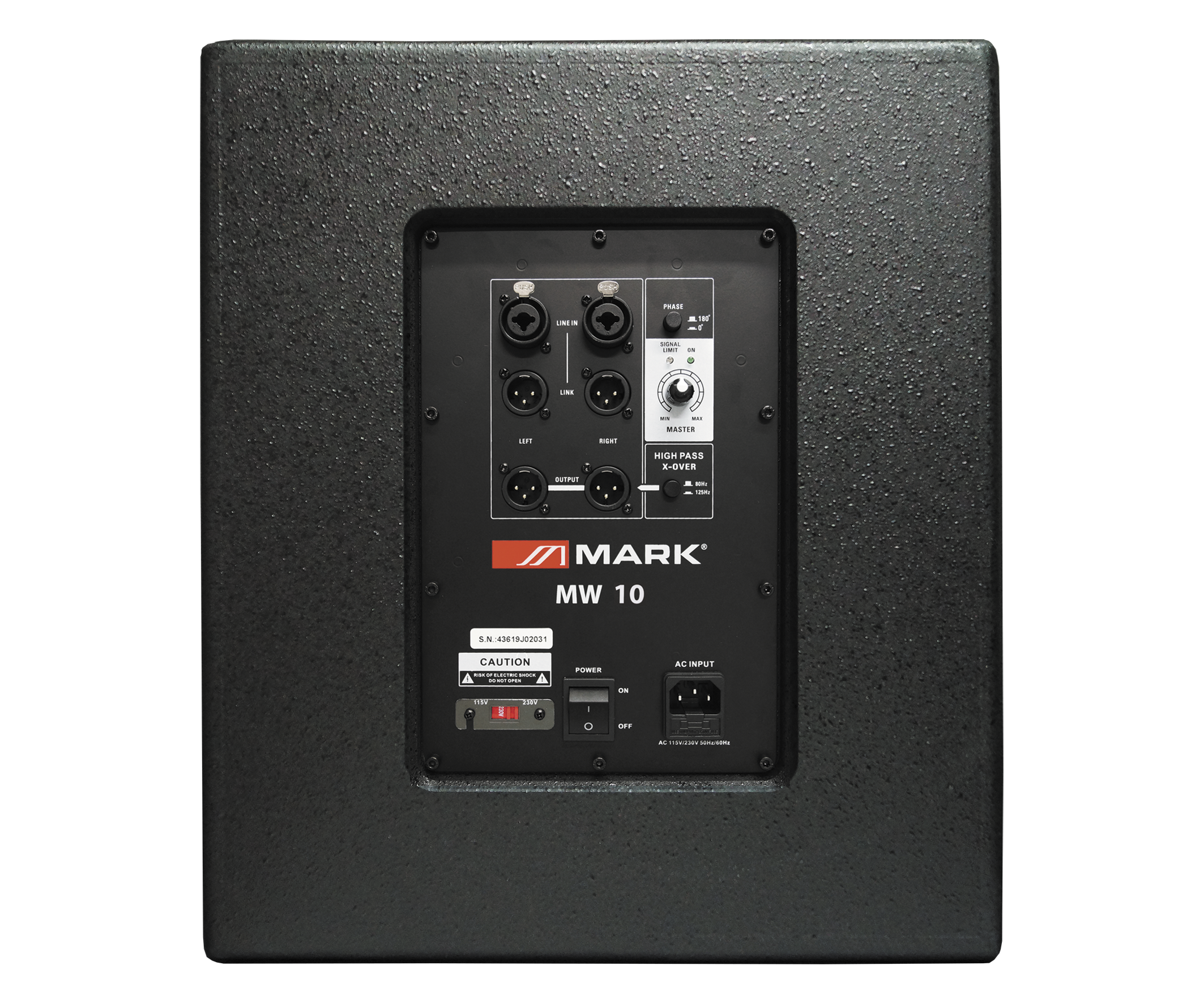

Connections | Power: 1 x IEC. Line In: 2 x XLR3. Crossover Out: 2 x XLR3. Link Out: 2 x XLR3 |
Controls | Power switch, Volume, Polarity inversion |
Enclosure material | Wood |
Finished | Painting |
Inserts / Rigging | |
Colour | Black |
Manual | MW_SERIES_MANUAL_V1-0 | ![]() | Download |
