MULTIPROFILE ZOOM LED W3 17-50
27MAR008
LED
WW
DMX
17-50º <
Profile Spotlight type.

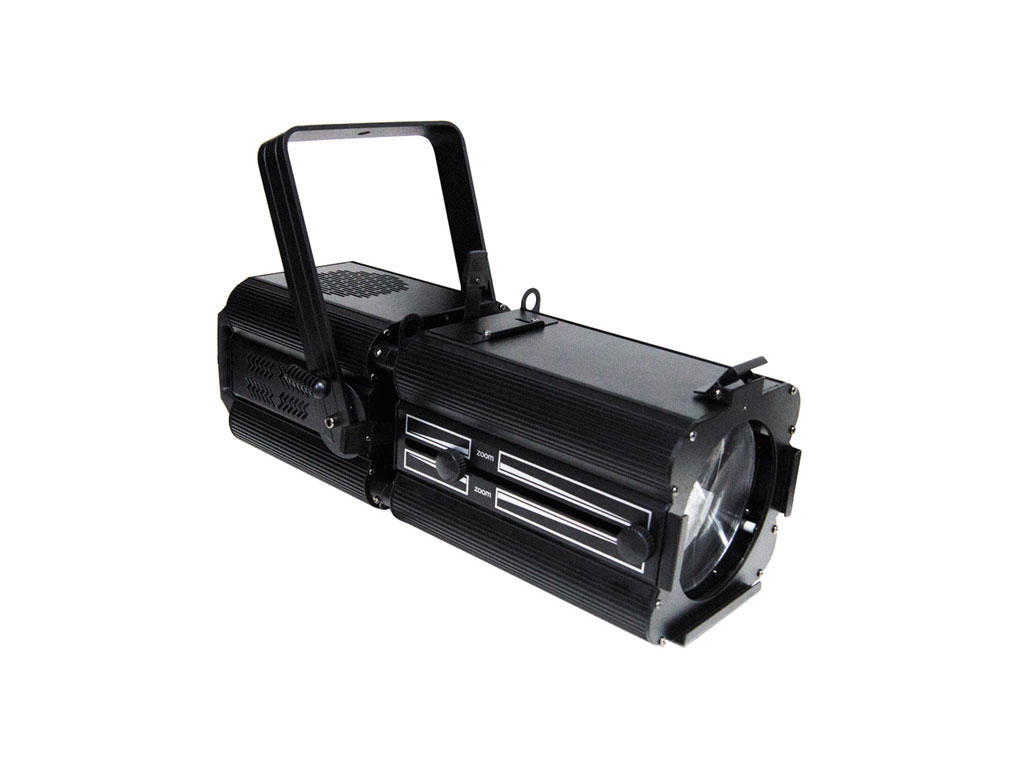

MULTIPROFILE ZOOM LED W3 17-50 is a lighting projector which includes 1x COB LED 200W white colour. This powerful LED allows to obtain a homogeneous white tone with 3200 K colour temperature.
The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as two different strobe effects, audio modes or manual level.
Its blades and manual zoom and focus allow to obtain the desired effect in a stage. In addition, the device includes handles on the rear side in order to direct the beam.
The device includes the DMX mode (1, 2, 3 channels) with dimming and strobe functions.
Features
- 1 COB white 200 W LED. 3200 K.
- 1/2/3 DMX channels.
- Beam angle from 17º to 50º.
- Strobe function ( 2 modes)
| Light engine | 1 x LED COB Blanco/ 1 COB white 200 W LED |
| Color temperature | 3200 k |
| Power | 200 W |
| Beam angle | 17º a 50º/ 17º to 50º |
| DMX channels | 1/2/3 canales DMX/ 1/2/3 DMX channels |
| Operating modes | DMX 512 /Manual/Audio |
| Controls | Navigation buttons for configuration menus |
| Indicators | 4-digit display |
| Connections | Power supply: Powercon for input and output; Signal: XLR3 for input and output |
| Housing material | Aluminium |
| Filter holder | Yes |
| Colour | Black |
| Rigging | U-Bracket |
| Power supply | AC 100-240 V 50/60 Hz |
| Dimensions | 615 x 280 x 215 mm |
| Weight | 11,5 Kg / 11.5 Kg |
| CRI | 85 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.62 | 0.28 | 0.22 | 11.50 |
| Box | 0.33 | 0.74 | 0.28 | 12.16 |
- Lighting projector that includes 1x COB LED 200W White colour.
- 3200 K colour temperature.
- Display and interface for setting functions.
- Strobe function (2 modes).
- Manual zoom and focus.
- Double handle on the rear side.
Manual | MULTIPROFILE ZOOM LED W3 17-50 - USER MANUAL v1.0 |  | Download |
Software | EQUIPSON_CHAMSYS_FIXTURES_12_2023 | | Download |
