Professional Audio
MU 404 + MS 104
MIC40401MIC40402MIC40403MIC40404MIC40405
UHF

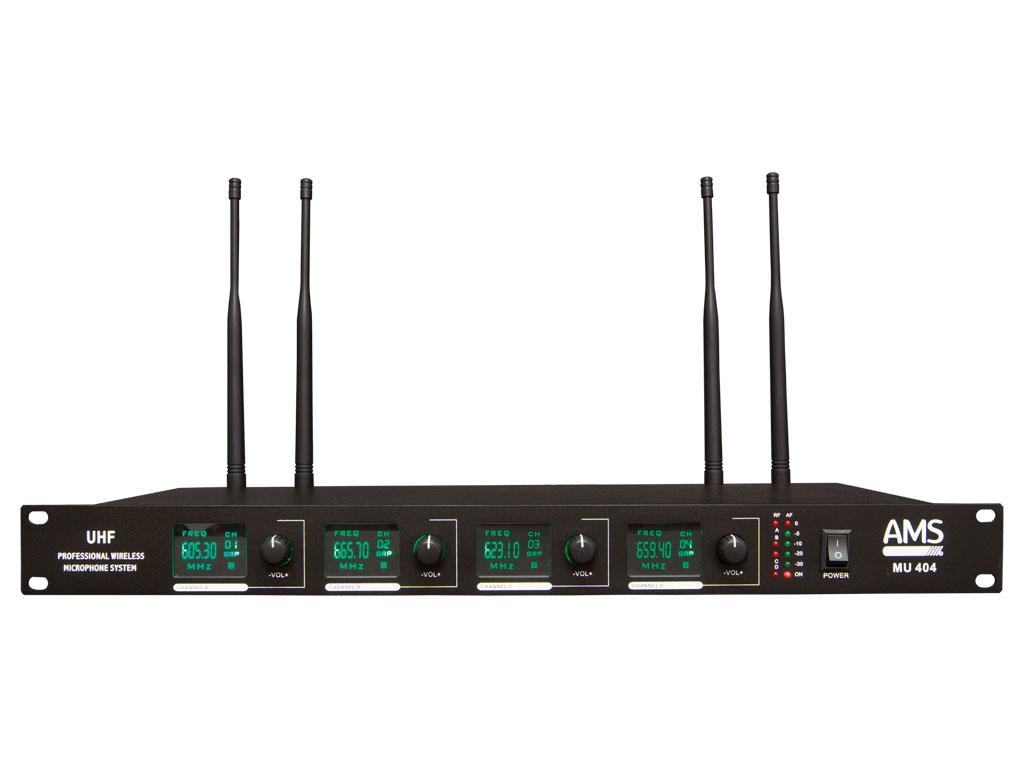

4 channel UHF wireless conference system.
Conference system offering the possibility to connect 4 microphones with independent frequency and volume control for each microphone. Its 4 antennas allow transmission over a distance of more than 50 metres in open spaces. 5 systems with different fixed frequency groups are available.
Features

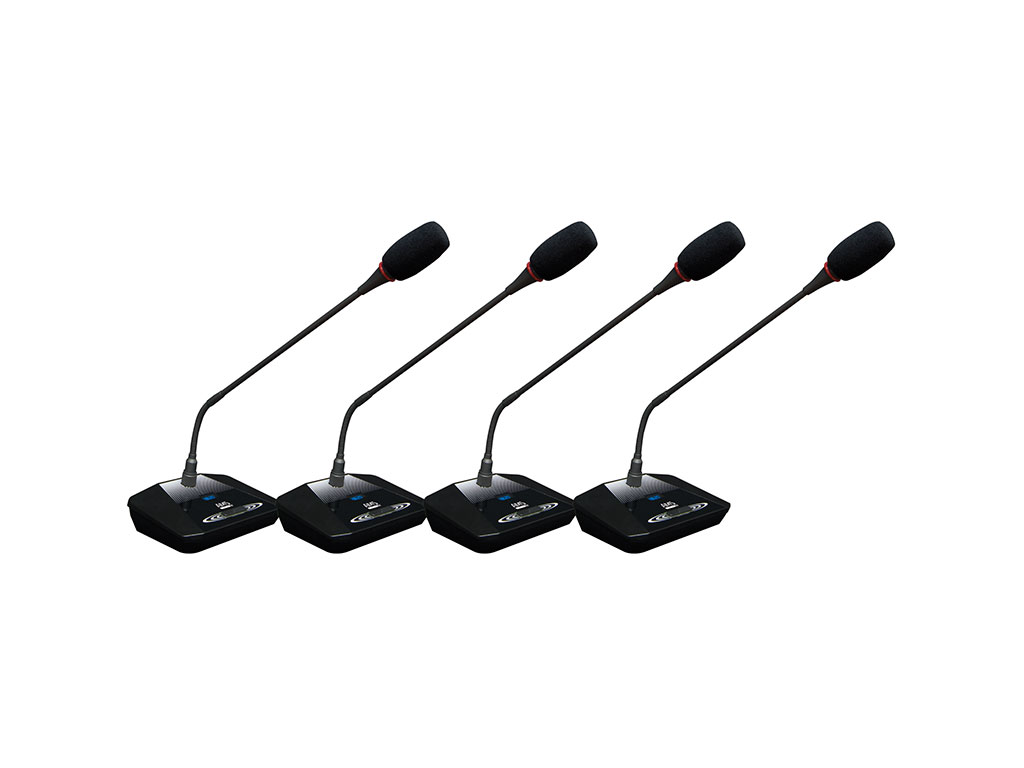

- 4 desktop microphones + 1 quadruple receiver.
- 5 groups of broadcast frequencies.
- Balanced XLR outputs and unbalanced Mixer output (1/4
- Independent volume control per channel.
| Frecuency Band | UHF |
| Frequency group 1 | 600.6 / 660.6 / 620.1 / 683.5 MHz |
| Frequency group 2 | 605.3 / 665.7 / 623.1 / 659.4 MHz |
| Frequency group 3 | 610.2 / 648,2 / 631.7 / 673.4 MHz |
| Frequency group 4 | 621.5 / 628.1 / 636.8 / 643.6 MHz |
| Frequency group 5 | 615.9 /649.6 /657.5 / 664.2 MHz |
| Frecuency stability | ± 0.005% |
| S/N ratio | > 105 dB |
| THD | < 0.5% |
| Microphone capsule | Cardioid |
| Power supply | Receiver: 13-15 Vdc; Transmitter: 2 AAA type batteries |
Manual | MU 404 + MS 104 - USER MANUAL |  | Download |
