Professional Audio
MR 4200/2
59MMR423
UHF
Diversity
MINIXLR3
Quadruple wireless system with 4 lavalier microphones.

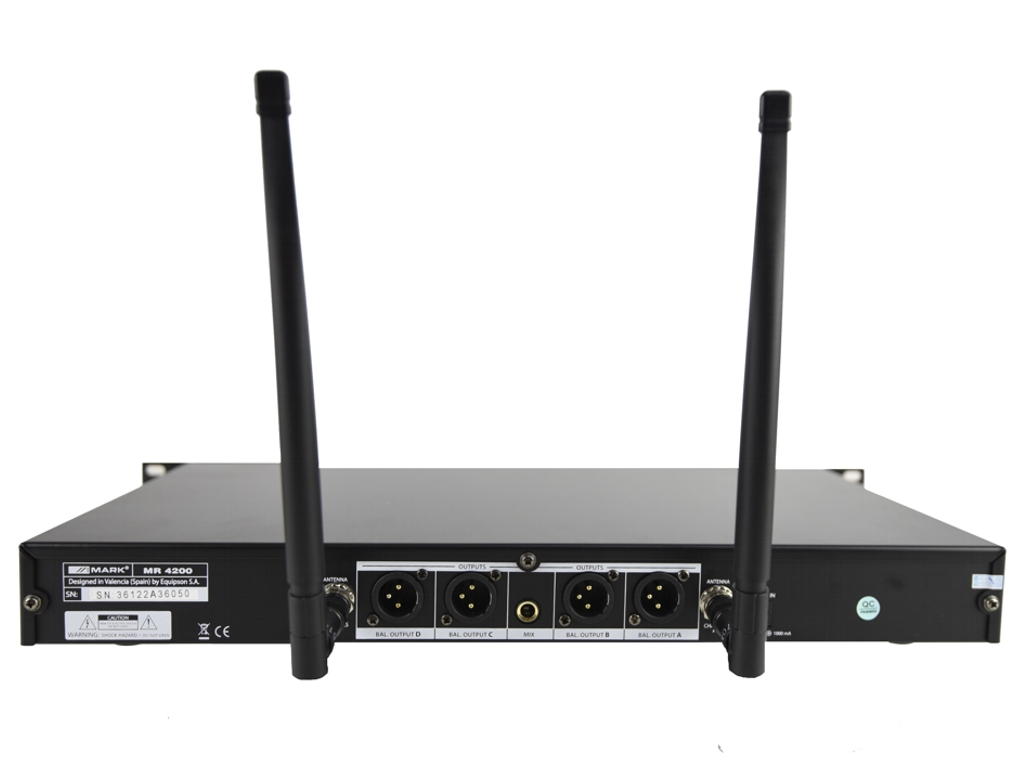

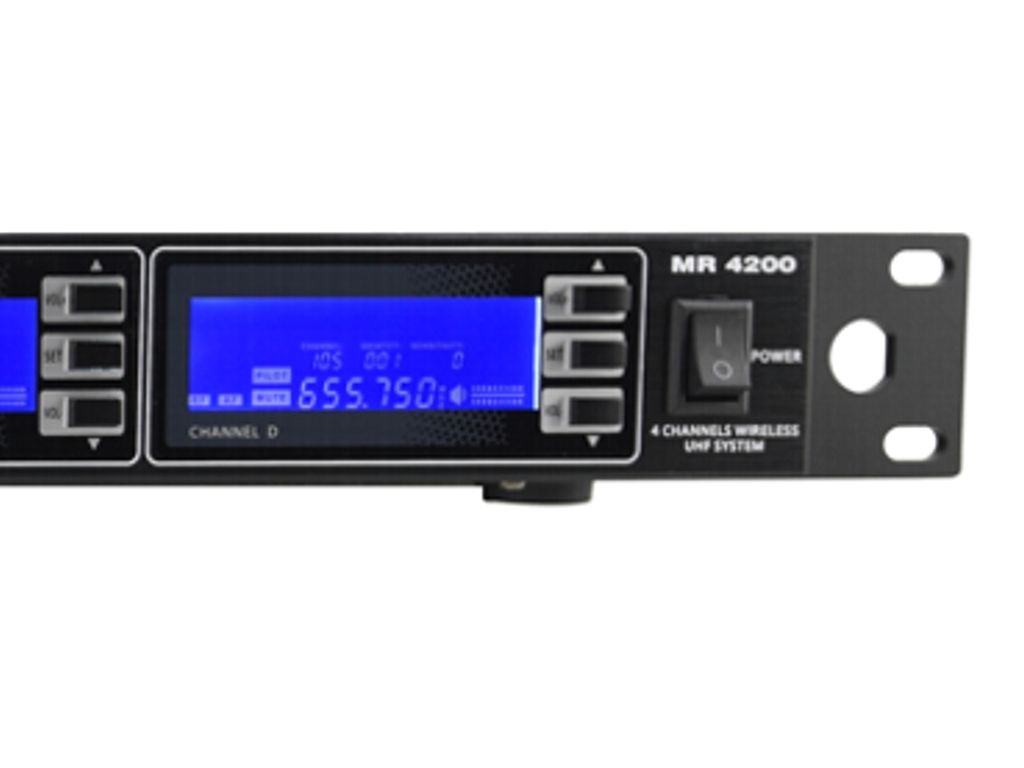

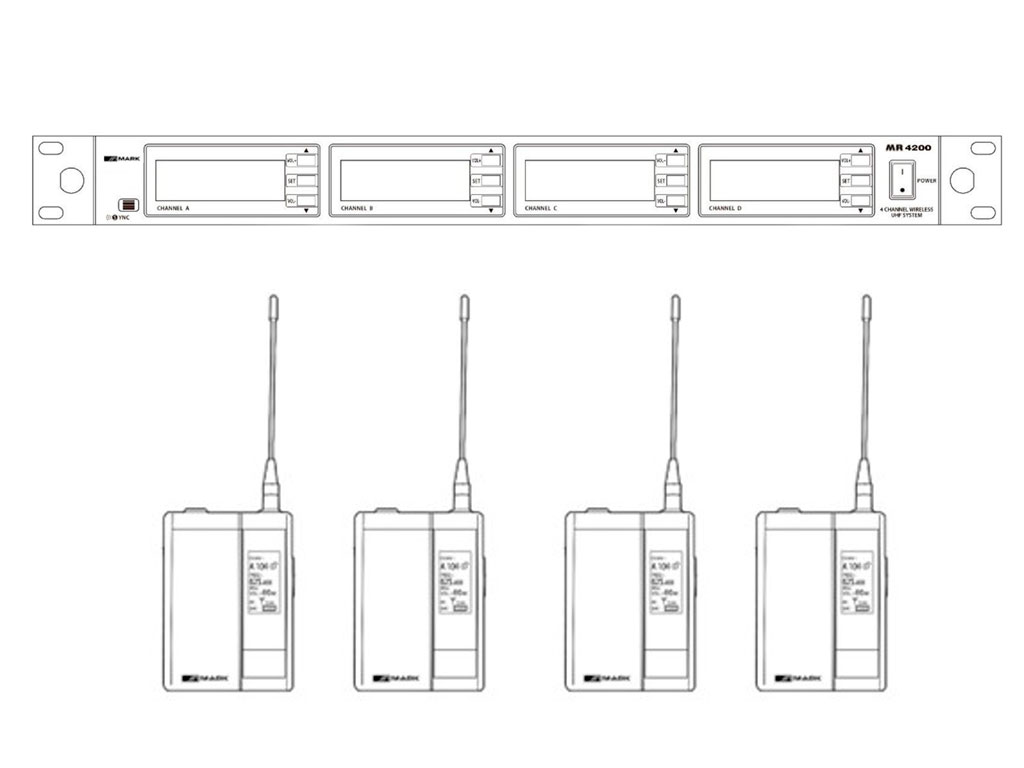

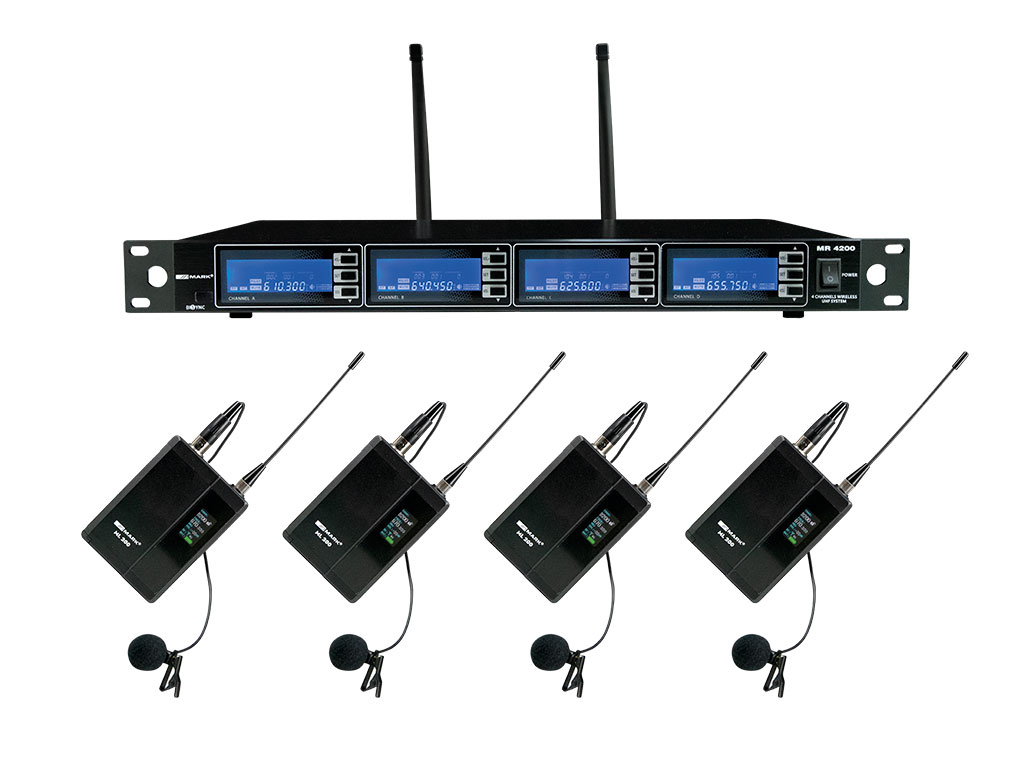

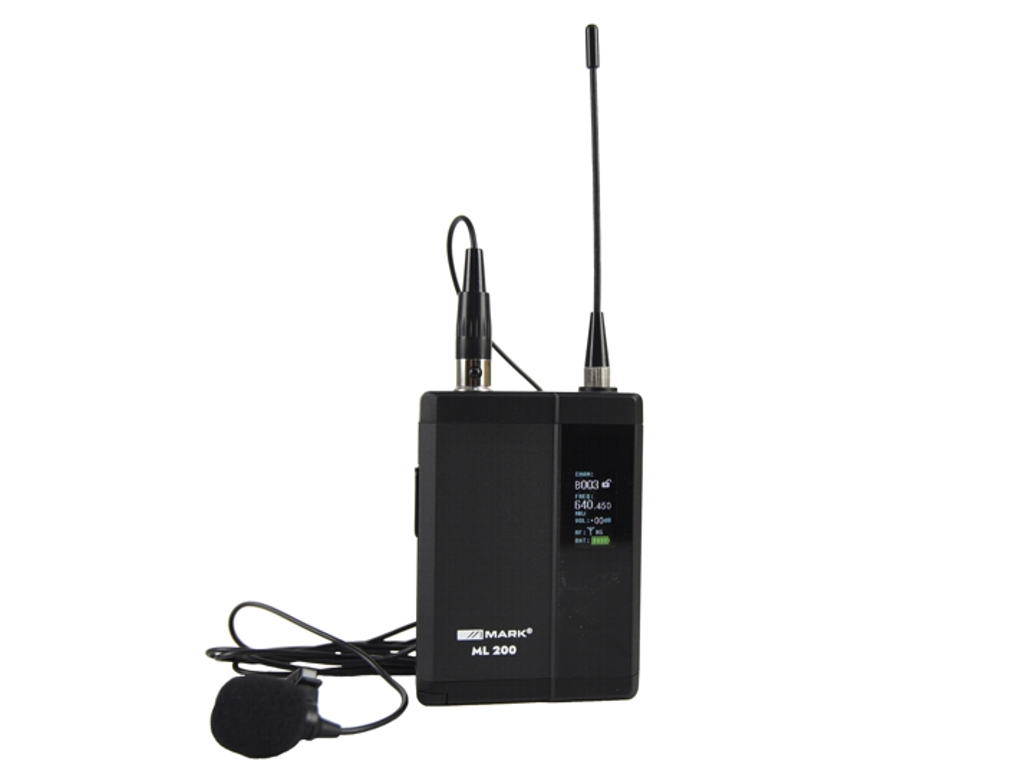

MR 4200 /2 is a 4-channel diversity wireless microphone system in the UHF band (610 MHz to 640 MHz), with PLL signal stabilisation system. It has an IR sensor for synchronisation between transmitter and receiver. The LCD display on the receiver shows frequency, AF, RF and output gain level. With the buttons on the front it is possible to adjust the frequency manually, mute the tone and scan for free frequencies. The receiver incorporates balanced output on each channel and unbalanced mix for all channels. MR 4200/2 consists of: Receiver (MR 4200) + 4 bodypack transmitters and 4 lavalier microphones (ML 200).
Features
- UHF Diversity System.
- 610 MHz to 640 MHz.
- Balanced outputs for each channel.
- Unbalanced output with channel mixing.
| Frecuency Band | UHF true Diversity (610 MHz to 640 MHz) |
| Bandwidth | 25 kHz |
| Frequency Response | 20 Hz a 20 KHz |
| Frecuency stability | ± 0.0005% |
| Sensitivity | 12 dBu (80dB S/N) |
| S/N ratio | > 105 dB (A) |
| THD | < 0.5 % |
| Dynamic Range | > 100 dB |
| Audio Output | -10 dBV |
| Microphone capsule | Capacitor |
| Polar pattern | Cardioid |
| Emtting power | 30 mW |
| Spurious emisions | -60 dB |
| Continuous use | 8 horas/ 8 hours |
| Compatible headset | XS 901, XS 1301, XS 1351, XS 1401, XS 1451, XS 1801 (* with adapter XSAD5 to MINI XLR 4) |
| Compatible lavalier mics | XS 2000 PRO (with XSAD2 adapter) |
| Power supply | RECEIVER: 12-18V DC / 1000 mA, external power supply (included), SENDER: 2 x 1.5 V (AA) |
| Dimensions | RECEIVER: 483 x 44 x 195 mm, TRANSMITTER: 64 x 82 x 24 mm |
Manual | MR 4200 Manual v1.0 |  | Download |
