Cable and Accessories
MK 70
15KMA070
1 m
Audio
Audio signal cable

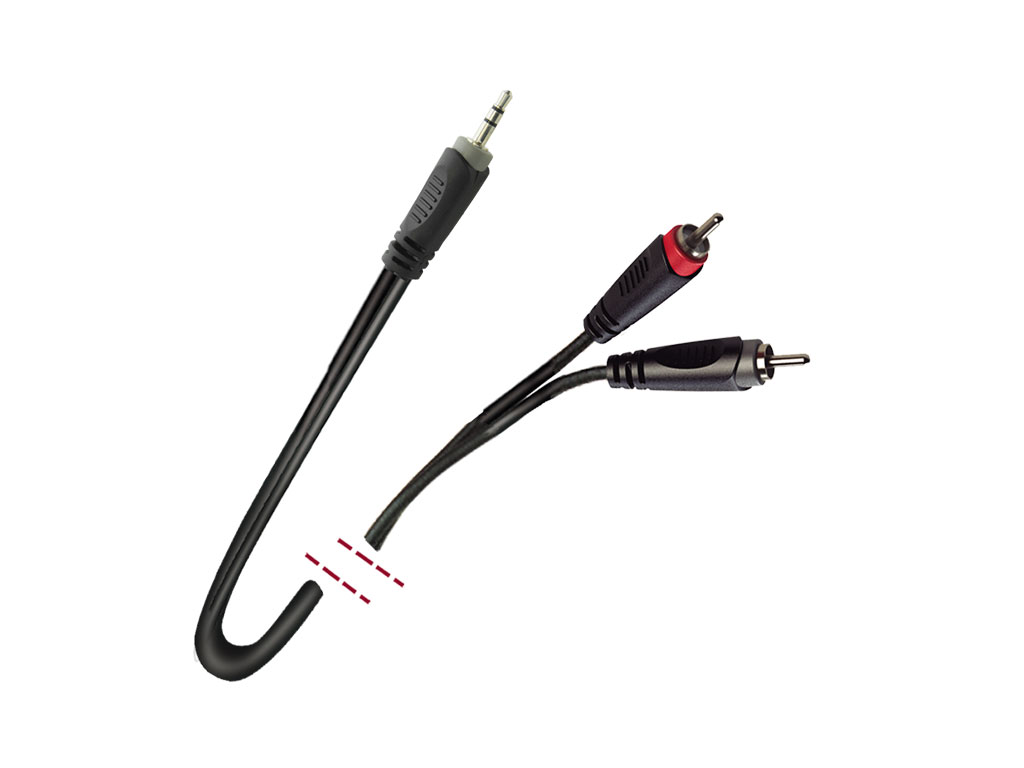

Signal cable with connectors Mini Jack 3.5mm stereo male - 2 x RCA male.
2 cables with conductor of 0.14 mm2 + shielding.
Diameter: 4 mm each cable.
Length: 1 m.
Features
- Minijack TRS 3.5 mm male - 2 x RCA male.
- 2 wires + shield.
- 1 m lenght.
- Black.
| Type | Audio signal |
| Connections | 2 x Minijack TRS 3.5 mm macho/ Minijack TRS 3.5 mm male - 2 x RCA male |
| Length | 1 metro/ 1 m |
| Diameter | 2 x 4 mm |
| AWG | 26 |
| Conductors | 2 x 0.14 mm² |
| Threads per conductor | 18 x 0.10 mm |
| Shield factor | 95% |
| Conductor capacitance | 250 pF/m |
| Conductor resistance | 125 Ohm/Km |
| Insulation resistance | > 1 GOhm |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 1.00 | 0.00 | 0.00 | 0.10 |
| Box | 0.20 | 0.05 | 0.02 | 0.10 |
| Master Carton | 0.46 | 0.32 | 0.23 | 7.00 |
