Cable and Accessories

MK 116 2

15KMA216
DMX
20 m
XLR 5

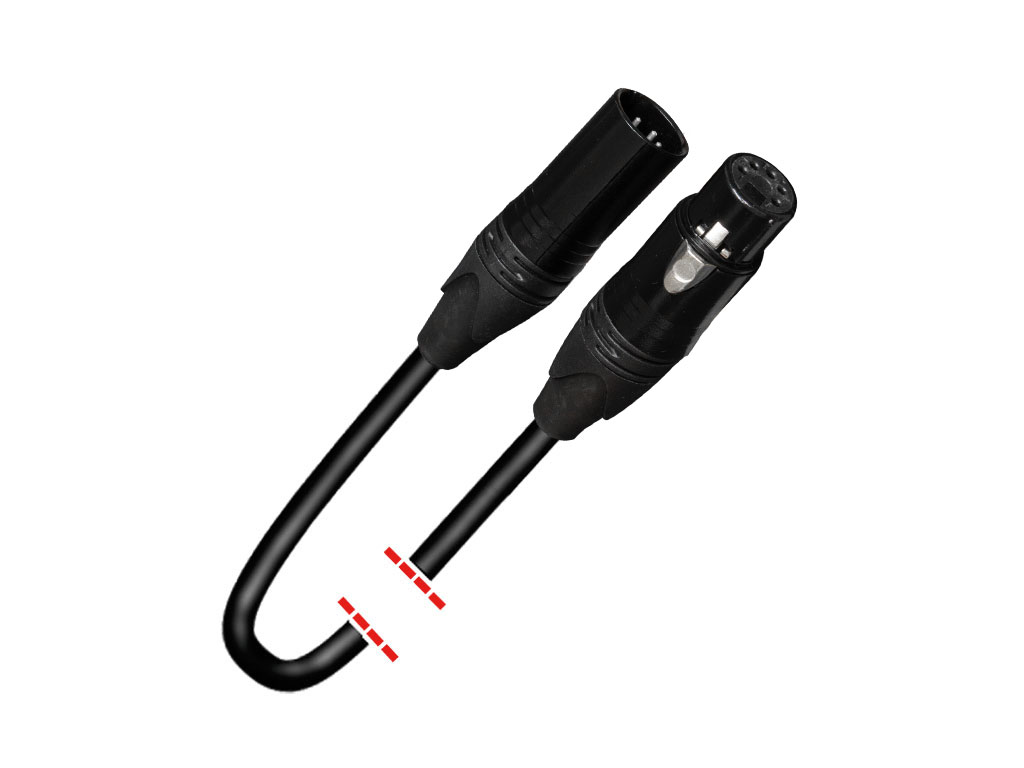

DMX signal cable


Features

  • XLR5 male - XLR5 female.
  • 4 wires + shield.
  • 20 m lenght.
  • Black.
TypeDMX signal
ConnectionsXLR5 male - XLR5 female
Length20 metros/ 20 m
Diameter7 mm
AWG22
Conductors4 x 0.34 mm²
Threads per conductor7 x 0.25 mm
Conductor insulationPE 1.7 mm
ShieldTinned copper braided shielding with 128 x 0.10 mm + AL/PT-foil + PE-filter.
Shield factor100 %
Temperature range-20 ºC to 70 ºC
Conductor capacitance< 65 pF/m
Shield capacitance245 pF/m
Conductor resistance53 Ohm/Km
Shielding resistance18 Ohm/Km
Insulation resistance> 5 GOhm
Characteristic impedance110 Ohm
ColourBlack
