Cable and Accessories

MK 111 2

15KMA211
DMX
3 m
XLR 3

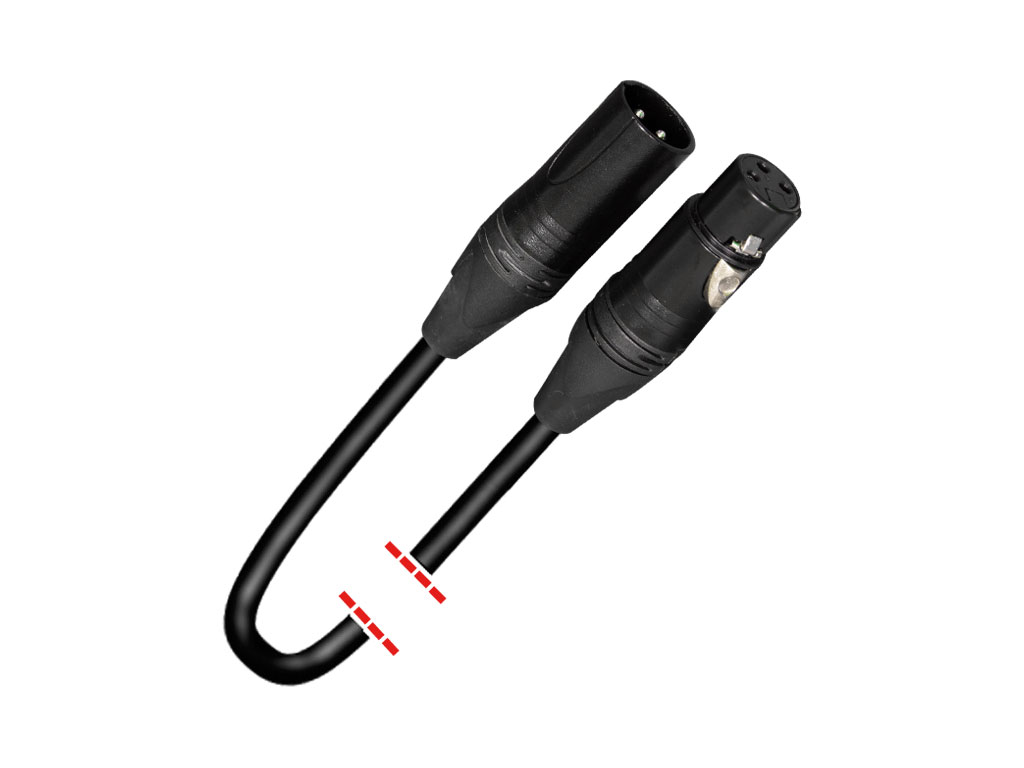

DMX signal cable


Features

  • XLR3 male - XLR3 female.
  • 2 conductors + Shield.
  • 3 meters in length.
  • Black color.
TypeDMX signal
ConnectionsXLR3 female - XLR3 male
Length3 metros
Diameter6 mm
AWG24
Conductors2 x 0.22 mm2 + malla/ 2 x 0.22 mm2 + shield
Threads per conductor28 x 0.10 mm
Conductor insulationPE 1.40 mm
Shield80 hilos de cobre de 0.10 mm en espiral/ 80 coiled 0.10mm copper wires
Shield factor95%
Temperature range-20 ºC a 70 ºC
Conductor capacitance68 pF/m
Shield capacitance130 pF/m
Conductor resistance53 Ohm/Km
Shielding resistance25 Ohm/Km
Insulation resistance> 1 GOhm/Km
Characteristic impedance100 Ohm/ ≈ 100 Ohm
ColourBlack
