Lighting
MBAR 3250 W
28MAR064
LED
WW
DMX
6º <

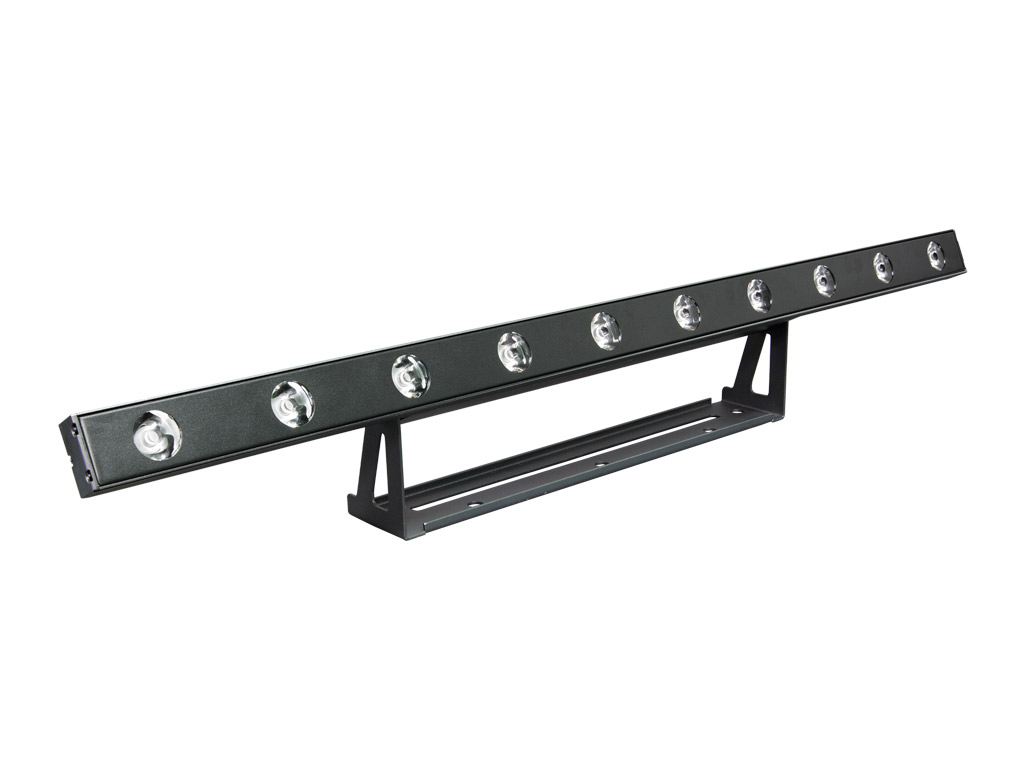

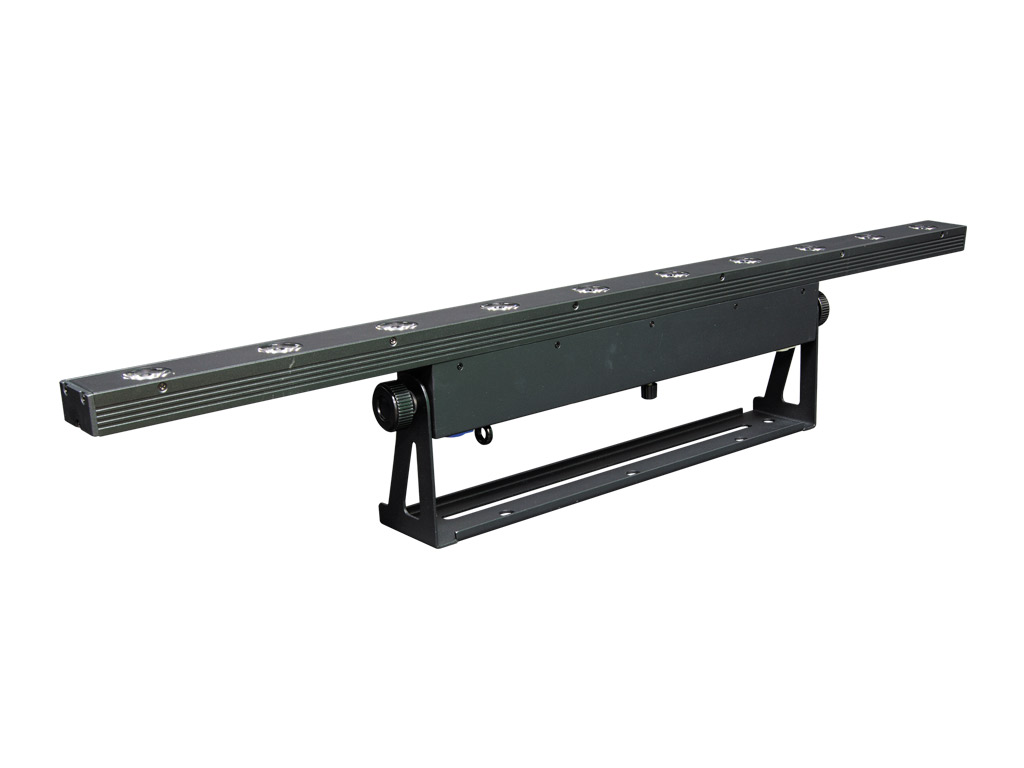

LED Lighting bar.

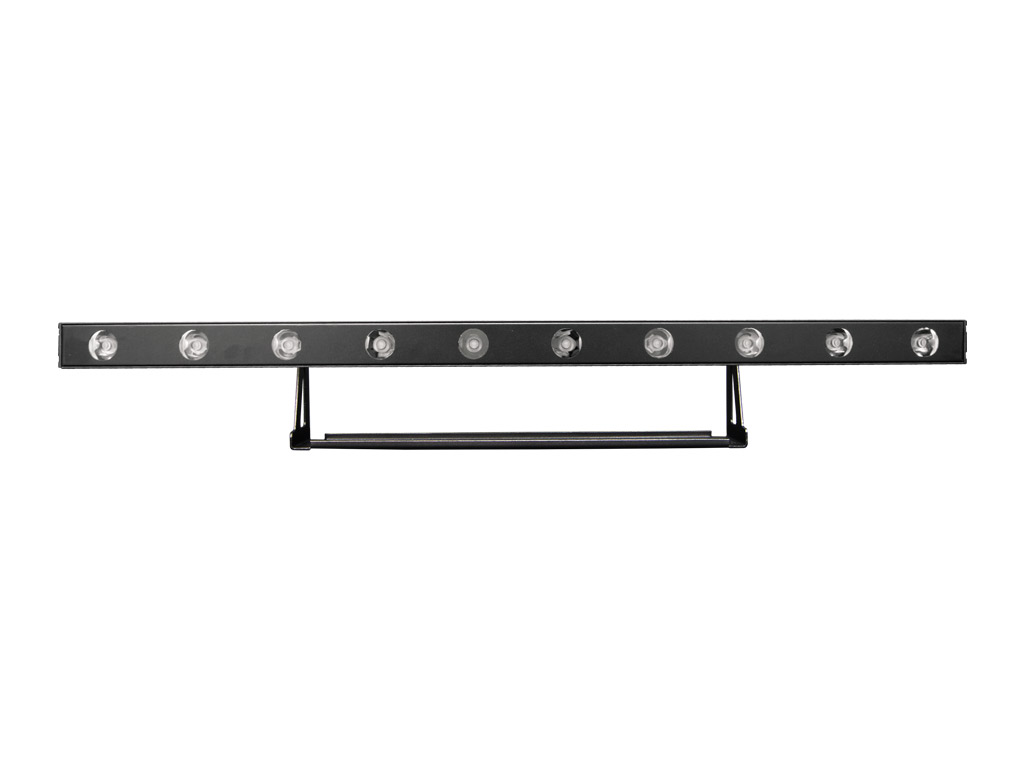

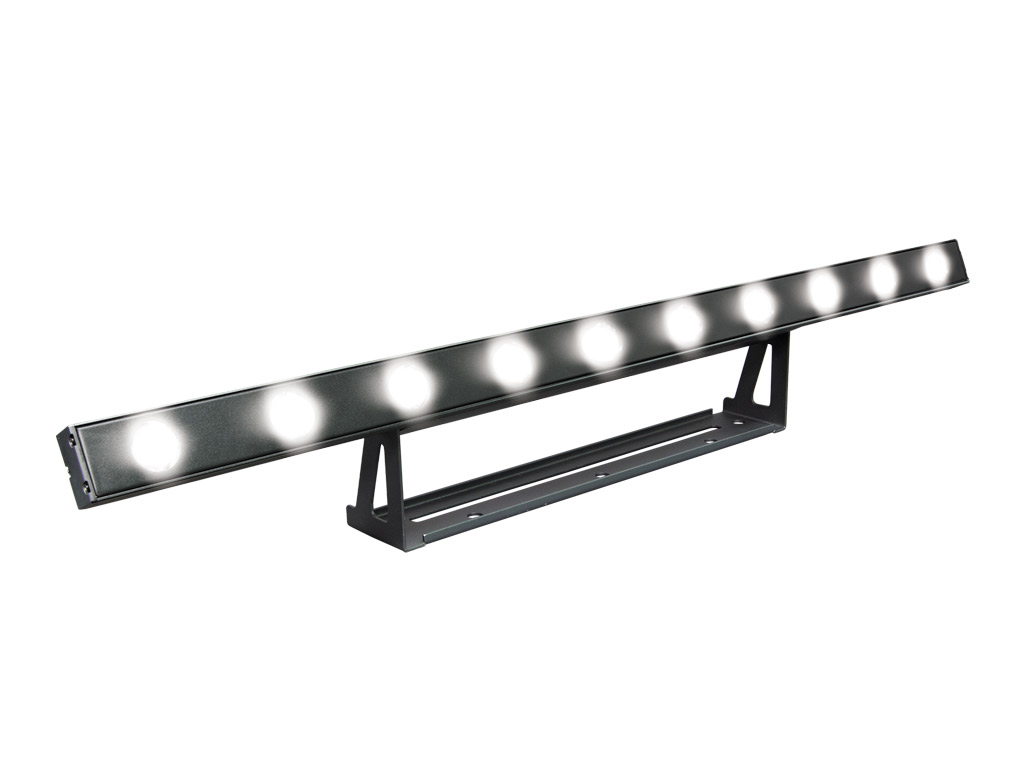

MBAR 3250 W is a lighting bar that includes 10x 5W each one LEDs and warm white (3200K colour temperature).
The configuration interface has a display with all the information and the buttons to navigate through the menus, selecting parameters such as selection of the 17 automatic programs and other 17 audio programs, the manual level of dimmerization and the control of the strobe effect.
The device includes DMX mode (1, 3, 5, 10 and 15 channels) with individual dimmer level of each LED, and the activation of both automatic and audio programs.

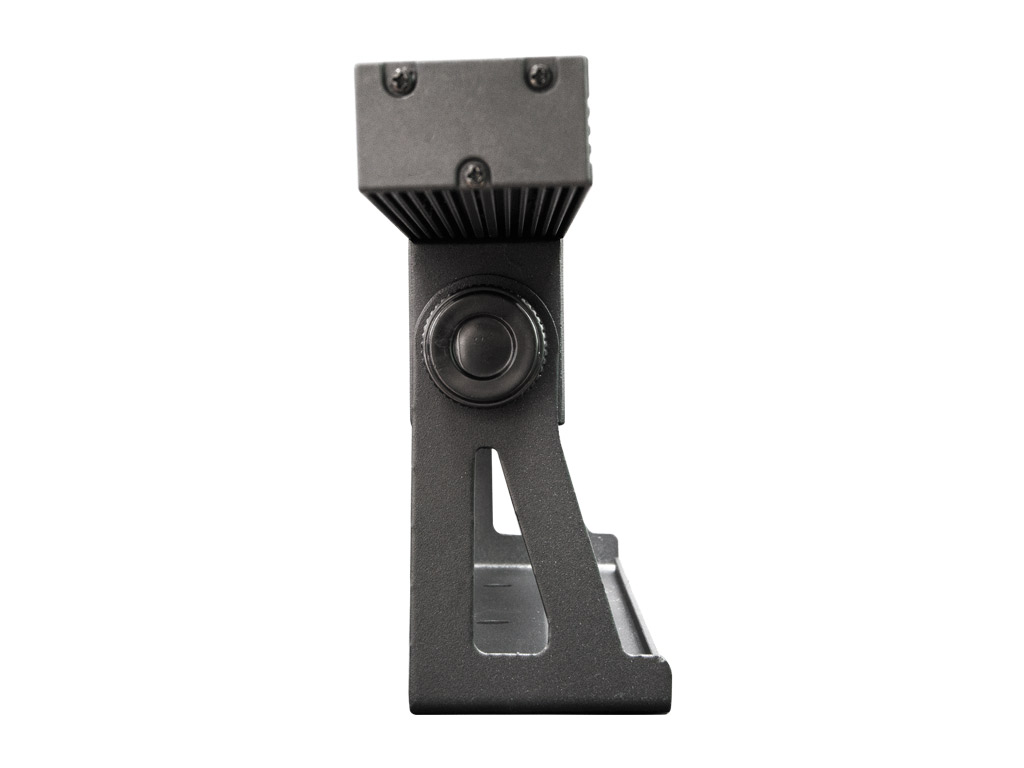

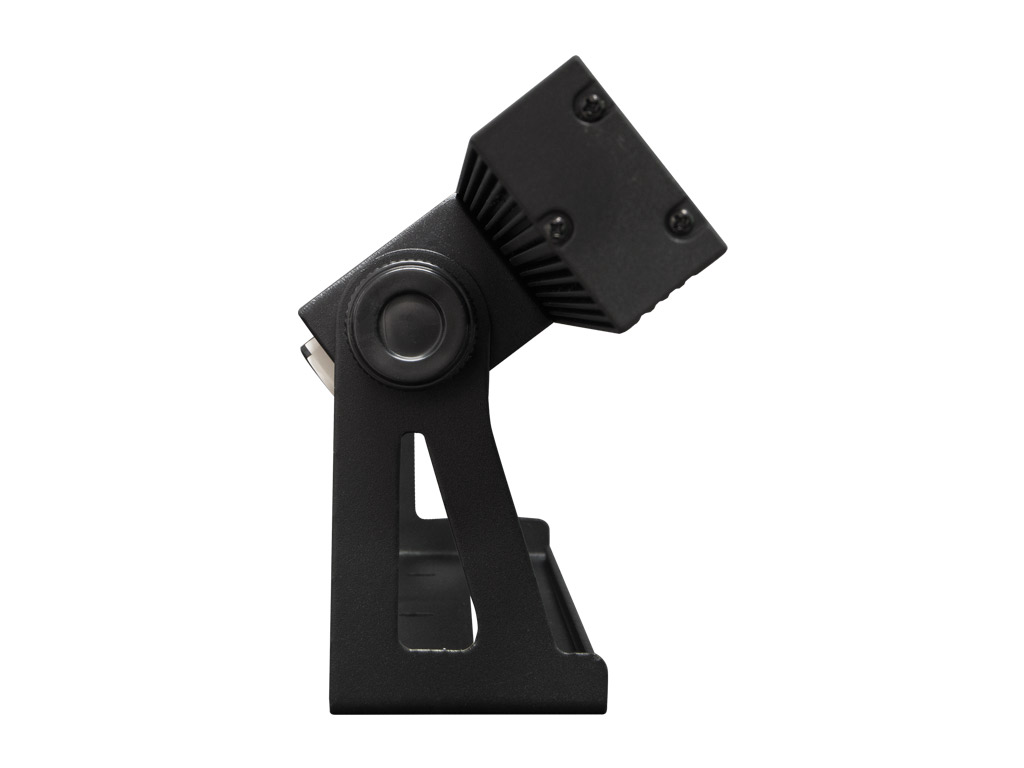

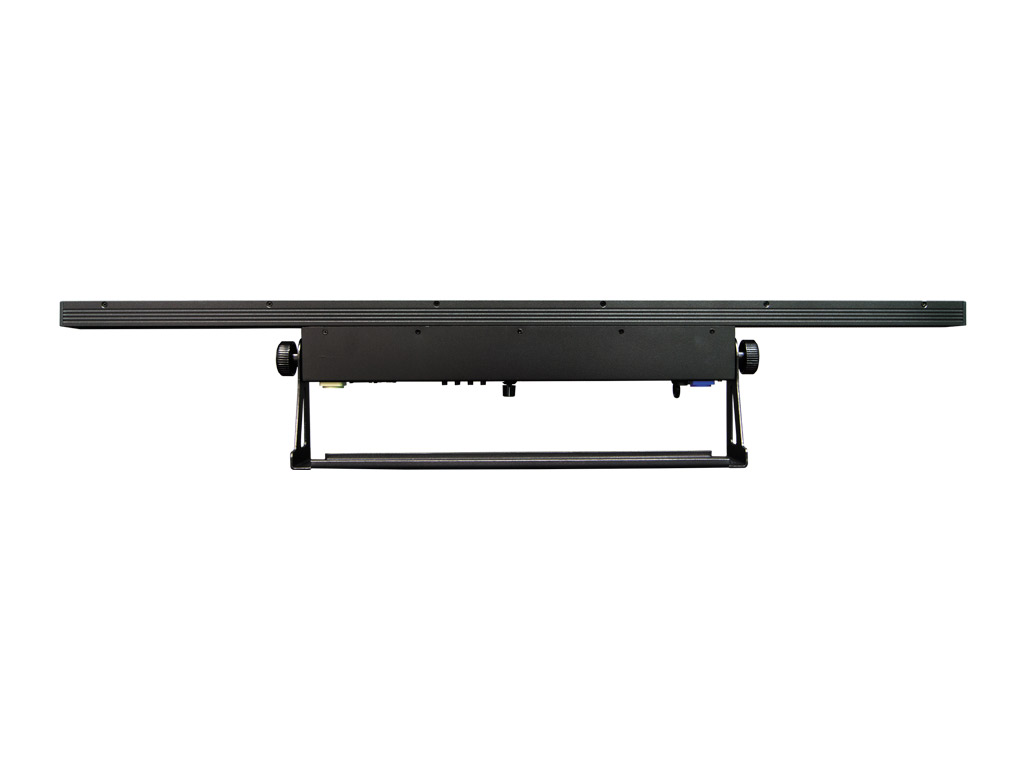

Its tilting frame allows to place the bar in walls, ceiling, or even on the floor and direct the beam to the desired place taking advantage of the 6° beam angle.
Features
- 10 x 5 W white LED.
- 1/3/5/10/15 DMX channels.
- Strobe function.
| Light engine | 10 x LED Blanco de 5 W/ 10 x 5 W white LED10 x 5 W white LED |
| Color temperature | 3200 K (Blanco cálido)/ 3200 k warm white |
| Power | 50 W |
| Beam angle | 6º |
| DMX channels | 1/3/5/10/15 canales DMX/ 1/3/5/10/15 DMX channels |
| Operating modes | 10 x 5 W white LED |
| Controls | Pushbuttons for configuration menu navigation, Audio input sensitivity adjustment |
| Indicators | 4 digit display |

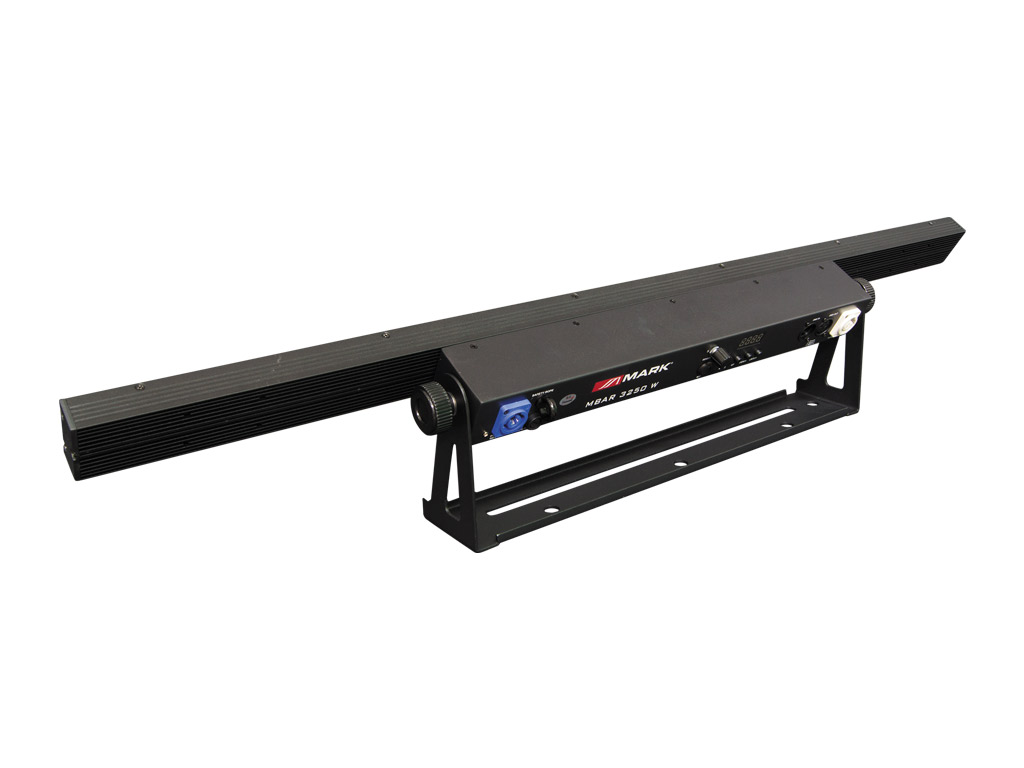

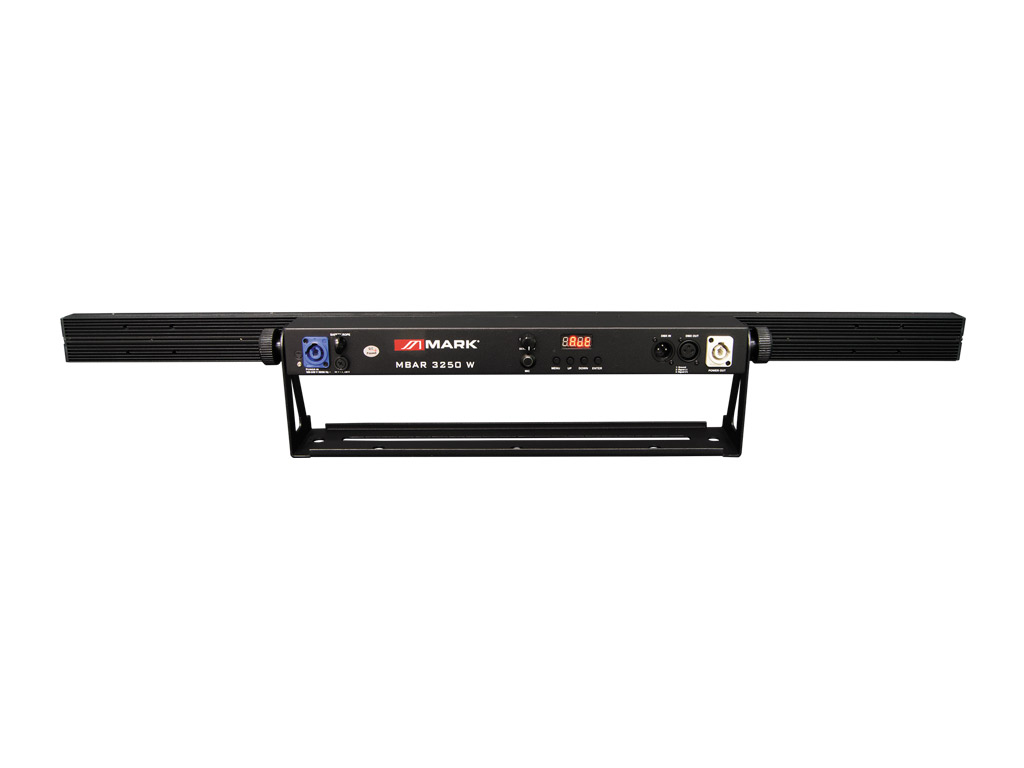

| Connections | Power: Powercon for input and output; XLR3 signal for input and output |
| Colour | Black |
| Rigging | Tilting frame |
| Silent Version | Sí |
| Power supply | AC 100-240 V 50/60 Hz |
| Dimensions | 995 x 180 x 80 mm |
| Weight | 3 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 1.00 | 0.18 | 0.08 | 3.00 |
| Box | 1.04 | 0.23 | 0.12 | 4.52 |
| Master Carton | 1.06 | 0.47 | 0.26 | 20.00 |
- Lighting bar that includes 10x 5W LEDs each one, Warm white (3200K).
- Display and interface to configure functions.
- 17 automatic programs and 17 audio programs.
- Strobe function.
- Adjustable fixing frame.
Manual | MBAR 3250 W - USER MANUAL v1.0 |  | Download |
So far, there are no questions related to this product.
Register to be able to ask a question about this product.
