Professional Audio

MAXMINI 4

82MAR024
USB
Bluetooth
+48V

2 Mono + 2 stereo inputs mixer with USB/BT

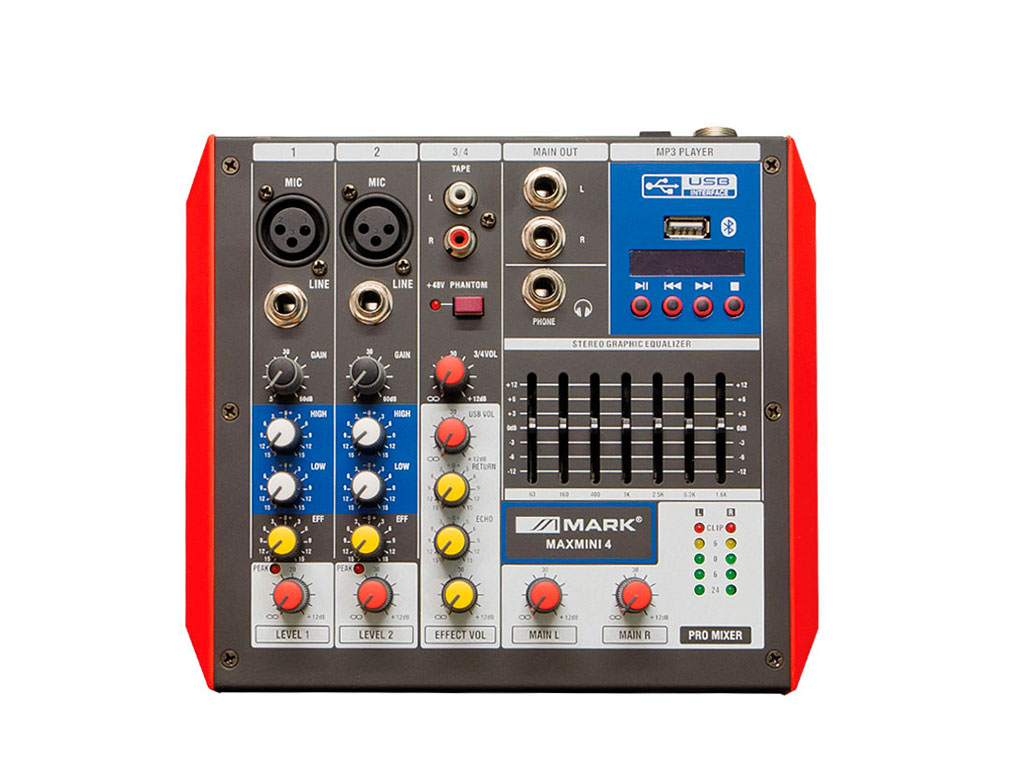

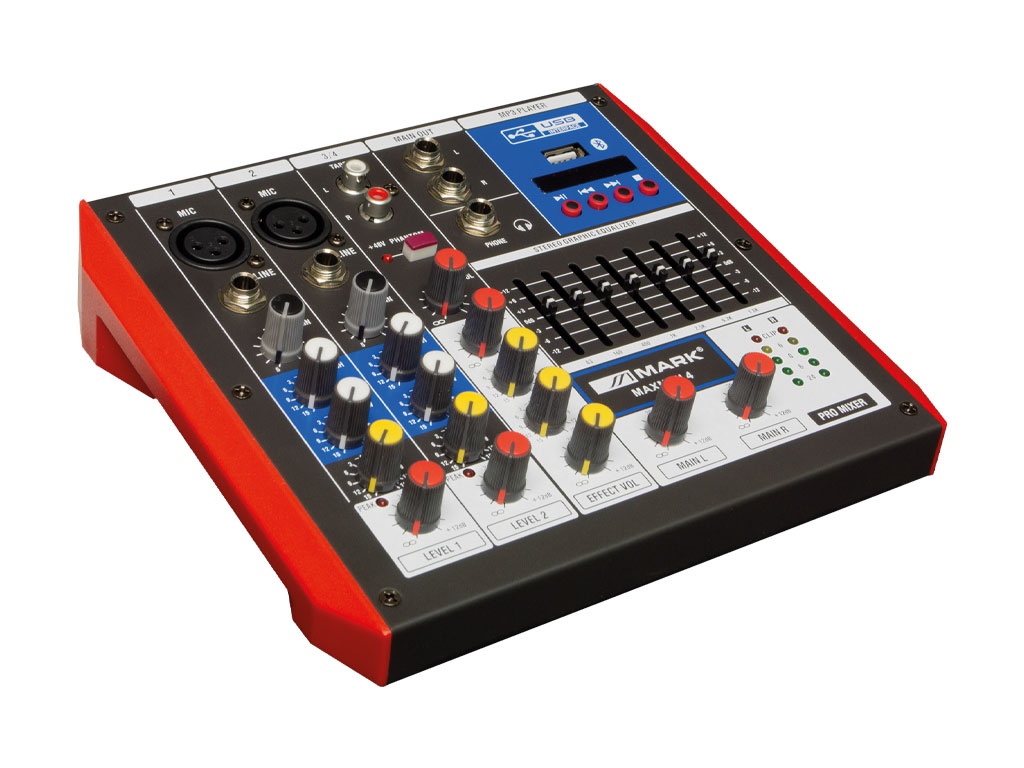

MAXMINI 4 is an audio mixer with 2 mono MIC/LINE channels and 1 stereo channel. Its MIC/LINE input channels incorporate phantom power for condenser microphones. It features an audio file player via USB/Bluetooth port, built-in effects, 2 tone controls per channel, 7-band stereo graphic equalizer on the master and headphone output.

Features

  • 2 mono inputs + 2 stereo inputs.
  • Phantom power +48 V.
  • USB/Bluetooth interface.
  • 7-band graphic equalizer and echo effect.
Mono Ch2 Micro/Línea/ 2 Mic/Line
Stereo Ch1 línea/ 1 Line
PlayerUSB and Bluetooth
RecorderUSB
EffectsEcho
Phantom Power+48 V
ConnectivityUSB and Bluetooth
EqualizationHI: 10 kHz ± 15 dB; LOW: 100 Hz ± 15 dB
Phones OutputYes
Other functions
Input ImpedanceMic: 3 KOhm; Line: 10 KOhm
Hum and noise-128 dBu (Rs:150 Ohm¦, GAIN knob: max)
THD0.01% @ +8 dBu, 1kHz, 80 kHz
Power supplyAC 100 -240 V 50/60 Hz / DC 15V (External power supply included)
Dimensions205 x 55 x 190 mm (An x Al x Pr)/ 205 x 55 x 190 mm (W x H x D)
Weight1 Kg
  Manual
Download
  Quick Guide
Download
  Packaging
Download
  Packaging
Download
  Drawings
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question




Alternatives

  • AME 202 USB
    Mixer with 2 mono channels + 1 stereo channel. USB.
  • AM MINI WIRELESS
    5 channels mixer with USB/BT & 2 handheld wireless microphones
