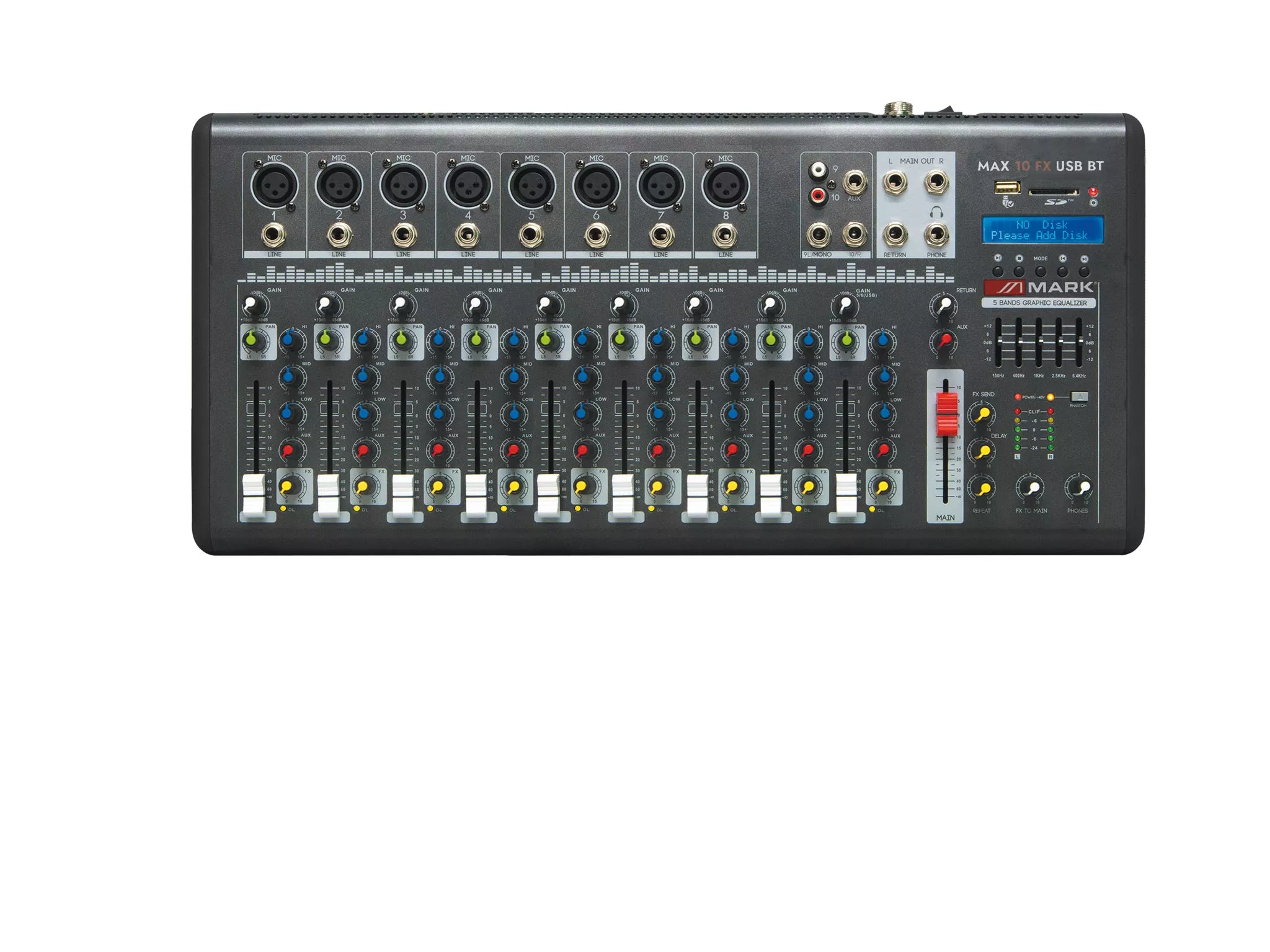

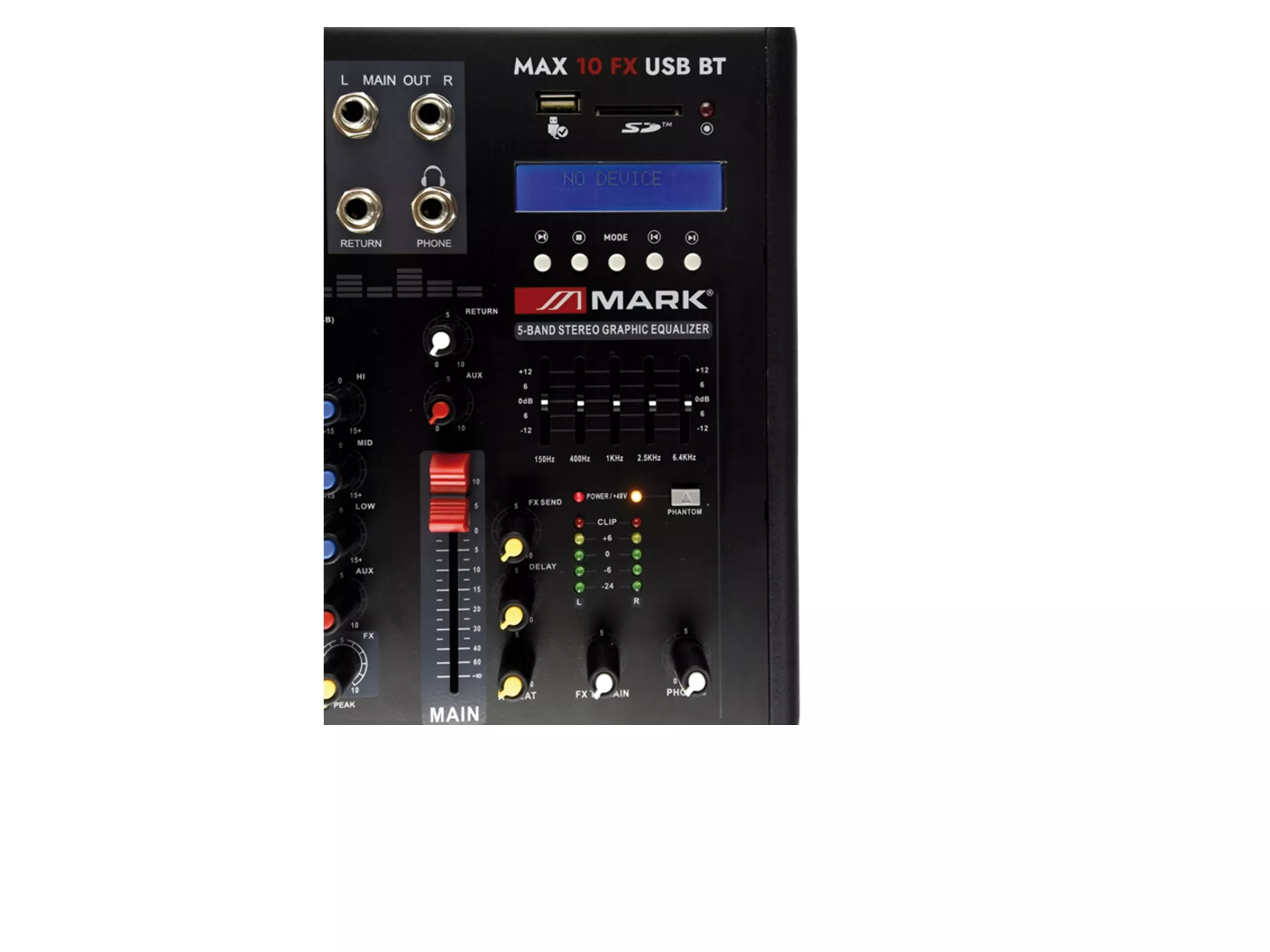

MAX 10 FX USB BT is an audio mixer with 8 mono MIC / LINE channels and 1 stereo channel. Its MIC / LINE input channels incorporate phantom power for condenser microphones. MAX 10 FX USB BT has an audio file recorder player via USB / SD port, Bluetooth connectivity, built-in effects, 3 tone controls per channel, 5-band stereo graphic equalizer on the master, send / return connections, balanced headphone output and master outputs.
Input Channels | 8 Mic/Line mono, 1 estéreo/ 8 Mic / Line mono, 1 stereo |
Gain range | +10 to +50 dB |
Maximum output level | +28 dBu |
Equalization | 12 KHz ± 15 dB, 3 KHz ± 15 dB, 80 Hz ± 15 dB |
Phantom Power | +48 V |

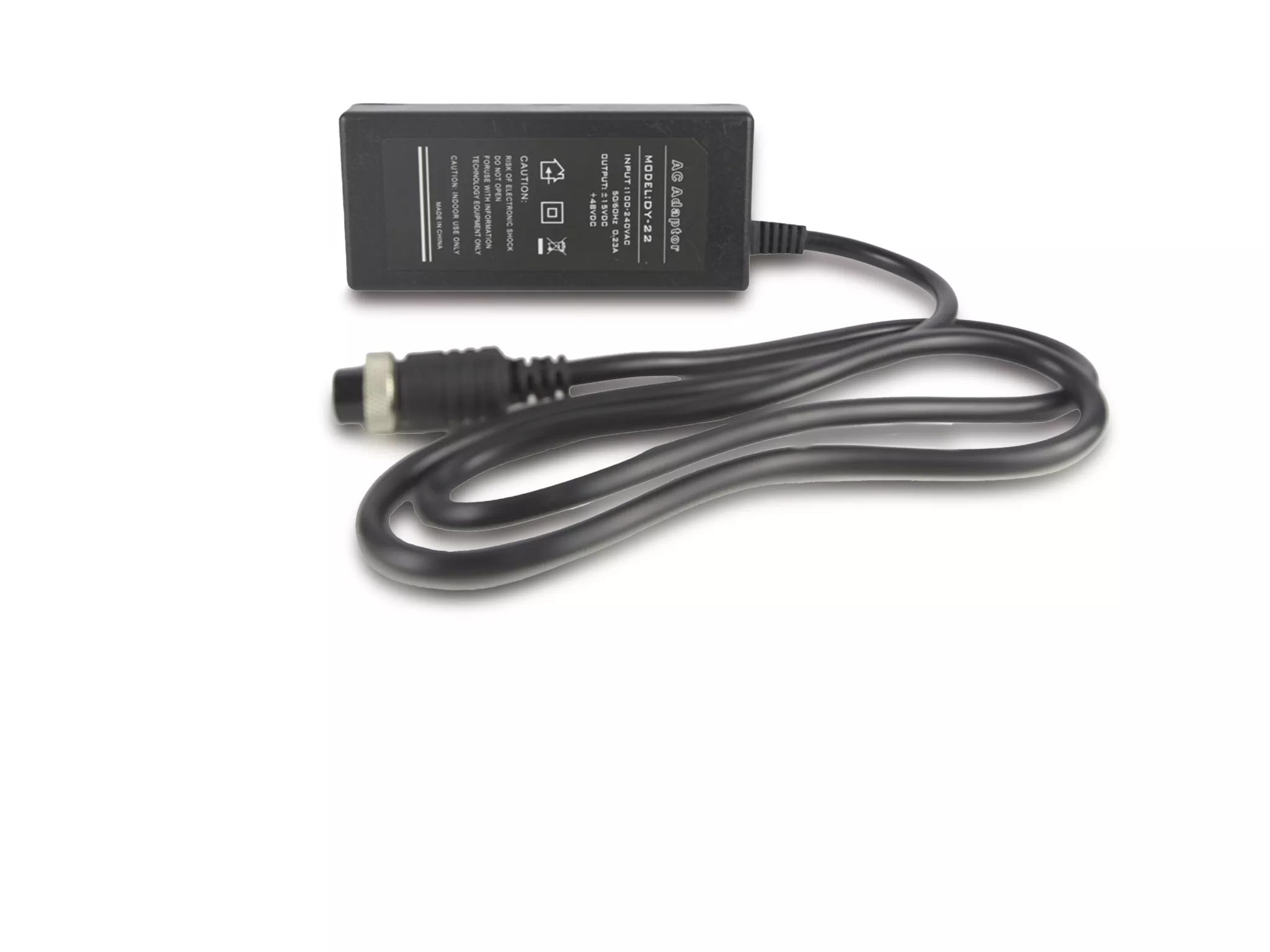

Power supply | AC 100-240 V 50/60 Hz / DC ± 15V / 48V (External power supply included) |
Dimensions | 500 x 250 x 40 mm |
Weight | 5 Kg |
Other functions | USB / SD audio player / recorder, Bluetooth, Headphone out, Effects processor |
Length(m) | Width(m) | Height(m) | Weight(kg) | |
---|---|---|---|---|
Product | 0.25 | 0.50 | 0.04 | 5.00 |
Box | 0.56 | 0.05 | 0.10 | 5.00 |
Master Carton | 0.59 | 0.49 | 0.40 | 25.00 |
Manual | MAX FX USB BT- series MANUAL v1.0 | ![]() | Download |
