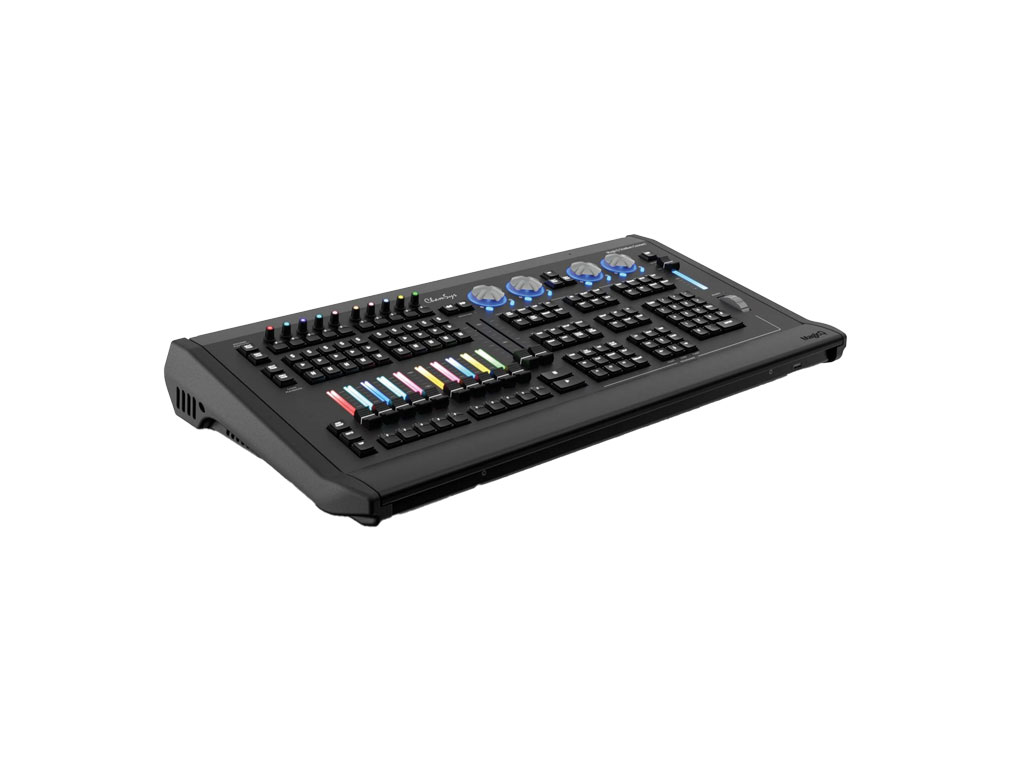

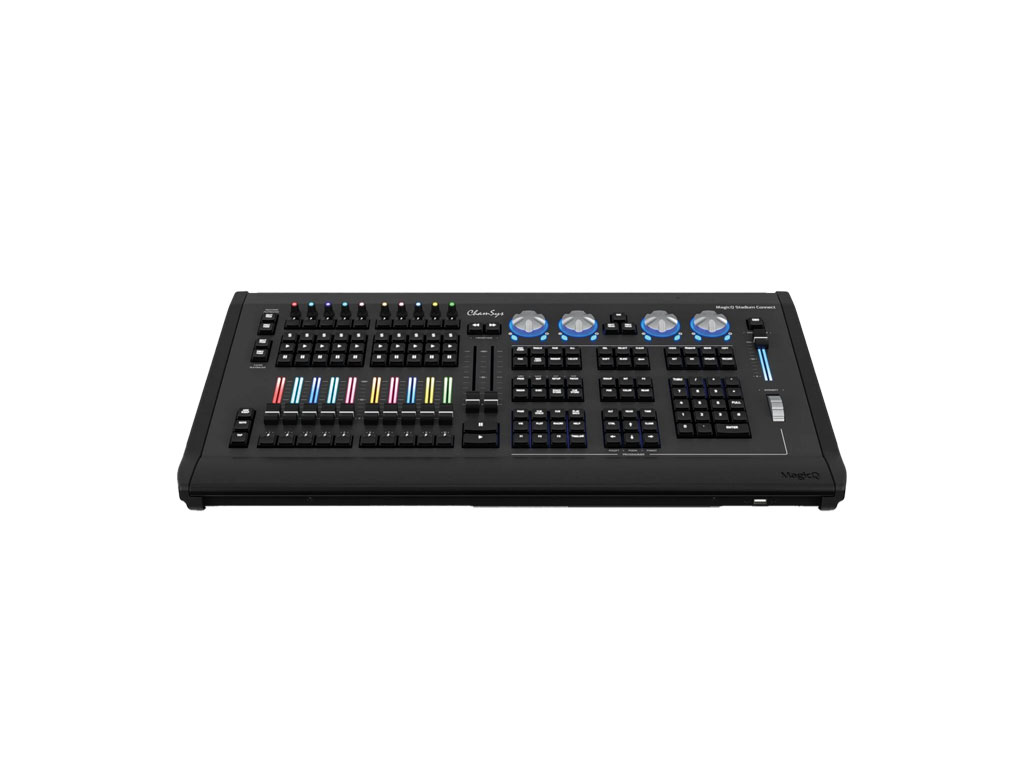

MagicQ Stadium Connect

55CHA074
DMX

Lighting programming surface

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the wing, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors with plenty of programmable real estate for your show.

Features

  • Up to 64 control universes.
  • 4 direct DMX outputs.
  • 10 playback faders and buttons.
  • USB connection for PC or Mac.
Universes64
Faders/Encoders10 playbacks motorizados y retroiluminados / 10 encoders playback + 4 encoders/ 10 motorised and backlit playbacks / 10 playback encoders + 4 encoders
Media Server SupportYes. 50 different content
Number of Fixtures32768

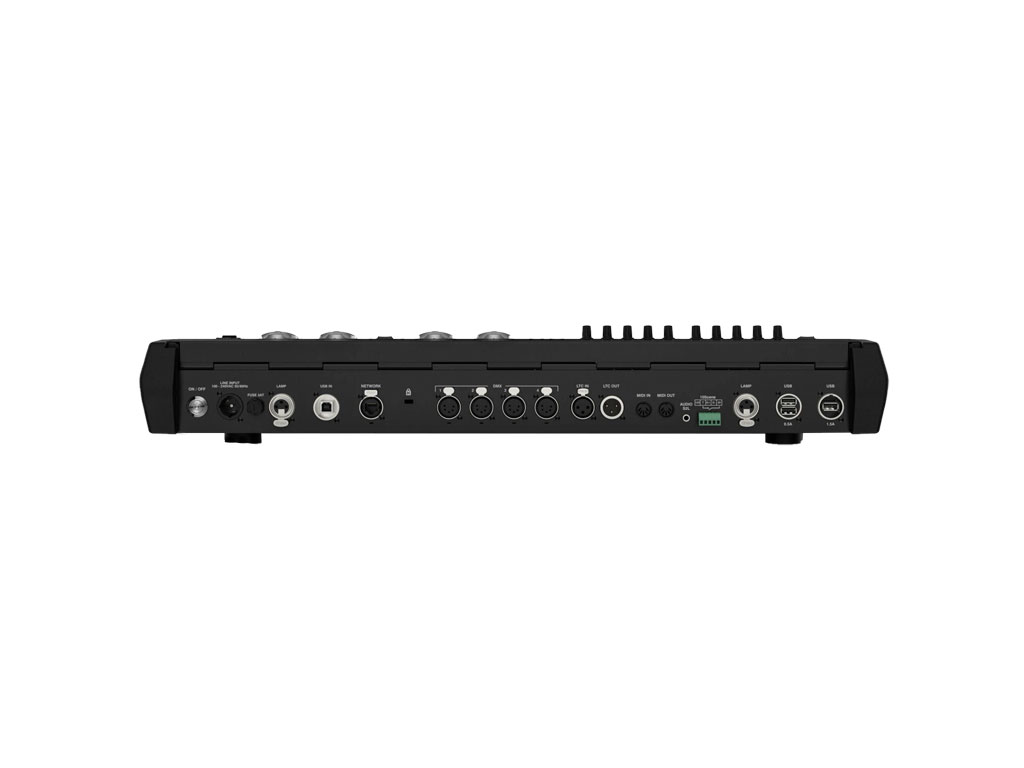

Remote Input PortMidi In/Out, 1 x 10 scene port, LTC, Audio In
DMX Output / DMX Input4 / ---
RDMYes
Internal MonitorNo
Network Ports4
Audio In/OutYes­ / ---
MIDI/OSC1 (entrada y salida) / Sí/ 1 (In and Out) / ---
LTC/MTC1 (entrada y salida) / ---/ 1 (In and Out) / ---
USB Ports4
Inbuilt WifiNo
Wing Support/MulticonsoleYes / Yes
Cues/Groups5000 / 5000/ 5000 / 5000
Length(m)Width(m)Height(m)Weight(kg)
Product0.360.680.098.70
  Application Tip
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
