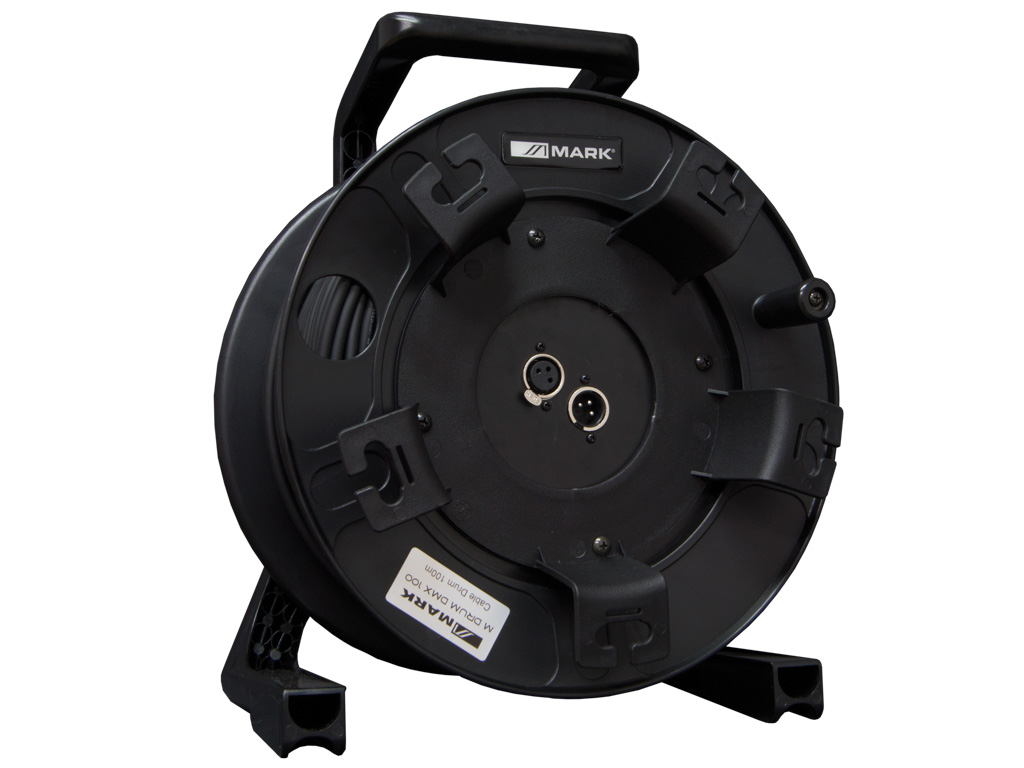

Cable DMX hose reel with 6.5m diameter.
At its base 1 XLR connection XLR female and one male.
Its total length is 100 meters.
Fully shielded.
Type | DMX signal |
Connections | XLR3 aerial - XLR3 base male/female |
Length | 100 metros/ 100 m |
Diameter | 6.5 mm |
AWG | 22 |
Conductors | 2 x 0.34 mm² |
Threads per conductor | 7 x 0.25 mm |
Conductor insulation | PE 1.70 mm |
Shield | Coil of copper with 80 x 0.10 mm + AL/PT-foil + PE-filling |
Shield factor | 100 % |
Temperature range | -20 ºC to +70 ºC |
Conductor capacitance | < 65 pF/m |
Shield capacitance | 115 pF/m |
Conductor resistance | 53 Ohm/Km |
Shielding resistance | 17 Ohm/Km |
Insulation resistance | > 10 GOhm |
Characteristic impedance | 120 Ohm |
Colour | Black |
