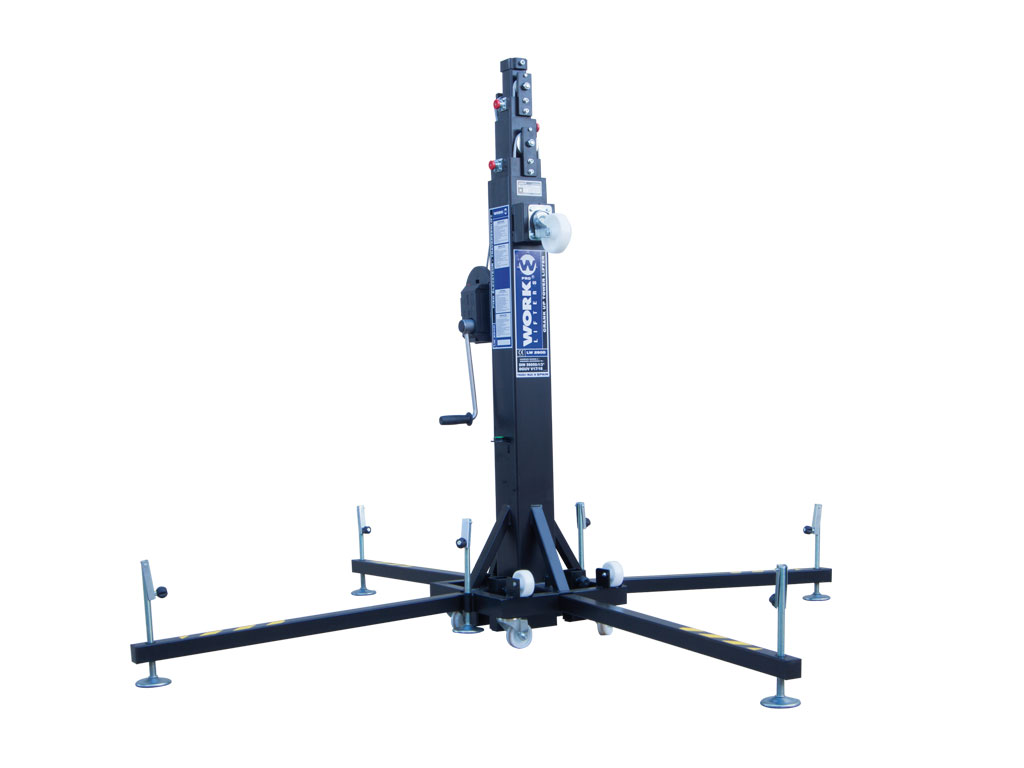

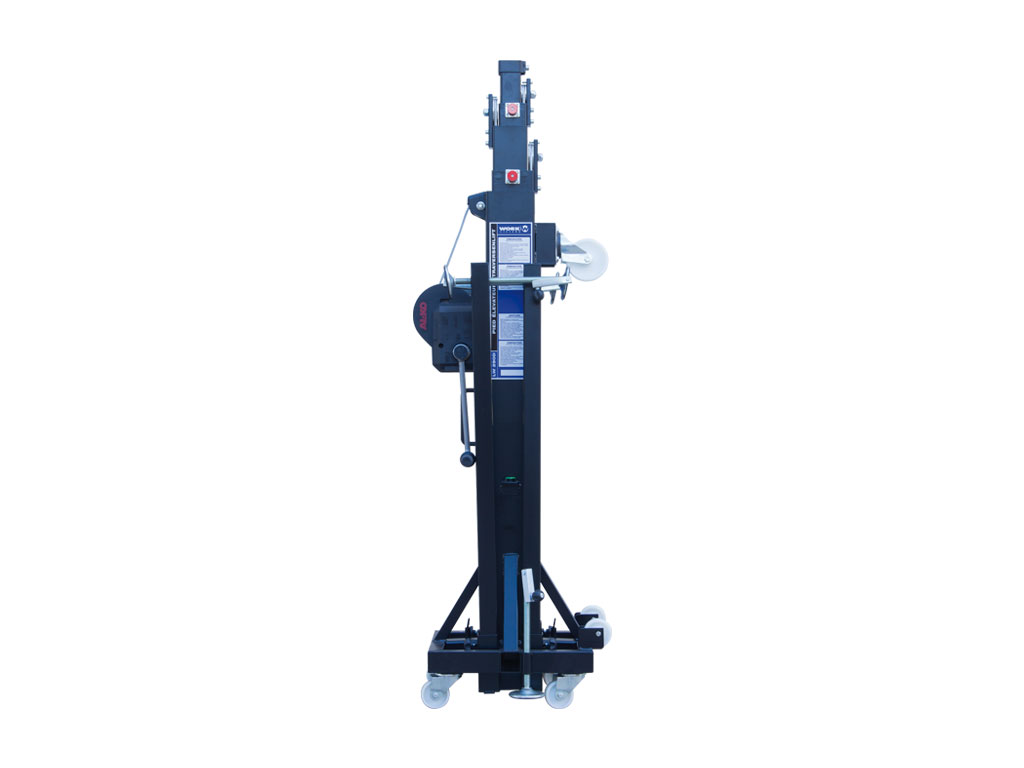

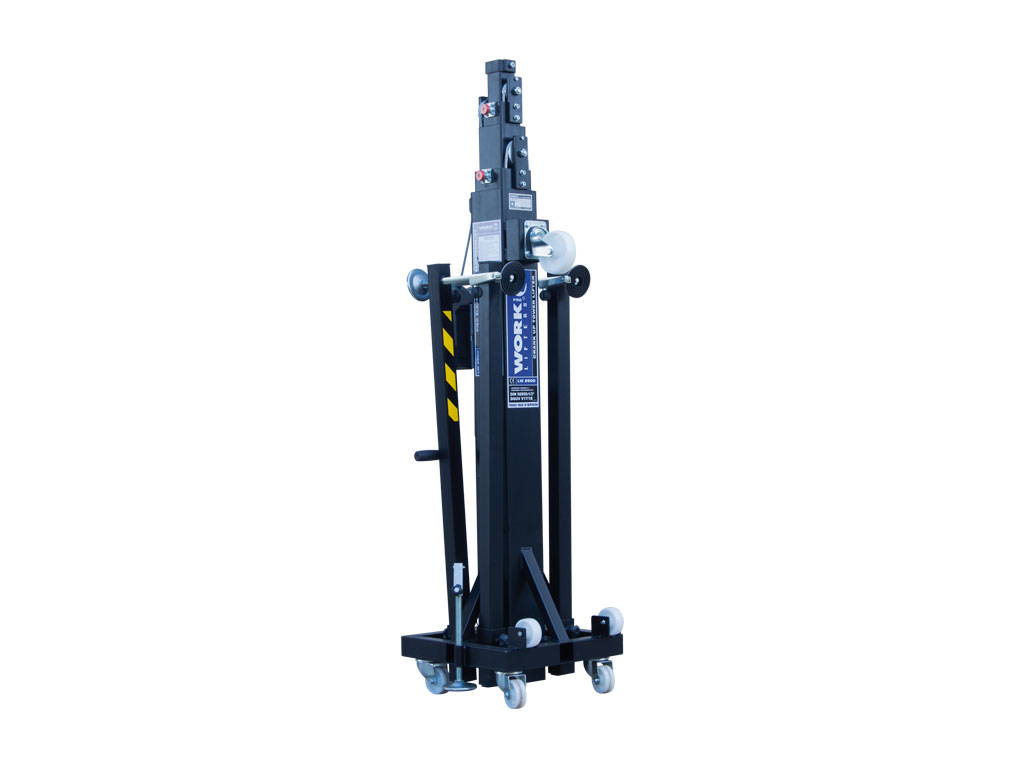

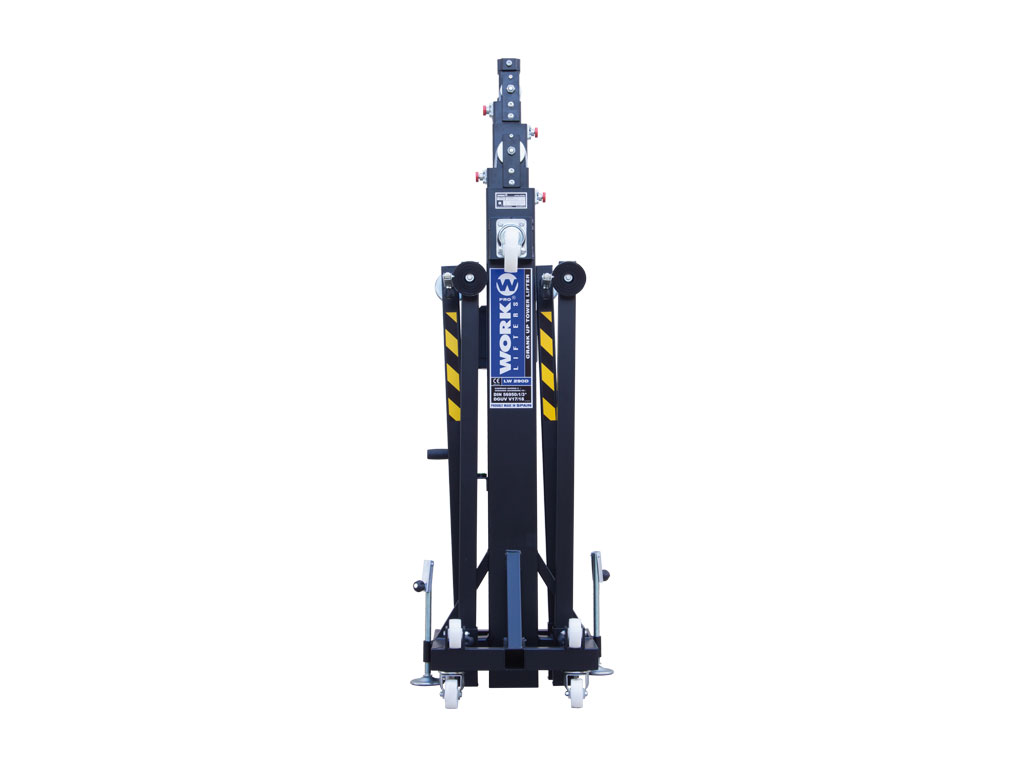

The LW-D Series incorporates the innovative Wire Drive system, which has been developed in order to prevent undesired and dangerous cable crosses in the drum of the winch, making easier the roll up/unroll process and avoiding crashing or fraying that could reduce the useful life of the cable or (in the worst case) its breakage. Wire Drive consists of a multidirectional grooved pulley that reduces the wire fleet angle between the winch drum and its entry to the first mast, in order to be compliant with DIN 56950 standard.
Maximum load: 290 Kg.
Maximum height: 6.6 m.
Weight: 136 Kg.
Top insertion: 35 mm
- Wire Drive system to guide the cable.
- Wheels at the base of the tower.
- Complies with DIN 56950 standard.
- Up to 6.6 m height and 290 kg load.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Material | Steel |
| Unfolded base | 460 x 460 mm / 1.51 x 1.51 ft |
| Maximum height | 6.6 m / 21.65 ft |
| Minimun height | 1.84 m / 6.04 ft |
| Unfolded base diameter | 2.58 m / 8.46 ft |
| No. of sections | 5 |
| Maximum Load | 290 Kg / 639.34 Lb |
| Minimum Load | 25 Kg / 55.12 Lb |
| Net Weight | 136.8 Kg / 301.59 Lb |
| Winch | 900 Kg / 1984.16 Lb |
| Noise Emission | 75 dB |
| Standards and Certifications | DIN 56950 |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.46 | 0.46 | 1.84 | 136.80 |
| Box | 0.55 | 0.57 | 1.85 | 136.80 |
