LS Core

56LSX002
ARTNET
DMX
sACN

DMX controller.

The LS-Core is a cutting-edge new range of hardware lighting consoles being the smallest 8-universe full web browser based DMX-based hardware lighting console which can be controlled from a multi-touch device, with support for up to three connected devices simultaneously. LS-core and LS-1 set a new standard for features and usability.

LS-Core has running in its core LightShark, the Lighting software platform which makes this console a new concept of lighting control  and brings together the best features from the world of innovative software-only lighting control.

Thanks to the LightShark software engine, LS-Core features 8 DMX universes via sACN and/or ArtNet,  detailed control of colour and gobo options via palettes, comprehensive grouping options, CueList operation with up to 1200 Cues and Lists, customisable automation via an elegant, easy-to-use graphics-based Executor window, special effects and fanning, built-in support for an ever-growing library of lighting Fixtures.

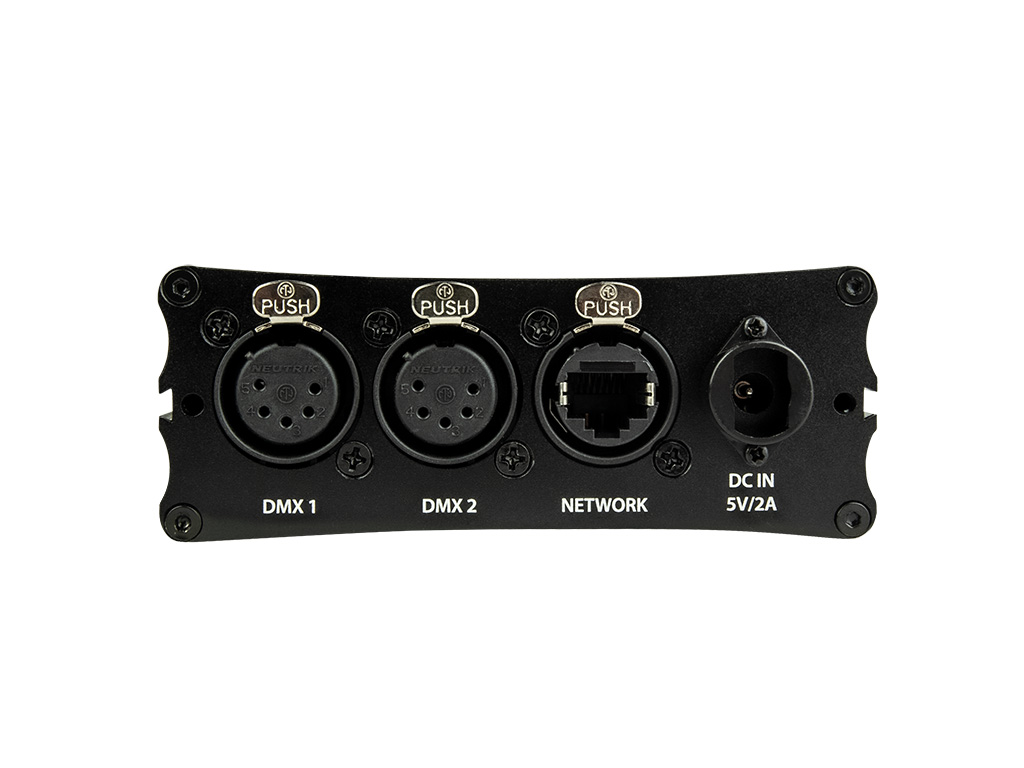

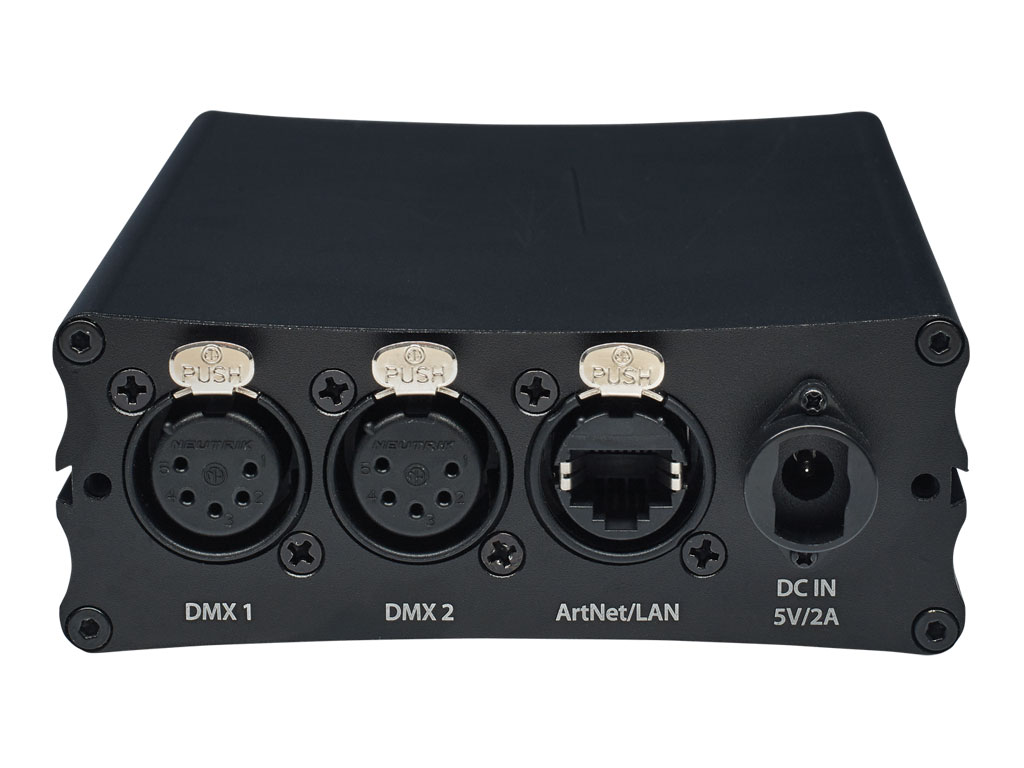

Because the LightShark control software runs on the console itself, and the Wi-Fi-connected tablet is merely controlling it via a simple web browser, the control software is fast and responsive, as well as offering the benefits of real-time, multi-touch control. All of the required hardware interfacing is available on  the LS-Core ultra compact console (including Artnet, a DMX Out for control of one 512-channel DMX Universe, and an Ethernet port for access to a further eight DMX Universes), along with a USB connector for updates and MIDI connectivity*. Designed from the ground up as a complete lighting control system, and shipping with the browser-based control software pre-installed on the Wi-Fi-enabled console (Safari, Chrome Firefox and Opera are all supported).

*coming in future updates

Features

  • Up to 8 DMX universes.
  • Web browser based.
  • Multitouch UI.
Universes4 (ArtNet) / 8 (sACN)
DMX Output / DMX Input2 / No
RDMNo
Internal MonitorLCD display 2 x 16
External MonitorDevice based.
Network Ports1
Audio In/OutNo / No
MIDI/OSCYes / Yes (Only in)
LTC/MTCNo / No
USB Ports1 de datos/ 1 USB-Host
Inbuilt WifiYes
Remote Input PortNo
Faders/EncodersNo / No
Iluminated Soft Buttons/Faders/EncodersNo / No / No
Wing Support/MulticonsoleNo / No
Cues/Groups1200 / 500
Number of Fixtures4096
Silent VersionYes
UPSNo
Length(m)Width(m)Height(m)Weight(kg)
Product0.140.110.040.47
Box0.200.100.100.50
Master Carton0.570.590.2822.00
