Lifters and Truss

GS 140

T1409T14012F70TGS149F70TGS142

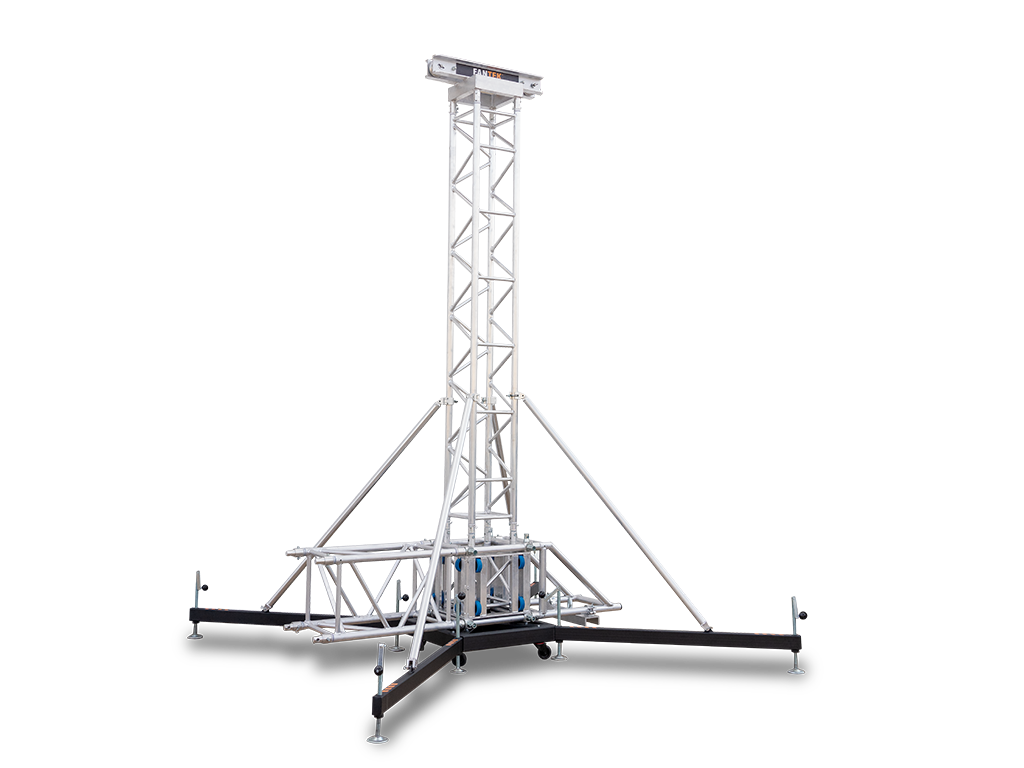

Structural tower

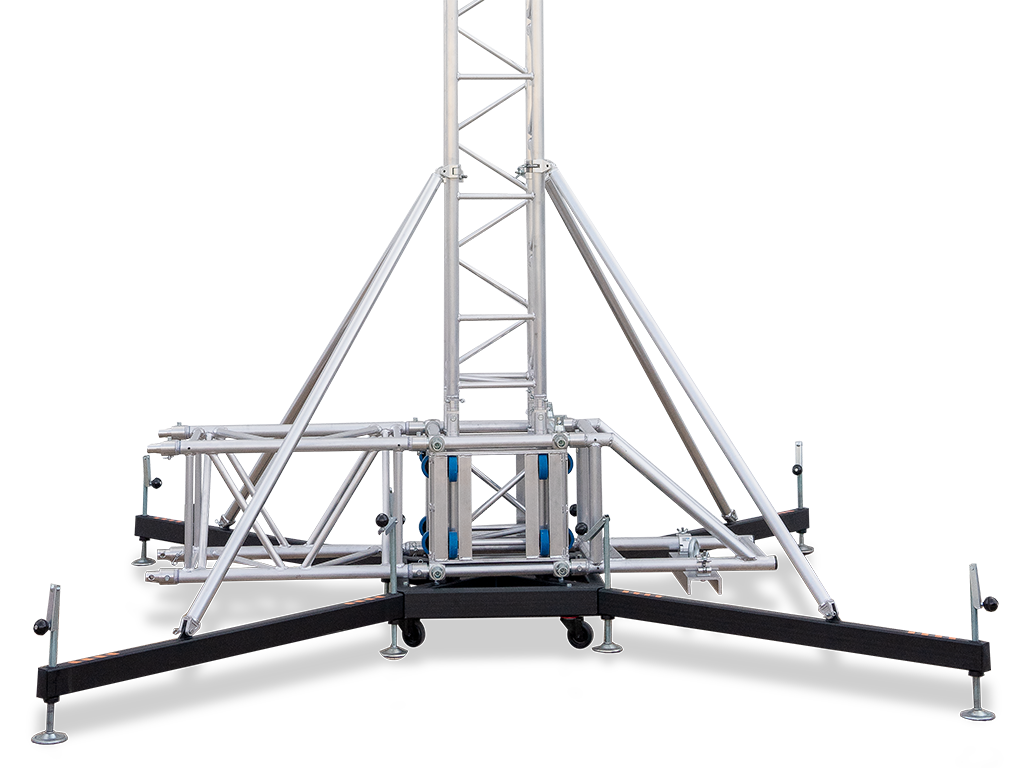

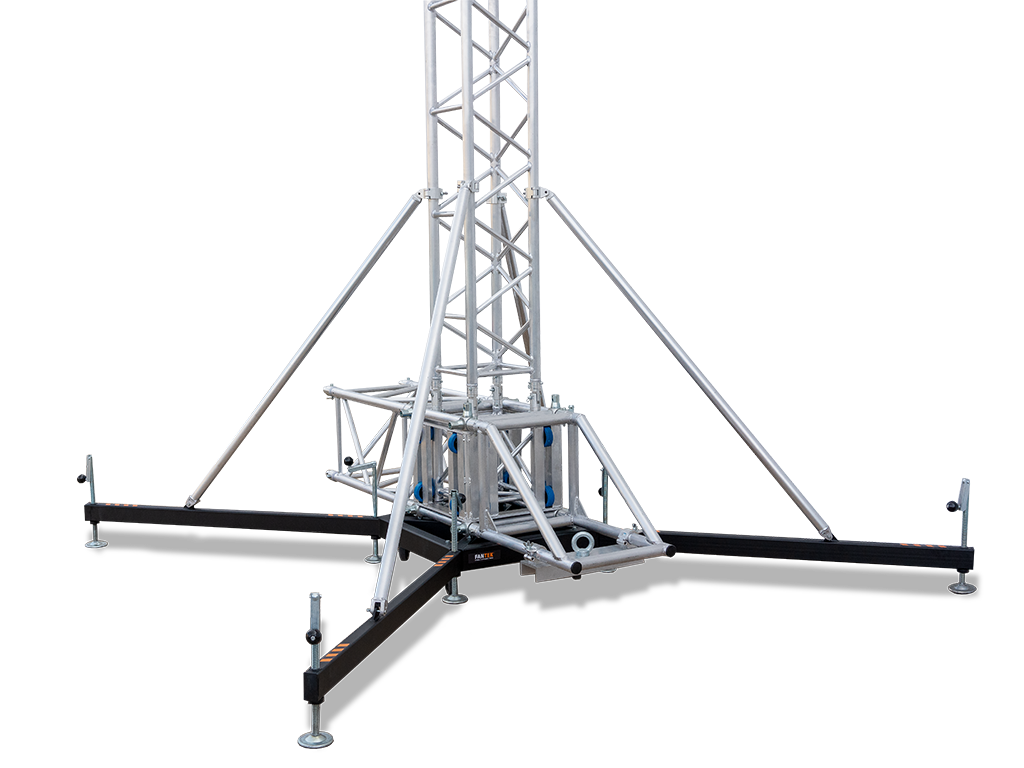

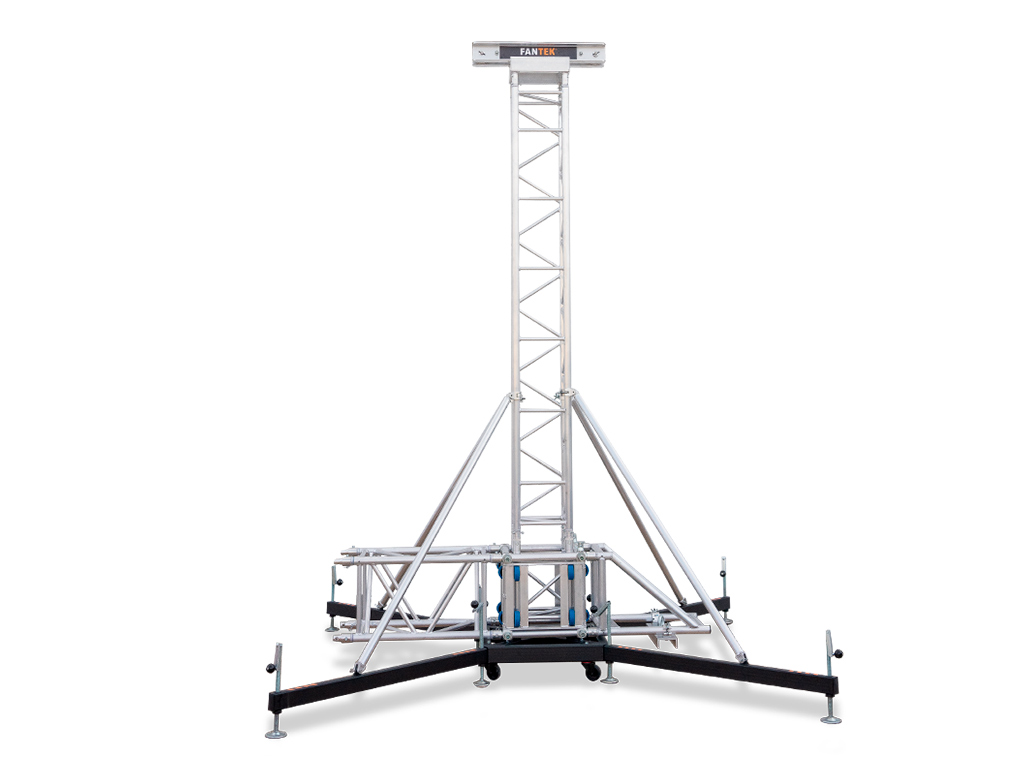

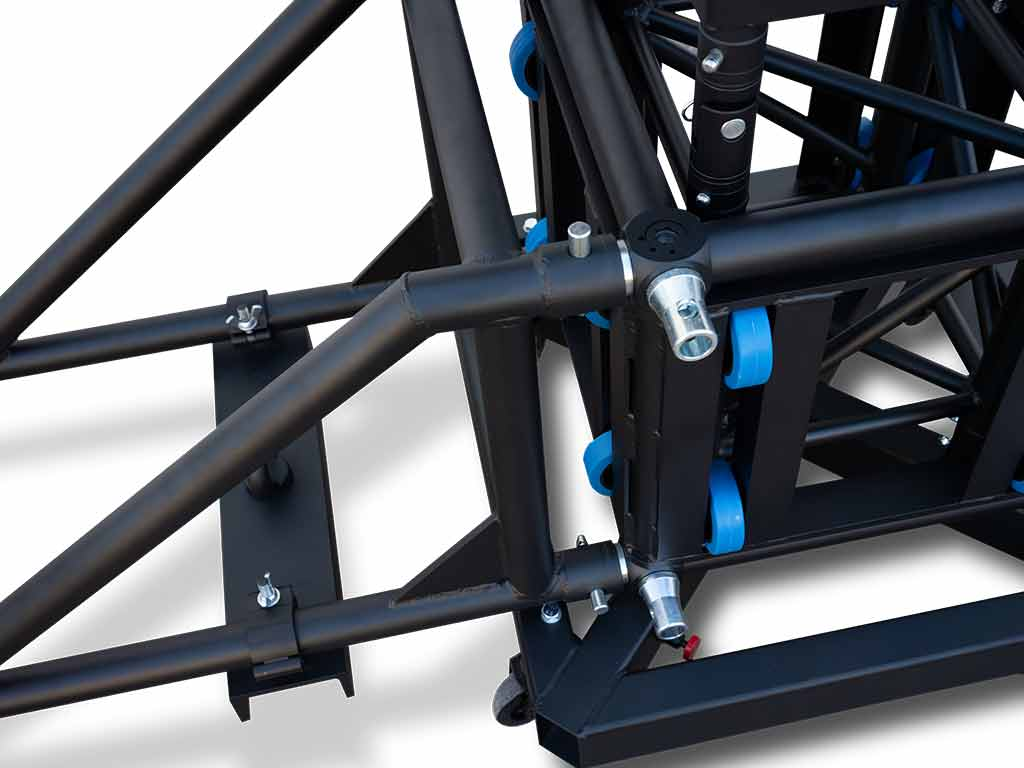

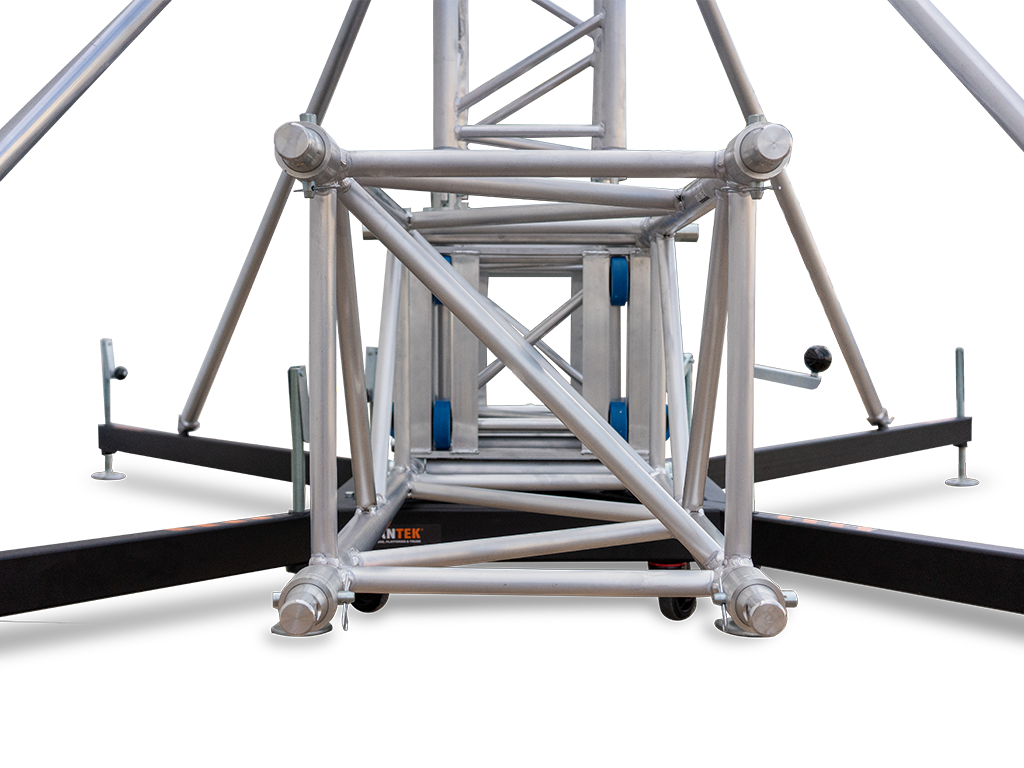

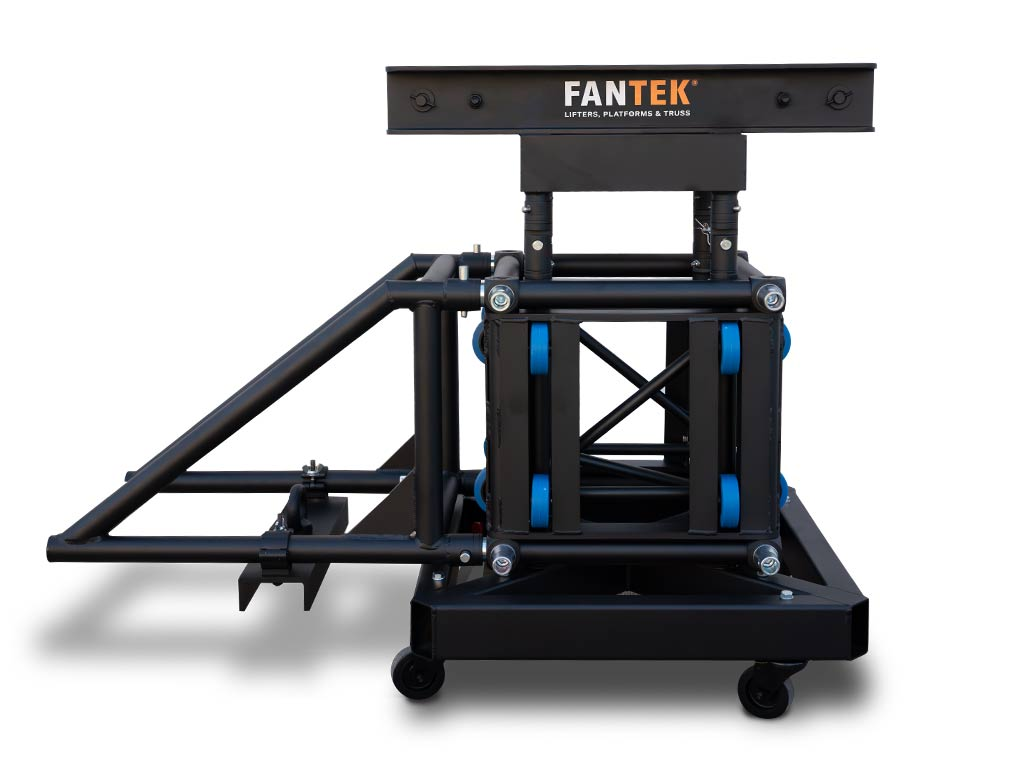

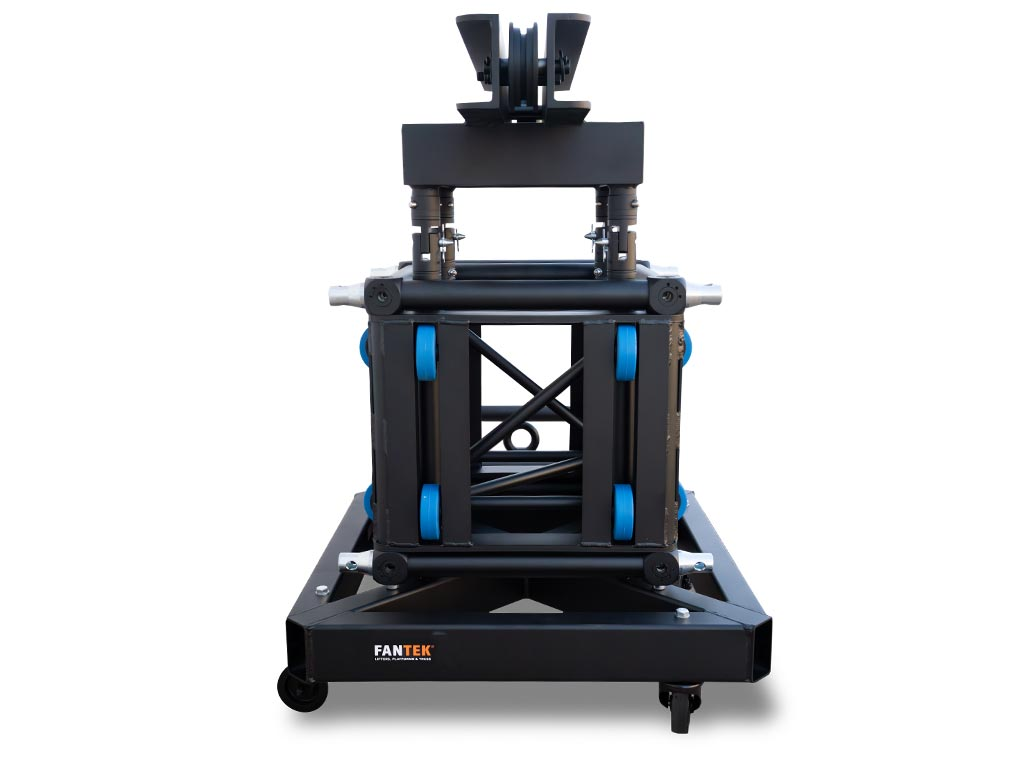

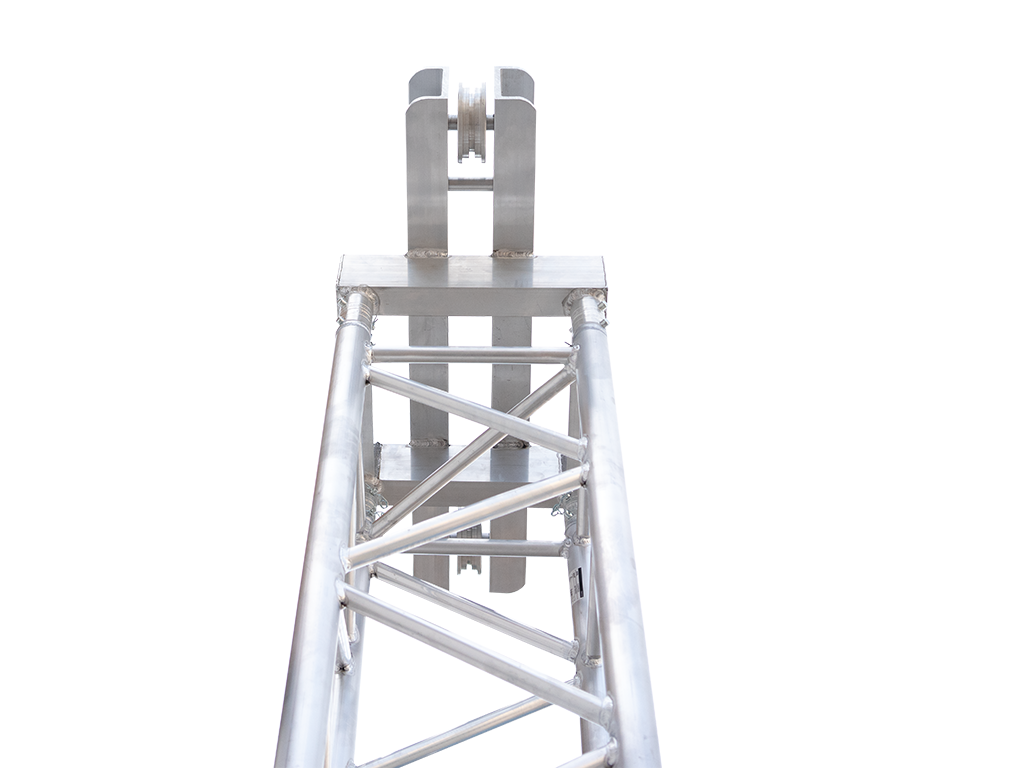

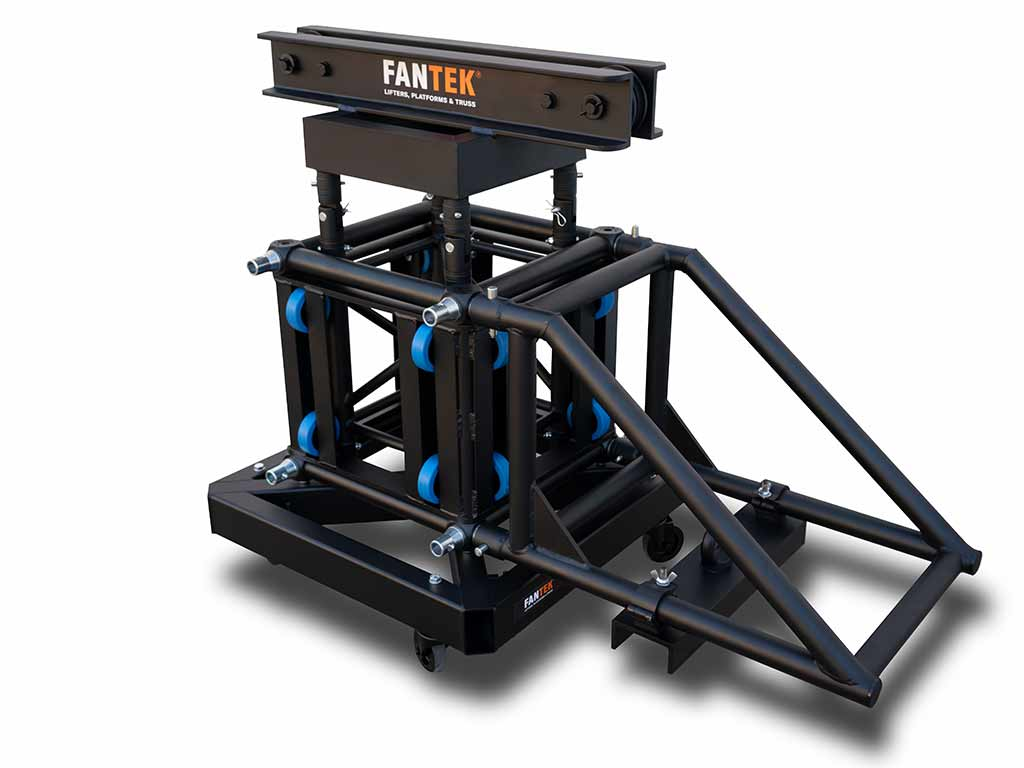

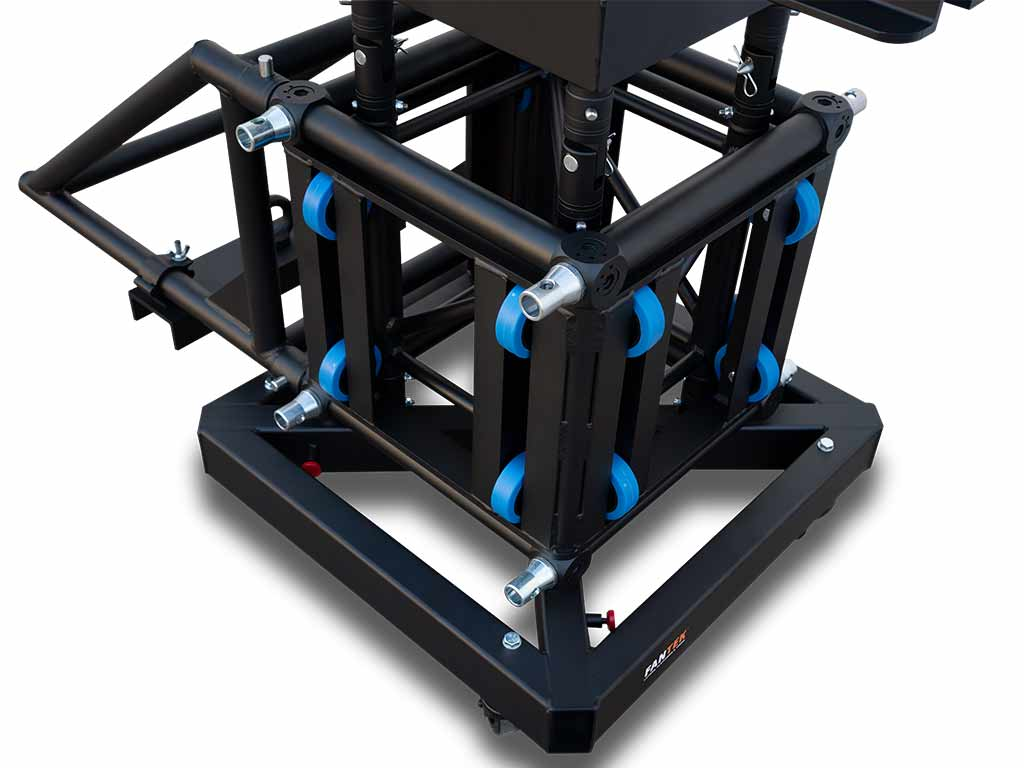

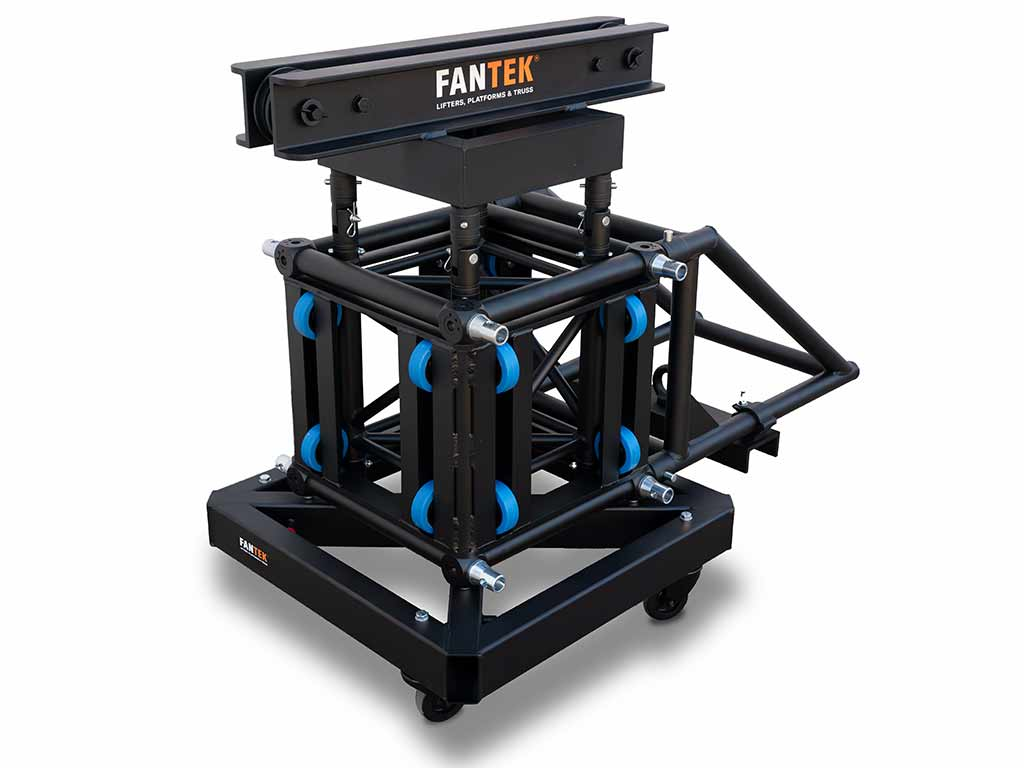

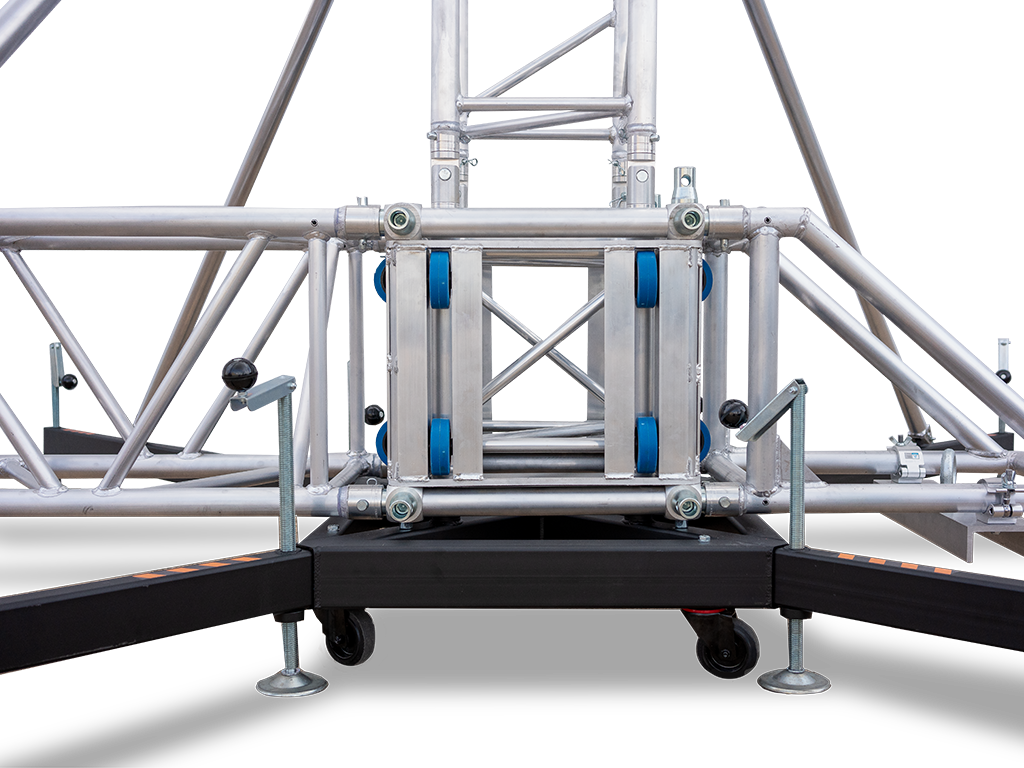

Ground support truss tower with mast truss EC40 PROGS.The mast sections have one side ladder braces disposition to facilitate safe and easy acces to top truss by fulfilling the necessary preventive measures. The tower can be used with our Heavy Duty series and EC40 with the needed adaptator. The GS140 sleeve block is a fully bolted structural element that offers much more precision and resistance than conventional welded units. Silver and black colour available.

Features

  • Truss mast EC40 PROGS.
  • High load series.
  • Easy assembly.
  • Available in 9 and 12 metres.
MaterialAluminium and steel
Maximum height9 m 12 m/ 29,53 ft
No. of sections9 m, 4 tramos: 1xEC4005PROGS+1xEC402PROGS+2xEC403PROGS; 12 m, 5 tramos: 1xEC4005PROGS+1xEC402PROGS+3xEC403PROGS/ 29,53 ft, 5 sections: 1xEC4005PROGS+1xEC402PROGS+2xEC403PROGS; 39,37 ft, 5 sections: 1xEC4005PROGS+1xEC402PROGS+3xEC403PROGS
Maximum Load2000 kg / 4409,25 lb
Elevation systemEngine

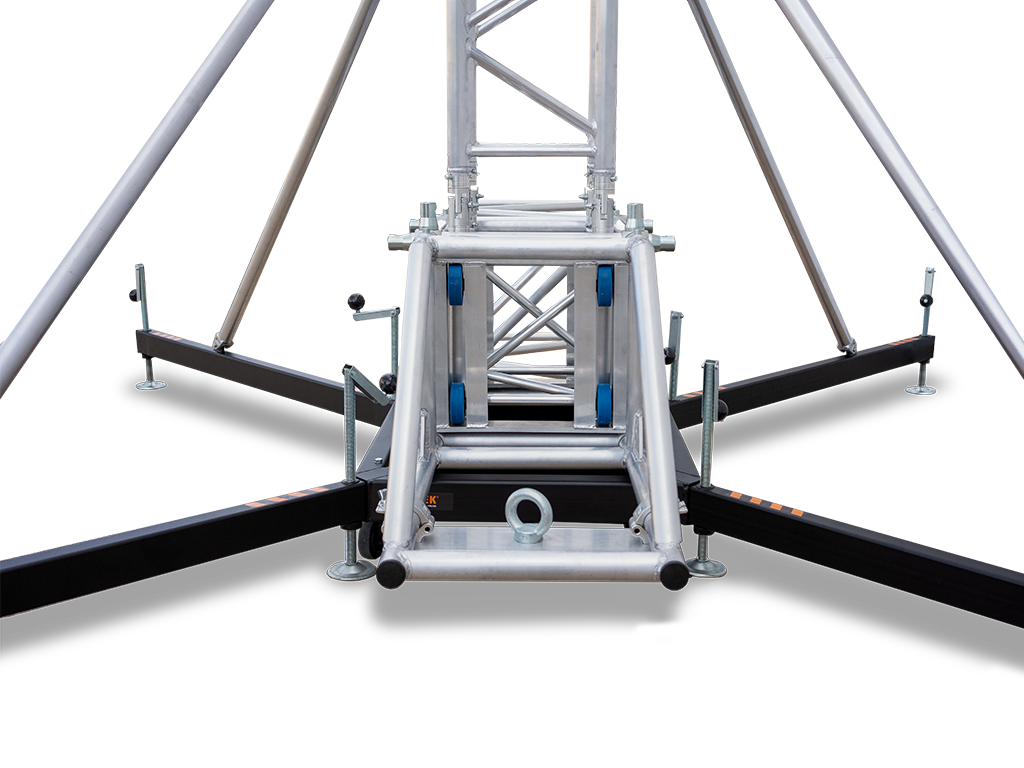

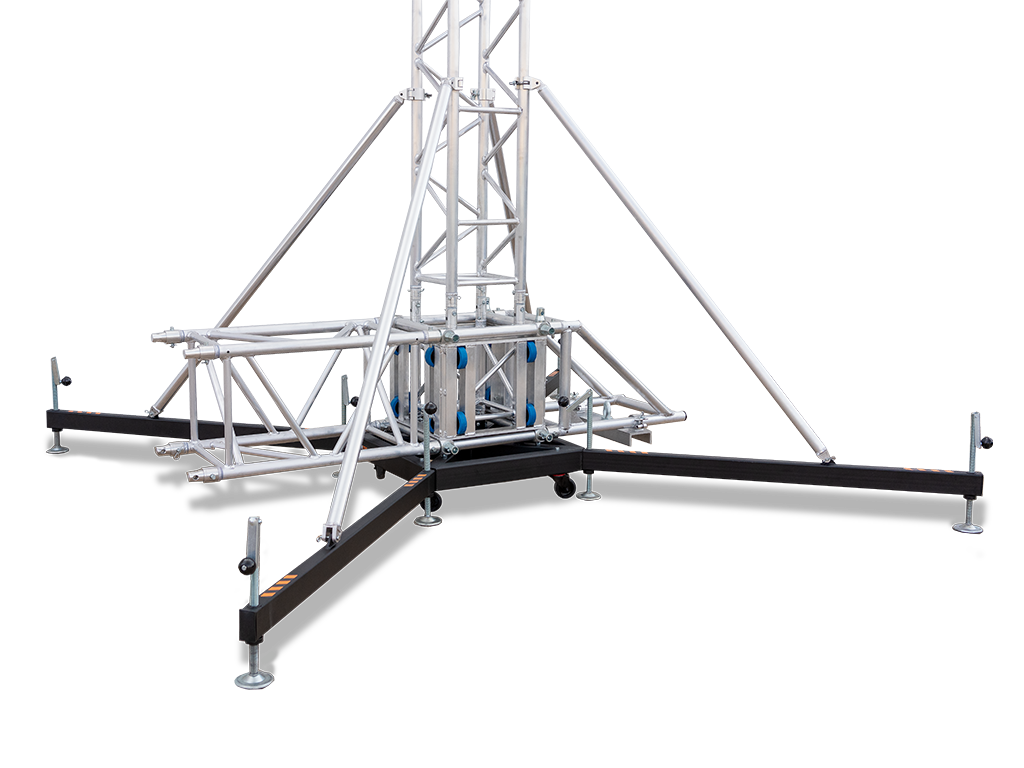

Unfolded base4,35 x 4,35 m (con patas)/ 14,27 x 14,27 ft (with legs)
Folded Base79 x 79 cm (sin patas)/ 2,62 x 2,62 ft (without legs)
Weight253 kg / 557,77 lb
Aluminum thickness4 mm/ 0,16 in
Main tube diameter50 mm/ 1,97 in
Down tube diameter25 mm/ 0,98 in
ColourSilver and Black
Section dimensions39 x 39 cm / 15,74 x 15,74 in
Compatible accessoriesT140-SM / T140-SMPA
Compatible trussEC52, EC76, EC40PROGS
  Manual
Download
  Certificate
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question




Related

  • GSA 140 SM
    Sleeve block motor support for T140.
  • GS140 B76
    T140 tower trolley for lifting EC 76 truss.
  • GS140 B52
    Lifting trolley for T140 tower.
  • GS40Q
    Square truss. 400x400mm. Main tube 50x4mm. Secondary tube 25x3mm. Length 0.5/2/3 m. Silver or black.

Accesories

  • GSA 140 FK40
    Adaptor plate for GS140 tower
