T110T110M7B

Structural tower

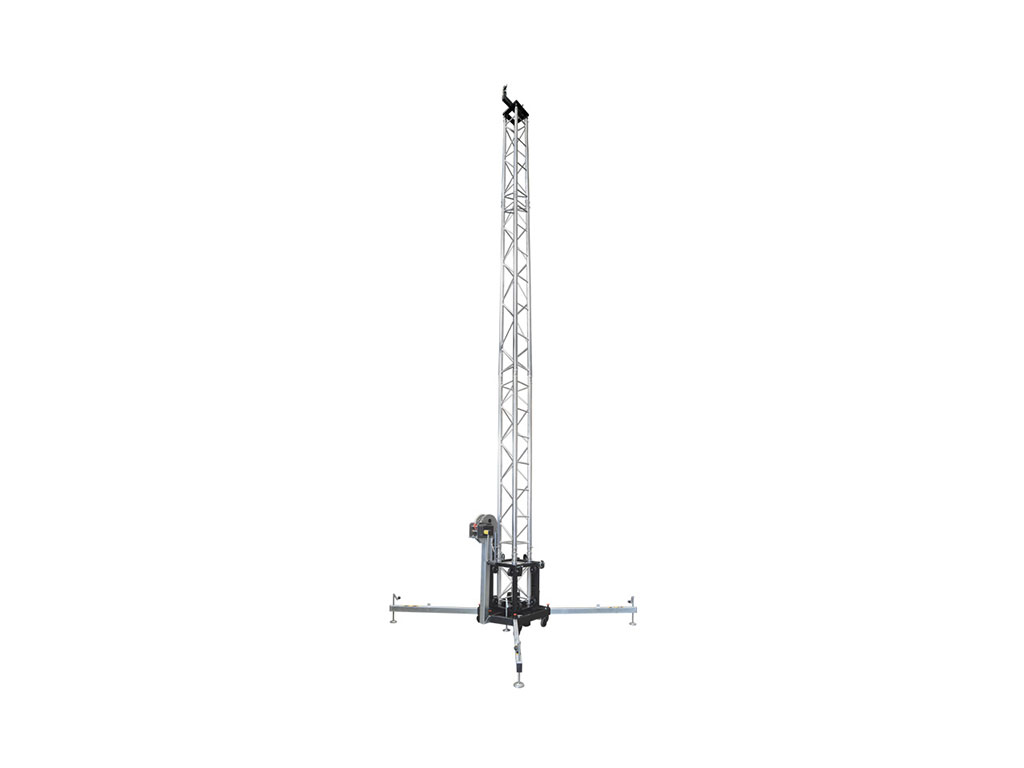

Structural tower with EC30 L truss mast for a maximum working height of 7m and with a capacity of 750 Kg in manual lifting version. To anchor the truss to the tower it is necessary to acquire the accessory ATR-308 or ATR-30845, depending on the truss to be used. Supplied for a height of 7 meters, possibility of adding 1 additional truss section for a maximum height of 8 meters. Silver or Black is available.

Features

EC30 L truss mast.

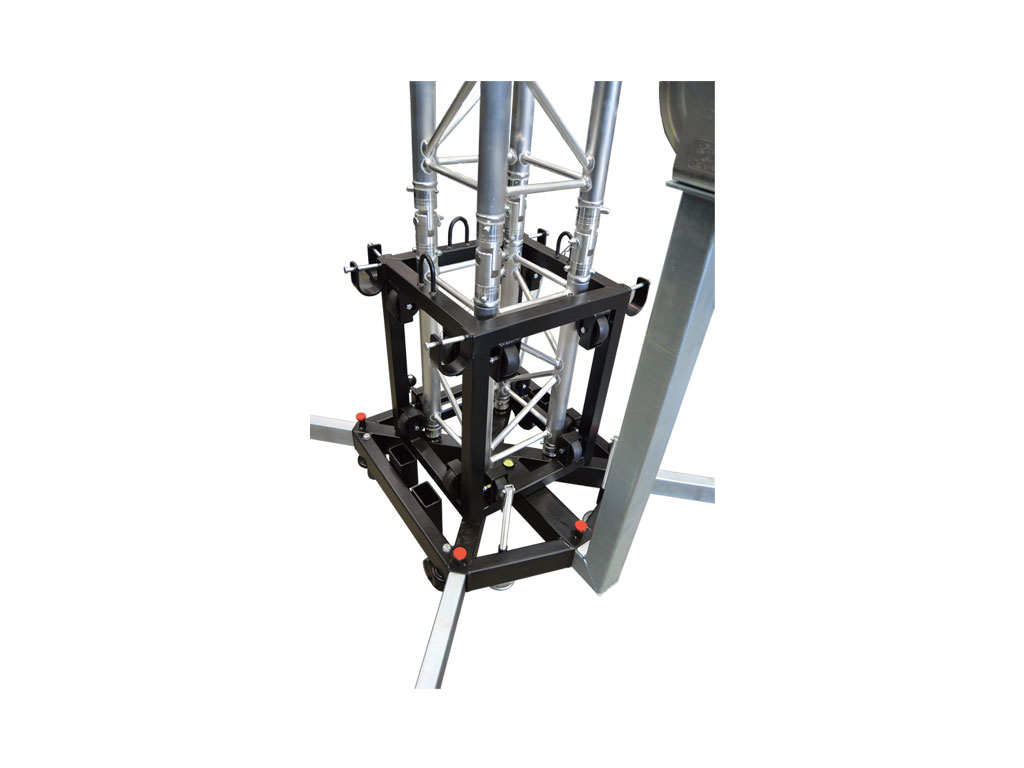

Safety system with locking sling.
Easy assembly.

Material	Aluminum and steel
Maximum height	8 m / 22,96 ft

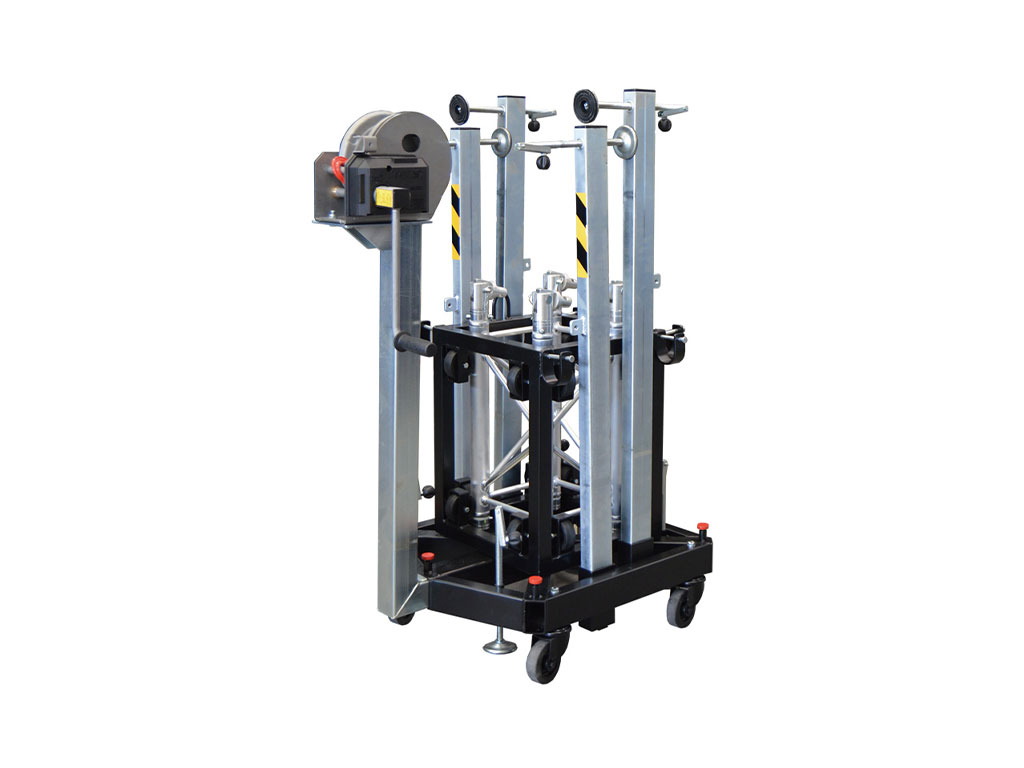

Folded Height	1,35 m/ 4,43 ft
No. of sections	5 tramos: 1xEC30058+2xEC301L+2xEC302L/ 5 sections: 1xEC30058+2xEC301L+2xEC302L
Maximum Load	750 kg/ 1653,47 lb
Max load (mechanism mode)	2645,55 lb
Elevation system	Manual drive (Winch)
Cable diameter	7 mm / 0,28 in
Unfolded base	2,1 x 2,1 m/ 6,89 x 6,89 ft
Folded Base	1,05 x 0,63 m / 3,44 x 2,07 ft

Security systems	T110ESB
Weight	7 m: 195 kg/ 7m: 429,9 lb;
Aluminum thickness	2 mm / 0,078 in
Main tube diameter	50 mm / 1,96 in
Down tube diameter	16 mm/ 0,63 in
Colour	Black and silver
Section dimensions	30 x 30 cm/ 11,81 x 11,81 in
Compatible accessories	T110-SPM / T110-SPMPA / ATR-308 / ATR-30845
