FK45TA
ERP451ERP4505ERP452ERP453ERP4505BERP451BERP452BERP453B

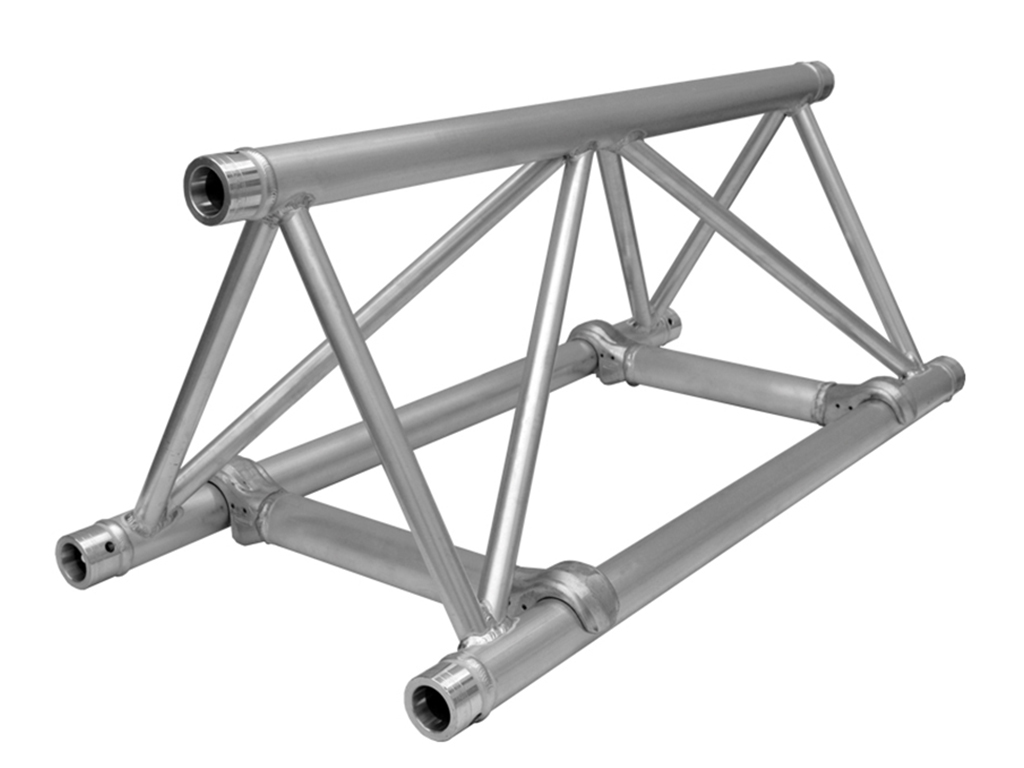

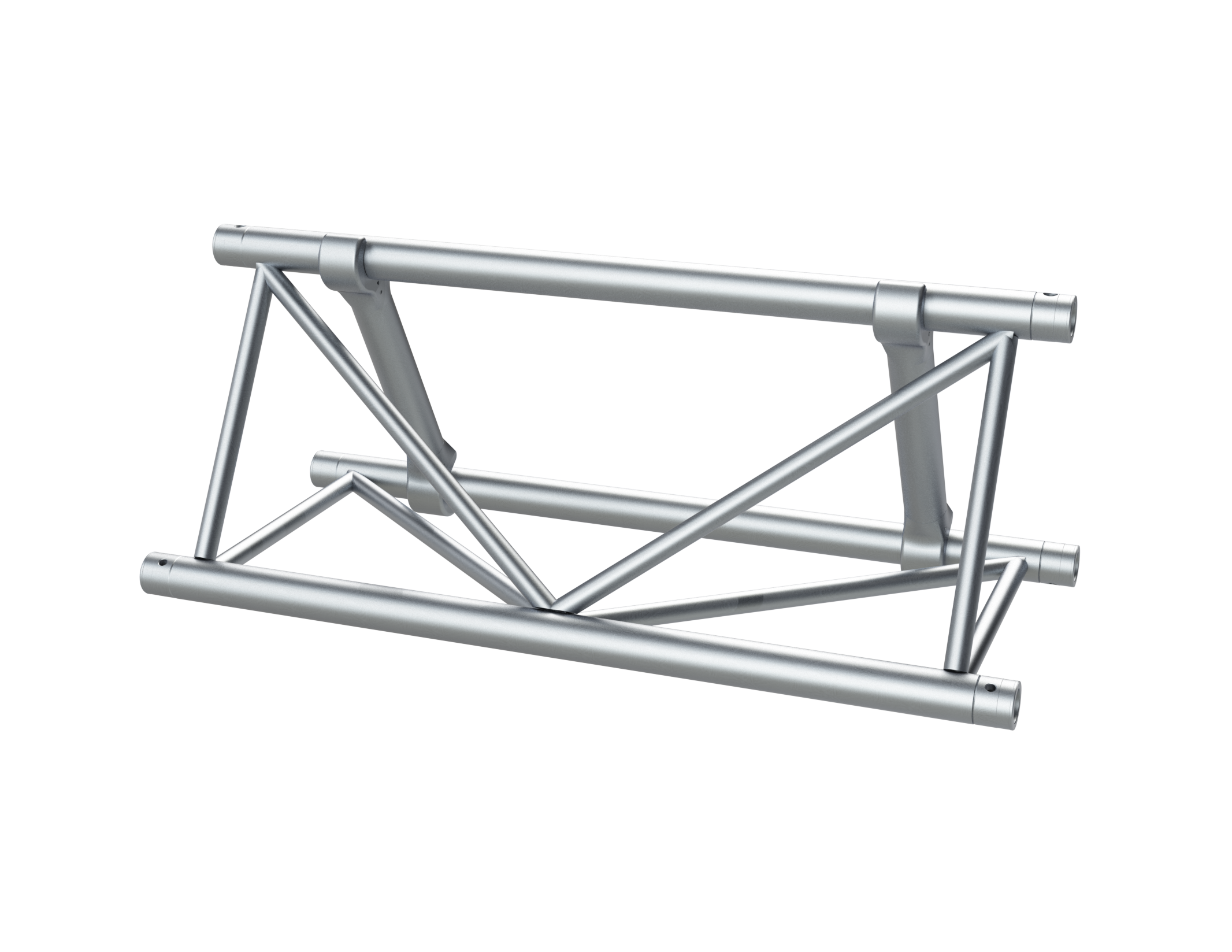

Stackable triangular truss. FK SERIES
Aluminium triangular stackable truss structure section of 45 cm on each side, manufactured with main tube of 50 mm in diameter and 2 mm in thickness, and auxiliary tube of 25 mm in diameter and 2 mm in thickness. It reduces the transport space by 60% compared to the standard ER 45 model, making it the perfect choice for itinerant assemblies. Available in lengths of 0.5, 1, 2 and 3 meters, and in silver or black colour. Includes 3 double cones, 3 pins, 3 threaded pins and 3 'R' safety clips. FK SERIES compatible.
Features
- Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
- Other sizes available on request.
- Available in silver or black colour.
- Other colours available on request.
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 25 x 2 mm |
| Braces Alloy | EN AW 6082T6 |
| Self-Weight | 5,7 kg/m/ 3,83 lb/ft |
| Surface Area Complete Truss | 9,05 cm2/ 1,4028 in2 |
| Coupling System | CBC50F |
| 1.64 feet - Weight | 4,2 kg/ 9,259 lb |
| 3.28 feet - Weight | 6,8 kg/ 14,991 lb |
| 6.56 feet - Weight | 11,6 kg/ 25,574 lb |
| 9.84 feet - Weight | 14,3 kg/ 31,526 lb |
| 1.64 feet - Volume | 0,0506 m3/ 1,787 ft3 |
| 3.28 feet - Volume | 0,1013 m3/ 3,577 ft3 |
| 6.56 feet - Volume | 0,2025 m3/ 7,151 ft3 |
| 9.84 feet - Volume | 0,3038 m3/ 10,729 ft3 |
Certificate | Certificado CE - Truss ERP45 |  | Download |
Datasheet | Tabla de carga / Load chart | | Download |
Application Tip | Datos Truss / Truss Data | | Download |
