Parallel
FK25P H
#ES2505PRO
#ES251PRO
#ES252PRO
#ES253PRO
#ES2505PROB
#ES251PROB
#ES252PROB
#ES253PROB

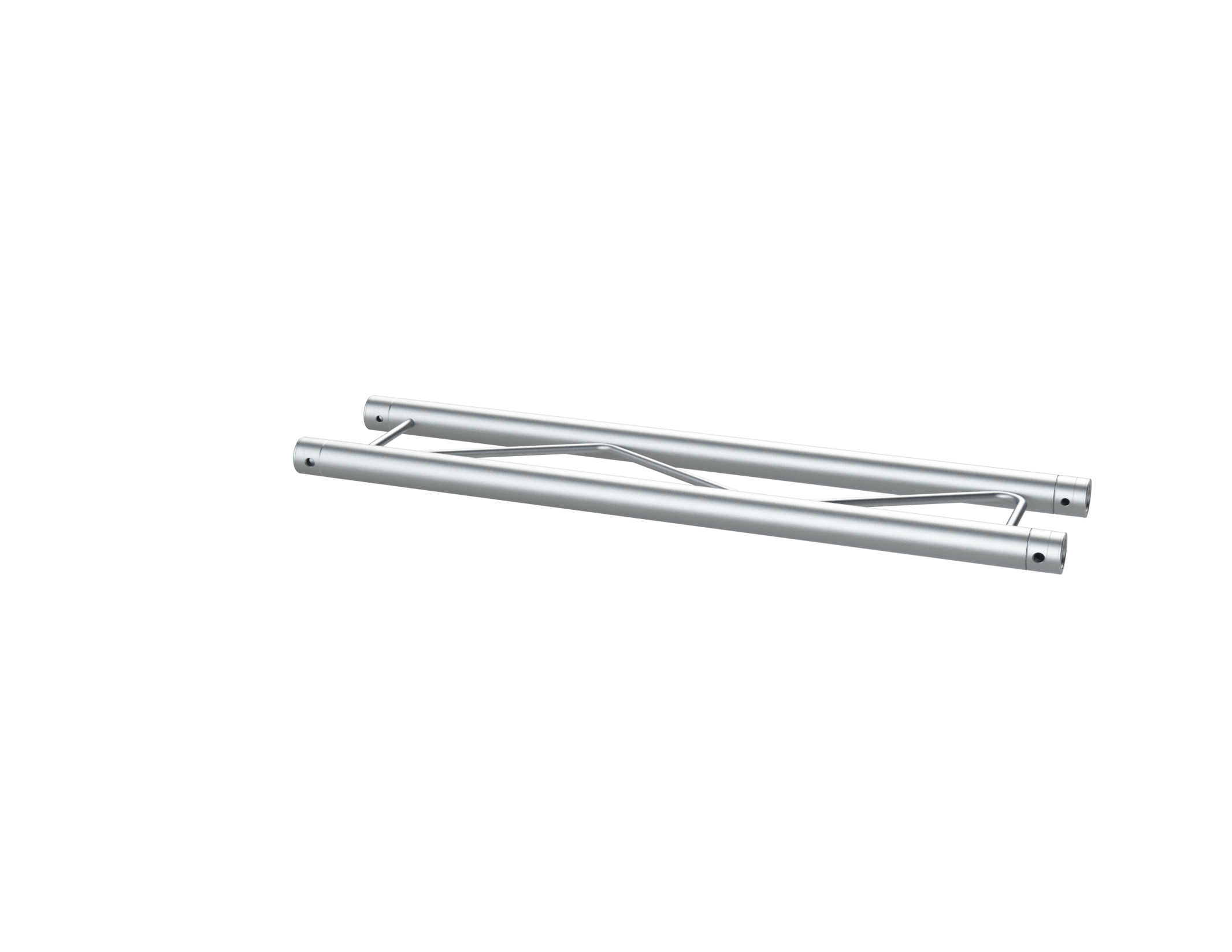

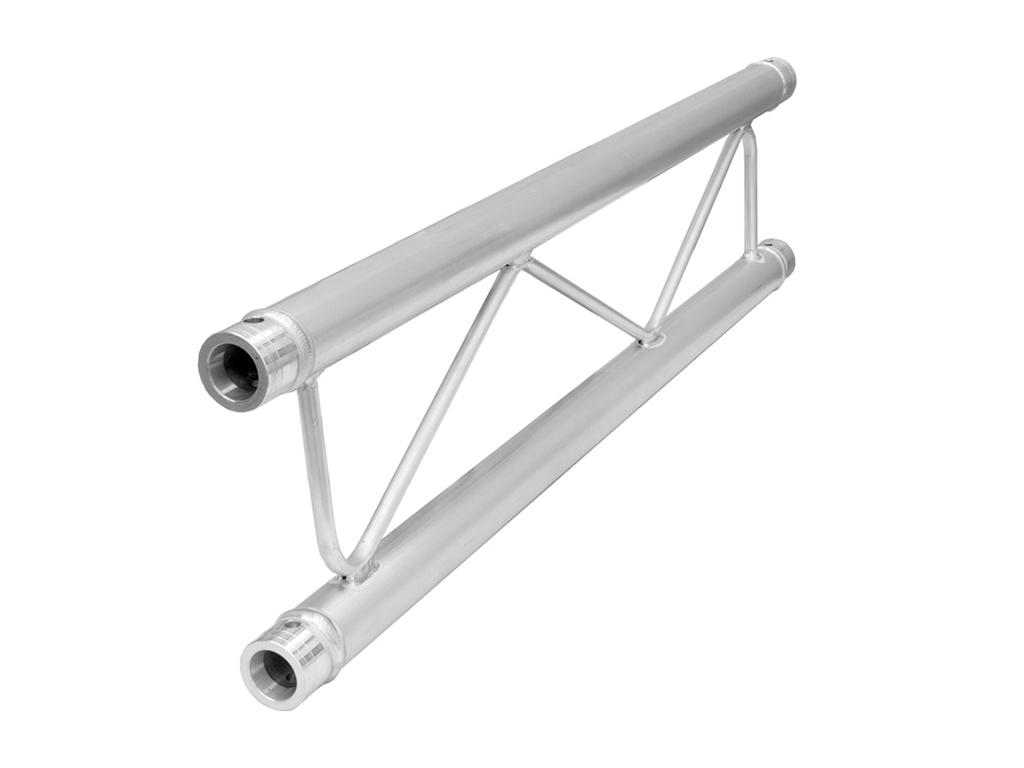

Parallel truss. 250mm. Main tube 50x4mm. Secondary tube 13x1.5mm. Length 0.5/1/2/3 m. Silver or black. F SERIES
Section of 25 cm side aluminium parallel truss structure, manufactured with main tube of 50 mm in diameter and 4 mm in thickness, and auxiliary tube of 13 mm in diameter and 1.5 mm in thickness. Available in sections of 0.5, 1, 2 and 3 meters, and in silver or black. Includes 2 double cones, 2 pins, 2 threaded pins and 2 'R' safety clips. FK SERIES Compatible.
Main information
- Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
- Other sizes available on request.
- Available in silver or black.
- Other colours available on request.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Main Tube Section | 50 x 4 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 13 x 1,5 mm |
| Braces Alloy | EN AW 6060F22 |
| Weight | 3,8 kg/m/ 2,553 lb/ft |
| Surface Area Complete Truss | 11,56 cm2/ 1,7918 in2 |
| Coupling System | CBC50F |
| 1.64 feet - Weight | 2 kg/ 4,409 lb |
| 3.28 feet - Weight | 3,6 kg/ 7,937 lb |
| 6.56 feet - Weight | 7,6 kg/ 16,755 lb |
| 9.84 feet - Weight | 11,2 kg/ 24,692 lb |
| 1.64 feet - Volume | 0,00625 m3/ 0,2207 ft3 |
| 3.28 feet - Volume | 0,0125 m3/ 0,441 ft3 |
| 6.56 feet - Volume | 0,025 m3/ 0,883 ft3 |
| 9.84 feet - Volume | 0,0375 m3/ 1,324 ft3 |
