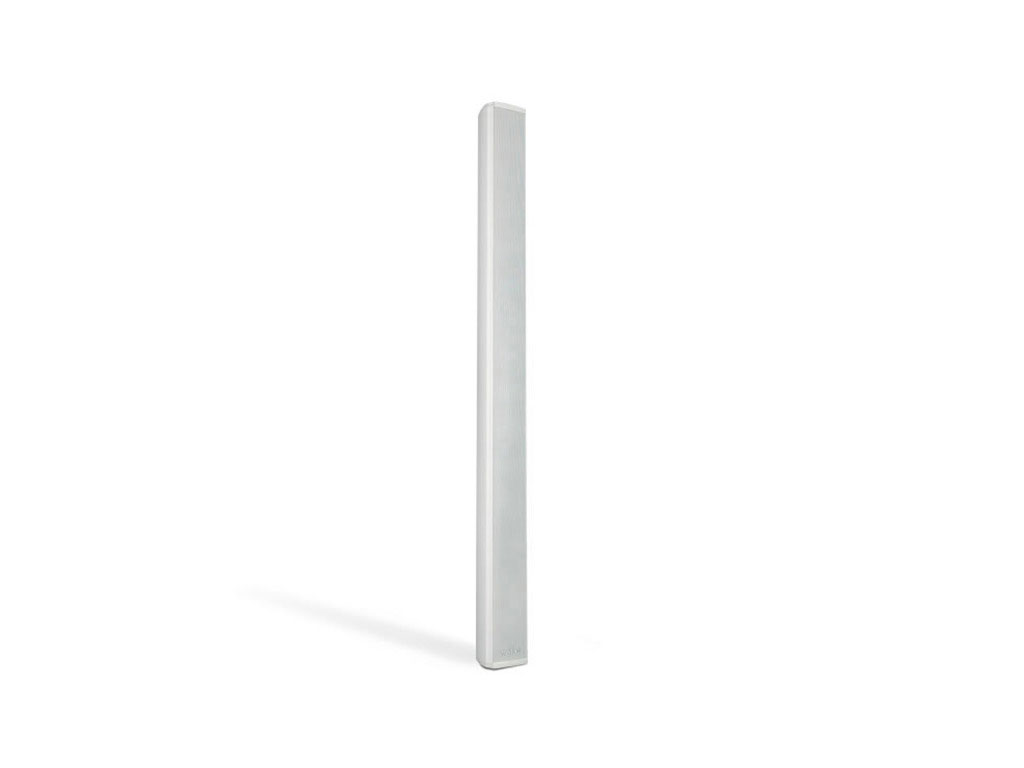

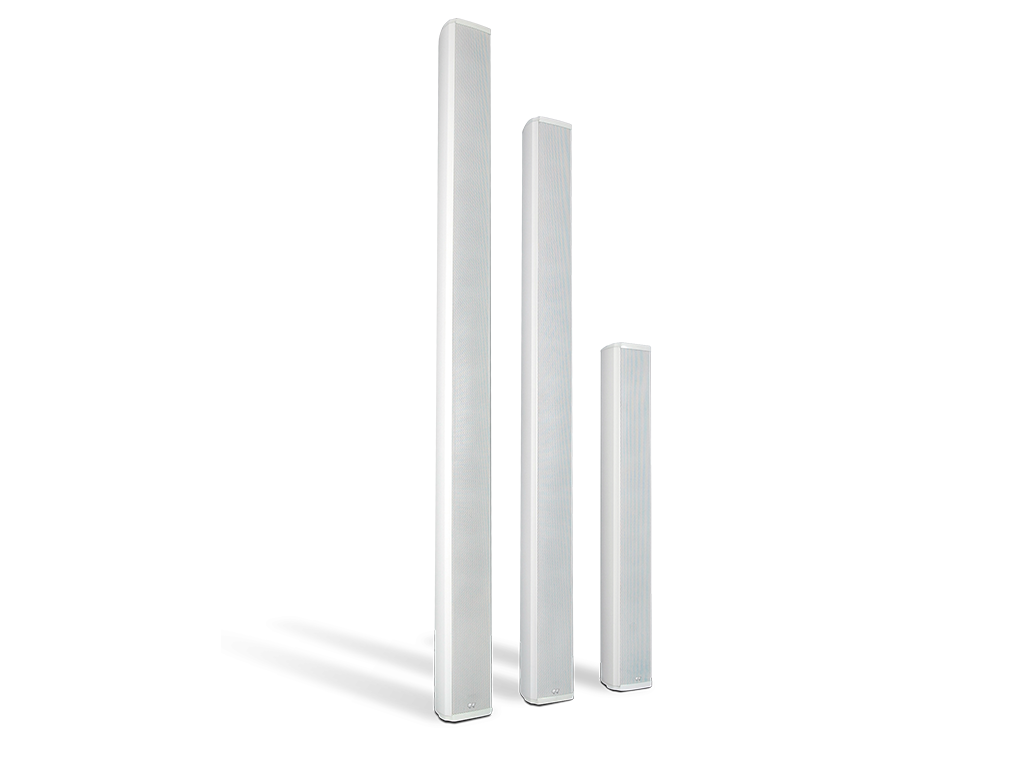

The CS series features three sound columns designed for audio broadcasting in churches, train stations and any other place where message clarity is essential, even with large audio dispersion. All three models can be mounted on any 100V line installation. They include a power selector to adjust the output to the requirements of the installation. Made of aluminium, they have a high IP rating (IP 66) which increases their possibilities, as they are also suitable for outdoor applications.
- IP 66.
- Aluminium enclosure.
- White colour.
- Bracket included.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Passive |
| Transducers | 10 Woofer 2"; Tweeter 1" |
| Power | L100V: 30W/15W/7,5W); L70V: 15W/7,5W |
| Sensitivity | 91 dB |
| Max SPL | 105 dB @ 1W/1m |
| Frequency Response | 180 Hz - 18 kHz |
| Coverage | 165º x 50º |
| IP Protection | IP 66 |
| Material | Aluminium |
| Colour | White (RAL9010) |
| Dimensions | 721 x 75 x 70 mm |
| Weight | 3.1 Kg |
| Includded accessories | Mounting brackets (included) |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.08 | 0.07 | 0.72 | 3.10 |
| Box | 0.76 | 0.13 | 0.13 | 3.42 |
| Master Carton | 0.79 | 0.29 | 0.30 | 14.78 |
