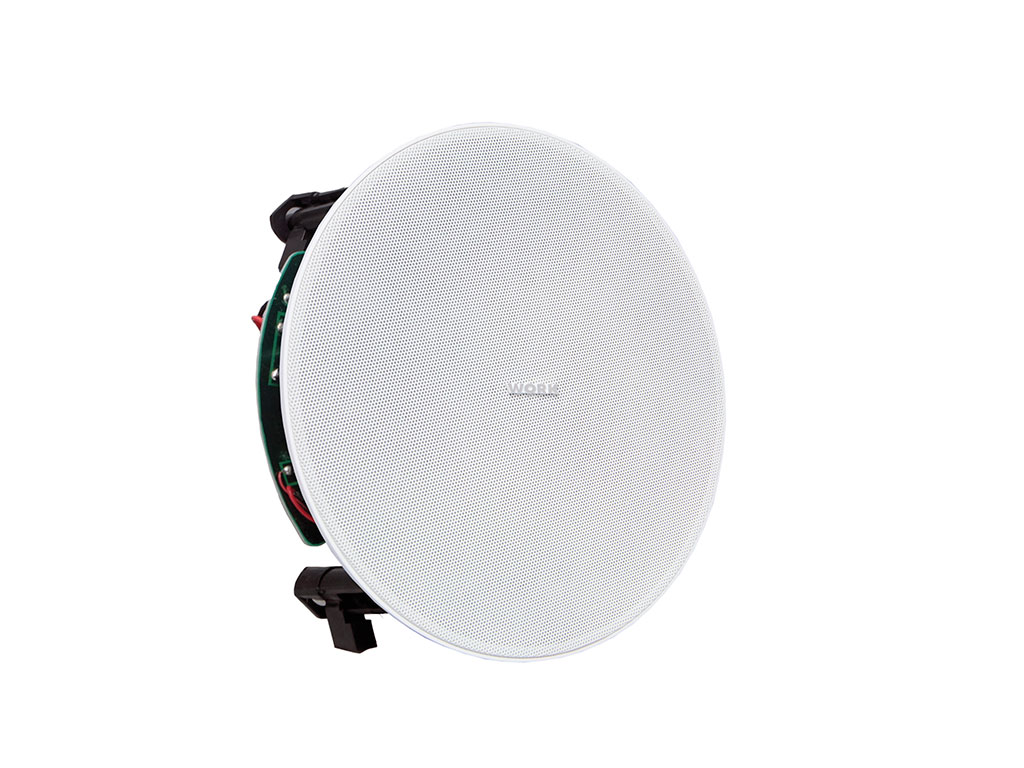

The new CPRO 8 SUB is part of the series of ceiling speakers PURE PRO SERIES, a series known for its quality, design and art. This new speaker is just completing the series, being a subwoofer ceiling, the CPRO 8 SUB incorporates a transducer 8 "capable of delivering up to 40W of power. It allows installation both online low impedance, and high (100V) and depending on this, the professional can choose the desired power by wiring.
- Low impedance and 70/100 V line.
- Grille with magnets.
- Paintable grid cover.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Passive. Ceiling subwoofer |
| Low Impedance Power | 160 W @ 4 Ohm |
| L100V Power | 40 W / 20 W / 10 W |
| LF Transducer | Woofer 8" |
| Frequency Range | 78 Hz - 250 Hz. (± 3dB) / 50 Hz - 315 Hz. (- 10dB) con filtro pasivo dedicado/ 78 Hz - 250 Hz. (± 3dB) / 50 Hz - 315 Hz. (- 10dB) with dedicated passive filter |
| Coverage | Omnidireccional |
| Sensitivity | 90 dB |
| Max SPL | 109 dB / 115 dB peak |
| Mounting diameter | 250 mm |
| Mounting depth | 100 mm |
| Fixation | 3 pivotes rotativos/ 3 rotating pivots |
| Material | Enclosure: ABS plastic; Grille: metal |
| Colour | White (RAL9016) |
| Dimensions | Ø281 x 110 mm |
| Weight | 3.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.28 | 0.28 | 0.11 | 3.10 |
| Box | 0.27 | 0.28 | 0.22 | 3.00 |
| Master Carton | 0.30 | 0.57 | 0.46 | 14.00 |
