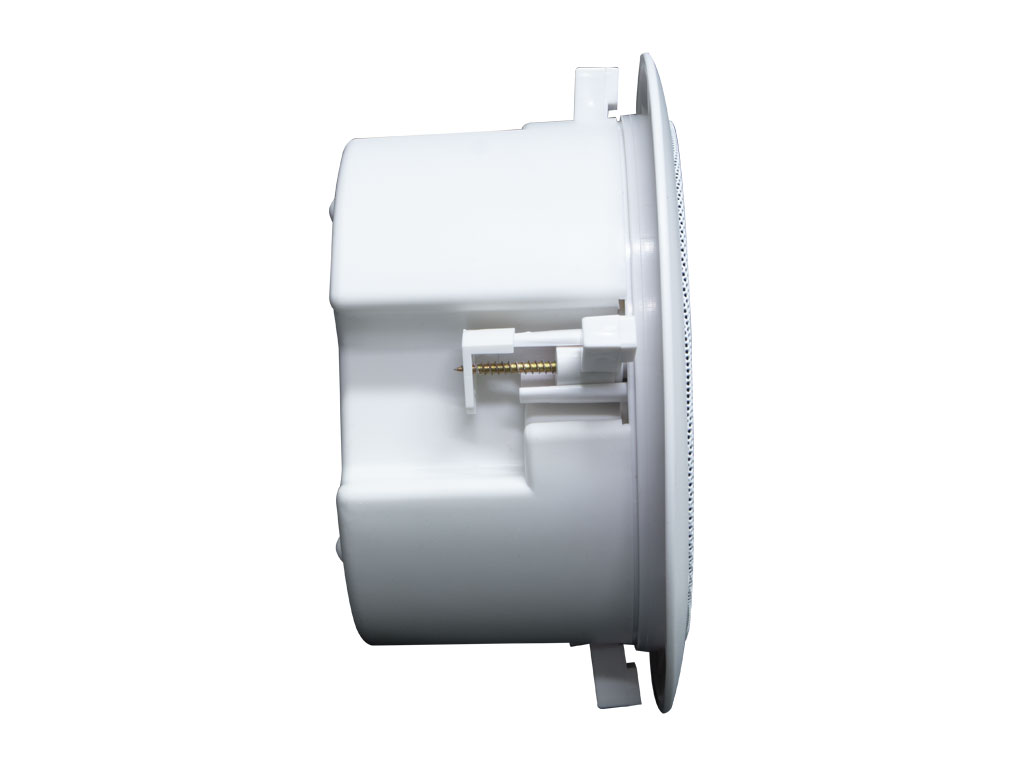

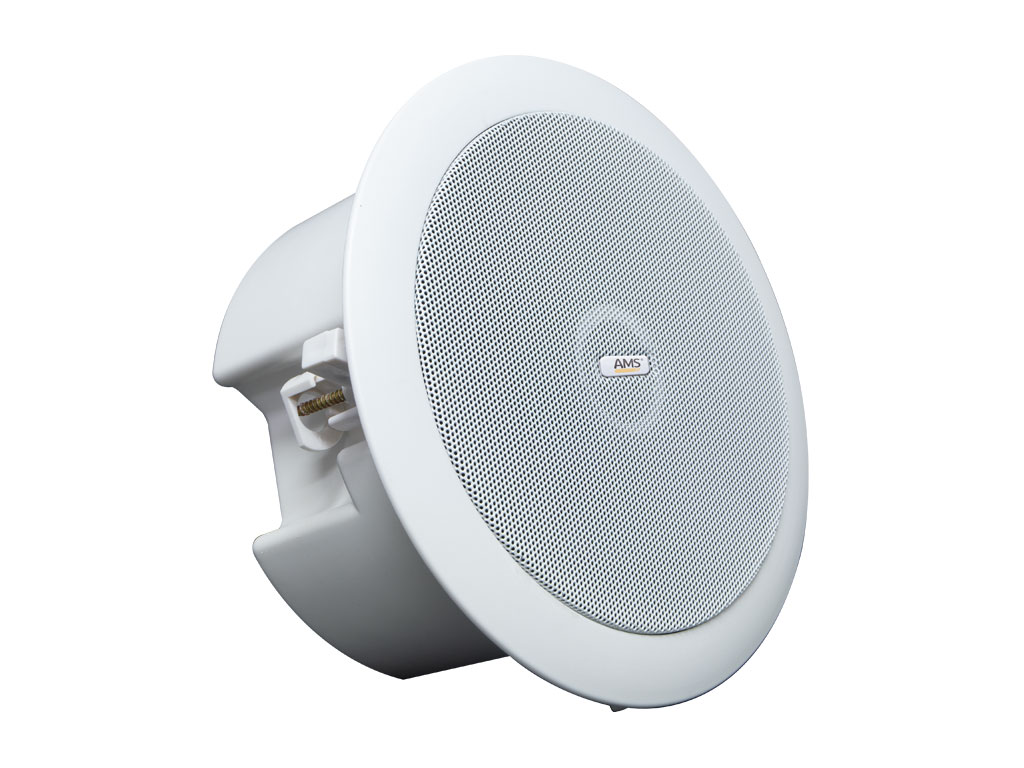

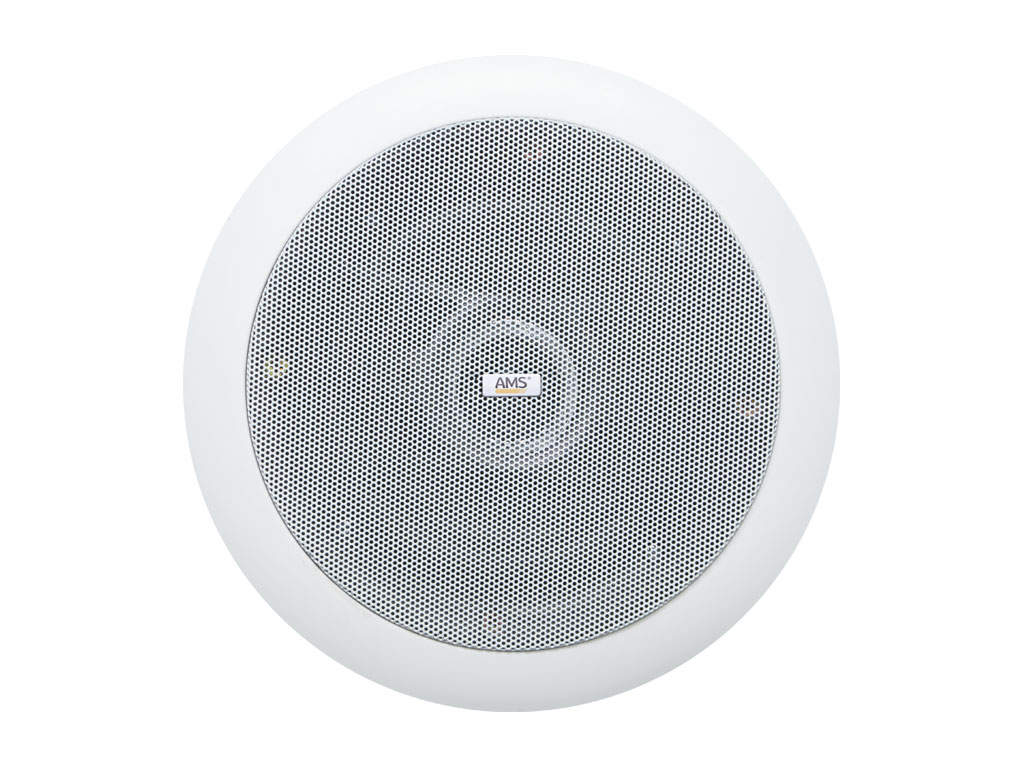

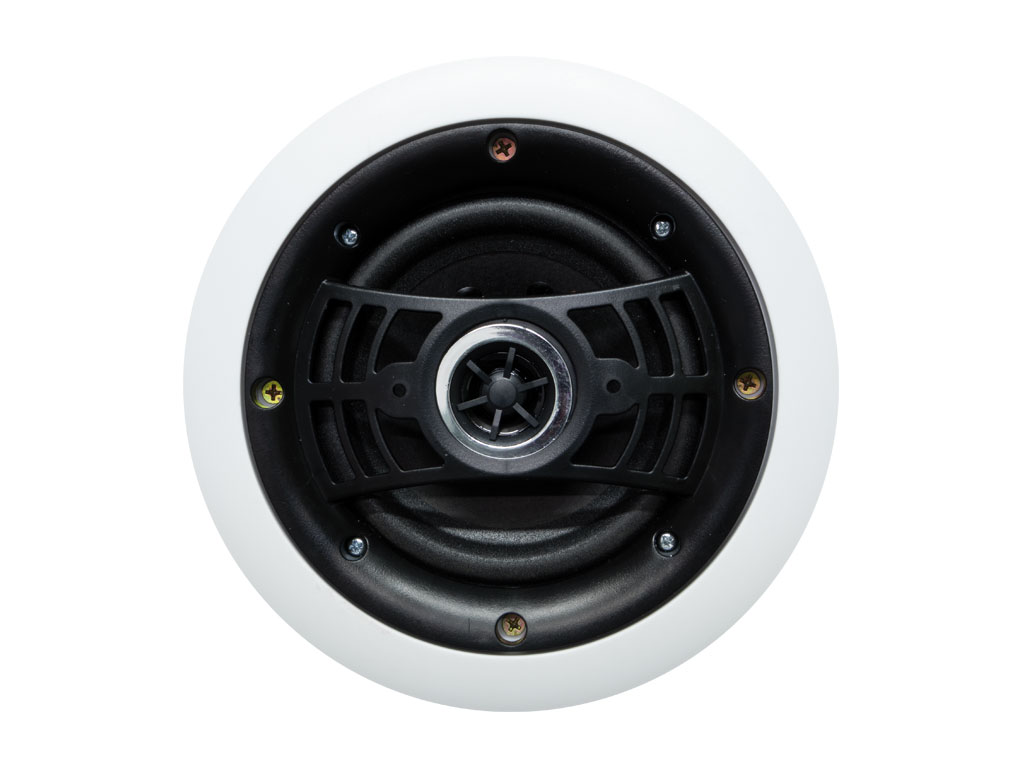

AMT 520 C is a two way ceiling loudspeaker for 100V line installation. It has 2 selectable power ratings (10W and 20W). ABS plastic housing and metal grille. It incorporates a 5" speaker with a 1" tweeter.
- Enclosed area.
- 20/10 W @ L100V.
- Woofer 5 inches + Tweeter 1 inch.
- ABS plastic and metal grille.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | 2 vías. Pasivo/ 2-way. Passive |
| L100V Power | 20 / 10 W |
| LF Transducer | 5" woofer |
| HF Transducer | 1" tweeter |
| Frequency Range | 70 Hz - 12 KHz/ 70 Hz - 20 KHz |
| Sensitivity | 90±3 dB / 90±3 dB |
| Material | Housing: ABS plastic; Grille: metal |
| Colour | White |
| Dimensions | 203 x 105 mm |
| Weight | 1.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.20 | 0.20 | 0.11 | 1.10 |
| Box | 0.21 | 0.21 | 0.11 | 1.20 |
| Master Carton | 0.43 | 0.64 | 0.39 | 24.00 |
