Professional Audio
AMT 100
AMT01100
TESTER
Multi-function cable tester sender/receiver

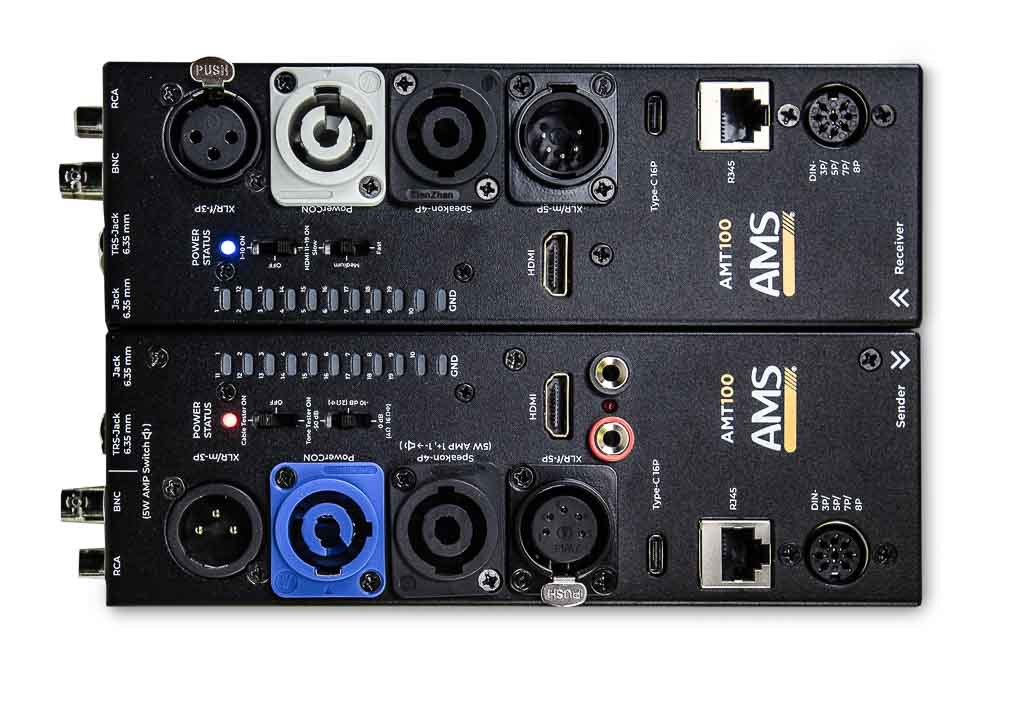

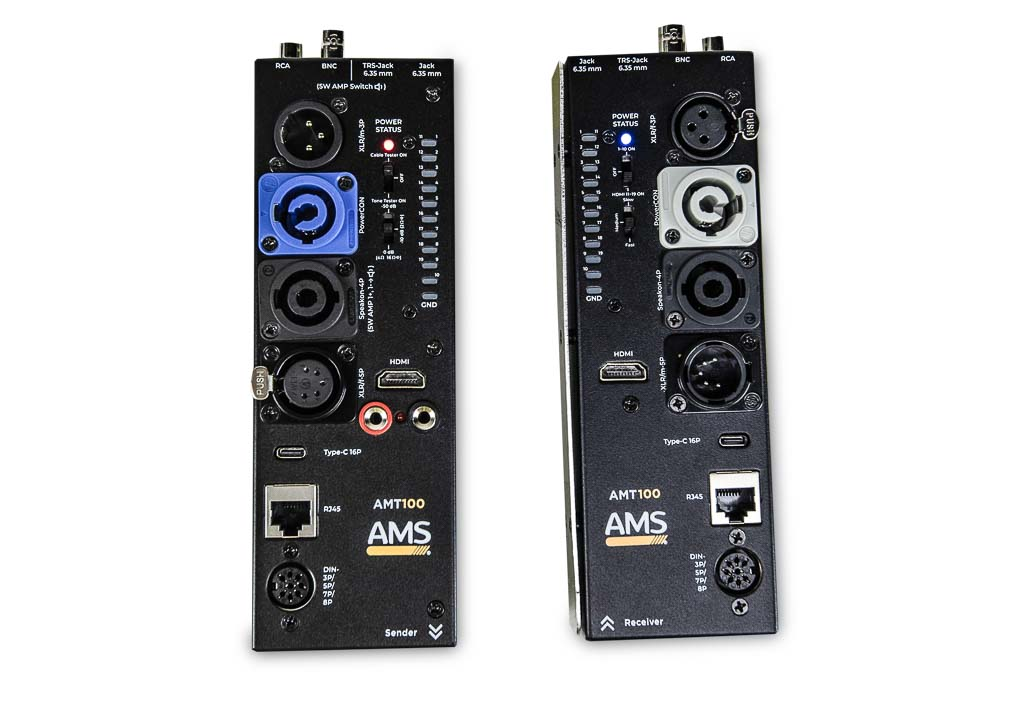

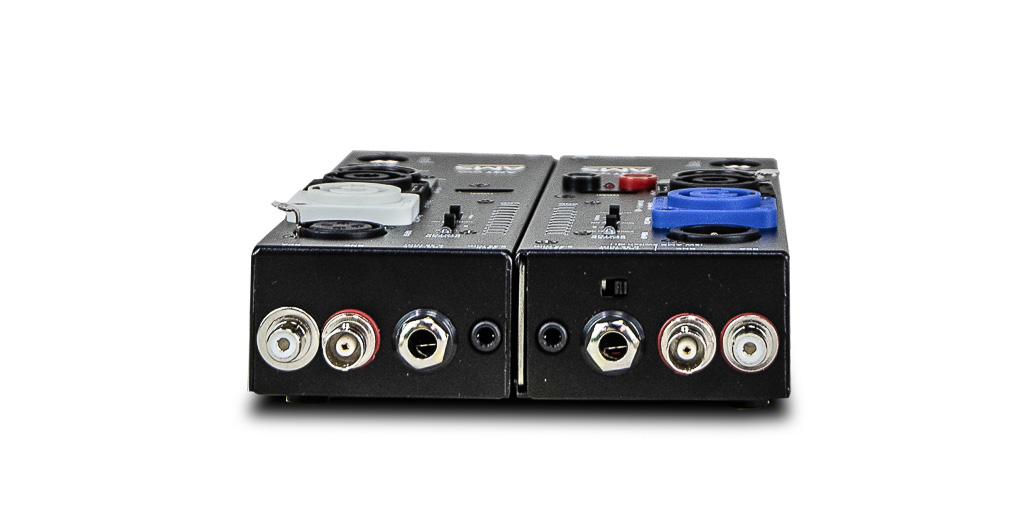

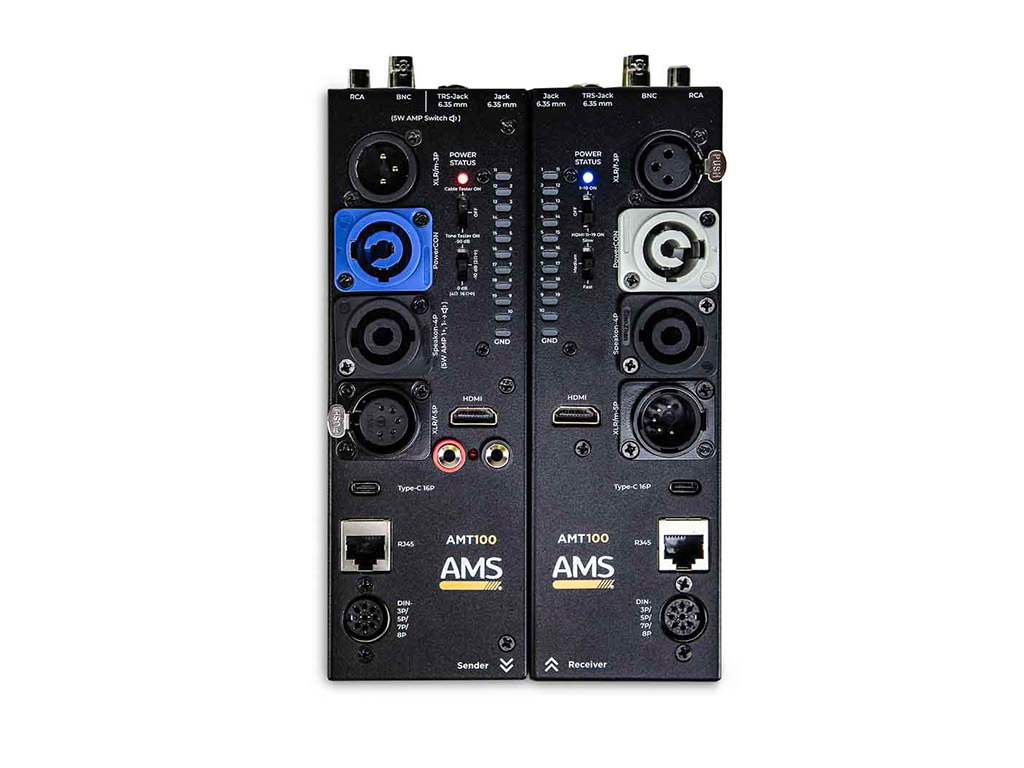

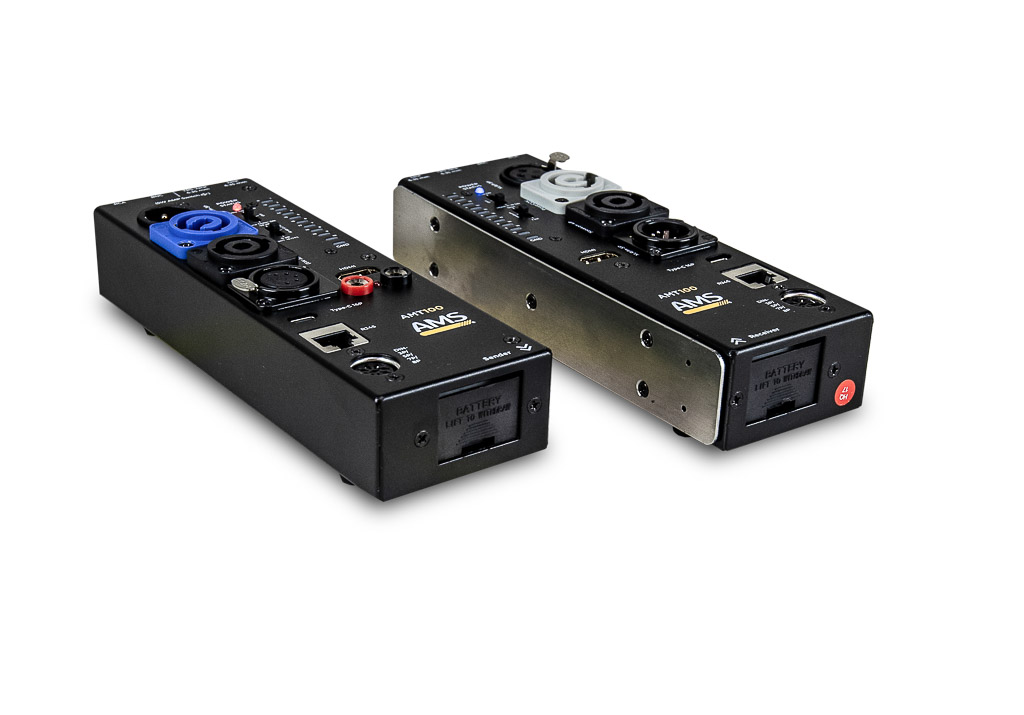

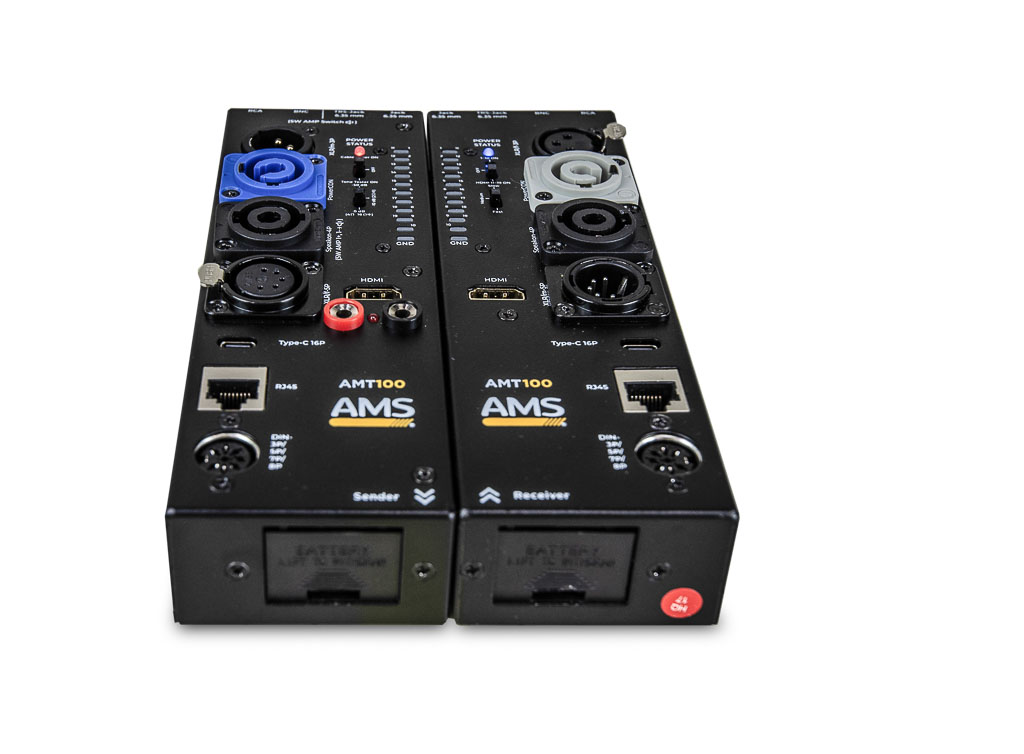

Multifunction cable tester consisting of 2 modules (transmitter and receiver) ideal for testing already installed cabling, allows testing of HDMI, Jack 3.5 & 6.3 mm, powerCON, XLN4, XLR3 y XLR5, DIN 3/5/7/8 pins, RCA, BNC, RJ45 and USB type C.
Built-in audio signal generator. Powered by 2 x 9V battery.
Features
- Emitter & Receiver
- DMI, Jack 3.5 & 6.3 mm, powerCON, XLN4, XLR3 y XLR5, DIN 3/5/7/8 pins, RCA, BNC, RJ45 and USB type C
- Audio signal generator
- Through-wall cable test option
| Dimensions (HxWxD) | 190 x 127 x 30 mm |
| Power supply | 2 x 9V battery |
| Connections | HDMI, Jack 3.5 & 6.3 mm, powerCON, XLN4, XLR3 y XLR5, DIN 3/5/7/8 pins, RCA, BNC, RJ45 and USB type C |
| Other functions | Separable transmitter and receiver for testing installed cabling |
Manual | AMT_100_MANUAL_1_0 | Download |
