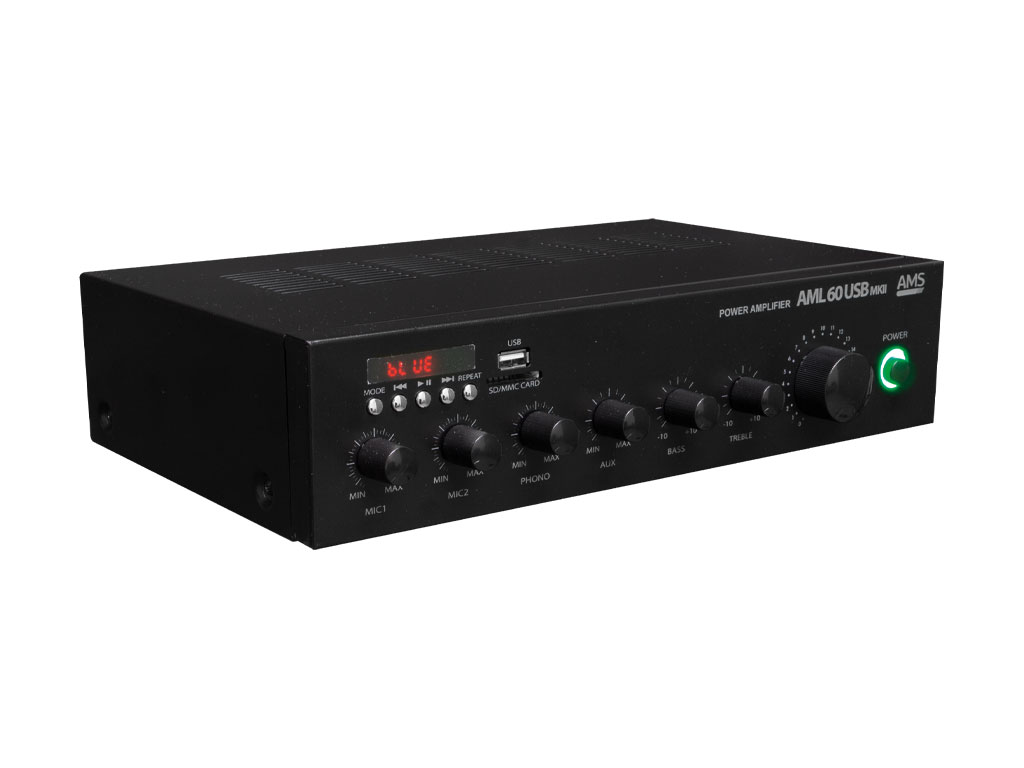

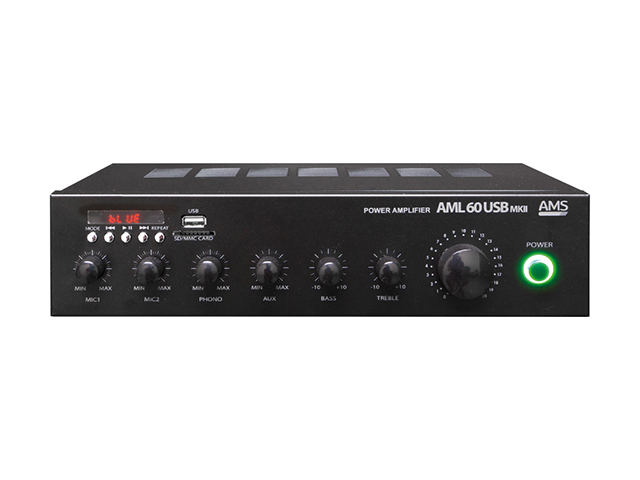

AML 60 USB MKII is an installation mixer/amplifier which can work in low impedance (4-8?) as well as in 70/100V line. It includes 4 input sources (1 AUX+ 1 PHONO + 2 MIC), being one MIC input (MIC 1) with priority. The unit incorporates a USB/SD interface for external audio files as well as Bluetooth and FM radio connectivity. Therefore, it is possible to send audio files from a smartphone or similar devices. The display shows all the audio track information, operating mode, volume level, track number or time elapsed.
The amplifier includes 2 tone controls and individual gain input volume. Also, it is possible to connect the device to an emergency supply (DC 12V-24V). The digital sources control can be made through the included remote control.
The possibility to operate in 70/100V line and the variety of audio sources types, make it very suitable for a big number of installations: offices (like background music and news), schools, shops, or conference rooms.- 60 W @ 4 Ohm, 8 Ohm, 16 Ohm, Line 70/100 V.
- USB/SD interface.
- Bluetooth/FM radio.
- Remote control.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Power | 60 W. Baja impedancia y línea 70/100 V/ 60 W. Low impedance and 70/100 V line |
| Input Sensitivity | MIC (-55 dB) / AUX (-20 dB) |
| Frequency Range | 100 Hz - 18 KHz / 100 Hz - 18 KHz |
| S/N Rate | > -55 dB |
| THD | < 1% at 1 kHz |
| Equalization | Tone control. Bass: ± 10dB @ 150 Hz, Treble: ± 10dB @ 6 kHz |

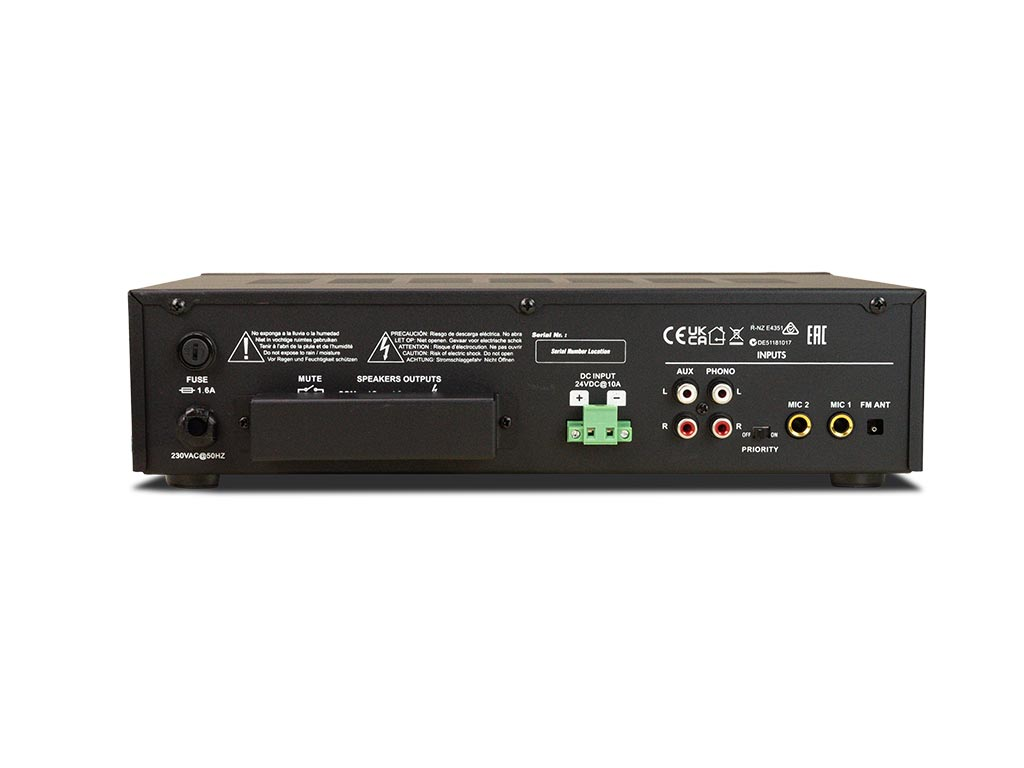

| Connections | RCA: AUX/PHONO input. TS¼" jack: Microphone (1, 2). Terminals: Outputs and priority |
| Power supply | AC 210/240V AC - 50 Hz Emergency: DC 12-24V |
| Dimensions | 320 x 80 x 240 mm |
| Weight | 4.9 Kg / 4.9 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.24 | 0.32 | 0.08 | 4.90 |
| Box | 0.28 | 0.38 | 0.14 | 5.20 |
