To be discontinued

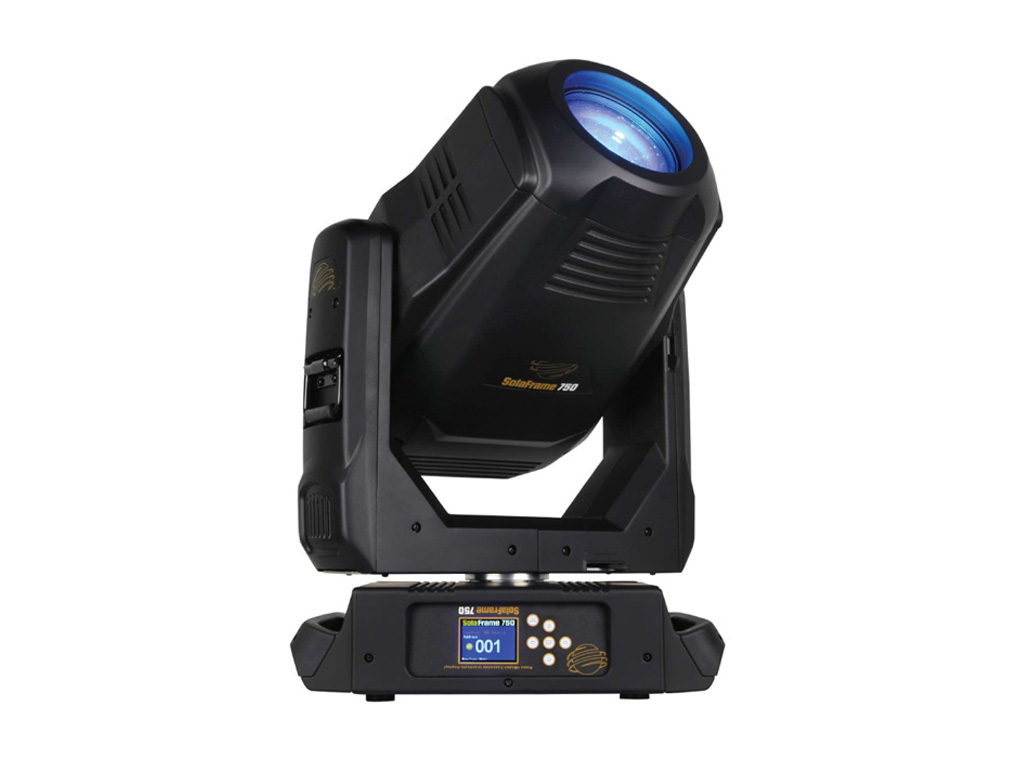

SOLAFRAME 750

83END022

Moving head. White LED 270W. 11300 lumens. RDM. Zoom 6°-50°

SolaFrame 750 is the newest and smallest framing fixture in the Sola Series family of automated tools. Featuring a compact footprint but a huge feature set, SolaFrame 750 is a perfect fit for smaller to medium-sized venues, and its 11,300 lumens can easily cut through the competition.

With 6°-50° zoom, rotating gobo wheel plus fully continuous animation and much, much more, SolaFrame 750 offers the widest array of effects currently available in a fixture of its size.



FEATURES
  • Modular Construction
  • Fast Service Design
  • Electronic Cooling System Control
  • LED Type: 270W Bright White Engine
  • LED Hours: 70% Luminous output, 50,000 hours
  • Active Thermal Control
  • Fan Modes: Standard / Continuous / Studio
  • RDM Compatible
  • Control Options: DMX 512 / RDM / ArtNet / sACN
  • DMX Channels: 47
  • Pan: 540°
  • Tilt: 265°
  • Max Speed Pan 360° (seconds): 2.27
  • Max Speed Tilt 180° (seconds): 1.31
  • Full Color LCD Display W/ Battery Mode
  • 5-Pin DMX/RDM Connector
  • Ethernet In and Passive Thru
  • PowerCON TRUE1 Connector
  • Pan and Tilt Locks
  • Road Case Included with Single and Double Capability

OPTICAL
  • Framming Shutter System
  • CMY / CTO: Linear
  • Lens Defog System
  • Iris
  • Zoom Range: 6 to 50 degrees
  • Auto-Focus Function
  • Animation: Rotating
  • Light Frost
  • Rotating 3 Facet Prism

PHOTOMETRICS
  • Lumens: 11,300
  • CRI: >70
  • Color Temperature: 7000K
  • ELECTRICAL
  • Input Power Rating: AC 100V - 240V 50/60 Hz
  • Auto Switching Power Supply
  • 33 dBA: Full Intensity, Static Position
  • 5.6 Amps at 100V to 2.2 Amps at 240V
  • 500W Maximum potential wattage

DIMENSIONS / PHYSICAL
  • Fixture Weight: 28.6 Kg (63 Lbs)
  • Packing Gross / Shipping Weight: 72.7 Kg (160 Lbs)
  • Shipping Dimensions (H x W x L): 915 x 570 x 625 mm (36 x 22.4 x 24.6 in)
  • Min Distance to Flammable Objects: 0.5m (1.64 ft.)
  • Min Distance to Lighted Objects: 1.5m (4.9 ft.)
  • Operating Temperature: -20 to 60° (0 to 140°F)
  • Compliance Approvals: CE, ETL
